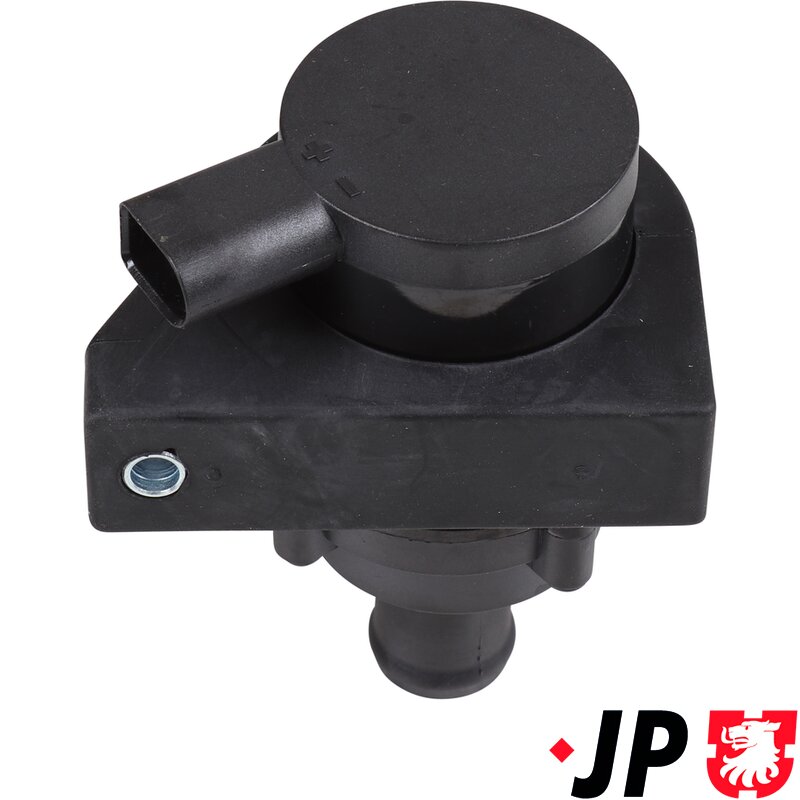

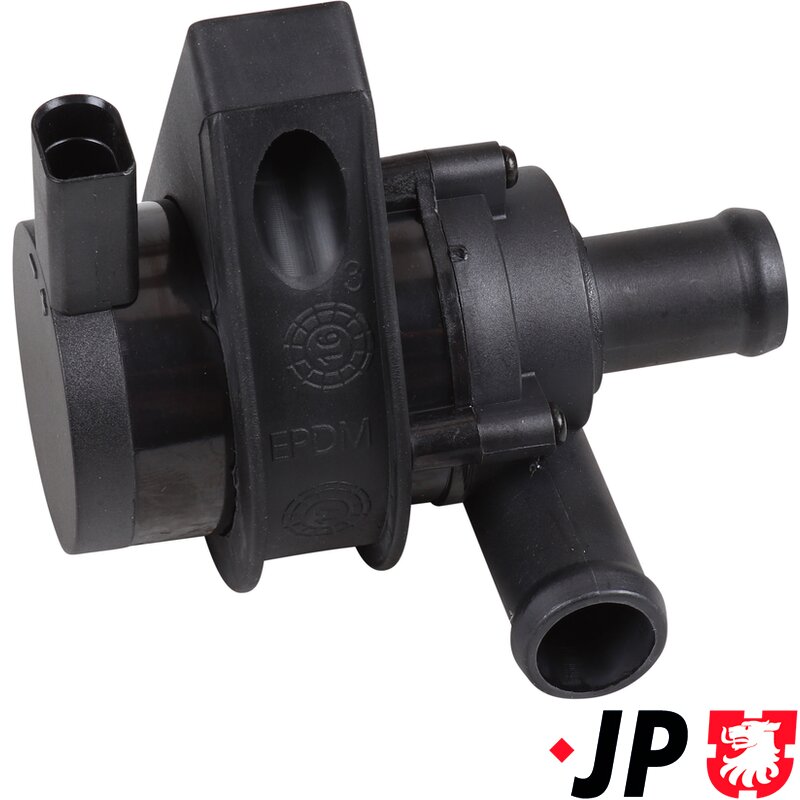

T5 Water Pump (Auxiliary)

Replacement electric auxiliary water pump for the cooling system fitted to a wide range of VW T5 Transporter, Multivan and California models. This pump helps circulate coolant independently of engine speed, improving coolant flow through the heating and cooling circuits during specific operating conditions.

Auxiliary water pumps are commonly used to support cabin heater performance, turbocharger cooling and coolant circulation after engine shutdown. On many T5 applications, the pump continues circulating coolant after the engine is switched off to help stabilise temperatures and reduce heat soak within the engine and turbo system.

A failing auxiliary pump can cause poor heater performance, overheating issues, coolant circulation faults or fault codes within the cooling system. Common symptoms include intermittent cabin heating, noisy operation or coolant circulation warnings.

This is a 12V electrically operated unit with a 2-pin connector, designed as a direct replacement for the original factory-installed pump.

Fitment

Watercooled VW

• VW Transporter T5: 04/2003–08/2015, 1.9D, 2.5D, 2.0 petrol, 3.2 petrol
• VW Multivan T5: 04/2003–08/2015, 1.9D, 2.5D, 2.0 petrol, 3.2 petrol
• VW California T5: 05/2007–08/2015, 1.9D–2.5D
• VW T5 Platform/Chassis, Van and Bus models

Specification

• Auxiliary cooling water pump
• Operating mode: Electric
• Voltage: 12V
• Number of pins: 2
• Application: Cooling water circuit

OEM References

• VW: 7H0965561A

Fitting Notes

• Check coolant hoses and electrical connector during installation
• Recommended to refill with correct VW specification coolant
• Bleed cooling system correctly after fitting
