Splitscreen Bus Front Brake Bundle Kit - 1955-63

Top quality replacement front brake drum for use on all VW Splitscreen Buses from 1955 to 1963.

This brake drum has the wide 5 stud pattern 5×205 PCD

Quality: Top quality

Quantity: Sold each

Fitting: Although we sell brake drums separately we always recommend that you change them in pairs so that you do not suffer from uneven braking

Fitment: Clean the inner shoe surface before installation with a brake cleaner as they are coated at manufacture with an anti oxidising oil

Applications:

VW Splitscreen Van: 1955 – 1963

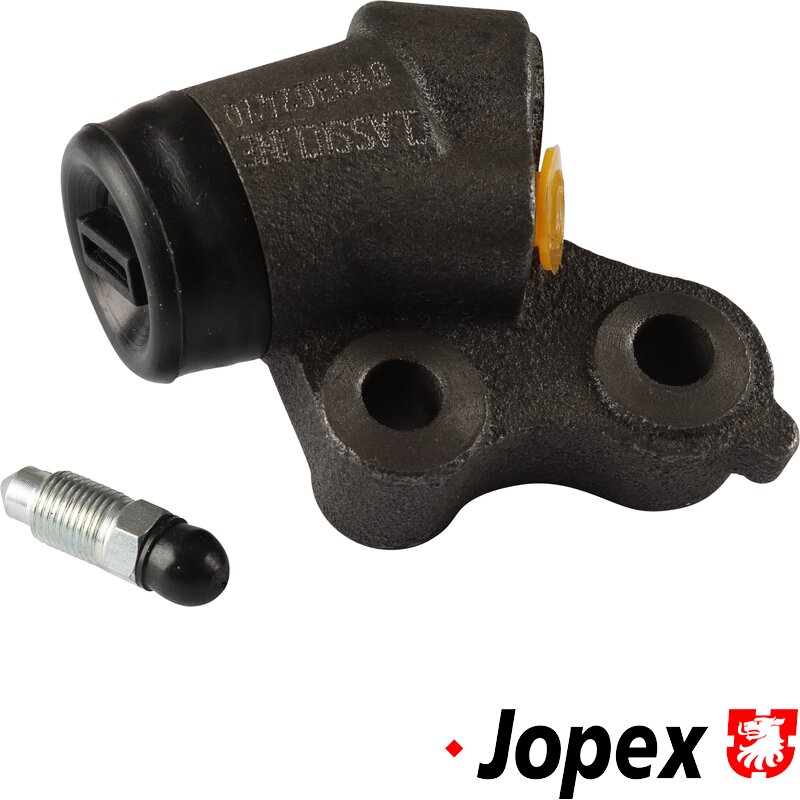

This front left-hand wheel cylinder is a quality reproduction replacement for all Volkswagen Splitscreen Buses produced between 1955 and 1963. The wheel cylinder plays a crucial role in the braking system, converting hydraulic pressure from the master cylinder into mechanical force to push the brake shoes against the drum.

Fitted inside the front brake drum assembly, this cylinder ensures even and effective braking performance. Each front drum uses two wheel cylinders, one on the top and one on the bottom of the backing plate, meaning two cylinders are required per drum and four in total per vehicle.

Manufactured to original specifications, this reproduction part features high-quality cast construction and precision-machined internals for a proper seal and long service life. It is suitable for both standard road use and restoration projects where maintaining factory brake performance is essential.

Specifications:

• Position: Front Left (Passenger Side on RHD models)

• Quantity: Sold each (2 required per drum, 4 per vehicle)

• Quality: Reproduction

Applications:

• VW Splitscreen Bus: 1955–1963

Fitting Notes:

• Use with correct brake shoes, hoses, and cylinders for matched braking performance.

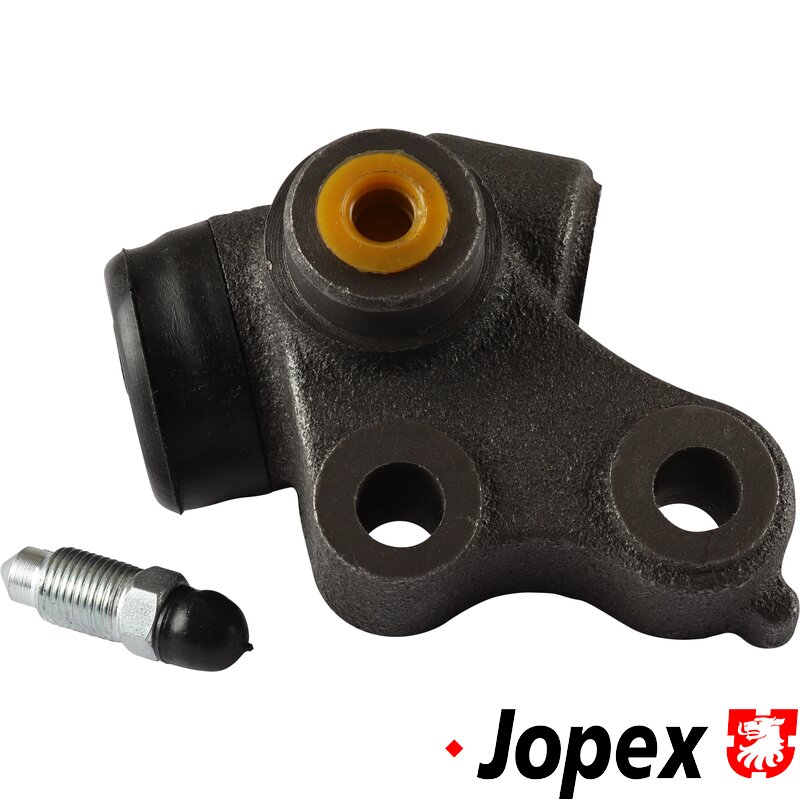

This front right-hand wheel cylinder is a high-quality reproduction part designed for Volkswagen Splitscreen Buses manufactured between 1955 and 1963. Essential for safe braking performance, the wheel cylinder converts hydraulic pressure from the master cylinder into mechanical force, pushing the brake shoes against the drum to slow the vehicle effectively.

Mounted inside the front brake drum, each drum uses two wheel cylinders—one at the top and one at the bottom—meaning two are required per drum and four per vehicle in total. This right-hand cylinder fits the driver’s side on RHD vehicles, ensuring precise fitment and proper brake balance across the front axle.

Manufactured from durable cast materials and machined to OEM specifications, this reproduction cylinder provides reliable performance and a long service life. Ideal for restorations or maintenance of your classic VW Bus braking system.

Specifications:

• Position: Front Right (Driver’s Side on RHD models)

• Quantity: Sold each (2 required per drum, 4 per vehicle)

• Quality: Reproduction

Applications:

• VW Splitscreen Bus: 1955–1963

Fitting Notes:

• Always replace in pairs to maintain balanced braking performance.

• Compatible with original and reproduction brake components.

Set of replacement brake shoes for the front of all Splitscreen Buses from 1955 to 1963.

Sold in a set of 4 to replace both sides, left and right, for one axle, 2 brake drums.

Quality: Good quality reproduction

Quantity: Set of 4

Measurements: 51mm wide x 240mm long

Applications:

VW Splitscreen Van: 1955 – 1963
