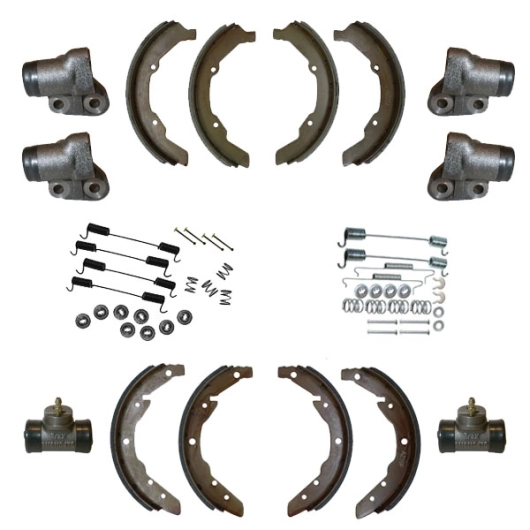

Splitscreen and Baywindow Bus 1964-70 Complete Brake Shoe And Wheel Cylinder Kit

Front left wheel cylinder to fit Splitscreen buses from 1964 – 1967 and early Baywindow buses from 1968 – 1970

Quality: Reproduction

Quantity: Sold each, 2 required per wheel

Fitment: Front left

Fitting: NOT supplied with bleed nipple, see part number 443616789

Applications:

VW Splitscreen Van: 1964 – 1967

VW Baywindow Van: 1968 – 1970

Front right wheel cylinder to fit Splitscreen buses from 1964 – 1967 and early Baywindow buses from 1968 – 1970

Quality: Reproduction

Quantity: Sold each, 2 required per wheel

Fitment: Front right

Fitting: NOT supplied with bleed nipple, see part number 443616789

Applications:

VW Splitscreen Van: 1964 – 1967

VW Baywindow Van: 1968 – 1970

This brake shoe fitting kit contains or the neccessary parts required to fit the front brake shoes on Splitscreen vans from 1955 – 1967 and Baywindow buses from 1968 to 1970.

Quality: Good quality reproduction

Quantity: 1 kit contains enough springs and clips to fix the brake shoes on both sides, left and right.

Applications:

VW Splitscreen Van: 1955 – 1967

VW Baywindow Van: 1968 – 1970

Replacement front brake shoe set for use on all Splitscreen buses from 1964 to 1967 and all Early Baywindow buses from 1968 to 1970.

Sold in a set of 4 to replace both sides, left and right, one axle, 2 brake drums

Quality: Good Quality

Quantity: Set of 4 shoes

Measurements: 53mm wide x 258mm long

Applications:

VW Splitscreen Van: 1964 – 1967

VW Baywindow Van: 1968 – 1970

These replacement rear brake shoes are a good quality set designed for use on VW Splitscreen Buses from 1964 to 1967 (with original braking systems) and all early Baywindow Buses from 1968 to 1970. Perfect for maintaining safe, effective braking performance, this set includes four shoes—enough to service both rear drums on a single axle (left and right sides).

Measuring 46mm in width and 250mm in length, these brake shoes are manufactured to match OEM specifications for a direct fit and reliable stopping power. They are ideal for replacing worn or contaminated shoes during a brake service or restoration project.

Installation requires standard brake hardware, including return springs, adjusters, and retaining pins, which should be inspected or replaced during fitting to ensure optimal performance. These shoes are compatible with factory drum brakes and provide the proper friction surface for smooth, consistent braking.

Whether you`re restoring a classic VW Bus or maintaining a dependable driver, these rear shoes offer a safe and cost-effective solution for vintage braking systems.

Applications:

• VW Splitscreen Van: 1964–1967

• VW Baywindow Van: 1968–1970

This reproduction rear wheel cylinder is designed for classic Volkswagen applications at the rear. Specifically made to fit VW Splitscreen Buses from March 1955 to July 1967, early Baywindow Buses from August 1967 to July 1971, and VW Trekker (Type 181) models originally fitted with reduction boxes from September 1969 to July 1972 (up to chassis number 183 2346 524).

Please note: Many early Trekker/Type 181 models have since been converted to IRS (independent rear suspension), so it`s important to verify your vehicle still uses the reduction box configuration before ordering.

These wheel cylinders feature a 22.2mm piston and are sold individually – one per rear wheel is required. They mount on either side of the rear axle and provide hydraulic pressure to activate the rear brake shoes within the drum brake system.

Specifications:

• Piston Diameter: 22.2mm

• Placement: Rear axle – fits both sides

• Quantity: Sold each (2 required per vehicle)

• Fitment: For drum brake systems

Compatibility / Applications:

• VW Splitscreen Van: 1955–1967

• VW Baywindow Van: 1968–1971

• VW Trekker / Type 181: 1969–1972 (with reduction boxes, verify suspension type)

This brake shoe fitting kit contains or the neccessary parts required to fit the rear brake shoes on Splitscreen vans from 1964 – 1967 and Baywindow buses from 1968 to 1979.

Quality: Good quality reproduction

Quantity: 1 kit contains enough springs and clips to fix the brake shoes on both sides, left and right.

Applications:

VW Splitscreen Van: 1964 – 1967

VW Baywindow Van: 1968 – 1979
