Bugpack 4 Into 1 Exhaust Header - Black

Bugpack 4 into 1 performance exhaust header for Volkswagen Type 1 aircooled engines. Designed to improve exhaust gas flow and engine efficiency compared to the restrictive original exhaust system, making it an excellent upgrade for both standard and mildly tuned engines.

Manufactured from steel with 1⅜” (35mm) primary tubing, this header merges all four cylinders into a single collector, improving scavenging and helping the engine breathe more efficiently. This can result in improved throttle response, increased power and better overall engine performance.

This version features the small 3-bolt muffler flange with the flange positioned at approximately the 1 o`clock position. It is important to check your existing system before ordering, as some headers use a centred flange positioned at the 12 o`clock position and are not directly interchangeable.

Finished in a protective black transport coating which acts as a rust inhibitor during storage. For maximum durability, Bugpack recommends removing the coating and refinishing the header with a quality high-temperature exhaust paint before use.

Material:

• Steel

Finish:

• Black protective coating

Primary Tube Diameter:

• 1⅜” (35mm)

Flange Type:

• Small 3-bolt flange

Flange Position:

• Offset at approximately 1 o`clock position

Quantity:

• Sold individually

Applications:

VW Beetle Standard / 1302 / 1303:
1300, 1500 & 1600 Type 1 engines (1966-1979)

VW Karmann Ghia:
1300, 1500 & 1600 Type 1 engines (1966-1974)

VW Type 2 Splitscreen Bus:
1500 & 1600 Type 1 engines (1963-1967)

VW Type 2 Baywindow Bus:
1600 Type 1 engines (1968-1979)

VW Type 181 Trekker:
1500 & 1600 Type 1 engines (1968-1983)

VW Buggy & Baja:
1300, 1500 & 1600 Type 1 engine applications

Additional Information:

• 4 into 1 performance design
• Small 3-bolt muffler flange
• Offset flange at 1 o`clock position
• Suitable for standard and mild performance engines
• Check flange position before ordering

Recommended Additional Parts:

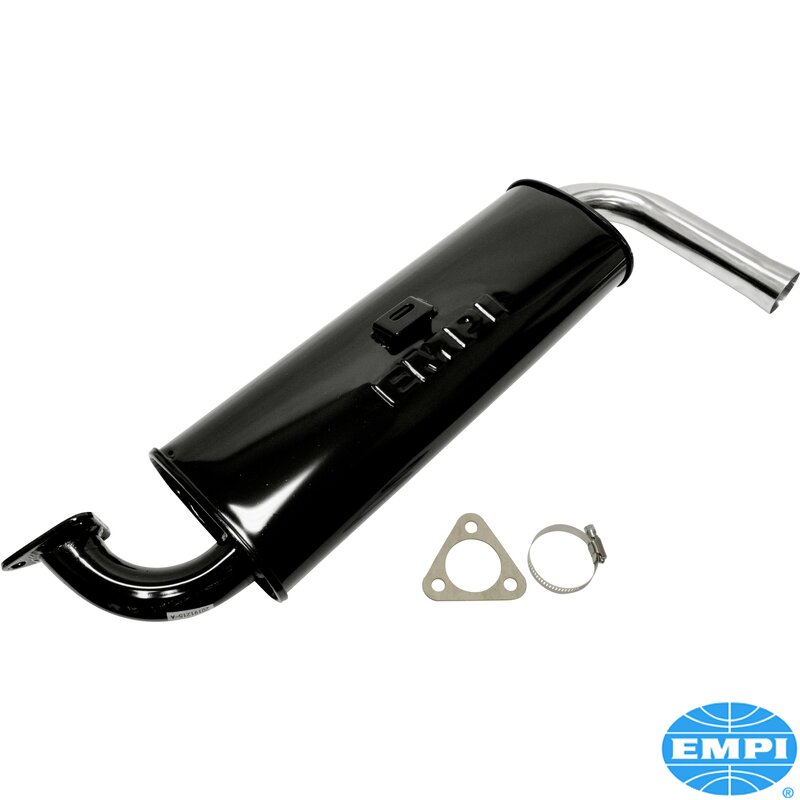

• Matching Bugpack small 3-bolt muffler
• Exhaust fitting kit
• Exhaust gaskets
• Heater box fitting kit
• High temperature exhaust paint
