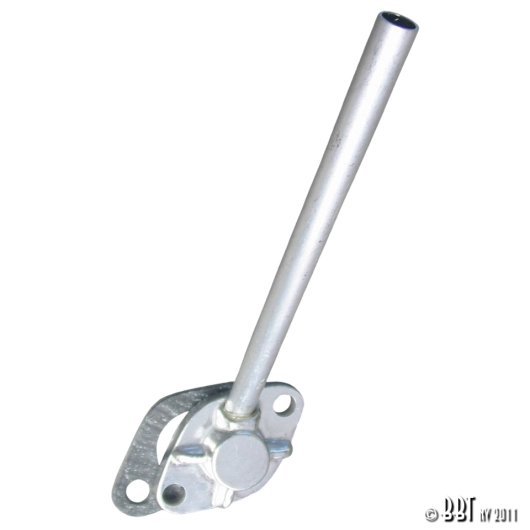

Type 3 Crankcase Dipstick Conversion Kit
Part Number: AC115630
£25.50 inc. VAT
In Stock
Related Products
This adapter can be used when you have an original type 3 crankcase and you want to fit the engine into a Beetle or Bus
Quality: Reproduction
Quantity: Sold each
Fitment: Original Type 3 crankcases were not fitted from the factory with the standard dipstick tube. Instead they had a hole on the bottom right hand corner where the oil filler bolts onto
This dipstick adapter allows you to remove the oil filler from the type 3 crankcase and install a dipstick tube in it`s place
Applications:
VW Beetle: 1960 – 1979
VW Splitscreen Van: 1960 – 1967
VW Baywindow Van: 1968 – 1979
VW Karmann Ghia: 1960 – 1974
VW Type 3: 1961 – 1973
VW Trekker: 1968 – 1983
VW Buggy + Baja: 1960 – 1979
This Part Fits: Beetle, Karmann Ghia, Baywindow, Splitscreen, Trekker, Type 3, Buggy,
Availability: Stock Item
Item Name: Oil dipstick adapter with gasket. Converts Type 3 and universal cases which have not been machined for a dipstick tube
Description: Tube, oil dipstick
Product Group: Engine
Group: Lubrication
Unit of Measure: Each
Manufacturer: EMPI
Dimensions:
Width: 150mm
Height: 300mm
Depth: 35mm
Volume: 1575000mm3
Weight: 0.086kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Baja | Baja | 08/68 - 08/68 | 1,6 | Petrol | Closed Off-Road Vehicle | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 07/71 - 07/71 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Buggy | Buggy | 08/63 - 08/63 | 1,6 | Petrol | Open Off-Road Vehicle | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/66 - 01/66 | 1,5 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/71 - 07/71 | 1,6 | Petrol | Coupe | 48 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/70 - 01/70 | 1,6 | Petrol | Coupe | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/61 - 08/61 | 1,5 | Petrol | Coupe | 54 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 09/69 - 09/69 | 1,5 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 08/70 - 08/70 | 1,6 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 03/73 - 03/73 | 1,6 | Petrol | Open Off-Road Vehicle | 48 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,5 | Petrol | Bus | 42 | - | -
|
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,5 | Petrol | Van | 44 | - | -
|
| VW Classic | Transporter | T1 | 06/66 - 06/66 | 1,5 | Petrol | Platform/Chassis | 44 | - | -
|
| VW Classic | Transporter | T1 | 07/66 - 07/66 | 1,5 | Petrol | Bus | 44 | - | -
|
| VW Classic | Transporter | T2 | 08/67 - 08/67 | 1,6 | Petrol | Bus | 47 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Van | 48 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Platform/Chassis | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Bus | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Van | 50 | - | -
|
| VW | TRANSPORTER T1 Van (21, 23) | 08/64 - 08/64 | 1,6 | Petrol | Van | 48 | - | -
| |
| VW | TRANSPORTER T1 Platform/Chassis (26) | 08/64 - 08/64 | 1,6 | Petrol | Platform/Chassis | 48 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| JPGROUP | 00-8932-0 |
| EMPI | 00-8932-0 |
FAQs
No this will not fit a type 4 engine.
You use the standard Type 1 dipsticks with this conversion tube.
