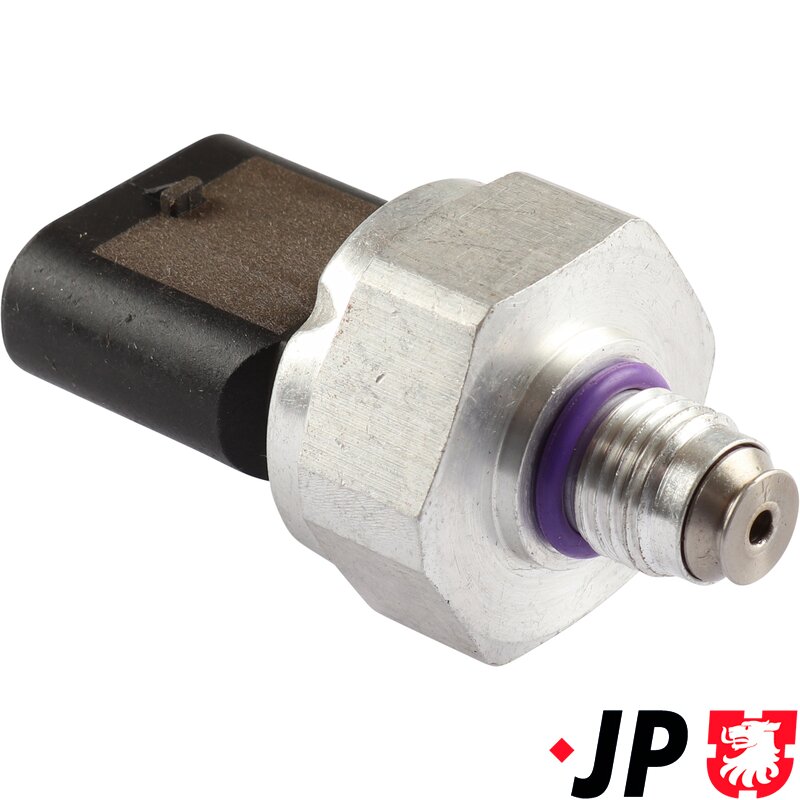

G7,G8 Air Con Pressure Switch
Part Number: 4M0959603E
- Monitors refrigerant pressure within the air conditioning system
- Protects the A/C compressor from high or low pressure conditions
- Helps restore correct climate control and cooling operation
This 4-pin air conditioning pressure switch is designed to monitor refrigerant pressure within the vehicle’s air conditioning system. The switch communicates with the climate control module and compressor control system to ensure the correct operating pressure is maintained throughout the A/C circuit.
If refrigerant pressure becomes too high or too low, the pressure switch signals the system to adjust operation or disable the compressor to prevent damage. A faulty pressure switch can cause intermittent cooling, compressor engagement failure, poor air conditioning performance or fault codes within the HVAC system.
This replacement switch is manufactured to OE specification and is suitable for a wide range of modern Volkswagen petrol/electric hybrid and electric vehicles.
Specification:
Operating Mode: Electric-hydraulic
Number of pins: 4
Fitting Notes:
- Air conditioning systems must be depressurised before removal
- We recommend replacing sealing O-rings during installation
- System should be vacuum tested and regassed after fitting
- Fault codes may need clearing after installation
Replaces OE Numbers:
VW: 4M0959603A
VW: 4M0959603E
VAG: 4M0959603A
VAG: 4M0959603E
VAG: 959603A
VAG: 959603E
Applications:
VW Crafter II / Crafter III:
2016 onwards
VW Golf VII:
2012-2024
Including e-Golf electric models
VW Golf VIII:
2020 onwards
1.4 Petrol/Electric Hybrid, 245PS
VW ID.3:
2019 onwards
Electric models, 126PS, 145PS, 150PS & 204PS
VW ID.4:
2020 onwards
Electric SUV models, 148PS, 170PS, 174PS, 204PS, 265PS & 299PS
VW ID.5:
2021 onwards
Electric SUV models, 174PS, 204PS & 299PS
VW Passat (B9):
2024 onwards
1.5 Petrol/Electric Hybrid Estate, 204PS & 272PS
VW Tiguan (CT1):
2023 onwards
1.5 Petrol/Electric Hybrid SUV, 150PS, 204PS & 272PS
VW Touareg (CR7):
2017 onwards
2.0 & 3.0 Petrol/Electric Hybrid SUV, 367PS & 381PS
This Part Fits:
Availability: Special Order
Item Name: Pressure Switch, air conditioning
Description: Pressure Switch, air conditioning
Product Group: Electric
Group: Air Conditioning
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 35mm
Height: 35mm
Depth: 60mm
Volume: 73500mm3
Weight: 0.064kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A3 | A3 (8V) | 05/14 - 05/14 | 1,4 | Petrol/Electric | Hatchback | 204 | - | -
|
| Audi | A3 | A3 (8V) | 07/18 - 07/18 | 1,4 | Petrol/Electric | Hatchback | 204 | - | -
|
| Audi | A6 | A6 (C8) | 11/19 - | 2,0 | Petrol/Electric | Saloon | 299 | - | Construction Year to 202311 |
| Audi | A6 | A6 (C8) | 02/21 - | 2,0 | Petrol/Electric | Saloon | 299 | - | Construction Year to 202311 |
| Audi | A6 | A6 (C8) | 02/21 - | 2,0 | Petrol/Electric | Estate | 299 | - | Construction Year to 202311 Engine Code DRYA |
| Audi | A6 | A6 (C8) | 04/20 - | 2,0 | Petrol/Electric | Estate | 367 | - | Construction Year to 202311 |
| Audi | A7 | A7 (C8) | 07/21 - | 2,0 | Petrol/Electric | Hatchback | 299 | - | Construction Year to 202311 |
| Audi | A7 | A7 (C8) | 07/19 - | 2,0 | Petrol/Electric | Hatchback | 367 | - | Construction Year to 202311 Engine Code DLGA |
| Audi | A8 | A8 (D5) | 10/19 - | 3,0 | Petrol/Electric | Saloon | 449 | - | Construction Year to 202311 |
| Audi | A8 | A8 (D5) | 11/21 - | 3,0 | Petrol/Electric | Saloon | 462 | - | Construction Year to 202311 Engine Code CZSE |
| Audi | Q4 | Q4 SUV (F4B) | 05/21 - | Electric | SUV | 170 | - | Construction Year to 202211 | |
| Audi | Q4 | Q4 SUV (F4B) | 03/21 - | Electric | SUV | 204 | - | Construction Year to 202211 | |
| Audi | Q4 | Q4 SUV (F4B) | 06/21 - | Electric | SUV | 265 | - | Construction Year to 202211 | |
| Audi | Q4 | Q4 SUV (F4B) | 03/21 - | Electric | SUV | 300 | - | Construction Year to 202211 | |
| Audi | Q5 | Q5 (FY) | 04/19 - | 2,0 | Petrol/Electric | SUV | 299 | - | Construction Year to 202401 |
| Audi | Q5 | Q5 (FY) | 02/21 - | 2,0 | Petrol/Electric | SUV | 299 | - | Construction Year to 202401 |
| Audi | Q5 | Q5 (FY) | 02/21 - | 2,0 | Petrol/Electric | SUV | 299 | - | Construction Year to 202401 |
| Audi | Q5 | Q5 (FY) | 08/19 - | 2,0 | Petrol/Electric | SUV | 367 | - | Construction Year to 202401 |
| Audi | Q5 | Q5 (FY) | 02/21 - | 2,0 | Petrol/Electric | SUV | 367 | - | Construction Year to 202401 |
| Audi | Q5 | Q5 (FY) | 06/21 - | 2,0 | Petrol/Electric | SUV | 367 | - | Construction Year to 202401 |
| Audi | Q5 | Q5 (FY) | 07/21 - | 2,0 | Petrol/Electric | SUV | 367 | - | Construction Year to 202401 |
| Audi | Q7 | Q7 (4M) | 01/21 - | 3,0 | Petrol | SUV | 340 | - | Construction Year to 202401 |
| Audi | Q7 | Q7 (4M) | 11/19 - | 3,0 | Petrol/Electric | SUV | 381 | - | Construction Year from 201912 Construction Year to 202401 |
| Audi | Q7 | Q7 (4M) | 11/19 - | 3,0 | Petrol/Electric | SUV | 455 | - | Construction Year from 201912 Construction Year to 202401 |
| Audi | Q8 | Q8 (4M) | 10/20 - | 3,0 | Petrol/Electric | SUV | 381 | - | Construction Year to 202401 |
| Audi | Q8 | Q8 (4M) | 10/20 - | 3,0 | Petrol/Electric | SUV | 462 | - | Construction Year to 202401 |
| Cupra | Born | Born (K11) | 08/21 - | Electric | Hatchback | 150 | - | Construction Year from 202109 Construction Year to 202211 | |
| Cupra | Born | Born (K11) | 08/21 - | Electric | Hatchback | 204 | - | Construction Year from 202109 Construction Year to 202211 | |
| Cupra | Born | Born (K11) | 08/21 - | Electric | Hatchback | 231 | - | Construction Year from 202109 Construction Year to 202211 | |
| Cupra | Born | Born (K11) | 08/21 - | Electric | Hatchback | 231 | - | Construction Year from 202109 Construction Year to 202211 | |
| VW | Crafter | Crafter II | 07/18 - | Electric | Van | 136 | - | -
| |
| VW | Golf | Golf VII | 03/14 - 03/14 | Electric | Hatchback | 115 | - | Construction Year from 201612 | |
| VW | Golf | Golf VII | 12/16 - 12/16 | Electric | Hatchback | 136 | - | -
| |
| VW | Golf | Golf VIII | 07/20 - | 1,4 | Petrol/Electric | Hatchback | 245 | - | -
|
| VW | ID.3 | ID.3 | 11/21 - 11/21 | Electric | Hatchback | 126 | - | Construction Year to 202211 | |
| VW | ID.3 | ID.3 | 11/20 - | Electric | Hatchback | 145 | - | Construction Year to 202211 | |
| VW | ID.3 | ID.3 | 03/20 - 03/20 | Electric | Hatchback | 150 | - | Construction Year to 202211 | |
| VW | ID.3 | ID.3 | 11/19 - | Electric | Hatchback | 204 | - | Construction Year to 202211 | |
| VW | ID.3 | ID.3 | 11/21 - | Electric | Hatchback | 204 | - | Construction Year to 202211 | |
| VW | ID.3 | ID.3 | 11/21 - | Electric | Hatchback | 204 | - | Construction Year to 202211 | |
| VW | ID.4 | ID.4 | 01/21 - | Electric | SUV | 148 | - | Construction Year to 202211 | |
| VW | ID.4 | ID.4 | 01/21 - | Electric | SUV | 170 | - | Construction Year to 202211 | |
| VW | ID.4 | ID.4 | 11/21 - | Electric | SUV | 174 | - | Construction Year to 202211 | |
| VW | ID.4 | ID.4 | 05/20 - | Electric | SUV | 204 | - | Construction Year to 202211 | |
| VW | ID.4 | ID.4 | 07/22 - | Electric | SUV | 265 | - | Construction Year to 202211 | |
| VW | ID.4 | ID.4 | 05/21 - | Electric | SUV | 299 | - | Construction Year to 202211 | |
| VW | ID.5 | ID.5 | 07/21 - | Electric | SUV | 174 | - | Construction Year to 202211 | |
| VW | ID.5 | ID.5 | 08/21 - | Electric | SUV | 204 | - | Construction Year to 202211 | |
| VW | ID.5 | ID.5 | 08/21 - | Electric | SUV | 299 | - | Construction Year to 202211 | |
| VW | Touareg | Touareg (CR7) | 11/20 - | 3,0 | Petrol/Electric | SUV | 381 | - | Construction Year to 202311 |
| VW | TIGUAN (CT1) | 09/23 - | 1,5 | Petrol/Electric | SUV | 150 | - | Construction Year from 202405 Construction Year to 202412 | |
| VW | PASSAT B9 Variant (CJ5) | 03/24 - | 1,5 | Petrol/Electric | Estate | 272 | - | Construction Year to 202501 Engine Code DUCA | |
| VW | TOUAREG (CR7, RC8) | 11/20 - 11/20 | 2,0 | Petrol/Electric | SUV | 367 | - | -
| |
| VW | TIGUAN (CT1) | 03/24 - | 1,5 | Petrol/Electric | SUV | 272 | - | Construction Year from 202405 Construction Year to 202412 Engine Code DUCA | |
| VW | PASSAT B9 Variant (CJ5) | 03/24 - | 1,5 | Petrol/Electric | Estate | 204 | - | Construction Year to 202501 Engine Code DUCB | |
| VW | TIGUAN (CT1) | 03/24 - | 1,5 | Petrol/Electric | SUV | 204 | - | Construction Year from 202405 Construction Year to 202412 Engine Code DUCB |
| Manufacturer | Ref. No. |
|---|---|
| VW | 4M0959603A |
| VAG | 4M0959603A |
| AUDI | 4M0959603A |
| AUDI | 4M0959603E |
| VW | 4M0959603E |
| VAG | 4M0959603E |
