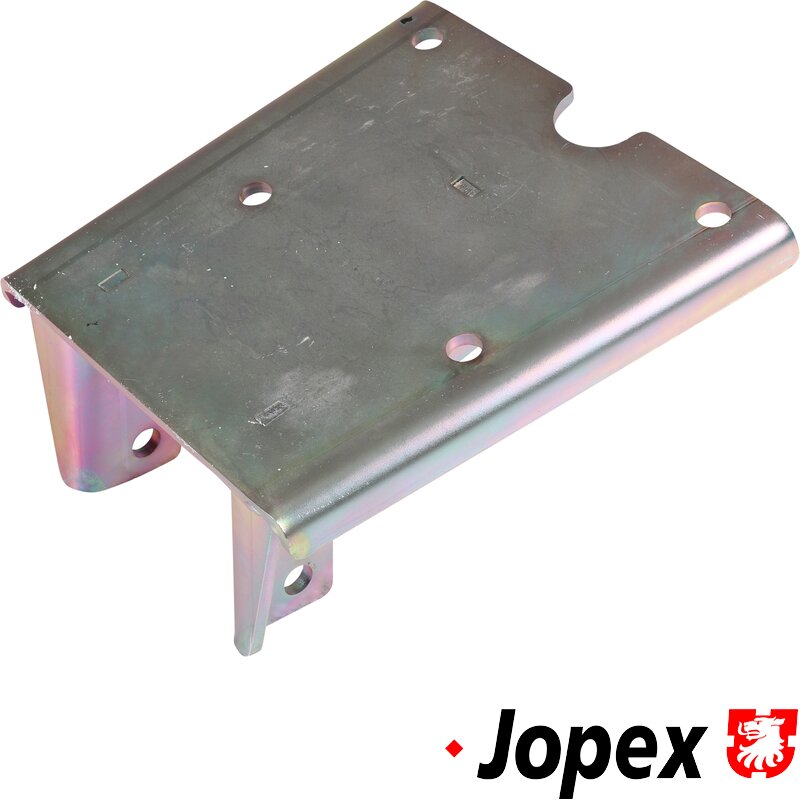

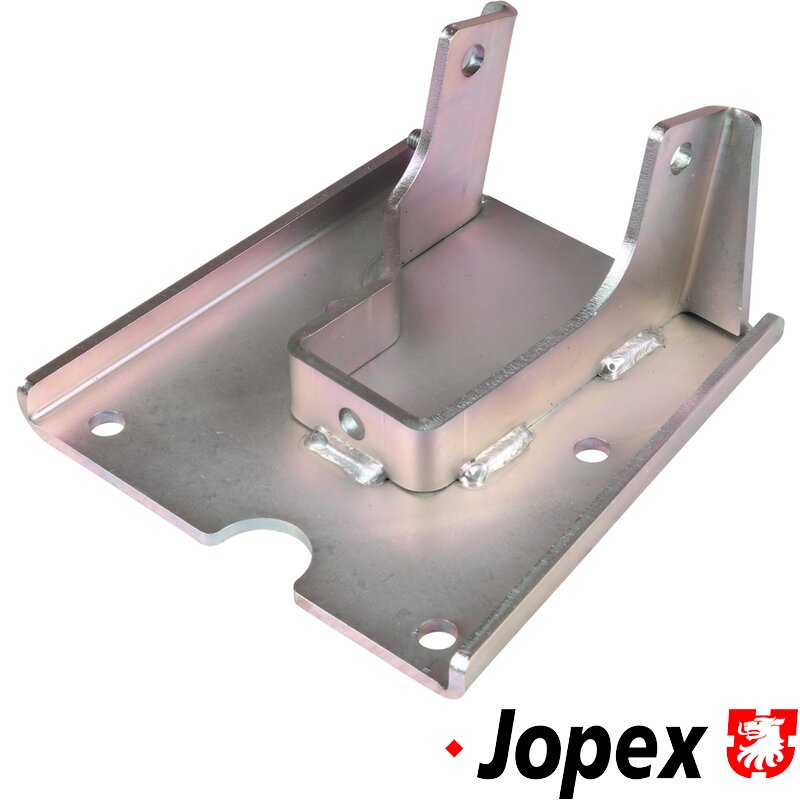

Type 25 Front Gearbox Mount Bracket - 5 Speed Diesel Models

• Rear gearbox mounting bracket for VW T3/T25 5-speed models
• Supports and stabilises the transmission assembly
• Designed for diesel and turbo diesel applications

This rear gearbox mounting bracket is designed for VW T3 and T25 models fitted with 5-speed manual transmissions. The bracket secures the gearbox mounting system to the chassis and helps support the weight and movement of the drivetrain under acceleration, braking and gear changes.

Over time, gearbox mounting brackets can suffer from corrosion, cracking, damaged mounting holes or fatigue caused by engine and transmission movement. A worn or damaged bracket can lead to drivetrain vibration, excessive gearbox movement, knocking noises or premature wear of gearbox mounts and linkage components.

Manufactured to OE specification, this bracket is designed specifically for diesel and turbo diesel T3/T25 applications fitted with factory 5-speed gearboxes.

Specification:

Fitting Position: Rear
Transmission Type: 5-Speed Manual Transmission

Fitting Notes:

• Suitable for factory 5-speed gearbox applications only
• Inspect gearbox mounts and fixing hardware during installation
• Recommended to replace worn rubber mounts at the same time
• Check gearbox alignment and linkage operation after fitting

Related Parts Recommended:

• Gearbox mounts
• Mounting bolts and hardware
• Gear linkage bushes
• Gearbox crossmember components
• Rear transmission support rubbers

Replaces OE Numbers:

VW: 251399241M

Applications:

VW Transporter T3 / T25:
1981-1992

5-speed manual gearbox models including:

• 1.6 Diesel
• 1.6 Turbo Diesel
• 1.7 Diesel

Fits Bus, Van and Platform/Chassis models
