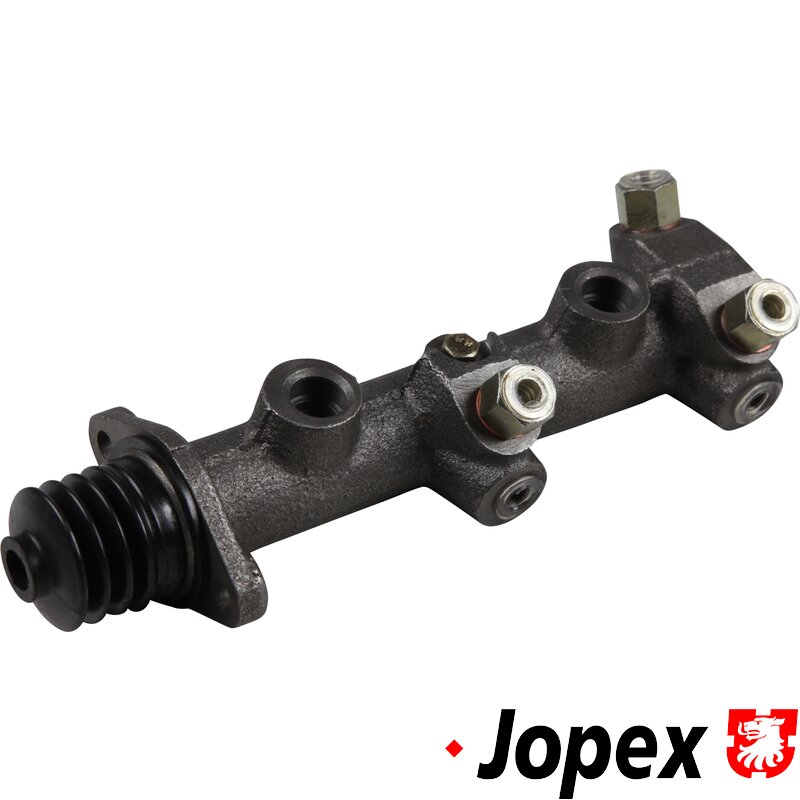

Baywindow Bus Master Cylinder - LHD - 1968-69

Replacement good quality brake master cylinder for all Baywindow buses from 1968 to 1969

Quality: Good quality

Fitting:

Not supplied with brake light switch

• 2 Terminal switch: 113945515H
• 3 Terminal switch: 113945515G

Fitment: Manufactured for left hand drive buses, but can be fitted to right hand drive by modifying the inlet pipes to fit on the opposite side of the master cylinder

Tips: If you are changing you master cylinder, some or all of the brake pipes may need to be re-routed. This is due to the port layout being different on the new master cylinder. When planning your brake line routing, be sure to fit the brake switch `below` the master cylinder centre line. Otherwise air can be trapped in the system which will make it difficult to bleed the brakes.

It is also VERY important that the end play of the brake pedal pushrod is adjusted correctly. Follow the factory specifications of 1mm endplay. The pushrod can be adjusted using the thread and lock-nut on the pushrod shaft. For some applications you may have to cut the pushrod down in length.

Measurements: 4 outlets, 100mm reservoir centres

Applications:

VW Baywindow Van: 1968 – 1969
