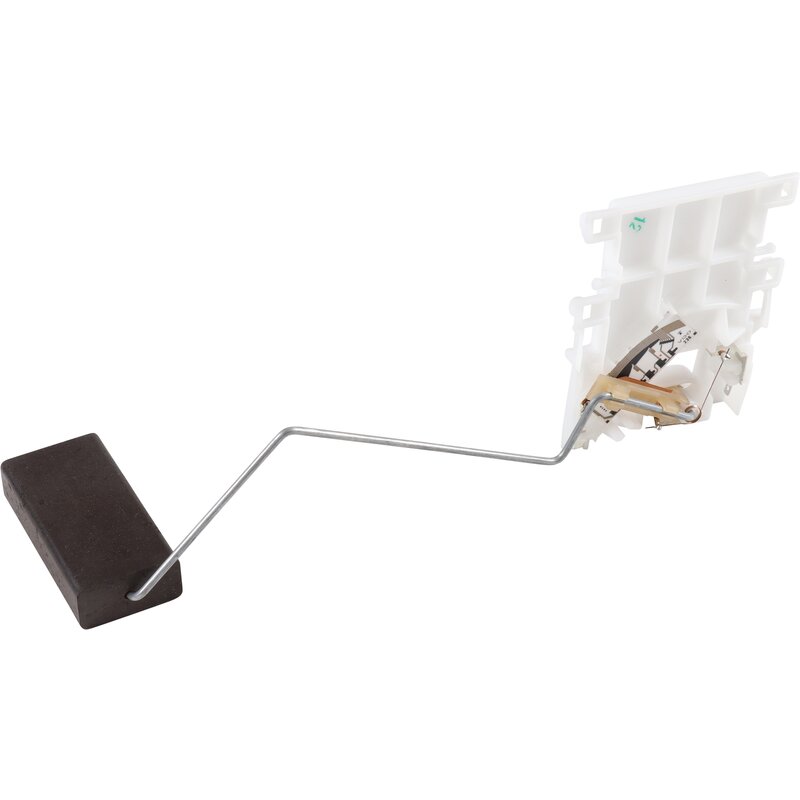

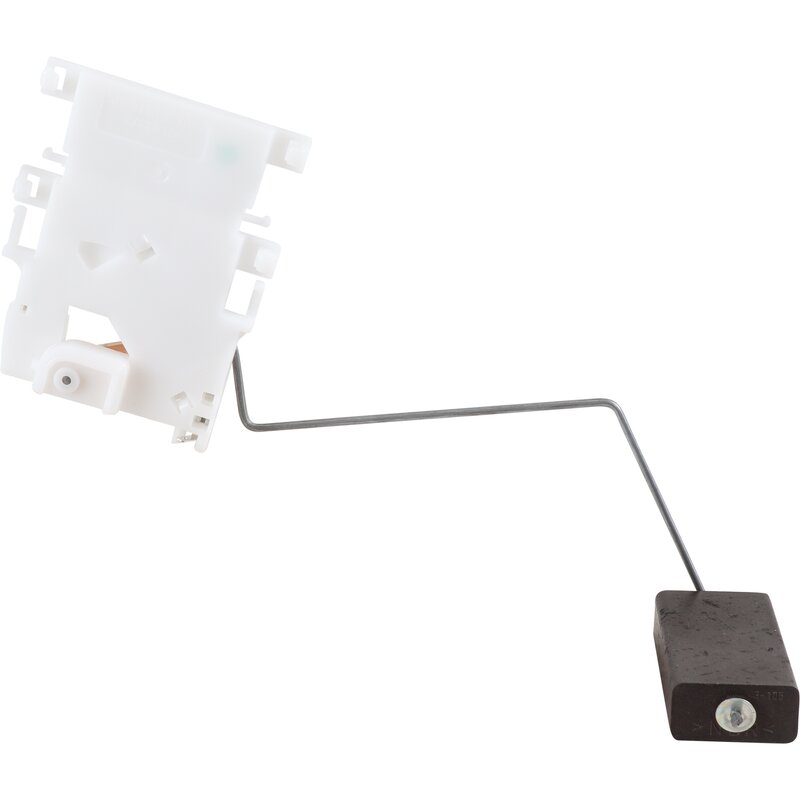

G3 Fuel Sender - 1991-92

Replacement fuel gauge sender unit for Volkswagen Golf Mk3 petrol models. This lever-type fuel tank sender measures the fuel level inside the tank and sends a signal to the dashboard fuel gauge, allowing accurate fuel level readings while driving.

The sender unit operates using a float arm and variable resistance system. As the fuel level rises or falls, the float moves the lever arm which changes the electrical resistance signal sent to the instrument cluster. Over time the internal contacts can wear or become contaminated, causing inaccurate fuel readings, fluctuating gauge operation or complete fuel gauge failure.

Replacing a faulty fuel sender helps restore accurate fuel level indication and prevents unexpected low fuel situations. Ideal for maintenance or restoration of early Golf Mk3 models.

Suitable for selected engines and chassis ranges only.

Specifications:
• Fuel gauge sender unit
• Lever type sensor design
• Direct replacement fitment

Replaces OE Part Numbers:
• 1H0919673

Fitment:

VW Golf Mk3 Hatchback & Van (1991-1992)
• 1.4 Petrol ABD 55PS / 60PS
• 1.8 Petrol AAM / ABS 75PS / 90PS
• 2.0 Petrol 2E 115PS
• 2.0 Petrol ABF 150PS

Chassis Restrictions:
• 1.8 AAM, ABD, ABS engines up to chassis: >>1H-NB015000
• 2.0 2E, ABF engines up to chassis: >>1H-NW050000

Function:
The sender unit measures fuel level within the fuel tank and transmits the information to the dashboard fuel gauge using a float-operated resistance mechanism.

Common Symptoms of Failure:
• Incorrect fuel gauge readings
• Fuel gauge stuck on empty or full
• Fluctuating fuel level display
• Intermittent gauge operation
• Low fuel warning inaccuracies

Additional Parts That May Be Required During Fitting:
• Fuel tank sealing ring
• Fuel pump retaining ring
• Fuel tank access cover seal
• Fuel hoses if disturbed during removal
