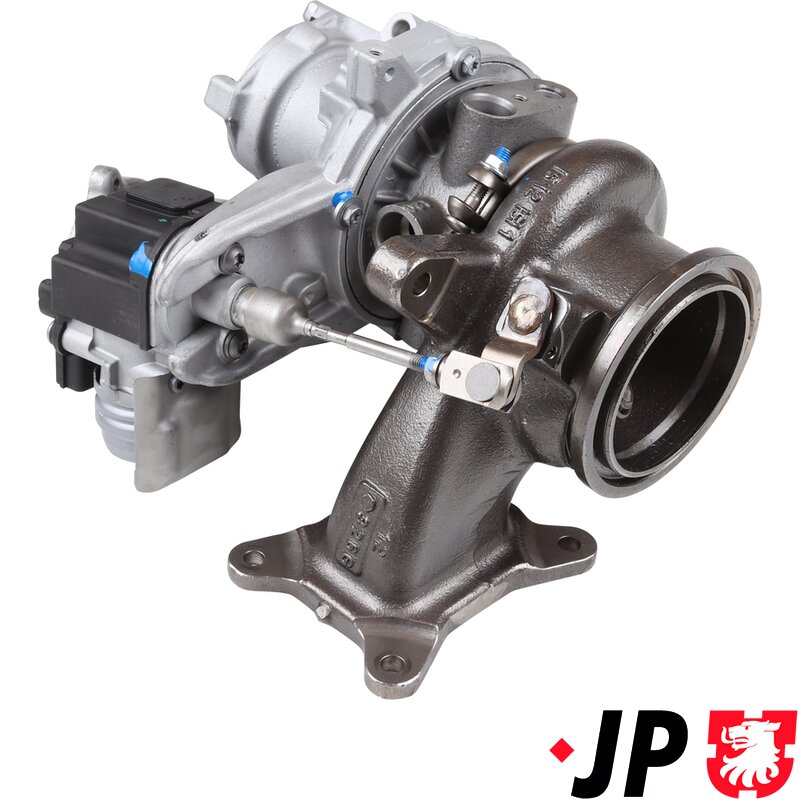

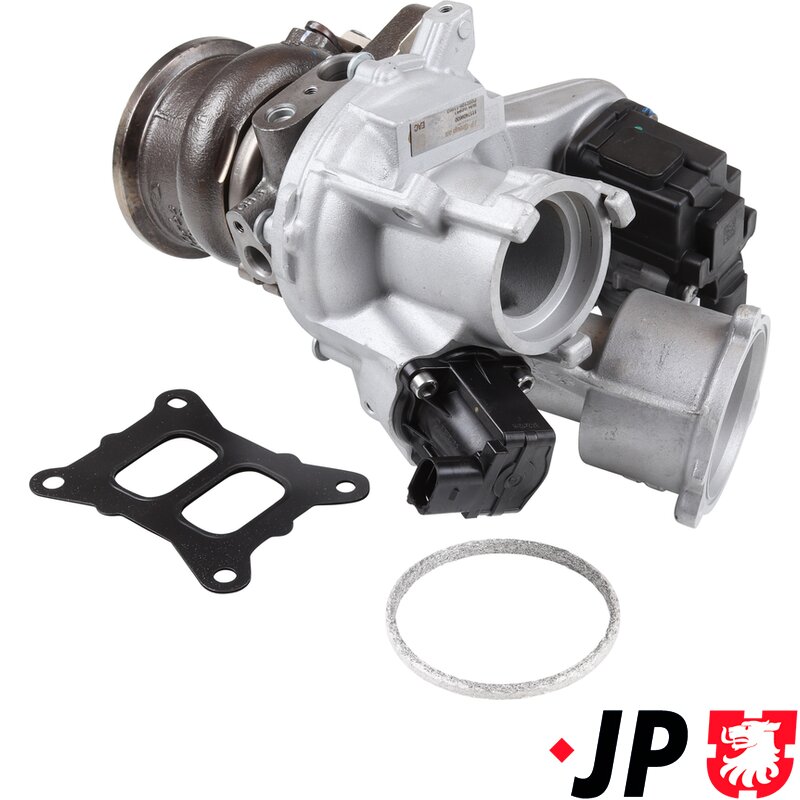

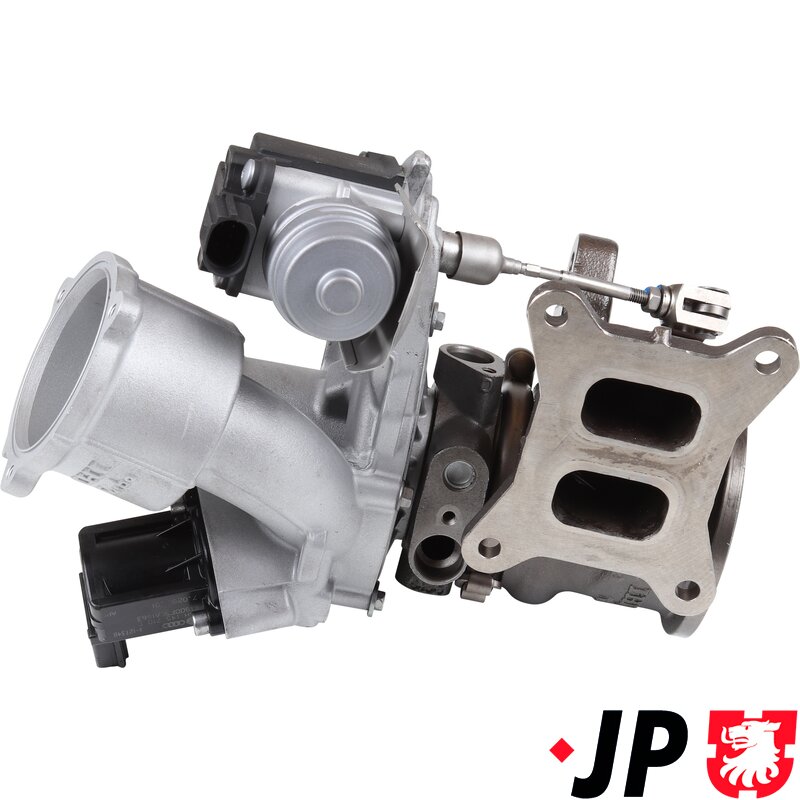

G7 Turbo - 2014-20 - 1.8 TSI (Reconditioned)

Replacement reconditioned exhaust turbocharger for Volkswagen models fitted with the 1.8 TSI EA888 petrol engine. Supplied complete with gasket and seal kit, this turbocharger is designed to restore factory boost pressure, engine performance and fuel efficiency on vehicles suffering from worn or damaged turbo units.

The turbocharger works by using exhaust gas pressure to spin a turbine which drives a compressor wheel on the intake side. This forces additional air into the engine, improving combustion efficiency, power output and torque while maintaining good fuel economy from smaller capacity engines.

Over time turbochargers can suffer from worn bearings, shaft play, oil seal failure, boost pressure faults or wastegate problems. Common symptoms include loss of power, excessive smoke, oil consumption, boost pressure warnings, whining noises or engine management fault codes.

This generally overhauled turbocharger is supplied with fitting gaskets and seals to assist installation and help ensure reliable operation after replacement.

Specifications:
• Charge Type: Exhaust Turbocharger
• Generally overhauled / reconditioned unit
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 06K145721G
• 06K145721GV
• 06K145721GX
• 06K145721Q
• 06K145721QV
• 06K145721QX
• 06K145713J
• 06K145713JV
• 06K145713JX
• 06K145701E
• 06K145701EV
• 06K145701EX
• 06K145701J
• 06K145701JV
• 06K145701JX
• 06K145701L
• 06K145701LV
• 06K145701LX
• 06K145701M
• 06K145701MV
• 06K145701MX
• 06K145701N
• 06K145701NV
• 06K145701NX
• 06K145701S
• 06K145701SV
• 06K145701SX
• 06K145701T
• 06K145701TV
• 06K145701TX

Fitment:

VW Golf Mk7 Estate (2014-2020)
• 1.8 TSI Petrol 180PS

VW Passat B8 Saloon & Estate (2015-2024)
• 1.8 TSI Petrol 180PS

VW Polo 6R GTI (2014-2022)
• 1.8 TSI Petrol 192PS

VW Touran III (2015-on)
• 1.8 TSI Petrol 180PS

Function:
The turbocharger increases engine power and efficiency by compressing intake air using exhaust gas energy, allowing the engine to produce greater performance and torque.

Common Symptoms of Turbo Failure:
• Loss of boost pressure
• Reduced engine power
• Excessive exhaust smoke
• Turbo whining or siren noises
• Oil consumption
• Engine management warning lights
• Wastegate actuator faults

Additional Parts That May Be Required During Fitting:
• Turbo oil feed pipe
• Turbo oil return pipe gasket
• Exhaust manifold studs and nuts
• Fresh engine oil and filter
• Intercooler hoses if contaminated with oil
