G6 Turbo - 2009-11 - 1.8 TSI

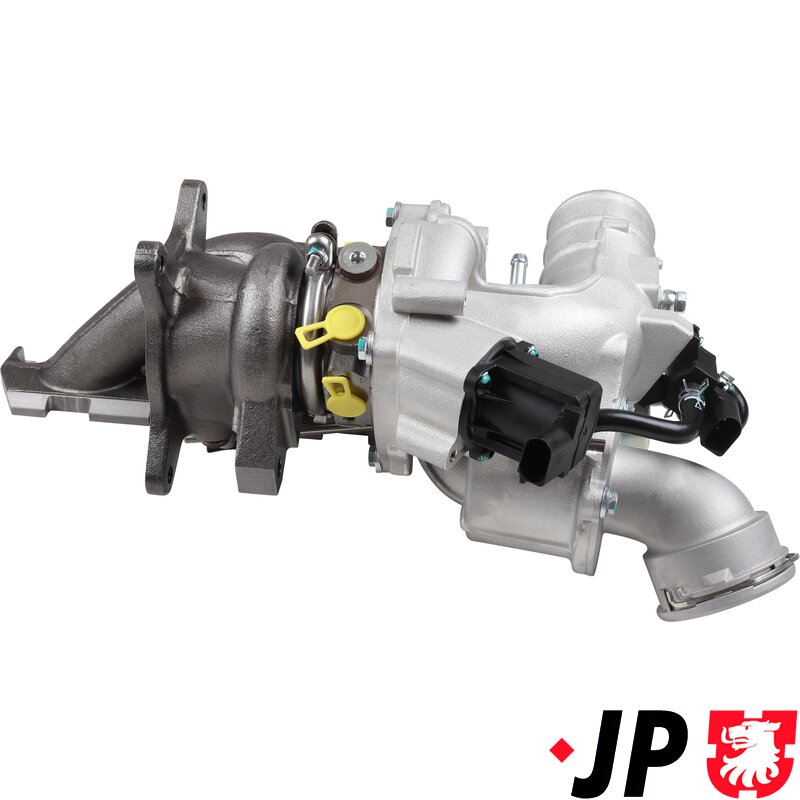

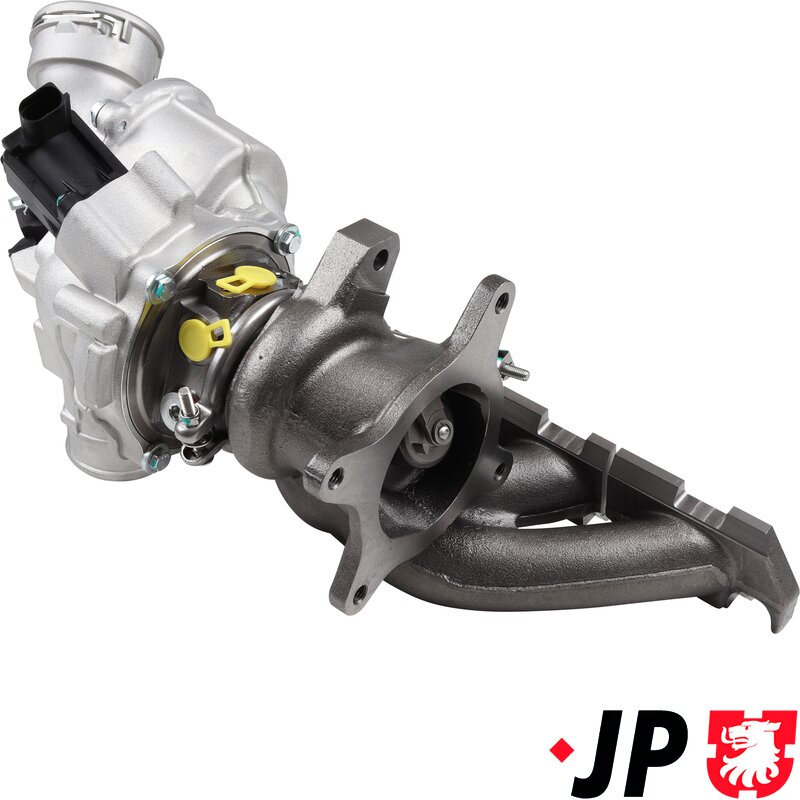

Replacement exhaust turbocharger for Volkswagen 1.8 TSI petrol engines fitted to Golf Mk6, Passat B6, Passat B7 and Passat CC models. Supplied complete with gasket and seal kit, this turbocharger is designed to restore factory boost pressure, throttle response and engine performance on worn or failed turbocharged engines.

The turbocharger uses exhaust gas energy to spin a turbine which drives a compressor wheel, forcing additional air into the engine for improved combustion efficiency and increased power output. The 1.8 TSI engine relies heavily on precise turbocharger operation to deliver smooth acceleration, strong mid-range torque and efficient fuel economy.

Over time, turbochargers can suffer from worn bearings, oil seal failure, boost leaks or sticking wastegate mechanisms. Common symptoms include lack of power, excessive smoke, oil consumption, turbo whistle, engine warning lights or limp mode activation.

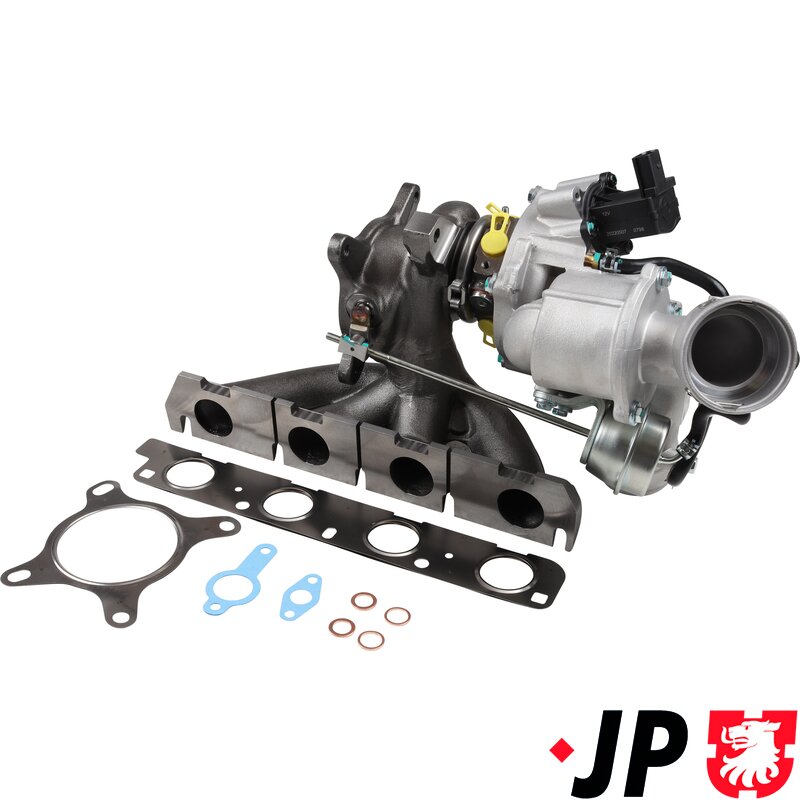

This replacement unit is supplied with fitting gaskets and seals to assist installation and help ensure reliable sealing during fitting.

Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 06J145701B
• 06J145701BV
• 06J145701BX
• 06J145701H
• 06J145701HV
• 06J145701HX
• 06J145701J
• 06J145701JV
• 06J145701JX
• 06J145701L
• 06J145701LV
• 06J145701LX
• 06J145701P
• 06J145701PV
• 06J145701PX
• 06J145701R
• 06J145701RV
• 06J145701RX
• 06J145702C
• 06J145702CV
• 06J145702CX
• 06J145702F
• 06J145702FV
• 06J145702FX
• 06J145702G
• 06J145702GV
• 06J145702GX

Fitment:

VW Golf Mk6 Hatchback (2009-2011)
• 1.8 TSI Petrol 160PS

VW Passat B6 Saloon & Estate (2007-2011)
• 1.8 TSI Petrol 152PS
• 1.8 TSI Petrol 160PS

VW Passat B7 Saloon, Estate & Estate Van (2010-2014)
• 1.8 TSI Petrol 152PS
• 1.8 TSI Petrol 160PS

VW Passat CC Coupe (2008-2016)
• 1.8 TSI Petrol 152PS
• 1.8 TSI Petrol 160PS

Function:
The turbocharger increases engine power and efficiency by compressing intake air using exhaust gas energy, helping the 1.8 TSI engine produce strong torque and responsive acceleration.

Common Symptoms of Turbo Failure:
• Reduced engine power
• Slow acceleration
• Turbo whining or siren noises
• Excessive exhaust smoke
• Increased oil consumption
• Engine management warning light
• Limp mode activation
• Boost pressure faults

Additional Parts Recommended During Installation:
• Turbo oil feed pipe
• Oil return pipe gasket
• Fresh engine oil and oil filter
• Intercooler hose inspection
• PCV breather system components
• Exhaust manifold hardware
• Diverter valve if faulty
• Intake seals and boost hoses
