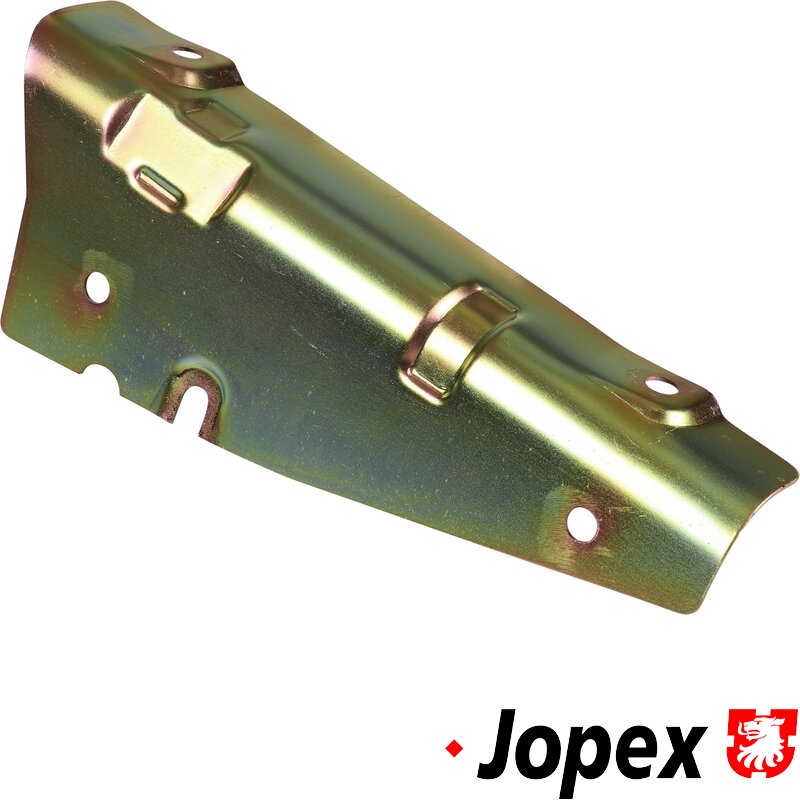

T25 Manifold Lower Heat Shield

Lower exhaust manifold heat shield designed for Volkswagen T25/T3 models fitted with the 1.6 Turbo Diesel JX engine. This lower shielding plate mounts beneath the exhaust manifold and turbocharger assembly to help contain and deflect radiant heat away from surrounding engine and chassis components.

Turbo diesel engines generate substantial exhaust temperatures, especially around the manifold and turbocharger area. The lower heat shield helps protect nearby hoses, wiring, engine mounts and bodywork from heat damage while also reducing heat transfer into the engine bay and underbody areas. It is an important part of the factory thermal management system on JX-powered Transporters.

Manufactured from durable zinc-plated steel for excellent resistance against corrosion and high operating temperatures, this shield is ideal for replacing rusted or missing originals during restoration or engine repair work.

Features:
• Lower exhaust manifold heat shield
• Designed for 1.6 Turbo Diesel JX engines
• Helps reduce under-engine heat exposure
• Zinc-plated steel construction
• Corrosion resistant finish
• Direct replacement style fitment

Fits:

VW T25/T3 (1984-1992)
• 1.6 TD JX Diesel – 69-70PS
• Bus
• Van
• Platform/Chassis

VW Passat B2 (1982-1988)
• 1.6 Diesel Turbo – 70PS
• Hatchback
• Estate

Function:
The lower heat shield protects surrounding components from the intense heat generated by the exhaust manifold and turbocharger. It helps reduce heat soak into the engine bay and chassis area, improving reliability and protecting rubber, plastic and electrical components from premature heat-related deterioration.

Additional Parts Recommended:
• Upper exhaust manifold heat shield
• Exhaust manifold gasket set
• Turbocharger mounting kit
• Exhaust manifold studs and copper nuts
• Turbo oil feed and return pipes
• Engine bay insulation panels
