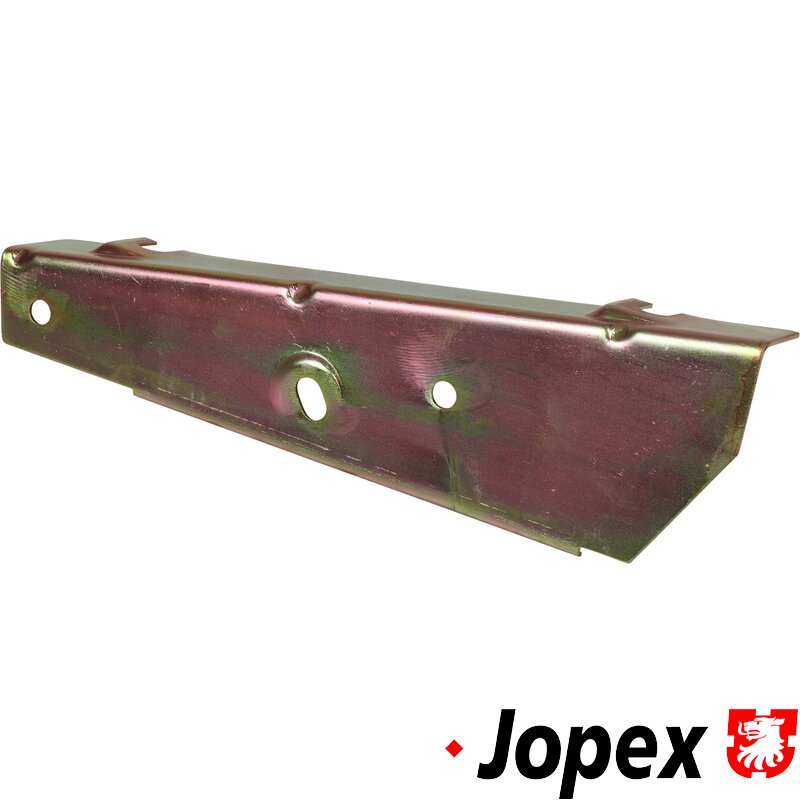

T25 Manifold Upper Heat Shield

Upper exhaust manifold heat shield designed for Volkswagen T25/T3 models fitted with the 1.6 Turbo Diesel JX engine. This shielding plate mounts above the exhaust manifold to help deflect and contain radiant heat generated by the turbocharger and exhaust system, protecting surrounding engine bay components from excessive temperatures.

On turbo diesel engines, exhaust temperatures are significantly higher than naturally aspirated models. Without the correct heat shielding in place, excessive heat can affect hoses, wiring, intake components and engine bay insulation. This upper heat shield helps maintain safer operating temperatures while also reducing heat soak within the engine compartment.

Manufactured from durable zinc-plated steel for improved corrosion resistance and long service life, this heat shield is ideal for restoration work or replacing rusted or damaged original shielding.

Features:
• Upper exhaust manifold heat shield
• Designed for 1.6 Turbo Diesel JX engines
• Helps reduce engine bay heat exposure
• Zinc-plated steel construction
• Corrosion resistant finish
• Direct replacement style fitment

Fits:

VW T25/T3 (1984-1992)
• 1.6 TD JX Diesel – 69-70PS
• Bus
• Van
• Platform/Chassis

VW Passat B2 (1982-1988)
• 1.6 Diesel Turbo – 70PS
• Hatchback
• Estate

OEM Reference:
• 068253283

Function:
The heat shield acts as a thermal barrier between the exhaust manifold/turbocharger assembly and surrounding engine bay components. By reflecting and dispersing radiant heat, it helps protect hoses, wiring, intake systems and body panels from heat damage while improving overall thermal management.

Additional Parts Recommended:
• Exhaust manifold gasket set
• Turbo mounting hardware
• Exhaust manifold studs and nuts
• Lower manifold heat shield
• Turbo oil feed and return pipes
• Engine bay insulation components
