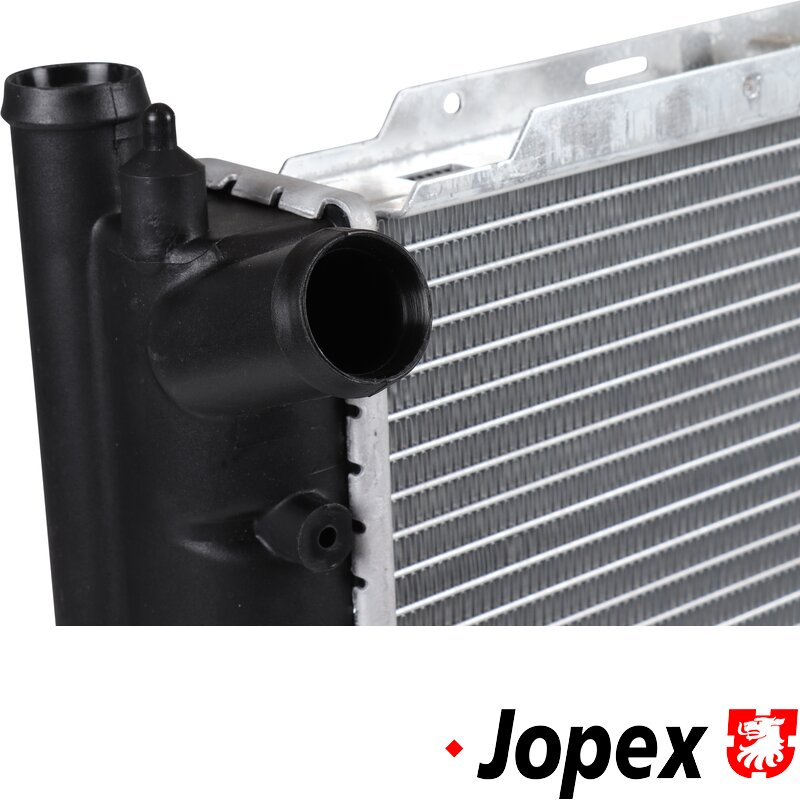

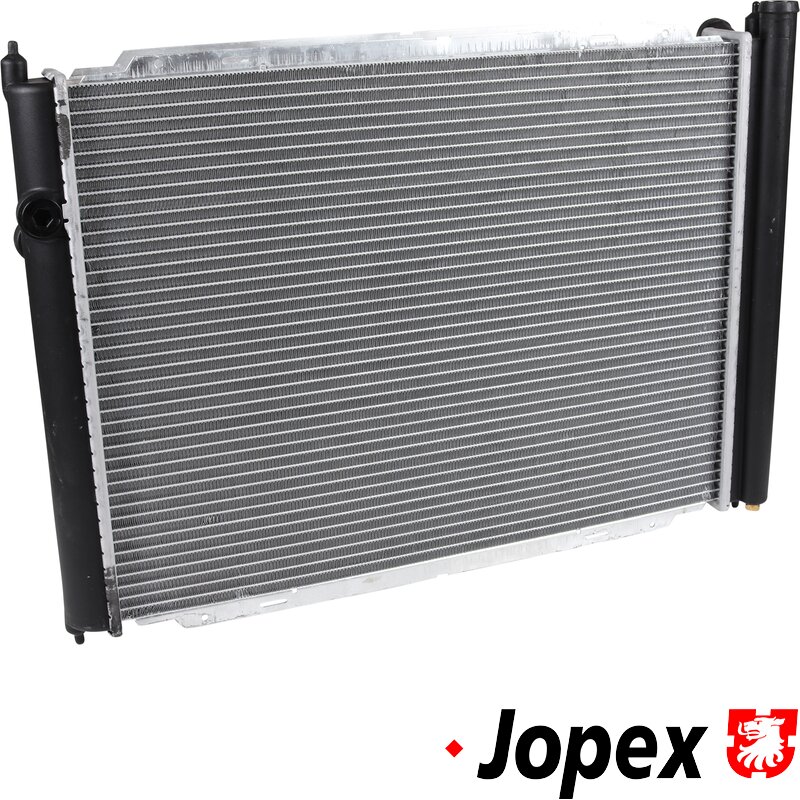

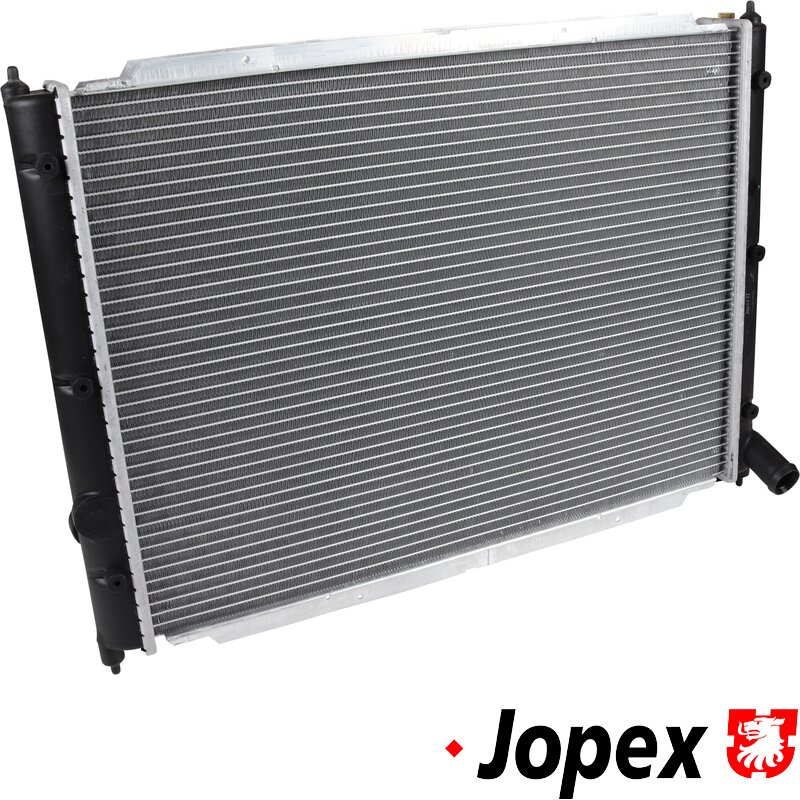

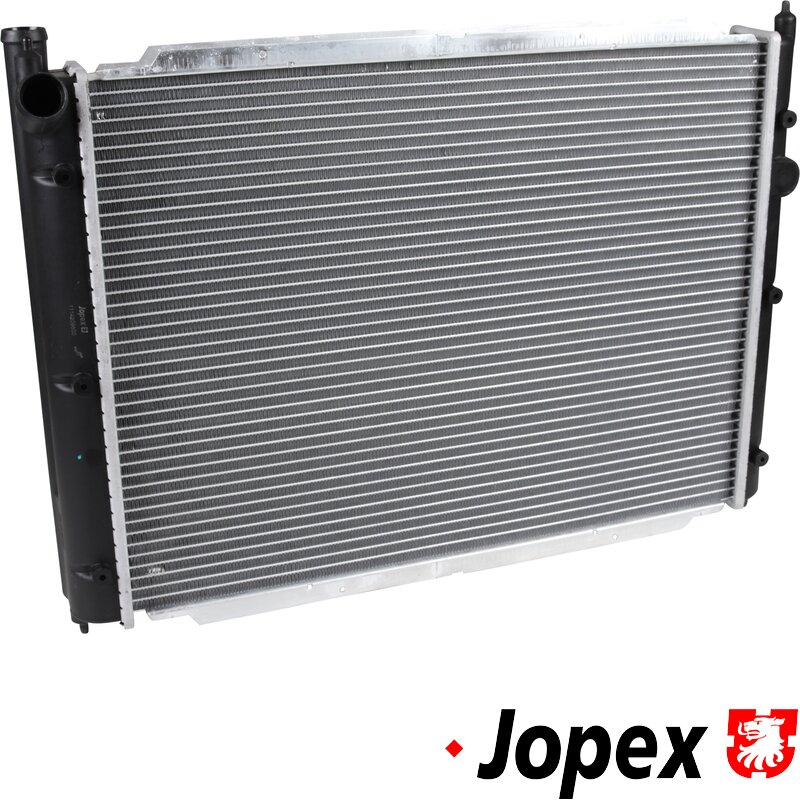

Type 25 Radiator - Heavy Duty

Upgrade the cooling performance of your VW T3/T25 with this heavy duty 42mm core radiator, designed as a direct replacement for the original factory radiator. Built using an aluminium core with durable plastic end tanks, this upgraded radiator offers increased cooling efficiency for engines that are known to run hotter under load or during extended driving.

Featuring a thicker 42mm core compared to the original 34mm design, this radiator provides improved heat dissipation without requiring modifications during installation. It is an ideal upgrade for camper vans, heavily loaded vans, towing vehicles or higher output engine conversions where improved cooling performance is beneficial.

The radiator works by circulating coolant through the aluminium core where heat is transferred away from the engine and dispersed through airflow at the front of the vehicle. A larger core capacity increases the cooling surface area, helping maintain more stable engine temperatures and improving overall cooling system efficiency.

This radiator is designed for manual transmission vehicles without factory air conditioning.

Tech Tip:
Check your coolant return hose part number 068121101H when replacing the radiator. The improved hose design includes an internal venturi in the return line to the expansion tank, helping remove trapped air bubbles more effectively and improving coolant bleeding performance.

Specifications:
• Heavy duty aluminium and plastic radiator
• Core Size: 568mm x 438mm x 42mm
• Core Depth: 42mm
• For vehicles without air conditioning
• For manual transmission models

Replaces OE Part Numbers:
• 068121253B
• 068121253C
• 068121253D
• 068121253E
• 025121253A

Fitment:

VW Transporter T3 / T25 Van, Bus & Platform Chassis (1981-1992)
• 1.6 Diesel
• 1.7 Diesel
• 1.9 Petrol
• 2.1 Petrol

Suitable for both early and late T3/T25 watercooled models fitted with manual transmission and without factory air conditioning.

Additional Parts That May Be Required During Fitting:
• Coolant hoses
• Coolant hose clips
• Expansion tank cap
• Radiator fan switch
• Fresh G11/G12 coolant
• Coolant return hose 068121101H
