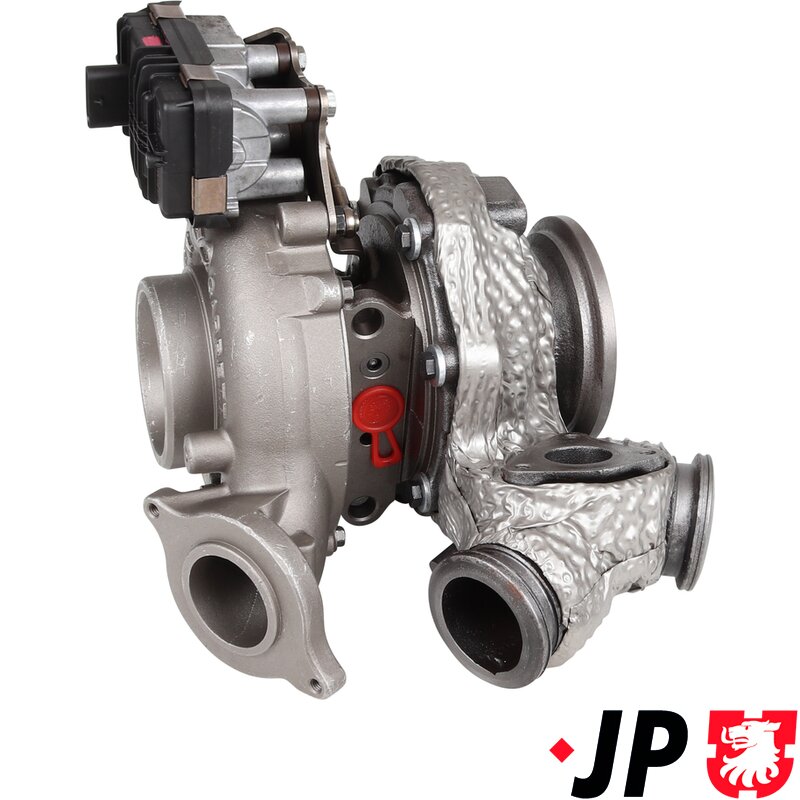

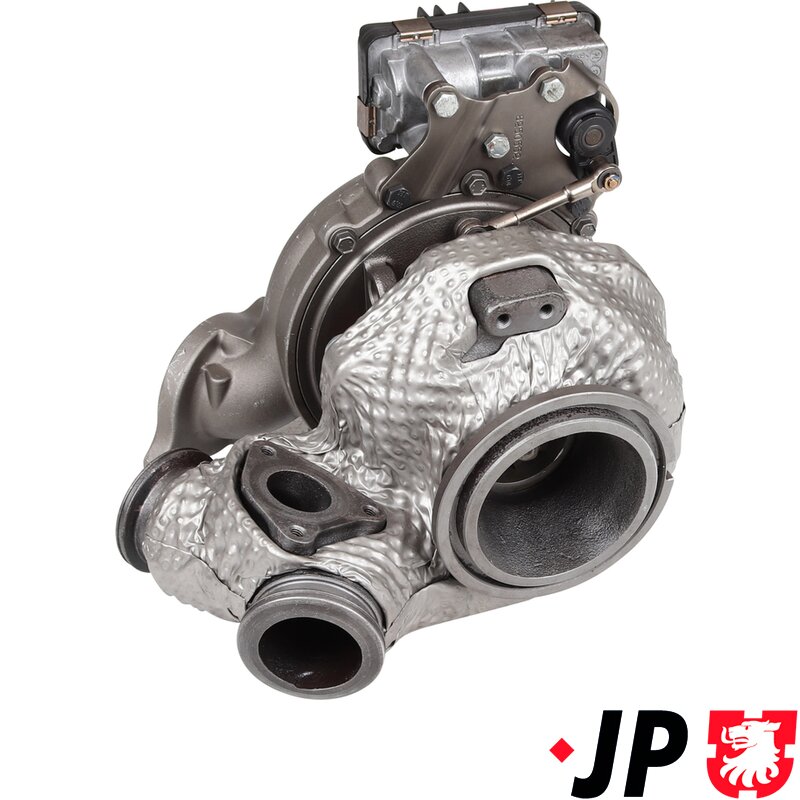

Amarok Turbo - 2016-19 - 3.0 TDI (Reconditioned)
Part Number: 059145873EN
Replacement reconditioned exhaust turbocharger for Volkswagen Amarok models fitted with the 3.0 TDI V6 diesel engine up to March 2019 production. Supplied complete with gasket and seal kit, this turbocharger is designed to restore original boost pressure, towing performance and engine efficiency on vehicles suffering from turbocharger wear or failure.
The turbocharger uses exhaust gas energy to drive a turbine and compressor assembly, forcing additional air into the engine for improved combustion efficiency, increased torque and enhanced pulling power. On the 3.0 TDI Amarok engine, the turbocharger plays a vital role in delivering strong low-end torque for towing, off-road use and load carrying.
Over time turbochargers can develop bearing wear, oil seal failure, boost leaks or electronic actuator faults. Common symptoms include reduced power, limp mode activation, excessive smoke, turbo whistle, oil consumption or boost pressure related fault codes.

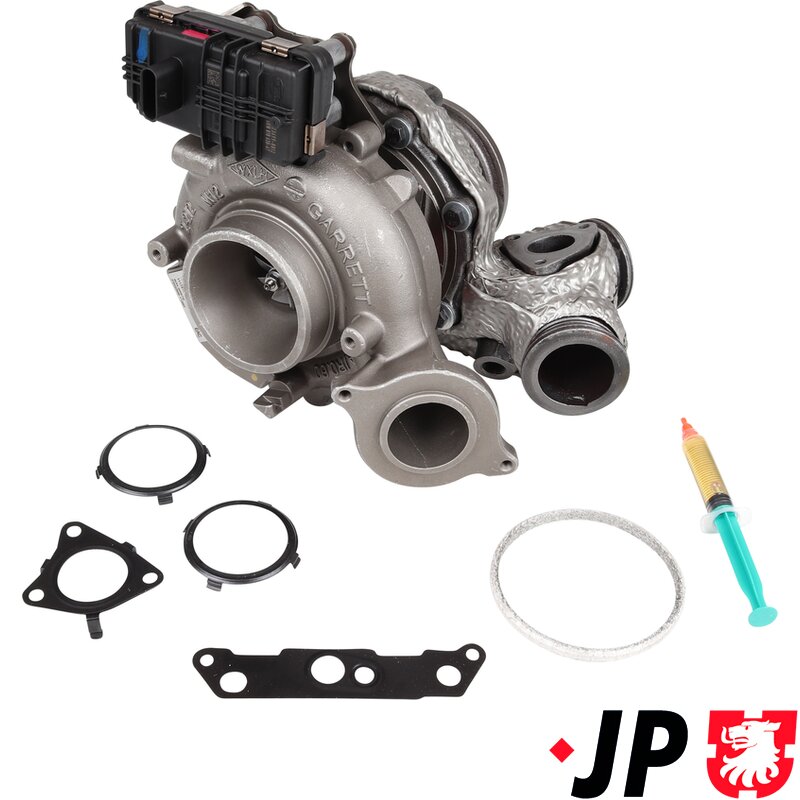

This generally overhauled turbocharger is supplied with fitting gaskets and seals to simplify installation and help ensure reliable sealing during fitment.
Specifications:
• Charge Type: Exhaust Turbocharger
• Generally overhauled / reconditioned unit
• Supplied with gasket and seal kit
• Suitable for models up to March 2019 production
Replaces OE Part Numbers:
• 059145873BL
• 059145873BLV
• 059145873BLX
• 059145873BP
• 059145873BPV
• 059145873BPX
• 059145873BJ
• 059145873BJV
• 059145873BJX
• 059145873CH
• 059145873CHV
• 059145873CHX
• 059145873CL
• 059145873CLV
• 059145873CLX
• 059145873DB
• 059145873DBV
• 059145873DBX
• 059145873EN
• 059145873ENV
• 059145873ENX
• 059145873ES
• 059145873ESV
• 059145873ESX
Fitment:
VW Amarok Pickup & Platform/Chassis – Models To March 2019 (2016-2019)
• 3.0 TDI V6 Diesel 163PS
• 3.0 TDI V6 Diesel 204PS
• 3.0 TDI V6 Diesel 224PS
• 3.0 TDI V6 Diesel 258PS
Function:
The turbocharger compresses intake air using exhaust gas energy to improve diesel combustion efficiency, engine torque, towing performance and fuel economy.
Common Symptoms of Turbo Failure:
• Loss of boost pressure
• Reduced towing performance
• Excessive exhaust smoke
• Turbo whining or siren noises
• Oil consumption
• Engine management warning lights
• Limp mode activation
• Electronic actuator or wastegate faults
Additional Parts That May Be Required During Fitting:
• Turbo oil feed pipe
• Turbo oil return gasket
• Exhaust mounting hardware
• Fresh engine oil and oil filter
• Intercooler hoses if contaminated with oil
• DPF inspection if turbo failure has occurred
This Part Fits:
Availability:
Item Name: Turbocharger
Description: Charger, charging (supercharged/turbocharged)
Product Group: Engine
Group: Air Supply
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 246mm
Height: 372mm
Depth: 365mm
Volume: 33401880mm3
Weight: 10kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A4 | A4 (B9) | 09/15 - 09/15 | 3,0 | Diesel | Saloon | 218 | - | -
|
| Audi | A4 | A4 (B9) | 09/15 - 09/15 | 3,0 | Diesel | Saloon | 218 | - | -
|
| Audi | A4 | A4 (B9) | 10/15 - 10/15 | 3,0 | Diesel | Estate | 218 | - | -
|
| Audi | A4 | A4 (B9) | 11/15 - 11/15 | 3,0 | Diesel | Estate | 218 | - | -
|
| Audi | A4 | A4 (B9) | 01/16 - 01/16 | 3,0 | Diesel | Estate | 218 | - | -
|
| Audi | A4 | A4 (B9) | 05/15 - 05/15 | 3,0 | Diesel | Saloon | 272 | - | -
|
| Audi | A4 | A4 (B9) | 08/15 - 08/15 | 3,0 | Diesel | Estate | 272 | - | -
|
| Audi | A4 | A4 (B9) | 01/16 - 01/16 | 3,0 | Diesel | Estate | 272 | - | -
|
| Audi | A5 | A5 (F5) | 07/16 - 07/16 | 3,0 | Diesel | Coupe | 218 | - | -
|
| Audi | A5 | A5 (F5) | 09/16 - | 3,0 | Diesel | Hatchback | 218 | - | -
|
| Audi | A5 | A5 (F5) | 11/16 - 11/16 | 3,0 | Diesel | Coupe | 218 | - | -
|
| Audi | A5 | A5 (F5) | 12/16 - 12/16 | 3,0 | Diesel | Convertible | 218 | - | -
|
| Audi | A5 | A5 (F5) | 03/17 - 03/17 | 3,0 | Diesel | Hatchback | 218 | - | -
|
| Audi | A5 | A5 (F5) | 03/17 - 03/17 | 3,0 | Diesel | Convertible | 218 | - | -
|
| Audi | A5 | A5 (F5) | 02/17 - 02/17 | 3,0 | Diesel | Hatchback | 272 | - | -
|
| Audi | A5 | A5 (F5) | 02/17 - 02/17 | 3,0 | Diesel | Coupe | 272 | - | -
|
| Audi | A6 | A6 (C7) | 09/14 - 09/14 | 3,0 | Diesel | Saloon | 211 | - | -
|
| Audi | A6 | A6 (C7) | 09/14 - 09/14 | 3,0 | Diesel | Estate | 211 | - | -
|
| Audi | A6 | A6 (C7) | 09/14 - 09/14 | 3,0 | Diesel | Estate | 218 | - | Engine Code CRTE |
| Audi | A6 | A6 (C7) | 09/14 - 09/14 | 3,0 | Diesel | Saloon | 218 | - | Engine Code CRTE |
| Audi | A6 | A6 (C7) | 09/14 - 09/14 | 3,0 | Diesel | Saloon | 272 | - | -
|
| Audi | A6 | A6 (C7) | 09/14 - 09/14 | 3,0 | Diesel | Estate | 272 | - | -
|
| Audi | A6 | Allroad (C7) | 11/15 - 11/15 | 3,0 | Diesel | Estate | 190 | - | -
|
| Audi | A6 | Allroad (C7) | 09/14 - 09/14 | 3,0 | Diesel | Estate | 211 | - | -
|
| Audi | A6 | Allroad (C7) | 09/14 - 09/14 | 3,0 | Diesel | Estate | 218 | - | Engine Code CRTE |
| Audi | A6 | Allroad (C7) | 09/14 - 09/14 | 3,0 | Diesel | Estate | 272 | - | -
|
| Audi | A7 | A7 (C7) | 11/15 - 11/15 | 3,0 | Diesel | Hatchback | 190 | - | -
|
| Audi | A7 | A7 (C7) | 11/15 - 11/15 | 3,0 | Diesel | Hatchback | 190 | - | Engine Code CZVF |
| Audi | A7 | A7 (C7) | 07/14 - 07/14 | 3,0 | Diesel | Hatchback | 211 | - | Engine Code CRTF |
| Audi | A7 | A7 (C7) | 11/15 - 11/15 | 3,0 | Diesel | Hatchback | 211 | - | Engine Code CZVD |
| Audi | A7 | A7 (C7) | 07/14 - 07/14 | 3,0 | Diesel | Hatchback | 218 | - | Engine Code CRTE |
| Audi | A7 | A7 (C7) | 05/14 - 05/14 | 3,0 | Diesel | Hatchback | 272 | - | -
|
| Audi | A8 | A8 (D5) | 01/19 - | 3,0 | Diesel | Saloon | 249 | - | Construction Year to 202006 |
| Audi | Q7 | Q7 (4M) | 08/15 - 08/15 | 3,0 | Diesel | SUV | 211 | - | Construction Year to 201903 |
| Audi | Q7 | Q7 (4M) | 05/15 - 05/15 | 3,0 | Diesel | SUV | 218 | - | -
|
| Audi | Q7 | Q7 (4M) | 08/15 - 08/15 | 3,0 | Diesel | SUV Van | 218 | - | -
|
| Audi | Q7 | Q7 (4M) | 06/15 - 06/15 | 3,0 | Diesel | SUV | 249 | - | -
|
| Audi | Q7 | Q7 (4M) | 07/19 - | 3,0 | Diesel | SUV | 249 | - | -
|
| Audi | Q7 | Q7 (4M) | 08/15 - 08/15 | 3,0 | Diesel | SUV | 258 | - | -
|
| Audi | Q7 | Q7 (4M) | 01/15 - 01/15 | 3,0 | Diesel | SUV Van | 272 | - | -
|
| Audi | Q7 | Q7 (4M) | 01/15 - 01/15 | 3,0 | Diesel | SUV | 272 | - | -
|
| Audi | Q7 | Q7 (4M) | 08/15 - 08/15 | 3,0 | Diesel/Electric | SUV | 374 | - | -
|
| VW | Amarok | Amarok | 06/16 - 06/16 | 3,0 | Diesel | Pickup | 163 | - | Construction Year to 201903 |
| VW | Amarok | Amarok | 06/16 - 06/16 | 3,0 | Diesel | Pickup | 163 | - | Construction Year to 201903 |
| VW | Amarok | Amarok | 06/16 - 06/16 | 3,0 | Diesel | Pickup | 204 | - | Construction Year to 201903 |
| VW | Amarok | Amarok | 06/16 - 06/16 | 3,0 | Diesel | Platform/Chassis | 204 | - | -
|
| VW | Amarok | Amarok | 06/16 - 06/16 | 3,0 | Diesel | Pickup | 224 | - | Construction Year to 201903 |
| VW | Amarok | Amarok | 05/18 - 05/18 | 3,0 | Diesel | Pickup | 258 | - | Construction Year to 201903 |
| VW | Amarok | Amarok | 05/18 - 05/18 | 3,0 | Diesel | Platform/Chassis | 258 | - | Construction Year to 201903 |
| Manufacturer | Ref. No. |
|---|---|
| AUDI | 059145873BJ |
| AUDI | 059145873BJV |
| AUDI | 059145873BJX |
| AUDI | 059145873BL |
| AUDI | 059145873BLV |
| AUDI | 059145873BLX |
| AUDI | 059145873BP |
| AUDI | 059145873BPV |
| AUDI | 059145873BPX |
| AUDI | 059145873CH |
| AUDI | 059145873CHV |
| AUDI | 059145873CHX |
| AUDI | 059145873CL |
| AUDI | 059145873CLV |
| AUDI | 059145873CLX |
| AUDI | 059145873DB |
| AUDI | 059145873DBV |
| AUDI | 059145873DBX |
| AUDI | 059145873EN |
| AUDI | 059145873ENV |
| AUDI | 059145873ENX |
| AUDI | 059145873ES |
| AUDI | 059145873ESV |
| AUDI | 059145873ESX |
| FEBI BILSTEIN | 187175 |
| VW | 059145873BJ |
| VW | 059145873BJV |
| VW | 059145873BJX |
| VW | 059145873BL |
| VW | 059145873BLV |
| VW | 059145873BLX |
| VW | 059145873BP |
| VW | 059145873BPV |
| VW | 059145873BPX |
| VW | 059145873CH |
| VW | 059145873CHV |
| VW | 059145873CHX |
| VW | 059145873CL |
| VW | 059145873CLV |
| VW | 059145873CLX |
| VW | 059145873DB |
| VW | 059145873DBV |
| VW | 059145873DBX |
| VW | 059145873EN |
| VW | 059145873ENV |
| VW | 059145873ENX |
| VW | 059145873ES |
| VW | 059145873ESV |
| VW | 059145873ESX |
| BE TURBO | 130571 |
| BTS TURBO | T916979 |
| SCHLÜTTER TURBOLADER | 17214115 |
| SCHLÜTTER TURBOLADER | 172-14115 |
| VAG | 059145873BJ |
| VAG | 059145873BJV |
| VAG | 059145873BJX |
| VAG | 059145873BL |
| VAG | 059145873BLV |
| VAG | 059145873BLX |
| VAG | 059145873BP |
| VAG | 059145873BPV |
| VAG | 059145873BPX |
| VAG | 059145873CH |
| VAG | 059145873CHV |
| VAG | 059145873CHX |
| VAG | 059145873CL |
| VAG | 059145873CLV |
| VAG | 059145873CLX |
| VAG | 059145873DB |
| VAG | 059145873DBV |
| VAG | 059145873DBX |
| VAG | 059145873EN |
| VAG | 059145873ENV |
| VAG | 059145873ENX |
| VAG | 059145873ES |
| VAG | 059145873ESV |
| VAG | 059145873ESX |
| MOTAIR TURBOLADER | 337580 |
| ALANKO | 11901432 |
| GARRETT | 8390770002 |
| GARRETT | 839077-0002 |
| GARRETT | 8390770008 |
| GARRETT | 839077-0008 |
| GARRETT | 8390770009 |
| GARRETT | 839077-0009 |
| GARRETT | 8390770011 |
| GARRETT | 839077-0011 |
| GARRETT | 83907711 |
| GARRETT | 839077-11 |
| GARRETT | 8390772 |
| GARRETT | 839077-2 |
| GARRETT | 8390775002S |
| GARRETT | 839077-5002S |
| GARRETT | 8390775008S |
| GARRETT | 839077-5008S |
| GARRETT | 8390775009S |
| GARRETT | 839077-5009S |
| GARRETT | 8390775011S |
| GARRETT | 839077-5011S |
| GARRETT | 8390778 |
| GARRETT | 839077-8 |
| GARRETT | 8390779 |
| GARRETT | 839077-9 |
| GARRETT | 8390780001 |
| GARRETT | 839078-0001 |
| GARRETT | 8390781 |
| GARRETT | 839078-1 |
| GARRETT | 8390785001S |
| GARRETT | 839078-5001S |
