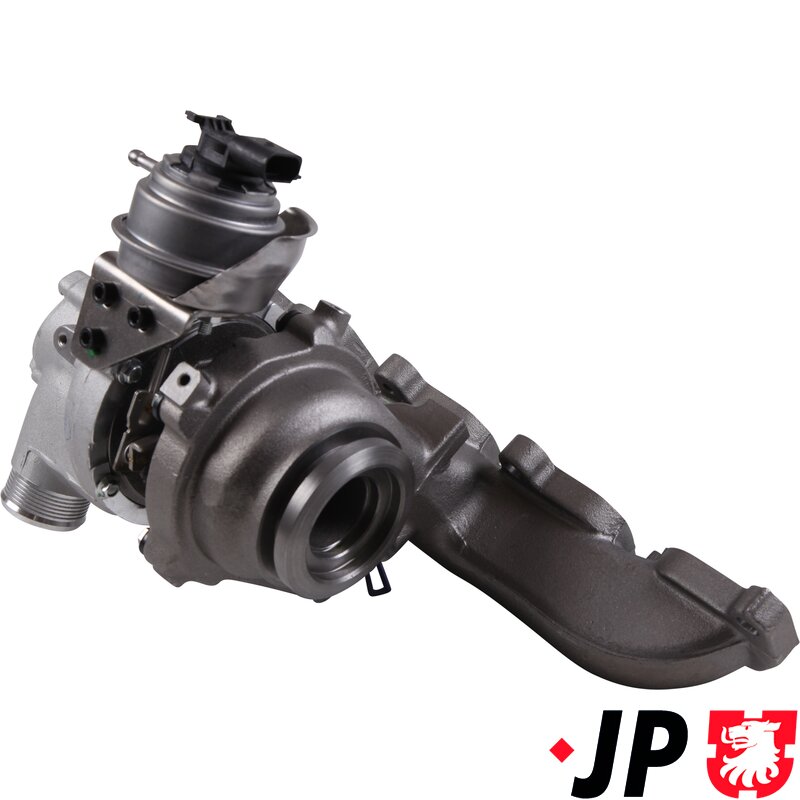

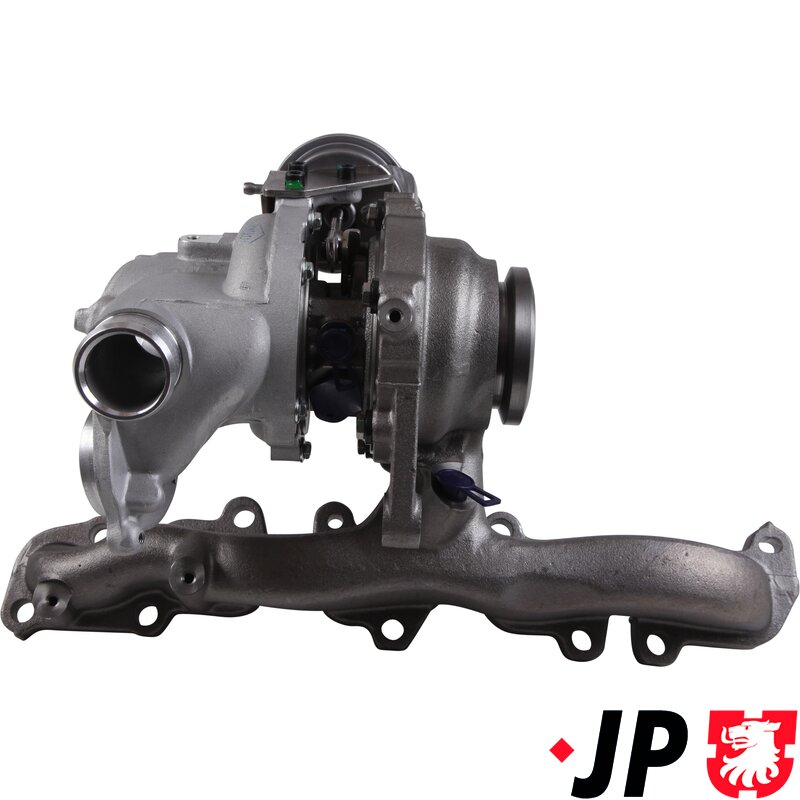

G7 Turbo - 2012-20 - 1.6 TDI
Part Number: 04L253020S
Replacement exhaust turbocharger for Volkswagen 1.6 TDI diesel engines fitted to Golf Mk7, Tiguan AD1 and Touran Mk3 models. Supplied complete with gasket and seal kit, this turbocharger is designed to restore original boost pressure, fuel economy and engine performance.
The turbocharger uses exhaust gas energy to spin a turbine wheel which compresses incoming air before it enters the engine. This improves combustion efficiency, torque delivery and fuel economy while reducing emissions from the 1.6 TDI diesel engine.
Turbochargers can fail over time due to oil contamination, carbon build-up, sticking vane mechanisms or worn bearings. Common symptoms include reduced power, excessive smoke, turbo whistle, limp mode activation and boost pressure faults.

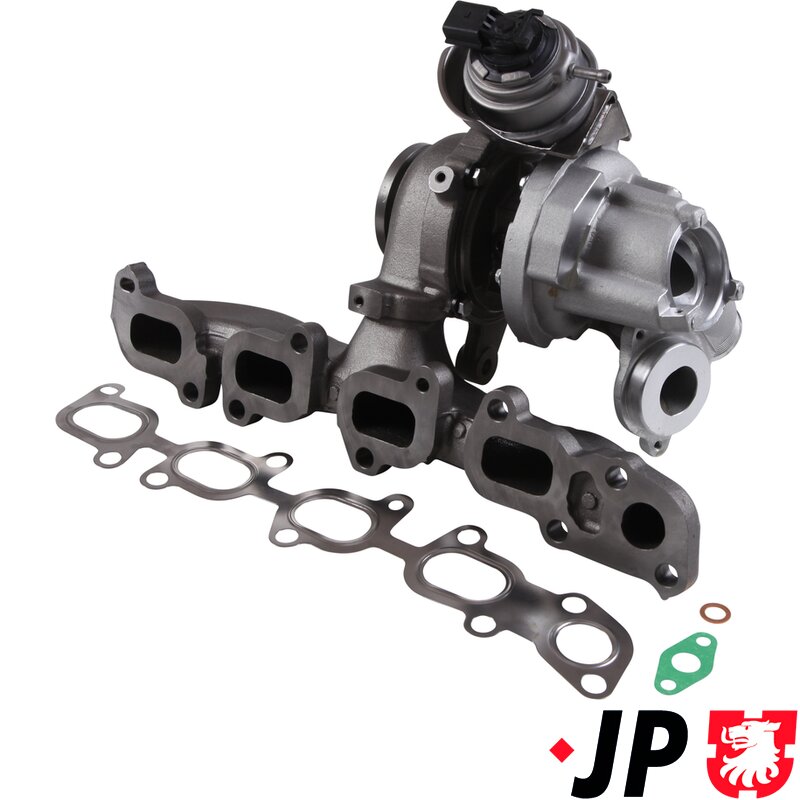

This replacement turbocharger is supplied with installation gaskets and seals to help ensure reliable fitting and proper sealing during installation.
Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit
Replaces OE Part Numbers:
• 04L253016H
• 04L253016HV
• 04L253016HX
• 04L253020A
• 04L253020AV
• 04L253020AX
• 04L253020H
• 04L253020S
• 04L253020SV
• 04L253020SX
Fitment:
VW Golf Mk7 Hatchback, Estate & Van (2012-2020)
• 1.6 TDI Diesel 90PS
• 1.6 TDI Diesel 105PS
• 1.6 TDI Diesel 110PS
• 1.6 TDI Diesel 115PS
VW Tiguan AD1 SUV (2016-2020)
• 1.6 TDI Diesel 115PS
VW Touran Mk3 MPV (2015-Onwards)
• 1.6 TDI Diesel 110PS
• 1.6 TDI Diesel 115PS
Function:
The turbocharger increases engine efficiency and performance by compressing intake air using exhaust gas energy, allowing the 1.6 TDI engine to produce stronger torque, improved acceleration and lower fuel consumption.
Common Symptoms of Turbo Failure:
• Loss of boost pressure
• Reduced engine power
• Turbo whistle or siren noise
• Excessive black or blue smoke
• Poor fuel economy
• Engine warning light
• Limp mode activation
• Oil leaks from turbocharger
Additional Parts Recommended During Installation:
• Turbo oil feed pipe
• Turbo oil return gasket
• Engine oil and filter
• Intake and boost hoses
• Intercooler inspection and cleaning
• Vacuum control solenoid
• DPF inspection if fitted
• Exhaust mounting hardware
This Part Fits:
Availability: Special Order
Item Name: Turbocharger
Description: Charger, charging (supercharged/turbocharged)
Product Group: Engine
Group: Air Supply
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 246mm
Height: 372mm
Depth: 365mm
Volume: 33401880mm3
Weight: 10.665kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A3 | A3 (8V) | 10/12 - 10/12 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| Audi | A3 | A3 (8V) | 10/12 - 10/12 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| Audi | A3 | A3 (8V) | 09/13 - 09/13 | 1,6 | Diesel | Saloon | 105 | - | -
|
| Audi | A3 | A3 (8V) | 09/13 - 09/13 | 1,6 | Diesel | Hatchback | 110 | - | -
|
| Audi | A3 | A3 (8V) | 09/13 - 09/13 | 1,6 | Diesel | Hatchback | 110 | - | -
|
| Audi | A3 | A3 (8V) | 02/14 - 02/14 | 1,6 | Diesel | Convertible | 110 | - | -
|
| Audi | A3 | A3 (8V) | 05/14 - 05/14 | 1,6 | Diesel | Saloon | 110 | - | -
|
| Audi | A3 | A3 (8V) | 05/15 - 05/15 | 1,6 | Diesel | Hatchback | 110 | - | -
|
| Audi | A3 | A3 (8V) | 05/15 - 05/15 | 1,6 | Diesel | Saloon | 110 | - | -
|
| Audi | A3 | A3 (8V) | 02/17 - 02/17 | 1,6 | Diesel | Hatchback | 115 | - | Engine Code DDYA |
| Audi | A3 | A3 (8V) | 02/17 - 02/17 | 1,6 | Diesel | Hatchback | 115 | - | -
|
| Audi | A3 | A3 (8V) | 03/17 - 03/17 | 1,6 | Diesel | Saloon | 115 | - | -
|
| Audi | A3 | A3 (8V) | 04/17 - 04/17 | 1,6 | Diesel | Convertible | 115 | - | -
|
| Audi | A3 | A3 (8V) | 07/18 - 07/18 | 1,6 | Diesel | Hatchback | 115 | - | -
|
| Audi | A3 | A3 (8V) | 07/18 - 07/18 | 1,6 | Diesel | Saloon | 115 | - | -
|
| Audi | Q2 | Q2 (GA) | 06/16 - 06/16 | 1,6 | Diesel | SUV | 115 | - | -
|
| Audi | Q2 | Q2 (GA) | 07/18 - 07/18 | 1,6 | Diesel | SUV | 115 | - | -
|
| Seat | Arona | Arona | 11/17 - | 1,6 | Diesel | SUV | 95 | - | -
|
| Seat | Arona | Arona | 07/17 - | 1,6 | Diesel | SUV | 115 | - | -
|
| Seat | Ateca | Ateca | 04/16 - | 1,6 | Diesel | SUV | 115 | - | -
|
| Seat | Ibiza | Ibiza (KJ) | 11/17 - | 1,6 | Diesel | Hatchback | 80 | - | -
|
| Seat | Ibiza | Ibiza (KJ) | 09/17 - | 1,6 | Diesel | Hatchback | 95 | - | -
|
| Seat | Ibiza | Ibiza (KJ) | 12/17 - | 1,6 | Diesel | Hatchback | 115 | - | -
|
| Seat | Leon | Leon (5F) | 11/12 - 11/12 | 1,6 | Diesel | Hatchback | 90 | - | Engine Code CLHB |
| Seat | Leon | Leon (5F) | 11/12 - 11/12 | 1,6 | Diesel | Hatchback Van | 90 | - | -
|
| Seat | Leon | Leon (5F) | 02/13 - 02/13 | 1,6 | Diesel | Coupe | 90 | - | Engine Code CLHB |
| Seat | Leon | Leon (5F) | 11/13 - 11/13 | 1,6 | Diesel | Estate | 90 | - | Engine Code CLHB |
| Seat | Leon | Leon (5F) | 09/12 - 09/12 | 1,6 | Diesel | Hatchback Van | 105 | - | -
|
| Seat | Leon | Leon (5F) | 09/12 - 09/12 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| Seat | Leon | Leon (5F) | 02/13 - 02/13 | 1,6 | Diesel | Coupe | 105 | - | -
|
| Seat | Leon | Leon (5F) | 10/13 - 10/13 | 1,6 | Diesel | Estate | 105 | - | -
|
| Seat | Leon | Leon (5F) | 04/14 - 04/14 | 1,6 | Diesel | Estate | 105 | - | -
|
| Seat | Leon | Leon (5F) | 09/13 - 09/13 | 1,6 | Diesel | Hatchback Van | 110 | - | -
|
| Seat | Leon | Leon (5F) | 09/13 - 09/13 | 1,6 | Diesel | Hatchback | 110 | - | -
|
| Seat | Leon | Leon (5F) | 09/13 - 09/13 | 1,6 | Diesel | Coupe | 110 | - | Engine Code CRKB |
| Seat | Leon | Leon (5F) | 09/13 - 09/13 | 1,6 | Diesel | Estate Van | 110 | - | -
|
| Seat | Leon | Leon (5F) | 09/13 - 09/13 | 1,6 | Diesel | Estate | 110 | - | Engine Code CRKB |
| Seat | Leon | Leon (5F) | 11/14 - 11/14 | 1,6 | Diesel | Estate | 110 | - | -
|
| Seat | Leon | Leon (5F) | 11/16 - 11/16 | 1,6 | Diesel | Hatchback Van | 115 | - | -
|
| Seat | Leon | Leon (5F) | 11/16 - 11/16 | 1,6 | Diesel | Estate | 115 | - | Engine Code DDYA |
| Seat | Leon | Leon (5F) | 11/16 - 11/16 | 1,6 | Diesel | Hatchback | 115 | - | -
|
| Seat | Leon | Leon (5F) | 11/16 - 11/16 | 1,6 | Diesel | Estate Van | 115 | - | -
|
| Seat | Leon | Leon (5F) | 11/16 - 11/16 | 1,6 | Diesel | Coupe | 115 | - | -
|
| Seat | Leon | Leon (5F) | 07/18 - 07/18 | 1,6 | Diesel | Estate | 115 | - | -
|
| Skoda | Karoq | Karoq | 07/17 - | 1,6 | Diesel | SUV | 115 | - | Engine Code DDYA |
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 1,6 | Diesel | Hatchback | 90 | - | Engine Code CLHB |
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 1,6 | Diesel | Estate | 90 | - | Engine Code CLHB |
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 1,6 | Diesel | Estate | 105 | - | -
|
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 1,6 | Diesel | Estate | 105 | - | -
|
| Skoda | Octavia | Octavia (5E) | 05/13 - 05/13 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| Skoda | Octavia | Octavia (5E) | 05/13 - 05/13 | 1,6 | Diesel | Hatchback | 110 | - | Engine Code CRKB |
| Skoda | Octavia | Octavia (5E) | 05/13 - 05/13 | 1,6 | Diesel | Estate | 110 | - | Engine Code CRKB |
| Skoda | Octavia | Octavia (5E) | 05/15 - 05/15 | 1,6 | Diesel | Estate | 110 | - | Engine Code CXXB |
| Skoda | Octavia | Octavia (5E) | 05/15 - 05/15 | 1,6 | Diesel | Hatchback | 110 | - | Engine Code CXXB |
| Skoda | Octavia | Octavia (5E) | 02/17 - 02/17 | 1,6 | Diesel | Estate | 115 | - | -
|
| VW | Golf | Golf VII | 04/13 - 04/13 | 1,6 | Diesel | Hatchback Van | 90 | - | Engine Code CRKA |
| VW | Golf | Golf VII | 04/13 - 04/13 | 1,6 | Diesel | Hatchback | 90 | - | Engine Code CLHB;CRKA |
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate Van | 90 | - | Engine Code CRKA;CXXA |
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate | 90 | - | Engine Code CLHB;CRKA |
| VW | Golf | Golf VII | 02/14 - 02/14 | 1,6 | Diesel | Hatchback | 90 | - | Engine Code CRKA |
| VW | Golf | Golf VII | 08/12 - 08/12 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| VW | Golf | Golf VII | 11/12 - 11/12 | 1,6 | Diesel | Hatchback | 105 | - | -
|
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate | 105 | - | -
|
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate | 105 | - | -
|
| VW | Golf | Golf VII | 01/13 - 01/13 | 1,6 | Diesel | Hatchback | 110 | - | Engine Code CRKB |
| VW | Golf | Golf VII | 01/13 - 01/13 | 1,6 | Diesel | Hatchback | 110 | - | Engine Code CRKB |
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate | 110 | - | Engine Code CRKB |
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate | 110 | - | Engine Code CRKB |
| VW | Golf | Golf VII | 05/13 - 05/13 | 1,6 | Diesel | Estate Van | 110 | - | Engine Code CRKB |
| VW | Golf | Golf VII | 11/13 - 11/13 | 1,6 | Diesel | Hatchback Van | 110 | - | -
|
| VW | Golf | Golf VII | 02/14 - 02/14 | 1,6 | Diesel | Hatchback | 110 | - | Engine Code CRKB |
| VW | Golf | Golf VII | 12/14 - 12/14 | 1,6 | Diesel | Estate | 110 | - | -
|
| VW | Golf | Golf VII | 11/16 - 11/16 | 1,6 | Diesel | Estate | 115 | - | Engine Code DDYA |
| VW | Golf | Golf VII | 11/16 - 11/16 | 1,6 | Diesel | Hatchback | 115 | - | -
|
| VW | Golf | Golf VII | 11/16 - 11/16 | 1,6 | Diesel | Hatchback | 115 | - | -
|
| VW | Tiguan | Tiguan (AD1) | 05/16 - 05/16 | 1,6 | Diesel | SUV | 115 | - | -
|
| VW | Touran | Touran III | 05/15 - 05/15 | 1,6 | Diesel | MPV | 110 | - | -
|
| VW | Touran | Touran III | 05/16 - | 1,6 | Diesel | MPV | 115 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| AUDI | 04L253016H |
| AUDI | 04L253016HV |
| AUDI | 04L253016HX |
| AUDI | 04L253020A |
| AUDI | 04L253020AV |
| AUDI | 04L253020AX |
| AUDI | 04L253020H |
| AUDI | 04L253020S |
| AUDI | 04L253020SV |
| AUDI | 04L253020SX |
| FEBI BILSTEIN | 186689 |
| SKODA | 04L253016H |
| SKODA | 04L253016HV |
| SKODA | 04L253016HX |
| SKODA | 04L253020A |
| SKODA | 04L253020AV |
| SKODA | 04L253020AX |
| SKODA | 04L253020H |
| SKODA | 04L253020S |
| SKODA | 04L253020SV |
| SKODA | 04L253020SX |
| VW | 04L253016H |
| VW | 04L253016HV |
| VW | 04L253016HX |
| VW | 04L253020A |
| VW | 04L253020AV |
| VW | 04L253020AX |
| VW | 04L253020H |
| VW | 04L253020S |
| VW | 04L253020SV |
| VW | 04L253020SX |
| BE TURBO | 129515 |
| MOTAIR TURBOLADER | 336347 |
| SEAT | 04L253016H |
| SEAT | 04L253016HV |
| SEAT | 04L253016HX |
| SEAT | 04L253020A |
| SEAT | 04L253020AV |
| SEAT | 04L253020AX |
| SEAT | 04L253020H |
| SEAT | 04L253020S |
| SEAT | 04L253020SV |
| SEAT | 04L253020SX |
| BTS TURBO | T916393 |
| ALANKO | 10900955 |
| LUCAS | LTRPA8476712 |
| GARRETT | 8476715004S |
| GARRETT | 847671-5004S |
| RIDEX | 2234C0445R |
