G7 Turbo - 2012-20 - 2.0 TDI
Part Number: 04L253020M

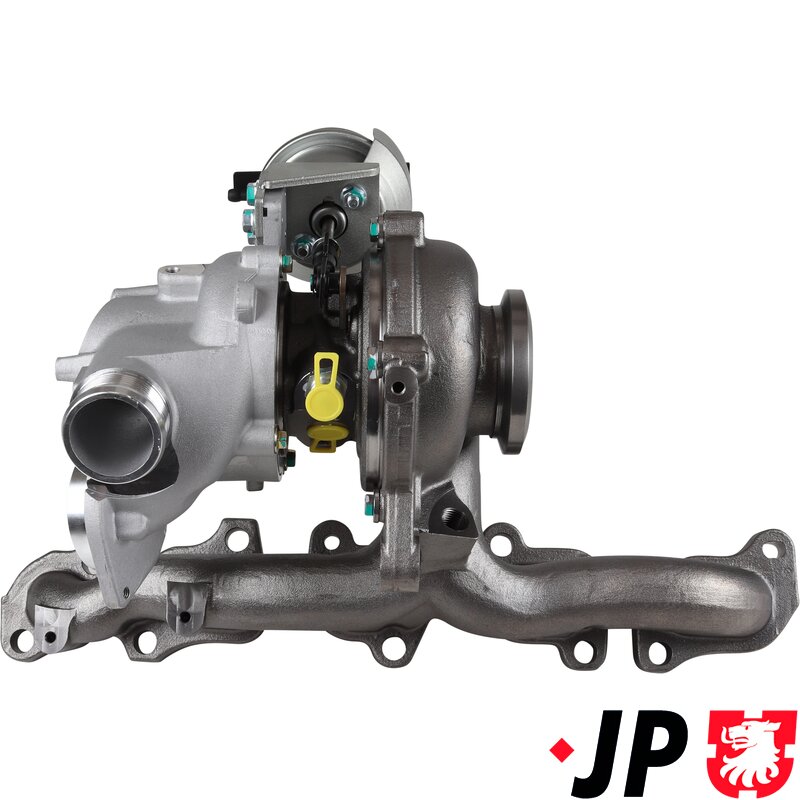

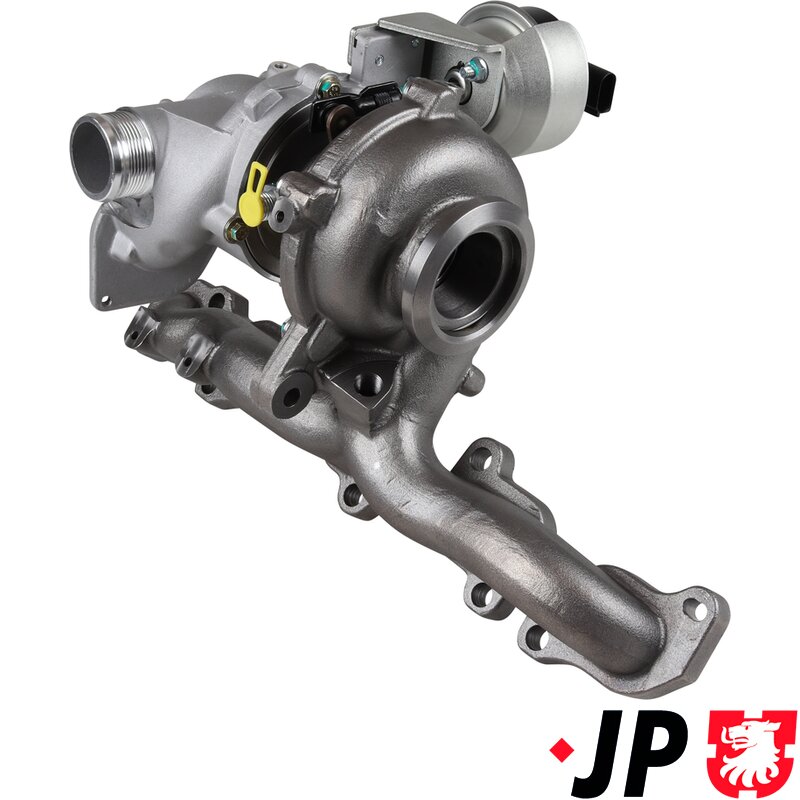

Replacement exhaust turbocharger for Volkswagen 2.0 TDI diesel models including Golf VII, Passat B8, Sharan II, Tiguan AD1, Touran III and T-Roc. Supplied complete with gasket and seal kit, this turbocharger is designed to restore original boost pressure, fuel efficiency and engine performance on EA288 diesel engines.
The turbocharger uses exhaust gas energy to spin a turbine which compresses incoming air before it enters the engine. This allows the 2.0 TDI engine to produce higher torque, improved acceleration and better fuel economy while maintaining lower emissions.
Over time, turbochargers can fail due to oil contamination, sticking variable vanes, worn bearings or boost actuator faults. Common symptoms include lack of power, limp mode, excessive smoke, turbo noise and engine management warning lights.

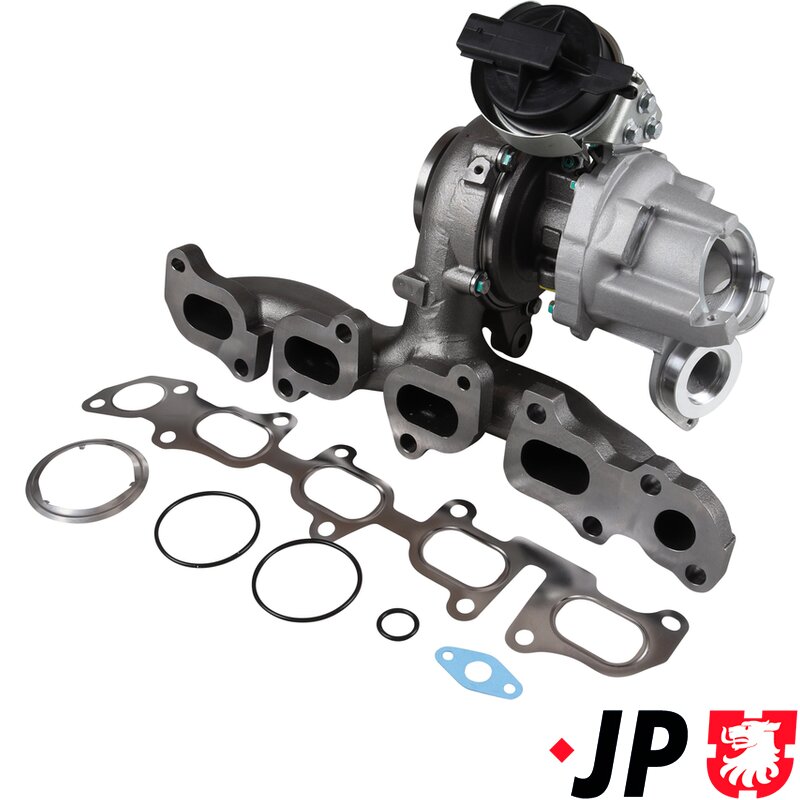

Supplied with fitting gaskets and seals, this replacement turbocharger is ideal for repairing boost-related faults and restoring smooth, reliable diesel performance.
Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit
Replaces OE Part Numbers:
• 04L253010B / 04L253010BV / 04L253010BX
• 04L253010T / 04L253010TV / 04L253010TX
• 04L253019Q / 04L253019QV / 04L253019QX
• 04L253020M
Fitment:
VW Golf VII Hatchback & Estate (2012-2020)
• 2.0 TDI Diesel – 150PS
VW Passat B8 Saloon & Estate (2014-2024)
• 2.0 TDI Diesel – 150PS
VW Sharan II (2015-2020)
• 2.0 TDI Diesel – 150PS, 184PS
VW Tiguan AD1 (2016-2024)
• 2.0 TDI Diesel – 110PS, 115PS, 150PS
VW Touran III (2015-On)
• 2.0 TDI Diesel – 150PS
VW T-Roc (2017-On)
• 2.0 TDI Diesel – 150PS
Function:
The turbocharger increases engine efficiency by forcing compressed air into the combustion chamber, allowing more fuel to be burned efficiently. This improves torque, throttle response and fuel economy while reducing emissions.
Common Symptoms of Turbocharger Failure:
• Loss of boost pressure
• Poor acceleration
• Limp mode activation
• Turbo whistle or siren noise
• Excessive black or blue smoke
• Oil consumption
• Engine management warning light
• Underboost or overboost fault codes
Additional Parts Recommended During Installation:
• Turbo oil feed pipe
• Oil return seals
• Fresh engine oil and filter
• Air filter
• Intercooler inspection and cleaning
• Boost hoses and clamps
• EGR system inspection
• DPF inspection and regeneration checks
This Part Fits:
Availability: Special Order
Item Name: Turbocharger
Description: Charger, charging (supercharged/turbocharged)
Product Group: Engine
Group: Air Supply
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 246mm
Height: 372mm
Depth: 365mm
Volume: 33401880mm3
Weight: 10.42kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A3 | A3 (8V) | 05/13 - 05/13 | 2,0 | Diesel | Hatchback | 136 | - | -
|
| Audi | A3 | A3 (8V) | 05/13 - 05/13 | 2,0 | Diesel | Hatchback | 136 | - | -
|
| Audi | A3 | A3 (8V) | 09/13 - 09/13 | 2,0 | Diesel | Saloon | 136 | - | -
|
| Audi | A3 | A3 (8V) | 10/13 - 10/13 | 2,0 | Diesel | Convertible | 136 | - | -
|
| Audi | A3 | A3 (8V) | 04/12 - 04/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRBC;CRLB;CRUA;DEJA |
| Audi | A3 | A3 (8V) | 09/12 - 09/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRBC;CRLB;CRUA;DEJA |
| Audi | A3 | A3 (8V) | 10/12 - 10/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRBC |
| Audi | A3 | A3 (8V) | 02/13 - 02/13 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRBC;CRLB |
| Audi | A3 | A3 (8V) | 05/13 - 05/13 | 2,0 | Diesel | Saloon | 150 | - | Engine Code CRBC;CRLB;CRUA;DEJA |
| Audi | A3 | A3 (8V) | 10/13 - 10/13 | 2,0 | Diesel | Convertible | 150 | - | Engine Code CRLB |
| Audi | A3 | A3 (8V) | 10/13 - 10/13 | 2,0 | Diesel | Saloon | 150 | - | Engine Code CRBC;CRLB |
| Audi | A3 | A3 (8V) | 03/14 - 03/14 | 2,0 | Diesel | Convertible | 150 | - | Engine Code CRLB |
| Audi | Q2 | Q2 (GA) | 09/16 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFGA |
| Audi | Q2 | Q2 (GA) | 09/16 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFGA |
| Audi | Q3 | Q3 (8U) | 03/15 - 03/15 | 2,0 | Diesel | SUV | 120 | - | -
|
| Audi | Q3 | Q3 (8U) | 09/11 - 09/11 | 2,0 | Diesel | SUV | 136 | - | Engine Code CUVB;DFTB |
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Diesel | SUV | 150 | - | -
|
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Diesel | SUV | 150 | - | -
|
| Seat | Alhambra | Alhambra (71) | 05/15 - 05/15 | 2,0 | Diesel | MPV | 150 | - | Engine Code CUVC;DFLA |
| Seat | Alhambra | Alhambra (71) | 05/15 - 05/15 | 2,0 | Diesel | MPV | 150 | - | Engine Code CUVC;DFLA |
| Seat | Ateca | Ateca | 04/16 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFFA |
| Seat | Ateca | Ateca | 04/16 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFFA |
| Seat | Leon | Leon (5F) | 10/12 - 10/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CKFC;CRMB |
| Seat | Leon | Leon (5F) | 02/13 - 02/13 | 2,0 | Diesel | Coupe | 150 | - | -
|
| Seat | Leon | Leon (5F) | 10/13 - 10/13 | 2,0 | Diesel | Estate | 150 | - | Engine Code CKFC;CRBC;CRLB;CRMB |
| Seat | Leon | Leon (5F) | 04/14 - 04/14 | 2,0 | Diesel | Estate | 150 | - | Engine Code CRBC;CRLB;CRMB |
| Skoda | Karoq | Karoq | 07/17 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFFA |
| Skoda | Karoq | Karoq | 07/17 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFFA |
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CKFC |
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 2,0 | Diesel | Estate | 150 | - | Engine Code CKFC;DFFA |
| Skoda | Octavia | Octavia (5E) | 11/12 - 11/12 | 2,0 | Diesel | Estate | 150 | - | Engine Code CKFC |
| Skoda | Octavia | Octavia (5E) | 05/13 - 05/13 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code DFFA |
| Skoda | Superb | Superb (3V) | 03/15 - | 2,0 | Diesel | Estate | 150 | - | Engine Code CRLB;DFEA |
| Skoda | Superb | Superb (3V) | 03/15 - | 2,0 | Diesel | Estate | 150 | - | Engine Code CRLB;DFEA |
| Skoda | Superb | Superb (3V) | 03/15 - | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRLB;DFEA |
| Skoda | Superb | Superb (3V) | 03/15 - | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRLB;DFEA |
| VW | Golf | Golf VII | 08/12 - 08/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRBC;CRLB;CRMB |
| VW | Golf | Golf VII | 11/12 - 11/12 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CKFC;CRBC;CRLB;CRMB |
| VW | Golf | Golf VII | 04/13 - 04/13 | 2,0 | Diesel | Estate | 150 | - | Engine Code CRBC;CRLB |
| VW | Golf | Golf VII | 04/13 - 04/13 | 2,0 | Diesel | Estate | 150 | - | Engine Code CRBC;CRLB;CRUA;DEJA |
| VW | Golf | Golf VII | 02/14 - 02/14 | 2,0 | Diesel | Hatchback | 150 | - | Engine Code CRLB |
| VW | Golf | Golf VII | 12/14 - 12/14 | 2,0 | Diesel | Estate | 150 | - | Engine Code CRBC;CRLB |
| VW | Passat | Passat (B8) | 08/14 - | 2,0 | Diesel | Saloon | 150 | - | Engine Code CRLB;DFEA |
| VW | Passat | Passat (B8) | 08/14 - | 2,0 | Diesel | Estate | 150 | - | Engine Code CRLB;DFEA |
| VW | Passat | Passat (B8) | 11/14 - | 2,0 | Diesel | Saloon | 150 | - | Engine Code CRLB |
| VW | Passat | Passat (B8) | 11/14 - | 2,0 | Diesel | Estate | 150 | - | Engine Code CRLB |
| VW | Passat | Passat (B8) | 05/15 - 05/15 | 2,0 | Diesel | Estate | 150 | - | Engine Code CRLB;DFEA |
| VW | Sharan | Sharan II | 05/15 - 05/15 | 2,0 | Diesel | MPV | 150 | - | Engine Code CUVC;DFLA |
| VW | Sharan | Sharan II | 05/15 - 05/15 | 2,0 | Diesel | MPV | 150 | - | Engine Code CUVC;DFLA |
| VW | Sharan | Sharan II | 05/15 - 05/15 | 2,0 | Diesel | MPV | 184 | - | Engine Code CUWA |
| VW | T-Roc | T-Roc | 09/17 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFFA |
| VW | T-Roc | T-Roc | 03/18 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFFA |
| VW | Tiguan | Tiguan (AD1) | 08/16 - 08/16 | 2,0 | Diesel | SUV | 110 | - | -
|
| VW | Tiguan | Tiguan (AD1) | 05/16 - 05/16 | 2,0 | Diesel | SUV | 115 | - | -
|
| VW | Tiguan | Tiguan (AD1) | 01/16 - | 2,0 | Diesel | SUV | 150 | - | Engine Code DFGA |
| VW | Tiguan | Tiguan (AD1) | 01/16 - 01/16 | 2,0 | Diesel | SUV | 150 | - | Engine Code DBGC;DFGA |
| VW | Touran | Touran III | 05/15 - | 2,0 | Diesel | MPV | 150 | - | Engine Code DFEA |
| Manufacturer | Ref. No. |
|---|---|
| AUDI | 04L253010B |
| AUDI | 04L253010BV |
| AUDI | 04L253010BX |
| AUDI | 04L253010T |
| AUDI | 04L253010TV |
| AUDI | 04L253010TX |
| AUDI | 04L253019Q |
| AUDI | 04L253019QV |
| AUDI | 04L253019QX |
| AUDI | 04L253020M |
| FEBI BILSTEIN | 191325 |
| SKODA | 04L253010B |
| SKODA | 04L253010BV |
| SKODA | 04L253010BX |
| SKODA | 04L253010T |
| SKODA | 04L253010TV |
| SKODA | 04L253010TX |
| SKODA | 04L253019Q |
| SKODA | 04L253019QV |
| SKODA | 04L253019QX |
| SKODA | 04L253020M |
| VW | 04L253010B |
| VW | 04L253010BV |
| VW | 04L253010BX |
| VW | 04L253010T |
| VW | 04L253010TV |
| VW | 04L253010TX |
| VW | 04L253019Q |
| VW | 04L253019QV |
| VW | 04L253019QX |
| VW | 04L253020M |
| BE TURBO | 130332 |
| SCHLÜTTER TURBOLADER | 17208815 |
| SCHLÜTTER TURBOLADER | 172-08815 |
| VAG | 04L253010B |
| VAG | 04L253010BV |
| VAG | 04L253010BX |
| VAG | 04L253010T |
| VAG | 04L253010TV |
| VAG | 04L253010TX |
| VAG | 04L253019Q |
| VAG | 04L253019QV |
| VAG | 04L253019QX |
| VAG | 04L253020M |
| MOTAIR TURBOLADER | 336704 |
| SEAT | 04L253010B |
| SEAT | 04L253010BV |
| SEAT | 04L253010BX |
| SEAT | 04L253010T |
| SEAT | 04L253010TV |
| SEAT | 04L253010TX |
| SEAT | 04L253019Q |
| SEAT | 04L253019QV |
| SEAT | 04L253019QX |
| SEAT | 04L253020M |
| NISSENS | 93420 |
| BTS TURBO | T916625 |
| MAHLE ORIGINAL | 030 TM 11002 000 |
| MAHLE ORIGINAL | 030TM11002000 |
| LUCAS | LTRPA04L253010B |
