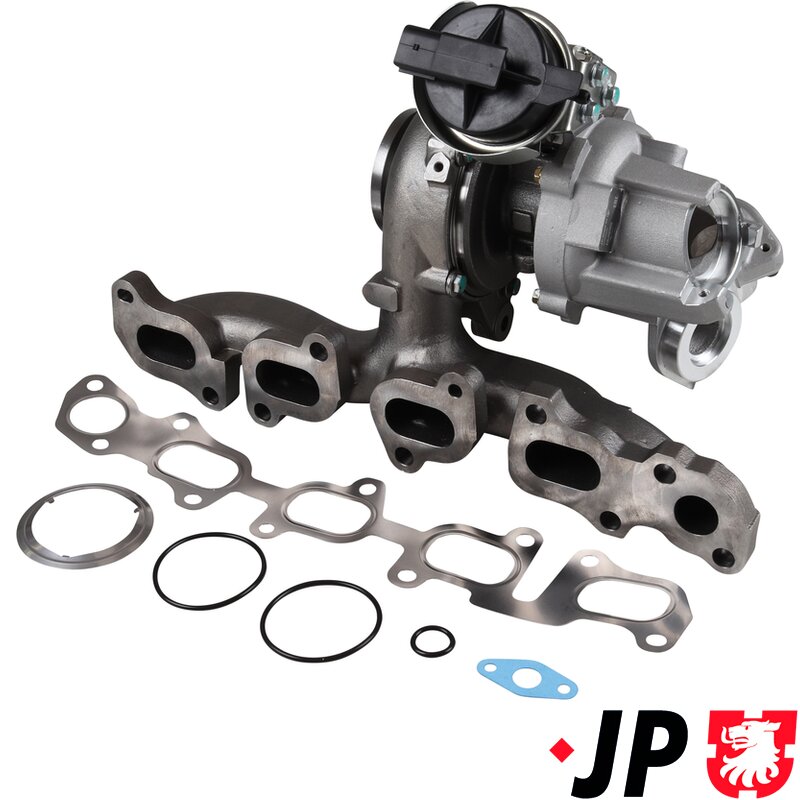

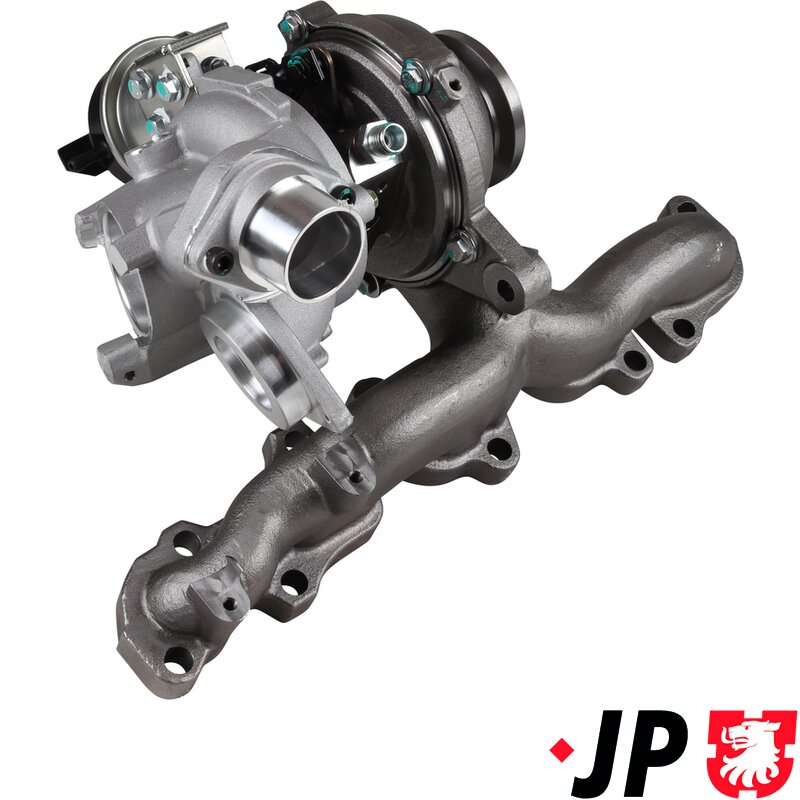

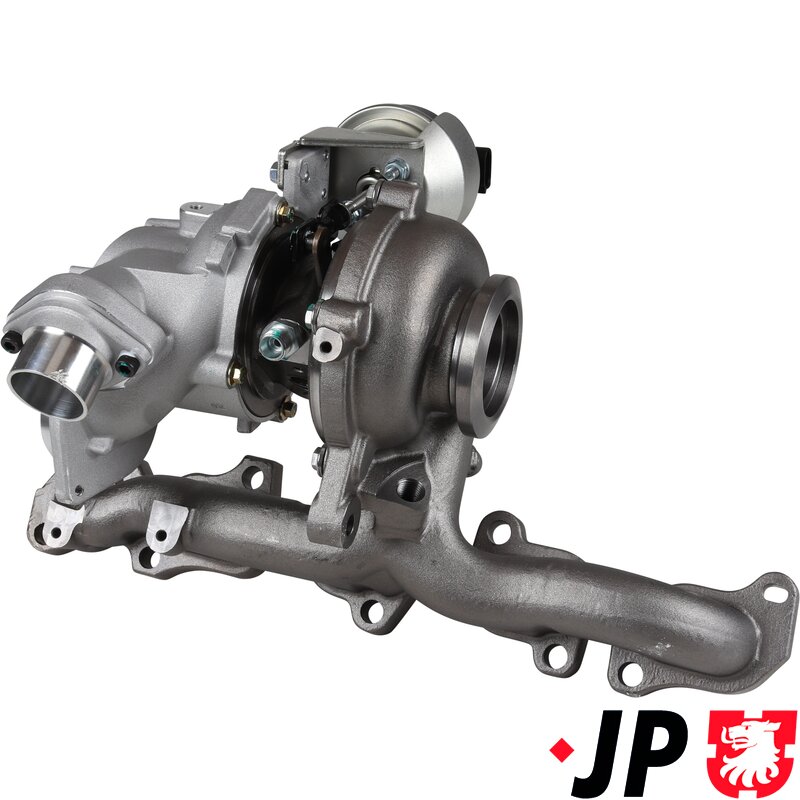

G6 Turbo - 2013-16 - 2.0 TDI

Replacement exhaust turbocharger for Volkswagen 2.0 TDI diesel models including Beetle 5C, Caddy IV, Golf VI Cabriolet, Jetta IV, Passat CC, Scirocco III and Sharan II. Supplied complete with gasket and seal kit, this turbocharger is designed to restore original boost pressure, fuel economy and engine performance on EA288 diesel engines.

The turbocharger uses exhaust gas energy to spin a turbine which compresses intake air before it enters the engine. This allows the engine to generate improved torque and power while maintaining excellent fuel efficiency and lower emissions.

Over time, turbochargers can suffer from oil contamination, worn bearings, sticking variable vanes or boost actuator faults. Common symptoms include poor acceleration, limp mode, excessive smoke, turbo noise and engine management warning lights.

This replacement turbocharger restores correct boost control and reliable diesel performance and is supplied with installation gaskets and seals for easier fitting.

Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 04L253019P
• 04L253019PV
• 04L253019PX
• 04L253020P
• 04L253020PV
• 04L253020PX

Fitment:

VW Beetle 5C Hatchback & Convertible (2014-2018)
• 2.0 TDI Diesel – 110PS, 150PS

VW Caddy IV MPV & Box Body/MPV (2015-2020)
• 2.0 TDI Diesel – 75PS, 102PS, 122PS, 150PS

VW Golf VI Cabriolet (2013-2016)
• 2.0 TDI Diesel – 110PS, 150PS

VW Jetta IV Saloon (2014-2017)
• 2.0 TDI Diesel – 150PS

VW Passat CC (2015-2016)
• 2.0 TDI Diesel – 150PS

VW Scirocco III 137 (2013-2017)
• 2.0 TDI Diesel – 150PS

VW Sharan II (2015-2020)
• 2.0 TDI Diesel – 150PS

Function:
The turbocharger improves engine efficiency by compressing incoming air using exhaust gas energy. This allows the 2.0 TDI engine to produce stronger low-end torque, smoother acceleration and reduced fuel consumption while maintaining low emissions.

Common Symptoms of Turbocharger Failure:
• Loss of boost pressure
• Poor acceleration
• Limp mode activation
• Excessive black or blue smoke
• Turbo whistle or rattling noise
• Oil consumption
• Engine management warning light
• Underboost or overboost fault codes

Additional Parts Recommended During Installation:
• Turbo oil feed pipe
• Oil return seals and gaskets
• Fresh engine oil and filter
• Air filter
• Intercooler inspection and cleaning
• Boost hoses and clamps
• EGR inspection
• DPF inspection and regeneration checks
