G7 Turbo - 2013-20 - 2.0 TDI

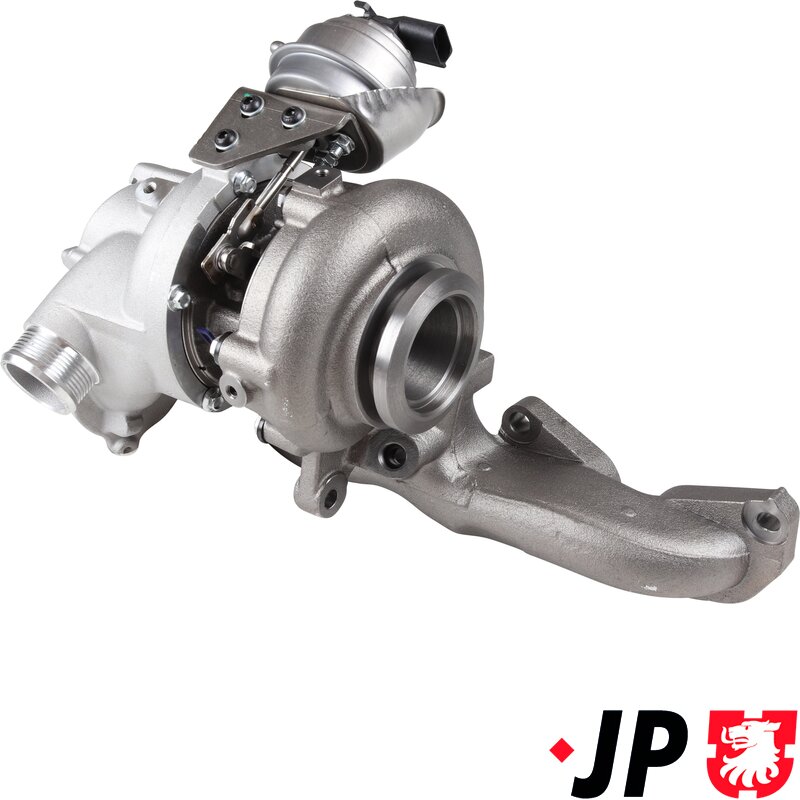

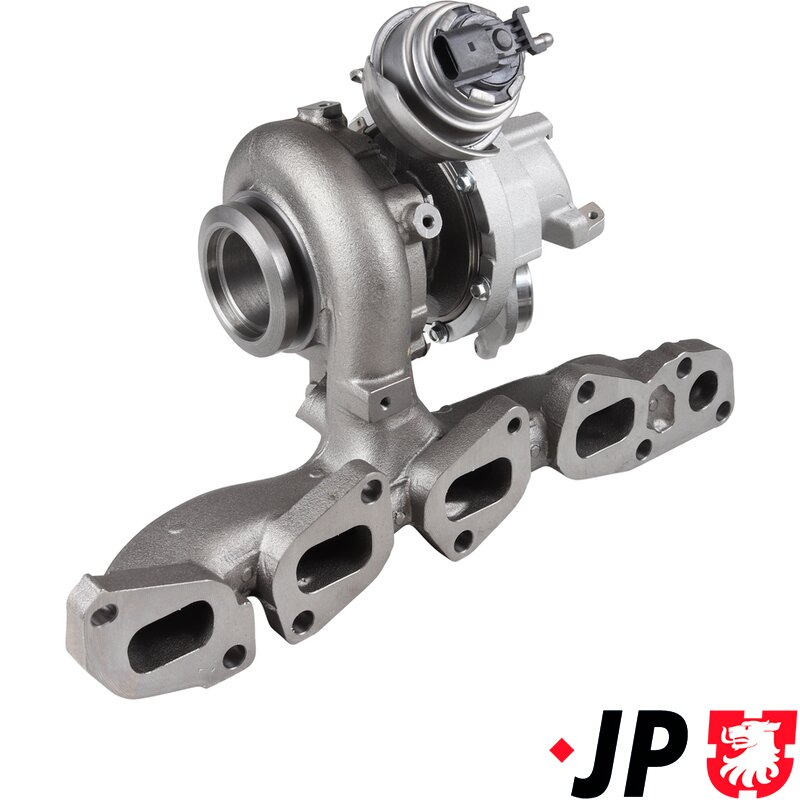

Replacement exhaust turbocharger for Volkswagen 2.0 TDI 184PS diesel engines fitted to Golf Mk7, Passat B8, Sharan Mk2 and Tiguan 5N models. Supplied complete with gasket and seal kit, this turbocharger is designed to restore original boost pressure, diesel performance and fuel efficiency.

The turbocharger uses exhaust gas energy to drive a turbine wheel which compresses incoming air before it enters the engine. This allows the 2.0 TDI engine to produce strong torque, rapid acceleration and improved fuel economy while maintaining low emissions.

Turbochargers can wear over time due to oil contamination, carbon build-up, worn bearings or sticking variable vane systems. Common symptoms include reduced power, limp mode, excessive smoke, turbo whistle, poor fuel economy or boost pressure faults.

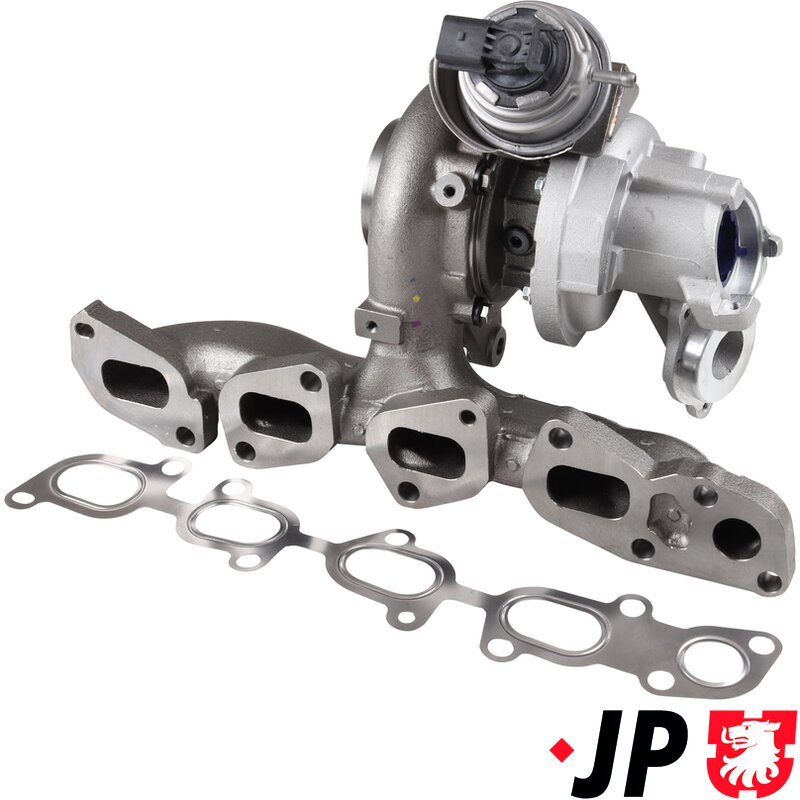

This replacement turbocharger is supplied with fitting gaskets and seals to assist installation and ensure reliable sealing.

Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 04L253010H
• 04L253010HV
• 04L253010HX

Fitment:

VW Golf Mk7 Hatchback & Estate (2013-2020)
• 2.0 TDI Diesel 184PS

VW Passat B8 Saloon & Estate (2015-Onwards)
• 2.0 TDI Diesel 184PS

VW Sharan Mk2 MPV (2015-2018)
• 2.0 TDI Diesel 184PS

VW Tiguan 5N SUV (2015-2018)
• 2.0 TDI Diesel 184PS

Function:
The turbocharger improves engine power and efficiency by compressing intake air using exhaust gas energy, allowing the 2.0 TDI engine to deliver higher torque, improved acceleration and better fuel economy.

Common Symptoms of Turbo Failure:
• Loss of engine power
• Turbo whistle or siren noise
• Excessive black or blue smoke
• Poor fuel economy
• Engine management warning light
• Limp mode activation
• Overboost or underboost faults
• Oil leaks from turbocharger

Additional Parts Recommended During Installation:
• Turbo oil feed pipe
• Turbo oil return gasket
• Engine oil and filter
• Intake and boost hoses
• Intercooler inspection and cleaning
• Vacuum control solenoid
• DPF inspection if fitted
• Exhaust mounting hardware
