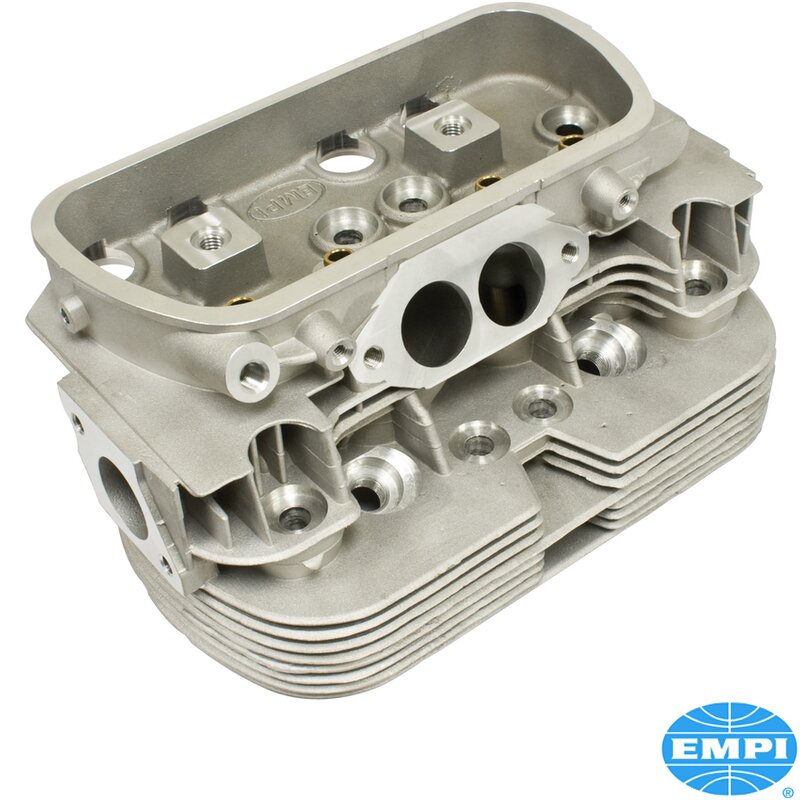

041 Twin Port Cylinder Head - 1600cc (Bare Head, No Valves) - EMPI

EMPI 041 dual port cylinder head supplied as a bare casting for Volkswagen 1600cc Type 1 engines. Based on the popular 041 design, this head offers improved airflow potential over many standard castings while retaining stock-style fitment, making it an excellent choice for engine rebuilds, restorations and mild performance applications.

Supplied bare without valves, springs or retainers, allowing you to build the cylinder head to your own specification. The casting is machined for standard 85.5mm pistons, making it suitable for a wide range of engine combinations.

Designed for use with 14mm x ½” reach spark plugs and fitted with standard-sized valves, making it ideal for stock and mildly tuned engines.

Manufacturer:

• EMPI

Quantity:

• Sold individually

Specifications:

• 041 style dual port cylinder head
• Bare casting supplied
• For 85.5mm pistons and cylinders
• 14mm x 1.25 spark plug thread
• ½” (12.7mm) spark plug reach
• Dual intake ports

Valve Sizes:

• Inlet Valve: 35.5mm
• Exhaust Valve: 32mm
• Valve Stem Diameter: 8mm

Supplied Without:

• Valves
• Valve springs
• Retainers
• Collets

Fitment:

Aircooled VW Beetle Standard / 1302 / 1303:
1600 Twin Port models (1970-1979)

Aircooled VW Karmann Ghia:
1600 Twin Port models (1970-1974)

VW Baywindow Bus (T2):
1600 Twin Port models (1970-1979)

VW Trekker / Type 181:
1600 Twin Port models (1970-1979)

VW Buggy & Baja:
1600 Type 1 based engines (1970-1979)

Additional Information:

• Popular replacement for damaged original heads
• Suitable for stock and mild performance engines
• Bare casting allows custom valve train specification
• Dual port design improves airflow and performance
• Compatible with standard Type 1 engine tinware and manifolds

Recommended Additional Parts:

• Inlet valves
• Exhaust valves
• Valve spring set
• Valve retainers and collets
• Cylinder head gasket set
• Pushrod tubes
• Rocker shaft assembly
• 14mm x ½” reach spark plugs
