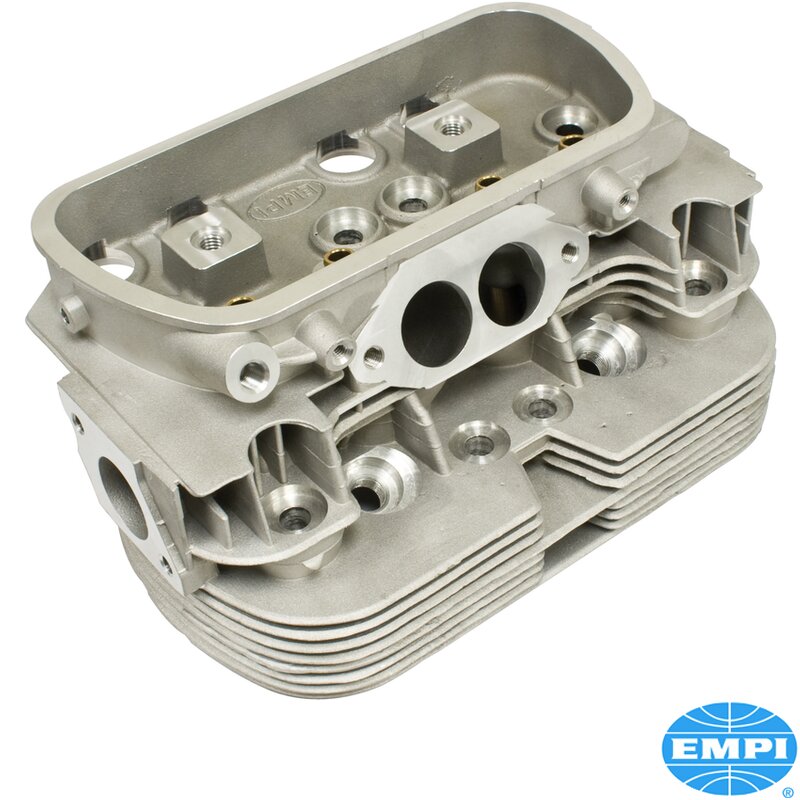

041 Twin Port Cylinder Head - 1600cc (Bare Head, No Valves) - Autolinea

High-performance AUTOLINEA 041 dual port cylinder head supplied as a bare casting for aircooled Volkswagen Type 1 engines. This version is designed for larger 40mm inlet valves and 35.5mm exhaust valves, making it an excellent foundation for performance street, touring and mild competition engine builds.

Unlike standard replacement heads, this 041 casting features a larger cylinder register and smaller 12mm spark plug thread, allowing improved combustion chamber design and increased material around the spark plug area. The head is machined for dual port manifolds and accepts larger valves, providing significantly improved airflow potential over standard 1600 cylinder heads.

Supplied bare without valves, springs, retainers or guides installed, allowing the engine builder to assemble the head to suit their exact specification.

Manufactured by AUTOLINEA, one of the world`s leading producers of aircooled Volkswagen engine components.

Manufacturer:

• AUTOLINEA

Quantity:

• Sold individually

Specifications:

• 041 performance cylinder head
• Dual port design
• Bare casting supplied
• For 40mm inlet valves
• For 35.5mm exhaust valves
• 8mm valve stems
• M12 x 1.25 spark plug thread
• 16mm spark plug reach
• Cylinder register diameter: 98.3mm

Supplied Without:

• Valves
• Valve springs
• Retainers
• Collets
• Rocker hardware

Fitment:

Aircooled VW Beetle:
1500 & 1600 engines (1966-1970)

Aircooled VW Karmann Ghia:
1500 & 1600 engines (1966-1970)

Aircooled VW Type 3:
1500 & 1600 models (1966-1970)

VW Splitscreen Bus (T1):
1500 models (1966-1967)

VW Baywindow Bus (T2):
1600 models (1967-1979)

VW Trekker / Type 181:
1500 models (1969-1970)

VW Buggy & Baja:
1500 & 1600 Type 1 based engines

Additional Information:

• Ideal basis for performance engine builds
• Larger valve capability than stock heads
• Improved airflow characteristics
• Compatible with dual port induction systems
• Popular for 1776cc, 1835cc, 1915cc and larger engine builds
• Manufactured from new castings, not reconditioned units

OEM Reference:

• VW 041101355C

Recommended Additional Parts:

• 40mm inlet valves
• 35.5mm exhaust valves
• Heavy-duty valve springs
• Chromoly retainers
• Dual port inlet manifolds
• Cylinder head gasket set
• 12mm spark plugs
