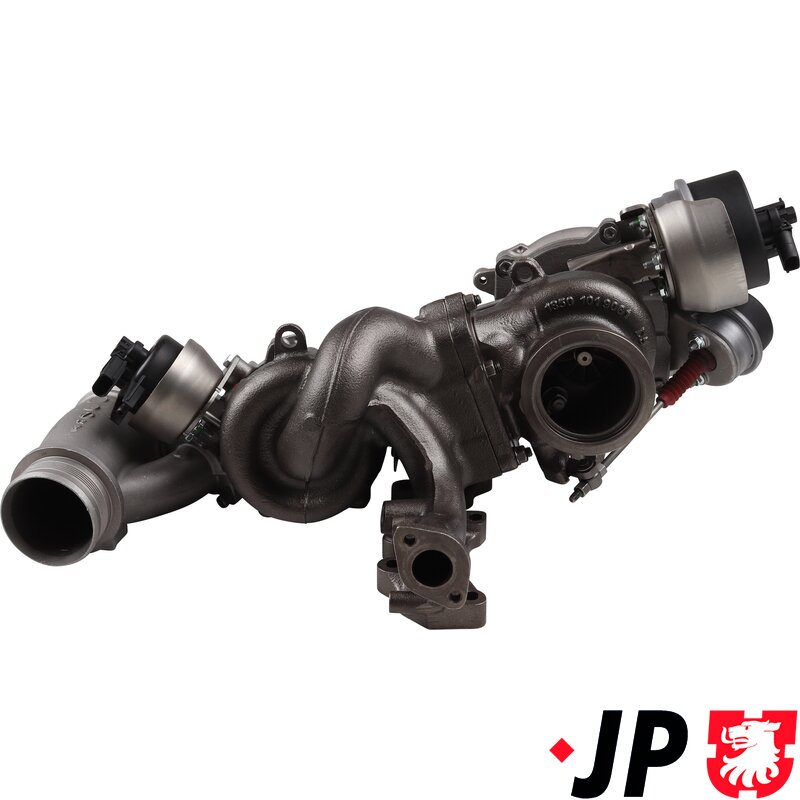

T7 Turbo - 2019 Onwards - 2.0 TDI (Reconditioned)

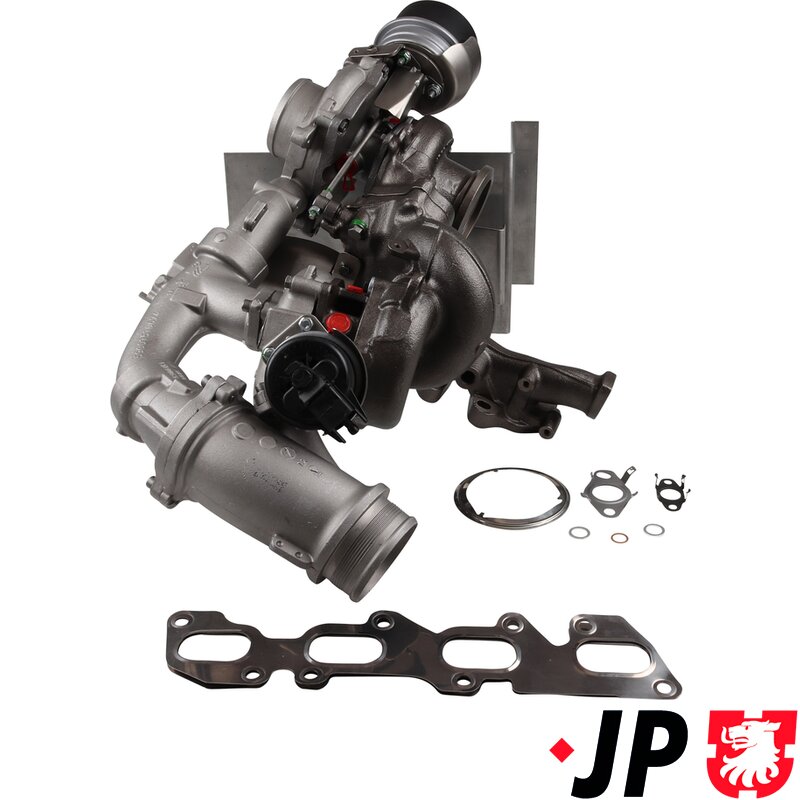

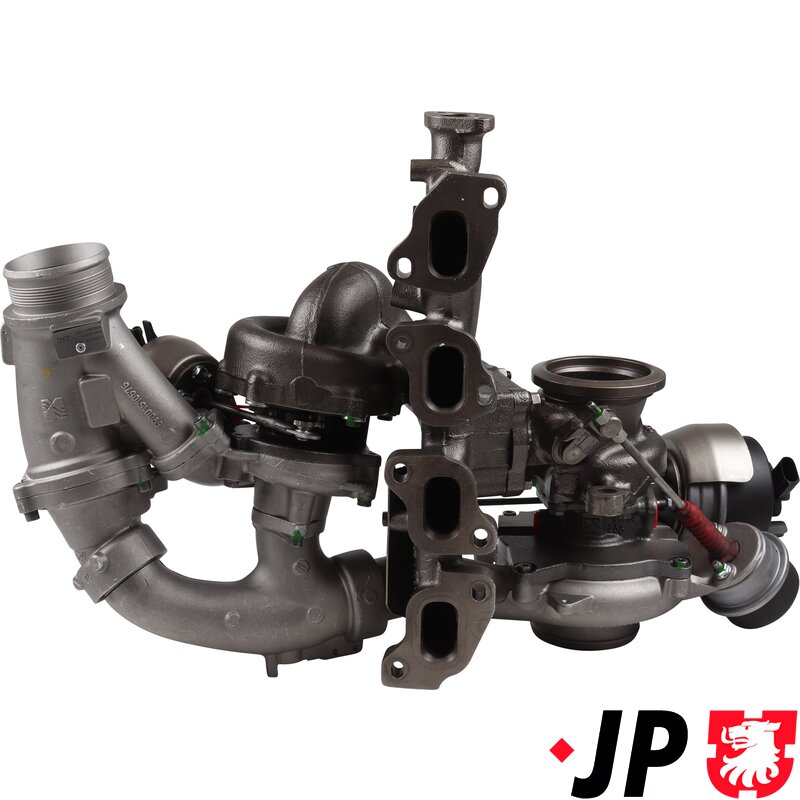

Replacement twin-stage turbocharger assembly for Volkswagen California T7 and Crafter II/III 2.0 TDI 177PS models. This generally overhauled unit is supplied complete with gasket and seal kit and is designed to restore factory boost pressure, engine efficiency and drivability.

This regulated two-stage charging system uses both a small and larger turbocharger working together to provide rapid low-speed response and strong high RPM performance. At lower engine speeds the small turbo delivers fast spool-up and improved torque, while at higher RPM the larger turbo provides increased airflow for maximum power and efficiency.

Over time, bi-turbo systems can suffer from carbon build-up, sticking actuators, worn bearings, oil contamination and boost regulation faults. Common symptoms include loss of power, excessive smoke, limp mode, turbo noise, fault codes and poor fuel economy.

This replacement turbocharger assembly helps restore smooth power delivery, proper boost control and reliable engine performance. Supplied with installation gaskets and seals for easier fitting.

Specifications:
• Charge Type: Exhaust Turbocharger
• Regulated Two-Stage Charging
• Generally Overhauled Unit
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 03N145701G
• 03N145701Q
• 03N145701R
• 03N145701T
• 03N145702
• 03N145702A
• 03N145702J
• 03N145702N
• 03N145702S
• 03N145703K
• 03N145703L
• 03N145703R
• 03N145703T
• 03N145704
• 03N145704E
• 03N145704K
• 03N145704N
• 03N145704P

Fitment:

VW California T7 (2019-On)
• 2.0 TDI Diesel – 177PS

VW Crafter II & Crafter III (2016-On)
• 2.0 TDI Diesel Bus – 177PS
• 2.0 TDI Diesel Van – 177PS
• 2.0 TDI Diesel Platform/Chassis – 177PS

Function:
The twin-stage turbocharger system improves engine performance across the full rev range by using two turbochargers operating in sequence. This delivers stronger low-end torque, improved acceleration, better towing performance and enhanced fuel efficiency while maintaining reduced emissions.

Common Symptoms of Turbocharger Failure:
• Loss of boost pressure
• Poor acceleration
• Limp mode activation
• Excessive black or blue smoke
• Turbo whining or siren noise
• Oil consumption
• DPF regeneration issues
• Engine management warning light
• Boost control fault codes

Additional Parts Recommended During Installation:
• Turbo oil feed pipe
• Oil return pipe seals
• Fresh engine oil and filter
• Air filter
• Intercooler inspection and cleaning
• Boost hoses and clamps
• EGR system inspection
• DPF inspection
• Vacuum and boost pressure checks
