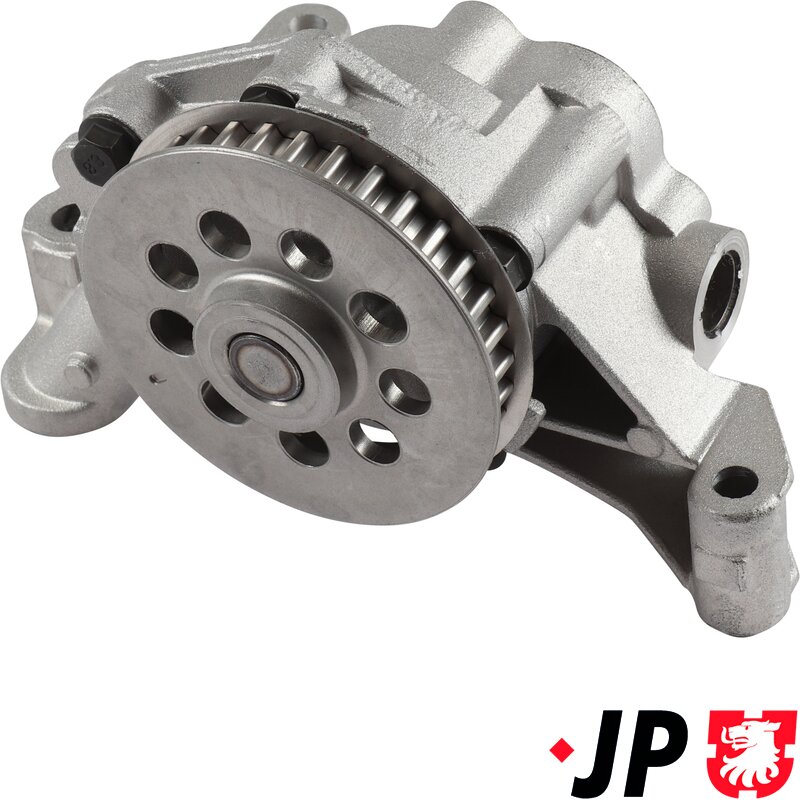

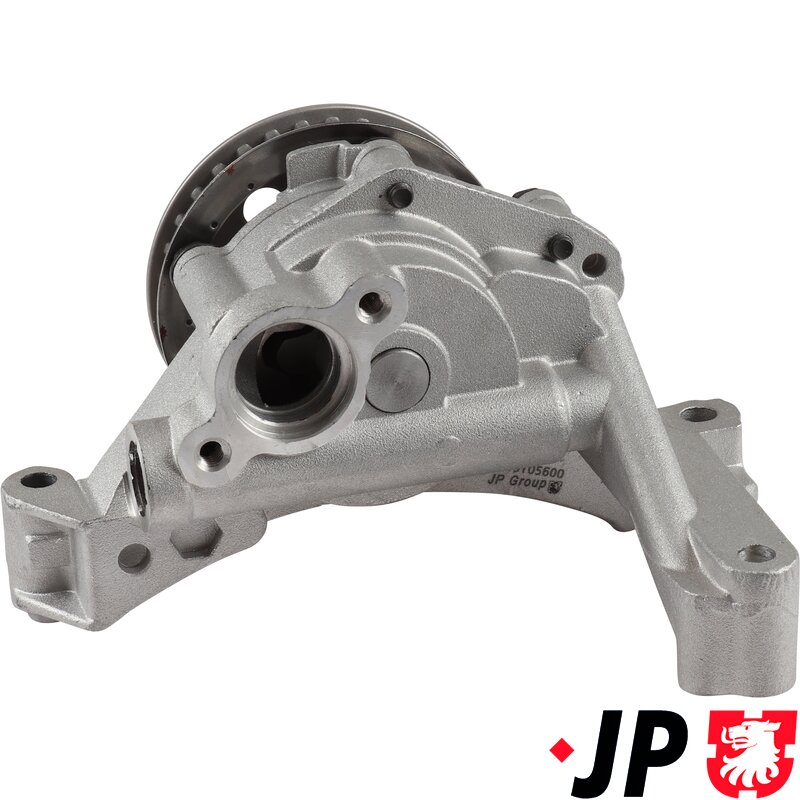

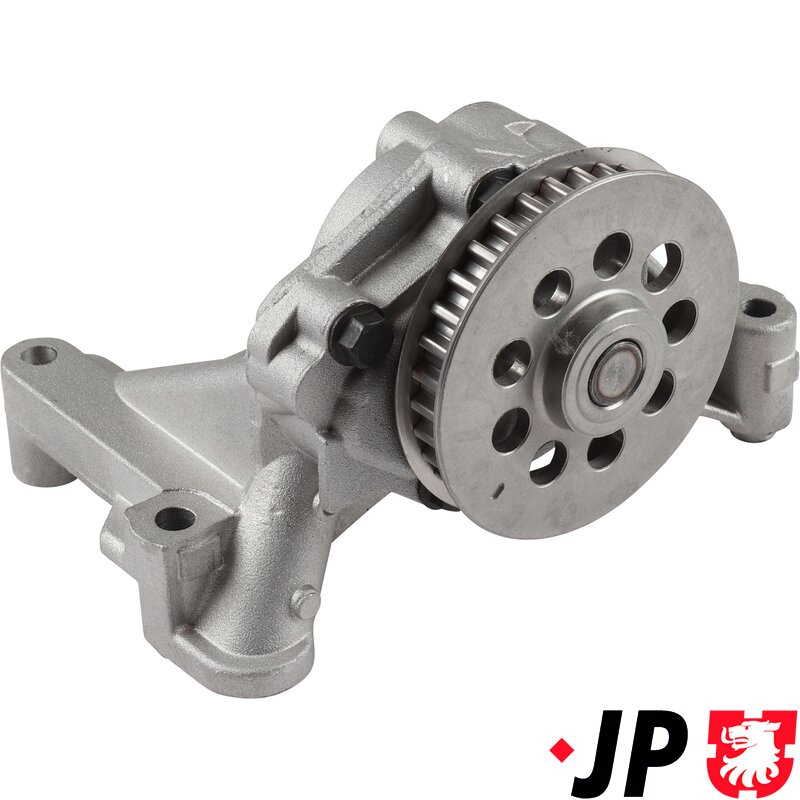

T5,T6 Oil Pump - 2.0 TDI

OE-quality oil pump designed to maintain correct oil pressure and lubrication across a wide range of Volkswagen Group diesel engines. This pump ensures consistent oil flow to vital engine components including crankshaft bearings, camshafts, hydraulic lifters and turbochargers.

Over time, oil pump housings can wear internally and pickup gauzes can become partially blocked with sludge or debris, leading to reduced oil pressure and insufficient lubrication. Replacing the oil pump is strongly recommended during engine rebuilds or whenever low oil pressure symptoms are present.

Failure of the oil pump or drive belt can result in severe engine damage, turbocharger failure and premature wear of internal components.

Specifications

• OE-quality oil pump assembly
• Belt length required: 438mm
• Belt width required: 9.2mm
• Number of teeth: 59
• Suitable for 1.5, 1.6 and 2.0 TDI diesel engines

Fitment

Watercooled VW

• VW Amarok: 09/2010–05/2022, 2.0 TDI
• VW Beetle (5C): 04/2011–07/2019, 1.6 TDI
• VW Caddy Mk3 & Mk4: 08/2010–09/2020, 1.6 & 2.0 TDI
• VW Crafter Mk1: 05/2011–12/2016, 2.0 TDI
• VW Golf Plus: 01/2005–12/2013, 1.6 & 2.0 TDI
• VW Golf Mk6: 10/2008–07/2013, 1.6 & 2.0 TDI
• VW Jetta Mk3 & Mk4: 06/2009–12/2017, 1.6 & 2.0 TDI
• VW Passat B6 & B7: 08/2009–12/2014, 1.6 TDI
• VW Polo 6R: 06/2009–05/2022, 1.6 TDI
• VW Scirocco III (137): 08/2008–11/2017, 2.0 TDI
• VW Touran II: 05/2010–05/2015, 1.6 & 2.0 TDI
• VW Transporter T5: 09/2009–08/2015, 2.0 TDI
• VW Transporter T6: 04/2015–12/2019, 2.0 TDI

Engine Codes

• CDBA, CNFA, CNFB, CDCA, CNEA
• CAYB, CAYC, CAYD, CAYE
• CAAA, CAAB, CAAC, CAAD, CAAE
• CFHE, CFHF, CFHC, CFHB
• CFJA, CFJB, CLCA, CLCB
• CLNA, CWXA, CWXB, CWXC

OEM References

• VW: 03L115105B, 03L115105C

Fitting Notes

• Always replace engine oil and oil filter after installation
• Inspect oil pickup pipe and sump for sludge contamination
• Recommended during engine rebuilds or low oil pressure repairs
