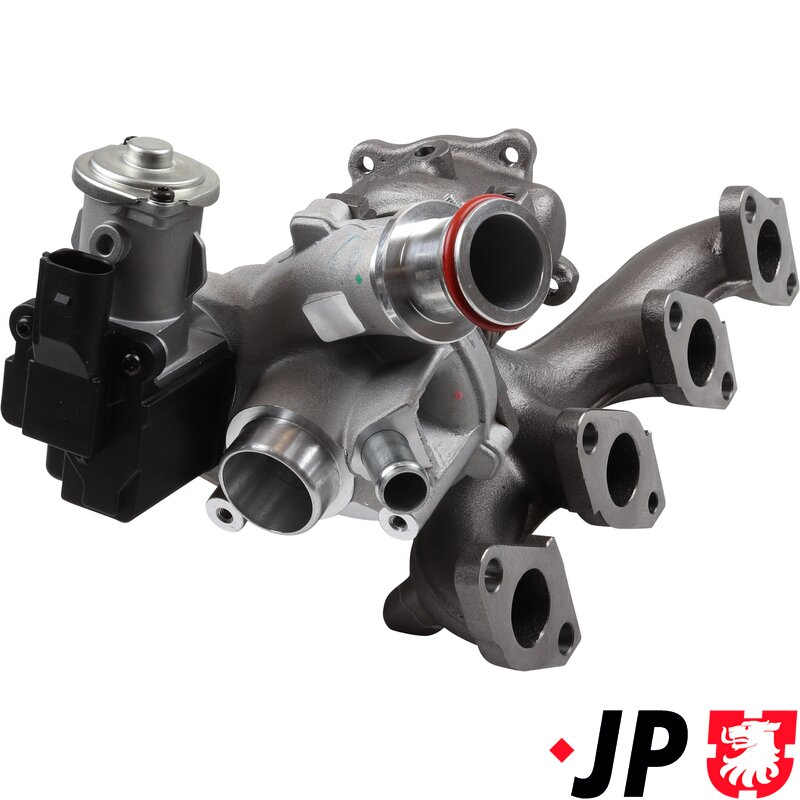

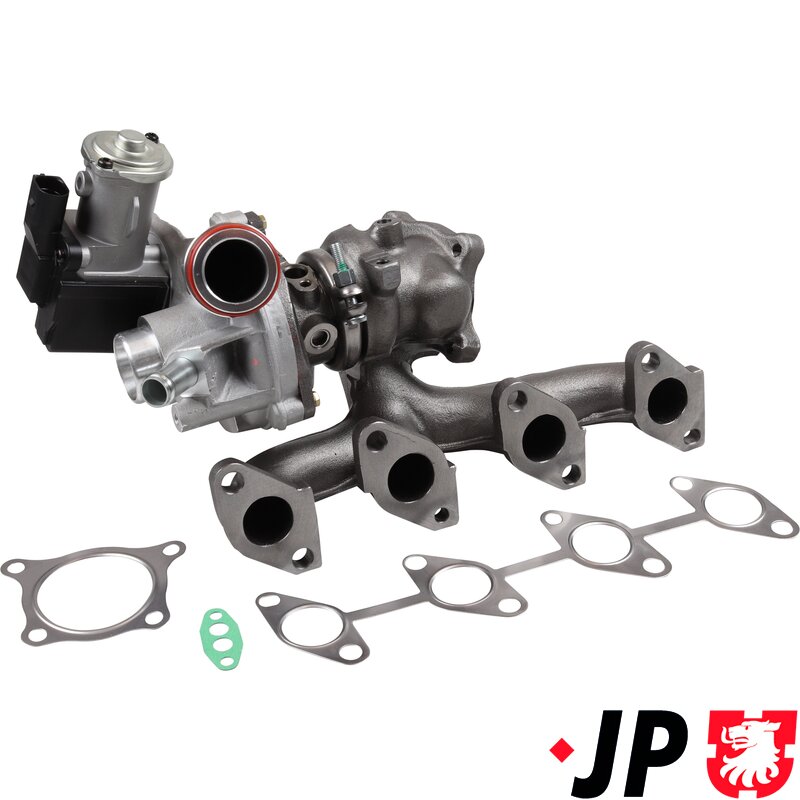

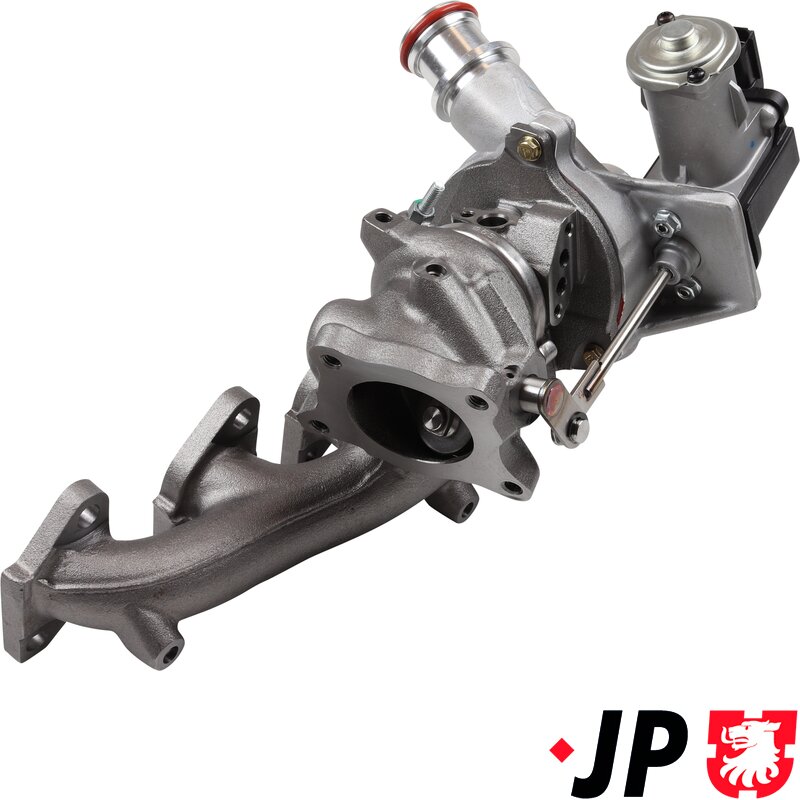

G6 Turbo - 2008-12 - 1.2 TSI

Replacement exhaust turbocharger for Volkswagen models fitted with the 1.2 TSI petrol engine. Supplied complete with gasket and seal kit, this turbocharger is designed to restore correct boost pressure, engine efficiency and performance on vehicles suffering from turbocharger wear or failure.

The turbocharger uses exhaust gas energy to spin a turbine and compressor assembly, forcing additional air into the engine for improved combustion efficiency and increased power output. The small capacity 1.2 TSI engine relies heavily on turbo boost to deliver strong performance while maintaining excellent fuel economy and reduced emissions.

Over time turbochargers can develop bearing wear, boost leaks, oil seal failure or wastegate actuator problems. Common symptoms include lack of power, boost pressure faults, excessive smoke, oil consumption, whining noises or limp mode activation.

This replacement unit is supplied with the required fitting gaskets and seals to assist installation and help ensure reliable sealing during fitment.

Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 03F145701B
• 03F145701BV
• 03F145701BX
• 03F145701C
• 03F145701CV
• 03F145701CX
• 03F145701D
• 03F145701DV
• 03F145701DX
• 03F145701E
• 03F145701EV
• 03F145701EX
• 03F145701F
• 03F145701FV
• 03F145701FX
• 03F145701L
• 03F145701LV
• 03F145701LX
• 03F145701S
• 03F145701SV
• 03F145701SX

Fitment:

VW Caddy III MPV & Box Body (2010-2015)
• 1.2 TSI Petrol 86PS
• 1.2 TSI Petrol 105PS

VW Golf Plus (2009-2013)
• 1.2 TSI Petrol 86PS
• 1.2 TSI Petrol 105PS

VW Golf Mk6 Hatchback (2008-2012)
• 1.2 TSI Petrol 86PS
• 1.2 TSI Petrol 105PS

VW Jetta IV Saloon (2010-2017)
• 1.2 TSI Petrol 105PS

VW Polo 6R Hatchback & Van (2009-2014)
• 1.2 TSI Petrol 90PS
• 1.2 TSI Petrol 105PS

VW Touran II MPV (2010-2015)
• 1.2 TSI Petrol 105PS

Function:
The turbocharger compresses intake air using exhaust gas energy, improving combustion efficiency, engine torque and fuel economy.

Common Symptoms of Turbo Failure:
• Loss of boost pressure
• Reduced engine performance
• Excessive exhaust smoke
• Oil consumption
• Turbo whining or siren noises
• Engine management warning lights
• Limp mode activation
• Wastegate or actuator faults

Additional Parts That May Be Required During Fitting:
• Turbo oil feed pipe
• Turbo oil return gasket
• Exhaust manifold studs and nuts
• Fresh engine oil and oil filter
• Intercooler hoses if contaminated with oil
