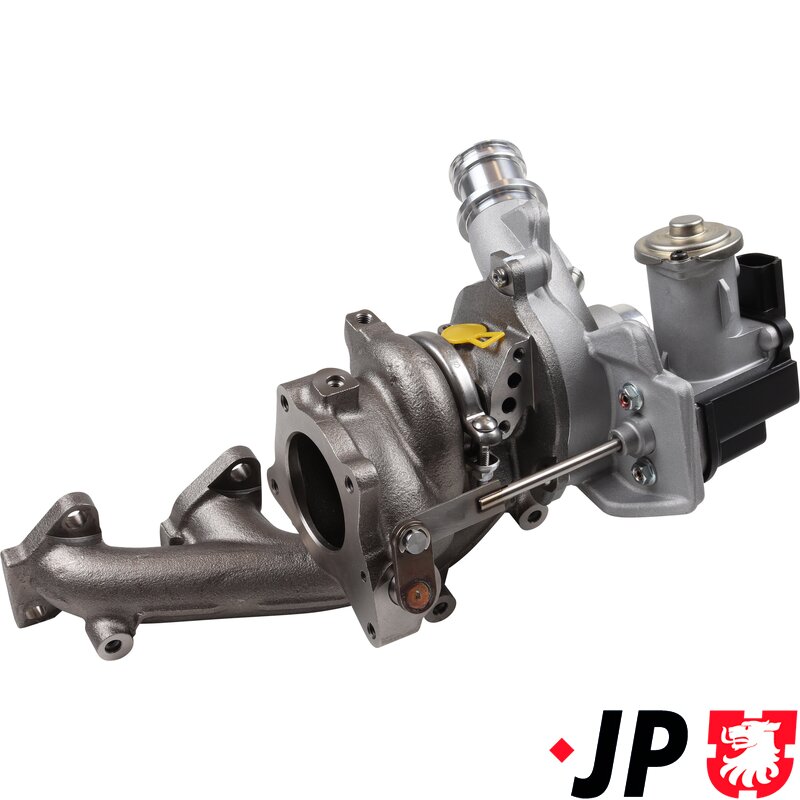

G6 Turbo - 2008-16 - 1.2 TSI

Replacement exhaust turbocharger for Volkswagen models fitted with the 1.2 TSI petrol engine. Supplied complete with gasket and seal kit, this turbocharger is designed to restore correct boost pressure, engine performance and fuel efficiency on vehicles suffering from worn or faulty turbochargers.

The turbocharger uses exhaust gas energy to drive a turbine and compressor assembly, forcing additional air into the engine to improve combustion efficiency and torque delivery. The compact 1.2 TSI engine relies heavily on turbo boost to provide responsive performance while maintaining low fuel consumption and emissions.

Over time turbochargers can suffer from bearing wear, boost leaks, oil seal failure or wastegate actuator faults. Common symptoms include reduced engine power, turbo whistle, excessive smoke, oil consumption, limp mode activation or boost pressure related fault codes.

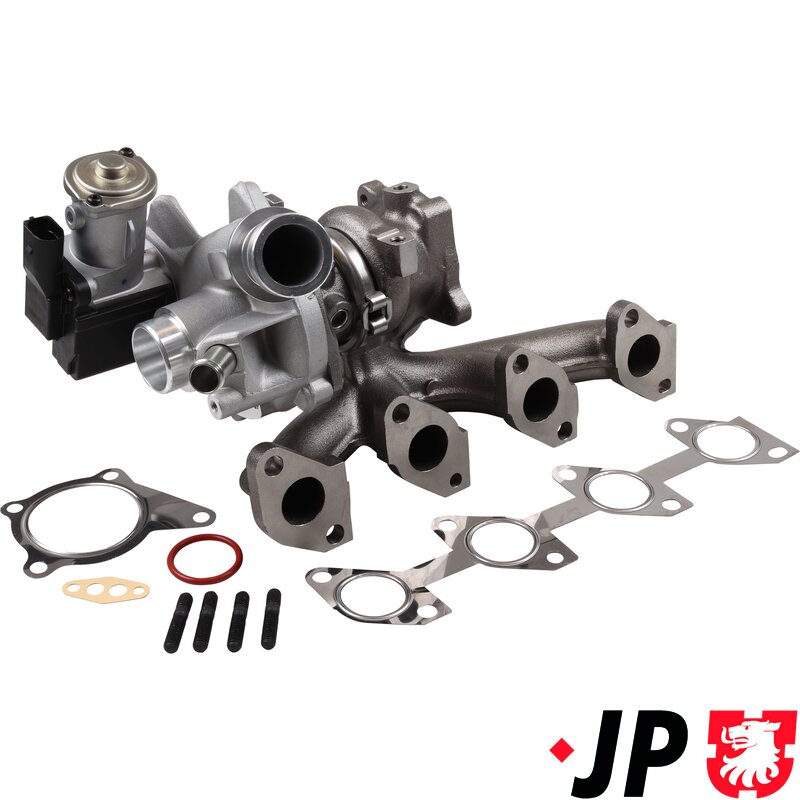

This replacement turbocharger is supplied with fitting gaskets and seals to simplify installation and help ensure reliable sealing during fitment.

Specifications:
• Charge Type: Exhaust Turbocharger
• Supplied with gasket and seal kit

Replaces OE Part Numbers:
• 03F145701H
• 03F145701HV
• 03F145701HX
• 03F145701K
• 03F145701KV
• 03F145701KX
• 03F145701R
• 03F145701RV
• 03F145701RX

Fitment:

VW Beetle 5C Hatchback & Convertible (2011-2019)
• 1.2 TSI Petrol 105PS

VW Caddy III MPV & Box Body (2010-2015)
• 1.2 TSI Petrol 86PS
• 1.2 TSI Petrol 105PS

VW Golf Plus (2009-2014)
• 1.2 TSI Petrol 86PS
• 1.2 TSI Petrol 105PS

VW Golf Mk6 Hatchback, Estate, Convertible & Van (2008-2016)
• 1.2 TSI Petrol 86PS
• 1.2 TSI Petrol 105PS

VW Jetta IV Saloon (2010-2017)
• 1.2 TSI Petrol 105PS

VW Polo 6R Hatchback & Van (2009-2014)
• 1.2 TSI Petrol 90PS
• 1.2 TSI Petrol 105PS

VW Touran II MPV (2010-2015)
• 1.2 TSI Petrol 105PS

Function:
The turbocharger compresses intake air using exhaust gas energy, improving combustion efficiency, engine torque and fuel economy while maintaining strong performance from a compact petrol engine.

Common Symptoms of Turbo Failure:
• Loss of boost pressure
• Reduced engine performance
• Excessive exhaust smoke
• Oil consumption
• Turbo whining or siren noises
• Engine management warning lights
• Limp mode activation
• Wastegate or actuator faults

Additional Parts That May Be Required During Fitting:
• Turbo oil feed pipe
• Turbo oil return gasket
• Exhaust manifold studs and nuts
• Fresh engine oil and oil filter
• Intercooler hoses if contaminated with oil
