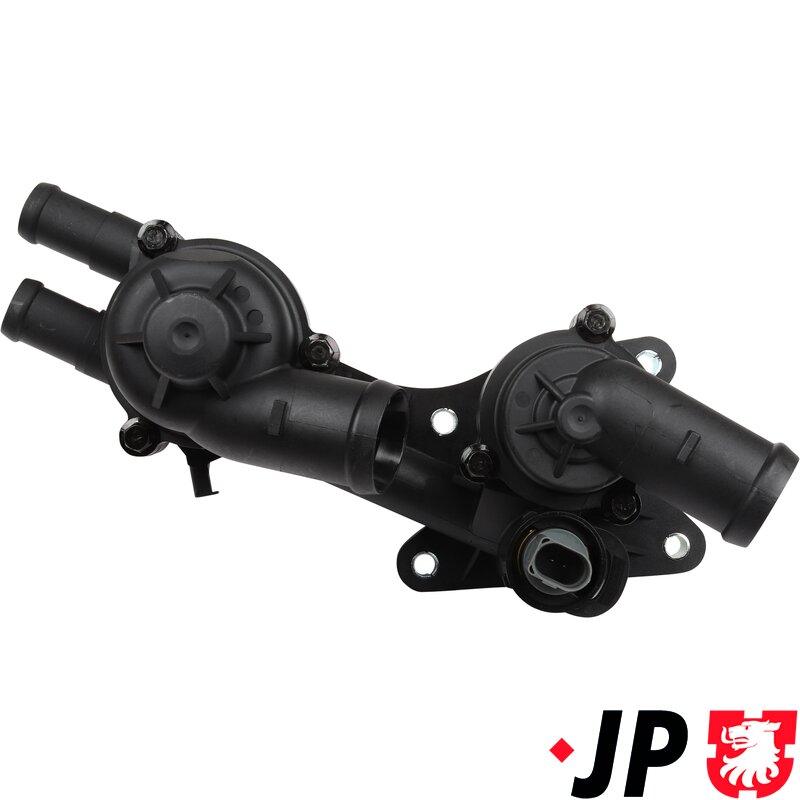

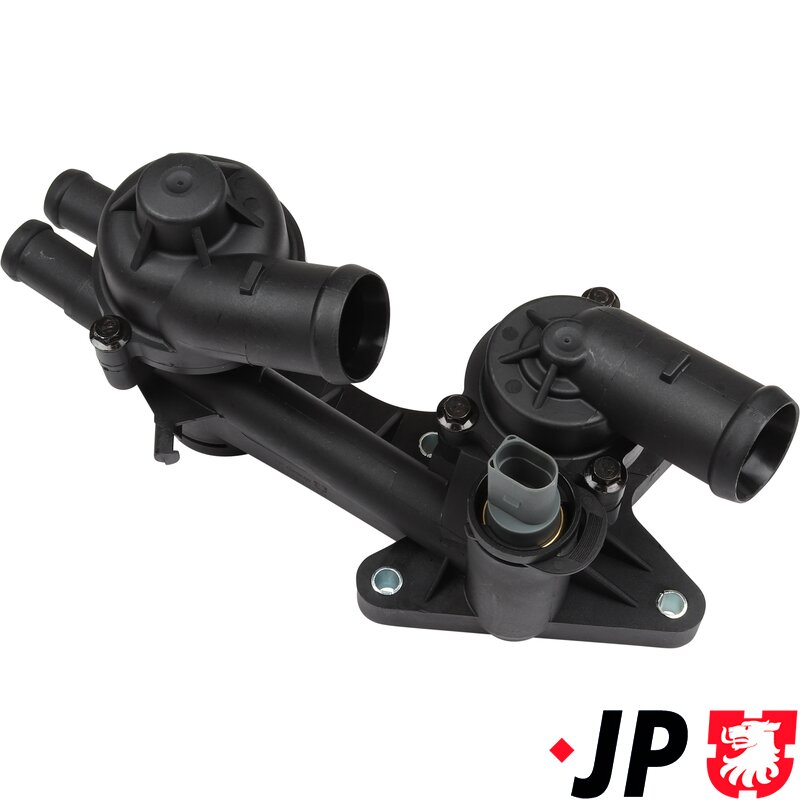

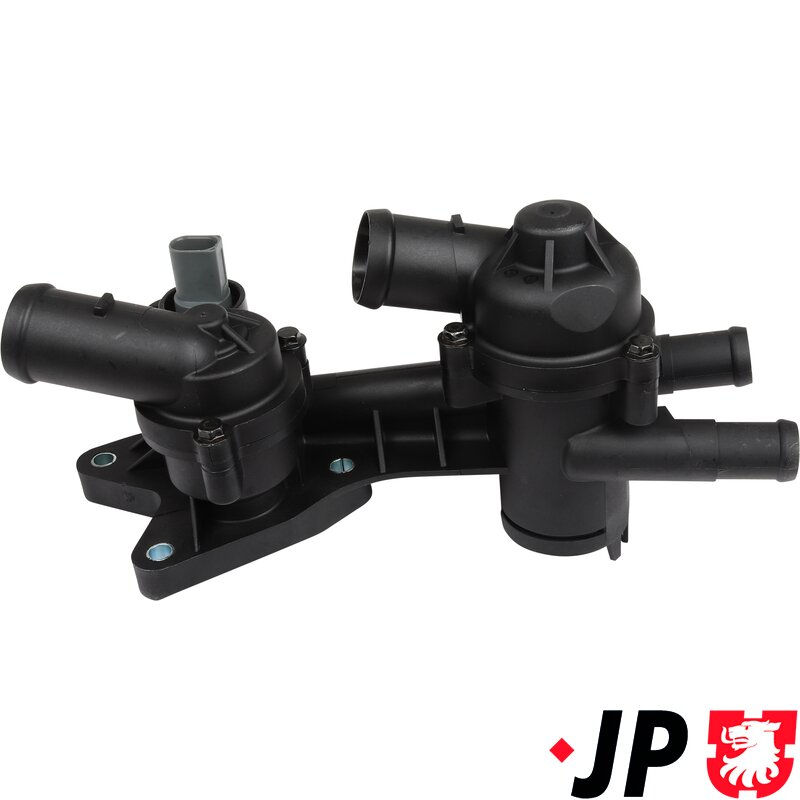

G5,G6 Thermostat Housing - 1.4 TSI
Part Number: 03C121111P
Replacement thermostat housing assembly for a wide range of Volkswagen 1.4 TSI petrol engines. Supplied complete with gaskets and seals, this housing contains the engine thermostat system which regulates coolant flow and maintains the correct engine operating temperature.
The thermostat housing controls coolant circulation between the engine and radiator. During cold starts the thermostat remains closed, allowing the engine to warm up quickly for improved efficiency and reduced emissions. As engine temperature rises, the thermostat opens progressively at the specified temperatures to allow coolant flow through the radiator and maintain stable operating temperatures.
Failure of the thermostat housing is common on 1.4 TSI engines and can cause coolant leaks, overheating, slow warm-up times, fluctuating temperature readings, heater performance issues or engine management faults. Cracks in the plastic housing and seal failures are also common with age and heat cycling.
This replacement unit includes seals and gaskets for easier installation and restoration of correct cooling system performance.
Specifications:
• Supplied with gaskets and seals
• Opening Temperature 1: 80°C
• Opening Temperature 2: 95°C
Replaces OE Part Numbers:
• 03C121111P
Fitment:
VW Beetle 5C Hatchback & Convertible (2011-2019)
• 1.4 TSI Petrol 160PS
VW Eos (2008-2015)
• 1.4 TSI Petrol 160PS
VW Golf Plus (2006-2014)
• 1.4 TSI Petrol 140PS
• 1.4 TSI Petrol 160PS
• 1.4 TSI Petrol 170PS
VW Golf Mk5 Hatchback & Estate (2005-2009)
• 1.4 TSI Petrol 140PS
• 1.4 TSI Petrol 160PS
• 1.4 TSI Petrol 170PS
VW Golf Mk6 Estate (2009-2013)
• 1.4 TSI Petrol 160PS
VW Jetta III & IV (2006-2017)
• 1.4 TSI Petrol 140PS
• 1.4 TSI Petrol 150PS
• 1.4 TSI Petrol 160PS
• 1.4 TSI Petrol 170PS
VW Passat B7 Saloon & Estate (2012-2014)
• 1.4 TSI Petrol 160PS
VW Passat CC (2011-2016)
• 1.4 TSI Petrol 160PS
VW Polo 6R (2010-2022)
• 1.4 TSI Petrol 180PS
VW Scirocco III 137 (2008-2017)
• 1.4 TSI Petrol 160PS
VW Sharan II (2010-2015)
• 1.4 TSI Petrol 150PS
VW Tiguan 5N (2007-2018)
• 1.4 TSI Petrol 150PS
• 1.4 TSI Petrol 160PS
VW Touran I & II (2006-2015)
• 1.4 TSI Petrol 140PS
• 1.4 TSI Petrol 170PS
Additional Parts That May Be Required During Fitting:
• Fresh G12/G13 coolant
• Coolant hose clips
• Coolant temperature sensor seal
• Additional coolant hoses if aged or swollen
This Part Fits:
Availability: Special Order
Item Name: Thermostat Housing
Description: Thermostat Housing
Product Group: Cooling
Group: Cooling System
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 200mm
Height: 370mm
Depth: 100mm
Volume: 7400000mm3
Weight: 0.6kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A1 | A1 (8X) | 01/11 - 01/11 | 1,4 | Petrol | Hatchback | 185 | - | -
|
| Audi | A1 | A1 (8X) | 11/11 - 11/11 | 1,4 | Petrol | Hatchback | 185 | - | -
|
| Seat | Alhambra | Alhambra (71) | 06/10 - 06/10 | 1,4 | Petrol | MPV | 150 | - | -
|
| Seat | Ibiza | Ibiza (6J) | 06/09 - 06/09 | 1,4 | Petrol | Hatchback | 150 | - | -
|
| Seat | Ibiza | Ibiza (6J) | 02/12 - 02/12 | 1,4 | Petrol | Estate | 150 | - | -
|
| Skoda | Fabia | Fabia II | 05/10 - 05/10 | 1,4 | Petrol | Estate | 180 | - | -
|
| Skoda | Fabia | Fabia II | 05/10 - 05/10 | 1,4 | Petrol | Hatchback | 180 | - | -
|
| VW | Beetle | Beetle (5C) | 10/11 - 10/11 | 1,4 | Petrol | Hatchback | 160 | - | -
|
| VW | Beetle | Beetle (5C) | 12/11 - 12/11 | 1,4 | Petrol | Convertible | 160 | - | -
|
| VW | Eos | Eos | 05/08 - 05/08 | 1,4 | Petrol | Convertible | 160 | - | -
|
| VW | Golf | Golf Plus | 05/06 - 05/06 | 1,4 | Petrol | Hatchback | 140 | - | -
|
| VW | Golf | Golf Plus | 06/08 - 06/08 | 1,4 | Petrol | Hatchback | 160 | - | -
|
| VW | Golf | Golf Plus | 05/06 - 05/06 | 1,4 | Petrol | Hatchback | 170 | - | -
|
| VW | Golf | Golf V | 05/06 - 05/06 | 1,4 | Petrol | Hatchback | 140 | - | -
|
| VW | Golf | Golf V | 06/07 - 06/07 | 1,4 | Petrol | Estate | 140 | - | -
|
| VW | Golf | Golf V | 07/08 - 07/08 | 1,4 | Petrol | Estate | 160 | - | -
|
| VW | Golf | Golf V | 11/05 - 11/05 | 1,4 | Petrol | Hatchback | 170 | - | -
|
| VW | Golf | Golf V | 06/07 - 06/07 | 1,4 | Petrol | Estate | 170 | - | -
|
| VW | Golf | Golf VI | 07/09 - 07/09 | 1,4 | Petrol | Estate | 160 | - | -
|
| VW | Jetta | Jetta III | 07/06 - 07/06 | 1,4 | Petrol | Saloon | 140 | - | -
|
| VW | Jetta | Jetta III | 07/08 - 07/08 | 1,4 | Petrol | Saloon | 160 | - | -
|
| VW | Jetta | Jetta III | 07/06 - 07/06 | 1,4 | Petrol | Saloon | 170 | - | -
|
| VW | Passat | Passat (B7) | 11/12 - 11/12 | 1,4 | Petrol | Saloon | 160 | - | -
|
| VW | Passat | Passat (B7) | 11/12 - 11/12 | 1,4 | Petrol | Estate | 160 | - | -
|
| VW | Passat | Passat CC | 11/11 - 11/11 | 1,4 | Petrol | Coupe | 160 | - | -
|
| VW | Polo | Polo (6R) | 05/10 - 05/10 | 1,4 | Petrol | Hatchback | 180 | - | -
|
| VW | Scirocco | Scirocco III (137) | 05/08 - 05/08 | 1,4 | Petrol | Coupe | 160 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 1,4 | Petrol | MPV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/07 - 09/07 | 1,4 | Petrol | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/08 - 05/08 | 1,4 | Petrol | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 1,4 | Petrol | SUV | 160 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 1,4 | Petrol | SUV | 160 | - | -
|
| VW | Touran | Touran I | 02/06 - 02/06 | 1,4 | Petrol | MPV | 140 | - | -
|
| VW | Touran | Touran I | 11/06 - 11/06 | 1,4 | Petrol | MPV | 170 | - | -
|
| VW | Touran | Touran II | 05/10 - 05/10 | 1,4 | Petrol | MPV | 140 | - | -
|
| VW | Touran | Touran II | 05/10 - 05/10 | 1,4 | Petrol | MPV | 170 | - | -
|
| VW | JETTA IV (162, 163, AV3, AV2) | 04/11 - 04/11 | 1,4 | Petrol | Saloon | 160 | - | -
| |
| VW | JETTA IV (162, 163, AV3, AV2) | 04/11 - 04/11 | 1,4 | Petrol | Saloon | 150 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| AUDI | 03C121111P |
| VALEO | 820284 |
| SIDAT | 94.893 |
| GATES | TH49595/80G1 |
| DAYCO | DT1268H |
| QUINTON HAZELL | QTH914K |
| METZGER | 4006251 |
| MAGNETI MARELLI | 352317004810 |
| FEBI BILSTEIN | 45080 |
| SEAT | 03C121111P |
| SKODA | 03C121111P |
| TRISCAN | 8620 42600 |
| TRISCAN | 862042600 |
| VW | 03C121111P |
| MAPCO | 28132 |
| SWAG | 30 94 5080 |
| SWAG | 30945080 |
| FACET | 7.7960KK |
| HEPU | TM1016 |
| GK | 701016 |
| VEMO | V15-99-2083 |
| KAMOKA | 7710212 |
| NRF | 725307 |
| BIRTH | 80185 |
| TRUCKTEC AUTOMOTIVE | 07.19.333 |
| CALORSTAT BY VERNET | TH7169.80J |
| ERA | 350590A |
| MEAT & DORIA | 92893 |
| VAG | 03C121111P |
| SASIC | 3306117 |
| JDEUS | TH0300003 |
| TOPRAN | 116 767 |
| TOPRAN | 116767 |
| ORIGINAL IMPERIUM | 90877 |
| HOFFER | 8192893 |
| MOTORAD | 709-80/95K |
| MAXGEAR | 18-0477 |
| CAUTEX | 756850 |
| FIRST LINE | FTK464 |
| FISPA | 94893 |
| BORG & BECK | BBT464 |
| BGA | CT0132 |
| EPS | 1.879.960KK |
| KW | 579 960KK |
| OMNICRAFT | 2457992 |
| DIAMAX | AD02030 |
| VEMA | VE81799 |
| BSG | BSG 90-125-009 |
| AUTOTEAM | M4893 |
| ABAKUS | 053-025-0040 |
| METALCAUCHO | 35922 |
| STC | T435922 |
| BORSEHUNG | B18251 |
| FARE SA | 16272 |
| DIPASPORT | TRM192N |
| BBR AUTOMOTIVE | 001-10-29631 |
| ASLYX | AS-535809 |
| BOGAP | A4247107 |
| AT AUTOTEILE GERMANY | at23317 |
| PREXAPARTS | P107114 |
| KRAFTVOLL GERMANY | 08100156 |
| HAJUS AUTOTEILE | 1211184 |
