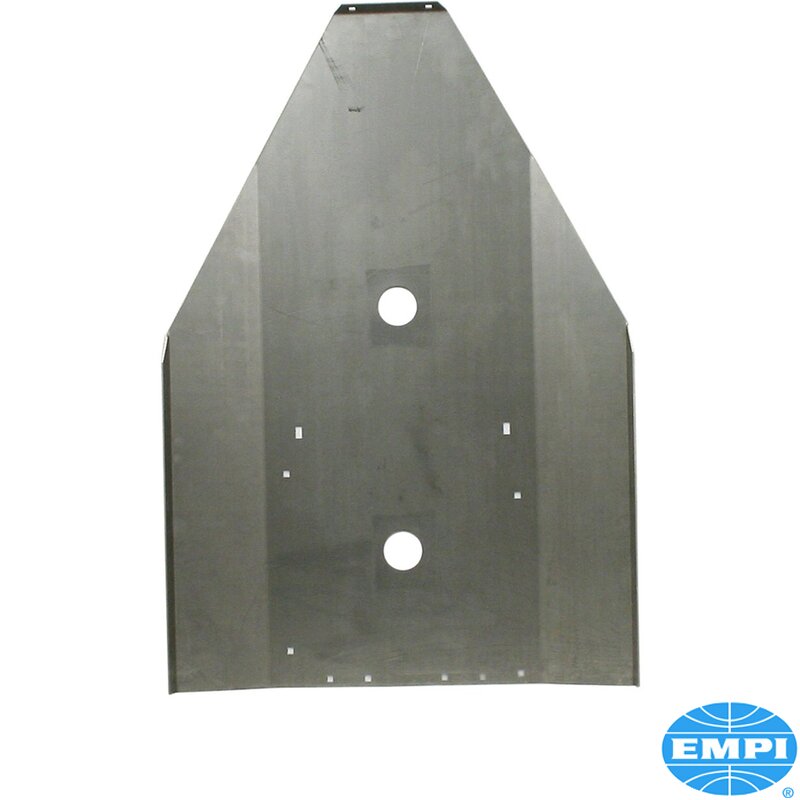

Buggy Engine Skid Plate
Part Number: AC1983194
Heavy-duty off-road skid plate designed to protect the engine and gearbox on aircooled Volkswagen Type 1 vehicles fitted with off-road exhaust systems.
Whether you`re tackling rocky trails, green lanes or sand dunes, protecting the underside of your engine is essential. This heavy-duty off-road skid plate is designed to shield the engine crankcase, gearbox and lower exhaust components from impacts with rocks, tree roots and other obstacles that could otherwise cause expensive damage.
Manufactured from heavy gauge steel, the skid plate forms a strong protective barrier beneath the engine and transmission while maintaining excellent ground clearance. It is specifically designed for use with off-road and Baja-style exhaust systems, making it the ideal addition to Baja Bugs, Beach Buggies and other off-road Type 1 builds.
The skid plate helps prevent damage to the engine case, sump area and transmission during off-road driving, giving you greater confidence when tackling rough terrain. It also provides additional rigidity around the rear engine support area and is supplied complete with the necessary mounting hardware for installation.
Whether you`re building a dedicated off-road racer or simply want extra protection for your weekend trail vehicle, this skid plate is an essential upgrade.
Quantity: 1 Kit
Specifications
- Heavy Gauge Steel Construction
- Off-Road Engine & Gearbox Protection
- Designed for Baja & Off-Road Applications
- Complete with Mounting Hardware
- Suitable for Off-Road Exhaust Systems
Vehicle Fitment
Aircooled Volkswagen Beetle (Type 1)
- 1200cc (1947-1986)
- 1300cc
- 1500cc
- 1600cc
Suitable Applications
- VW Baja Bug
- VW Beach Buggy
- Sand Rail
- Kit Cars using Type 1 engines
- Off-road Beetles fitted with Baja or extractor exhaust systems
Fitting Notes
- Designed for vehicles fitted with off-road exhaust systems.
- Not compatible with most original factory exhaust systems or heater box arrangements.
- Includes mounting hardware for installation.
- Ideal for off-road, rally, trail and competition vehicles.
Related Parts Often Required:
- Baja exhaust header
- J-tube exhaust kit
- Off-road muffler
- Engine support bar
- Heavy-duty engine mounts
- Sump guard hardware
This Part Fits: Beetle, Buggy,
Availability: Special Order
Item Name: Off-road skid plate. To be used with off-road exhaust systems
Description: Body Floor
Product Group: Body
Group: Body
Unit of Measure: Each
Manufacturer: EMPI
Dimensions:
Width: 655mm
Height: 240mm
Depth: 930mm
Volume: 146196000mm3
Weight: 10.04kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Beetle Type 1 | 1302 | 08/69 - 08/69 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 07/71 - 07/71 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 04/75 - 04/75 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,3 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 12/47 - 12/47 | 1,1 | Petrol | Saloon | 24 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/49 - 07/49 | 1,1 | Petrol | Convertible | 24 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Convertible | 30 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Saloon | 30 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 04/60 - 04/60 | 1,2 | Petrol | Saloon | 35 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 37 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/68 - 01/68 | 1,3 | Petrol | Saloon | 38 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/75 - 08/75 | 1,6 | Petrol | Saloon | 50 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| EMPI | 0031940 |
| EMPI | 00-3194-0 |
