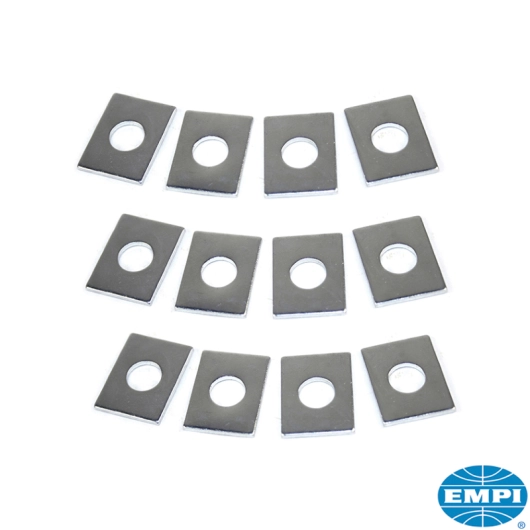

Rocker Stand Shim Set (4x 0.015", 4x 0.030", 4x 0.060") - Type 1 Engines

Rocker stand shim assortment kit for aircooled VW Type 1 engines. This kit includes a selection of the most commonly used rocker stand shims for accurately setting rocker arm geometry during engine assembly and valve train setup.

Correct rocker geometry is essential on all aircooled VW engines, particularly when fitting performance camshafts, ratio rockers, aftermarket cylinder heads, custom pushrods or altered deck heights. These shims install beneath the rocker shaft stands to raise the rocker assembly and achieve the correct rocker arm angle throughout the valve lift cycle.

Using the correct shim combination helps improve valve train efficiency, reduces side loading on the valve guides and helps prevent premature wear to rocker arms, valves and guides. This assortment kit allows fine adjustment and is ideal for engine builders and performance workshops setting up both standard and modified engines.

Supplied with multiple shim thicknesses for easy geometry correction and tuning.

Kit Includes

• 4 x 0.015″ rocker stand shims
• 4 x 0.030″ rocker stand shims
• 4 x 0.060″ rocker stand shims

Fitting Notes

• Fits beneath rocker shaft stands
• Used to adjust rocker geometry
• Suitable for standard and aftermarket rocker assemblies
• Ideal for performance engine builds
• Shims can be stacked to achieve correct setup
• Pushrod length and geometry should always be checked during installation

Product Features

• Multiple shim thicknesses included
• Ideal for engine building and setup
• Precision rocker geometry adjustment
• Helps reduce valve train wear
• Suitable for standard and performance engines
• Hardened shim construction

Applications

Aircooled VW

• VW Beetle 1960–1979
• VW Splitscreen Bus 1960–1967
• VW Baywindow Bus 1968–1979
• VW Karmann Ghia 1960–1974
• VW Type 3 1961–1973
• VW Type 181 Trekker 1968–1983
• VW Buggy & Baja 1960–1979
