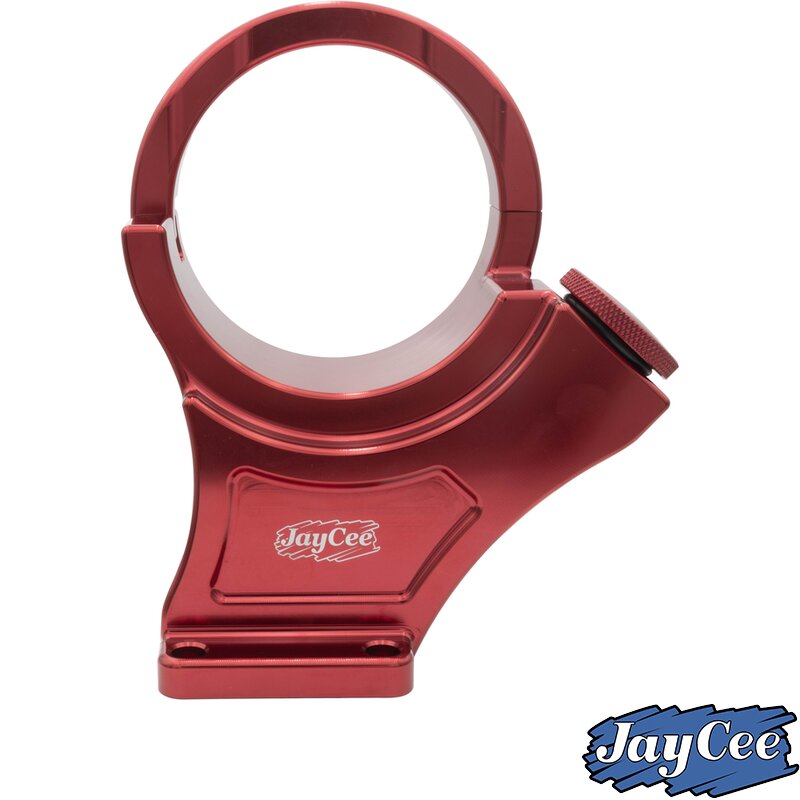

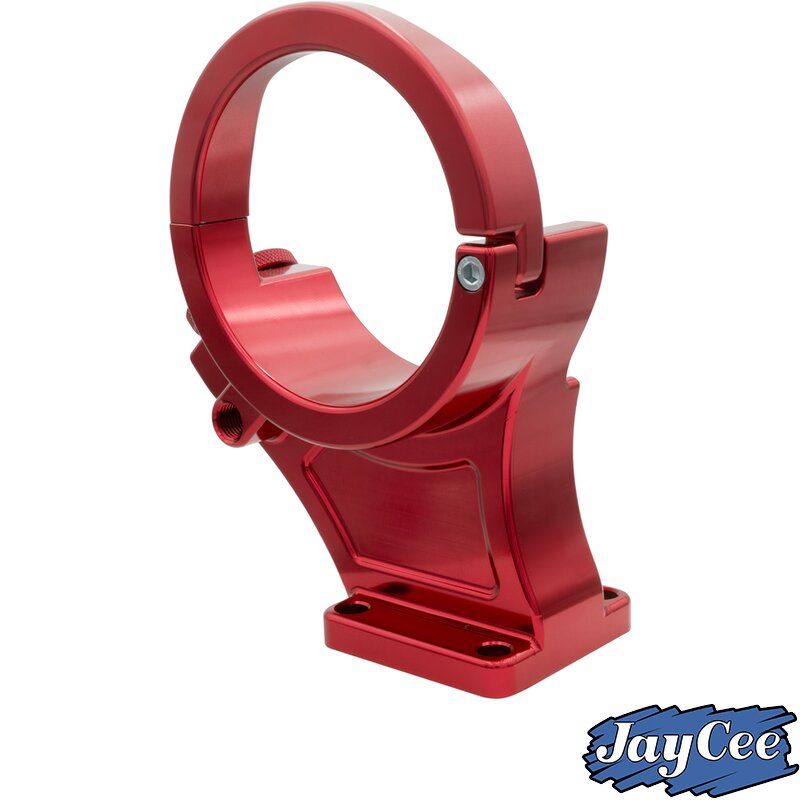

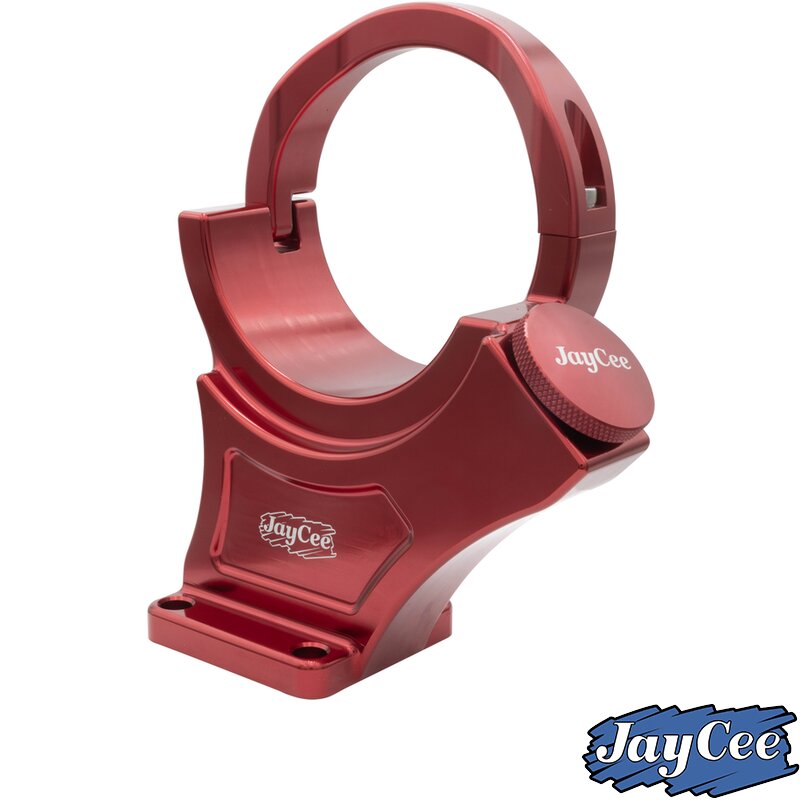

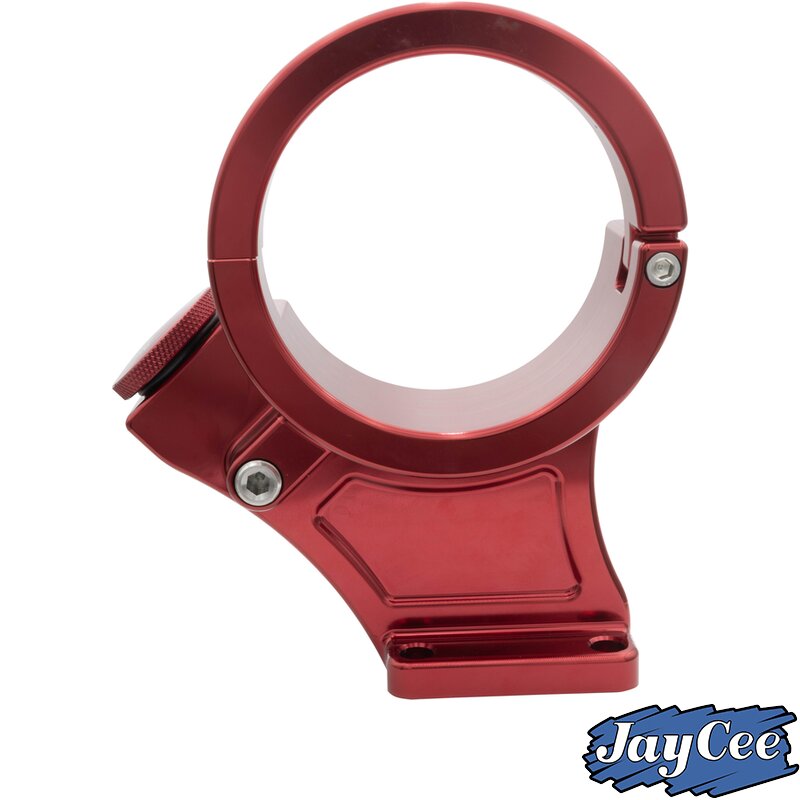

Type 1 Jaycee Alternator Stand - Red Anodised
Premium CNC-machined billet aluminium alternator stand from JayCee Performance in a striking red anodised finish.

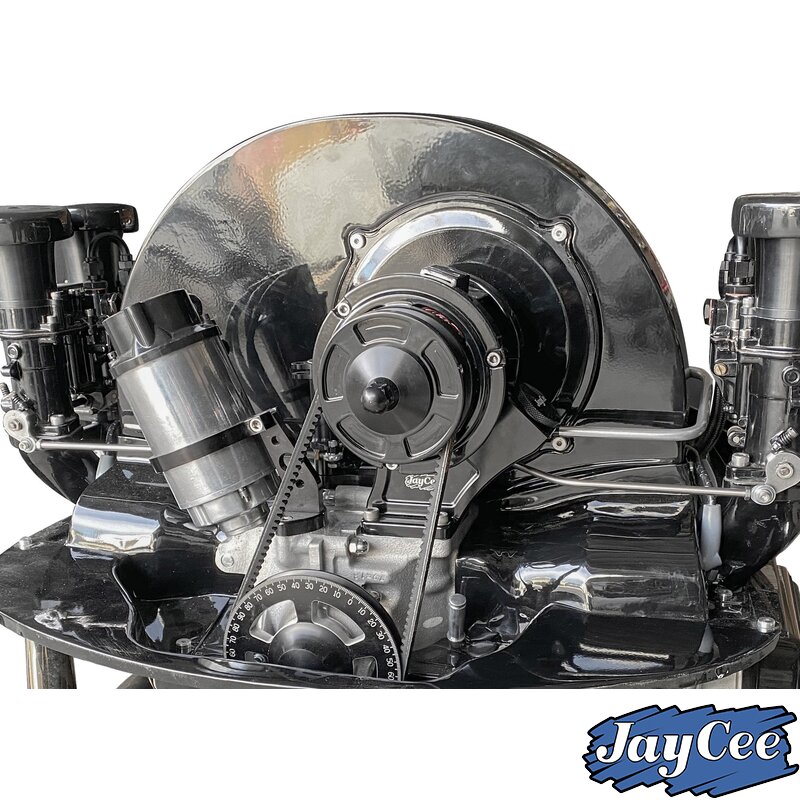

Add a high-performance custom look to your aircooled Volkswagen engine bay with this JayCee billet alternator stand. Precision CNC-machined from premium T6061 billet aluminium, this stand combines exceptional strength, precise fitment and a vibrant red anodised finish that stands out in any engine compartment.
Designed to accommodate most 12-volt alternators measuring 103-105mm in diameter, this alternator stand is a direct replacement for conventional cast units fitted to Type 1 engines. The integrated retaining strap provides a clean appearance while securely supporting the alternator under all driving conditions.
Unlike traditional cast stands, the billet construction offers superior rigidity and durability, making it ideal for performance engines, show cars, custom builds and concours restorations. An integrated oil filler neck is incorporated into the design, while the optional 1/4″-18 NPT breather port provides a convenient connection point for improved crankcase ventilation on modified engines.
Supplied complete with stainless steel mounting hardware and finished with a laser-etched JayCee logo, this premium alternator stand is the perfect blend of performance engineering and show-quality styling.
Quantity: 1 Kit
Colour: Red Anodised
Material: T6061 Billet Aluminium
Features:
- Precision CNC-machined billet construction
- Durable red anodised finish
- Integrated alternator retaining strap
- Built-in oil filler neck

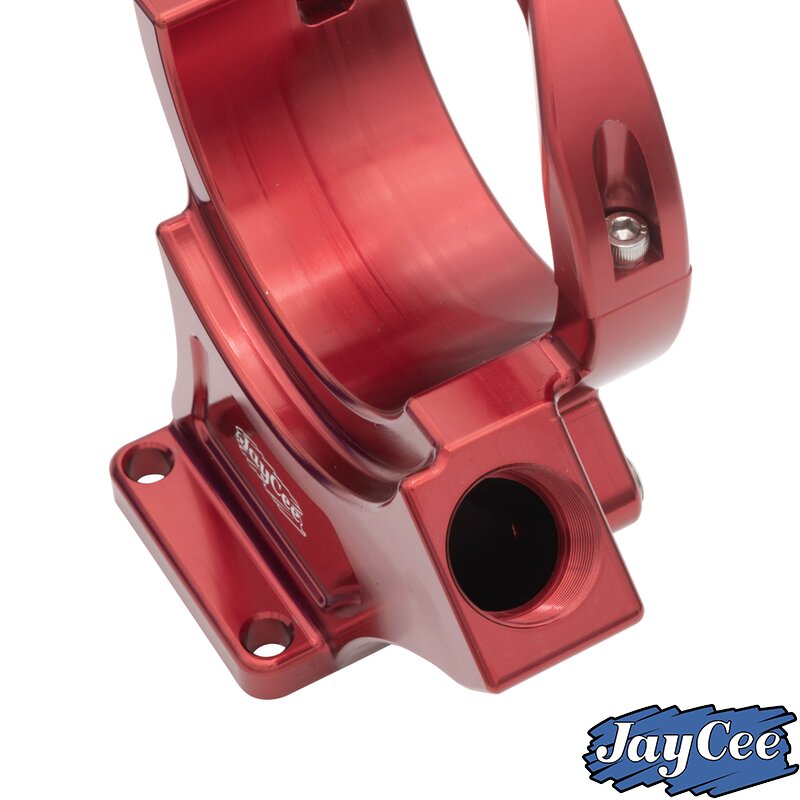

- Optional 1/4″-18 NPT breather port
- Laser-etched JayCee logo
- Stainless steel mounting hardware included
Alternator Compatibility:
- 12 Volt alternators
- 103-105mm diameter
Vehicle Fitment
Aircooled Volkswagen Type 1 Engines (1960-Onwards)
- 1200cc
- 1300cc
- 1500cc
- 1600cc
- Performance Type 1 engines
Common Applications
- VW Beetle 1960-2003
- VW Karmann Ghia 1960-1974
- VW Type 3 Type 1 engine conversions
- VW Transporter T2 Baywindow Type 1 engine conversions
- VW Baja Bug
- VW Buggy
- Kit Cars using Type 1 engines
Available Colours
- JC-4513-0 – Black Anodised
- JC-4519-0 – Blue Anodised
- JC-4511-0 – Silver Anodised
This Part Fits: Beetle, Splitscreen, Baywindow, Karmann Ghia, Trekker, Buggy,
Availability: Special Order
Item Name: Alternator stand, Billet style aluminium, red anodized, 12 Volt
Description: Mounting, alternator
Product Group: Electric
Group: Alternator
Colour: Red
Unit of Measure: Each
Manufacturer: JAYCEE
Dimensions:
Width: 215mm
Height: 250mm
Depth: 130mm
Volume: 6987500mm3
Weight: 1.44kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Baja | Baja | 08/68 - 08/68 | 1,6 | Petrol | Closed Off-Road Vehicle | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/69 - 08/69 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 07/71 - 07/71 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 04/75 - 04/75 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,3 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Saloon | 30 | - | Construction Year from 196008 |
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | Construction Year from 196008 |
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 37 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Buggy | Buggy | 08/63 - 08/63 | 1,6 | Petrol | Open Off-Road Vehicle | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 08/57 - 08/57 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/60 - 08/60 | 1,2 | Petrol | Coupe | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/66 - 01/66 | 1,5 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/70 - 07/70 | 1,3 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/71 - 07/71 | 1,6 | Petrol | Coupe | 48 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/70 - 01/70 | 1,6 | Petrol | Coupe | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/61 - 08/61 | 1,5 | Petrol | Coupe | 54 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 09/69 - 09/69 | 1,5 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 08/70 - 08/70 | 1,6 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 03/73 - 03/73 | 1,6 | Petrol | Open Off-Road Vehicle | 48 | - | -
|
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,1 | Petrol | Bus | 24 | - | Construction Year from 196008 |
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Van | 34 | - | Construction Year from 196008 |
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Platform/Chassis | 34 | - | Construction Year from 196008 |
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,2 | Petrol | Van | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,2 | Petrol | Bus | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,5 | Petrol | Bus | 42 | - | -
|
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,5 | Petrol | Van | 44 | - | -
|
| VW Classic | Transporter | T1 | 06/66 - 06/66 | 1,5 | Petrol | Platform/Chassis | 44 | - | -
|
| VW Classic | Transporter | T1 | 07/66 - 07/66 | 1,5 | Petrol | Bus | 44 | - | -
|
| VW Classic | Transporter | T2 | 08/67 - 08/67 | 1,6 | Petrol | Bus | 47 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Van | 48 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Platform/Chassis | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Van | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Bus | 50 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 07/68 - 07/68 | 1,5 | Petrol | Hatchback | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 08/65 - 08/65 | 1,6 | Petrol | Hatchback | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 04/61 - 04/61 | 1,5 | Petrol | Saloon | 45 | - | Construction Year from 196308 |
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 07/64 - 07/64 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/63 - 08/63 | 1,5 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 04/61 - 04/61 | 1,5 | Petrol | Estate | 45 | - | Construction Year from 196308 |
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/63 - 08/63 | 1,5 | Petrol | Estate | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/65 - 08/65 | 1,6 | Petrol | Estate | 54 | - | -
|
| VW | TRANSPORTER T1 Bus (22, 24, 25, 28) | 06/66 - 06/66 | 1,6 | Petrol | Bus | 48 | - | -
| |
| VW | TRANSPORTER T1 Platform/Chassis (26) | 08/64 - 08/64 | 1,6 | Petrol | Platform/Chassis | 48 | - | -
| |
| VW | TRANSPORTER T1 Van (21, 23) | 08/64 - 08/64 | 1,6 | Petrol | Van | 48 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| EMPI | JC45150 |
| EMPI | JC-4515-0 |
