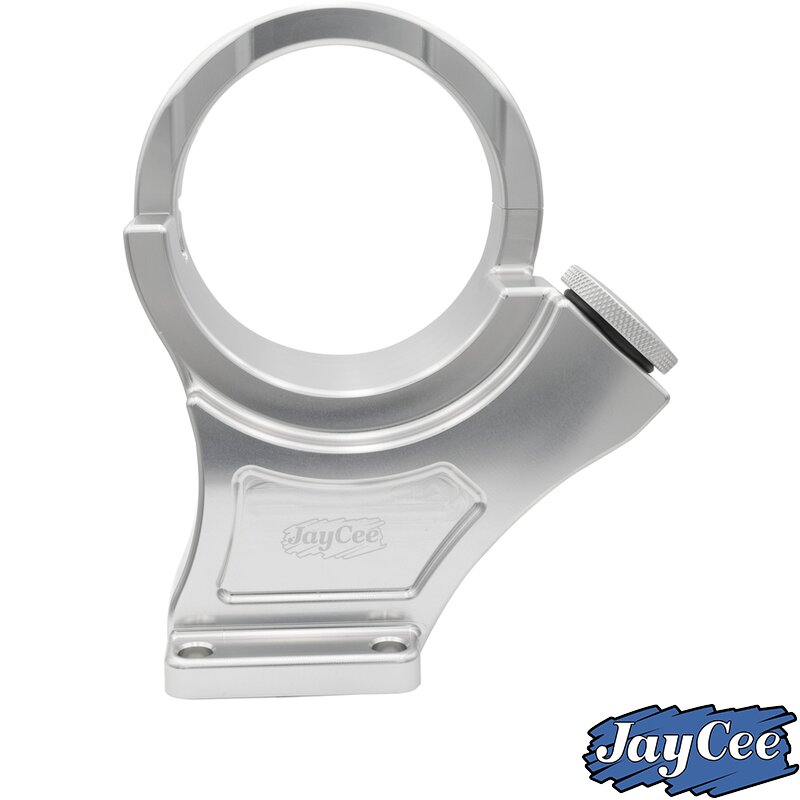

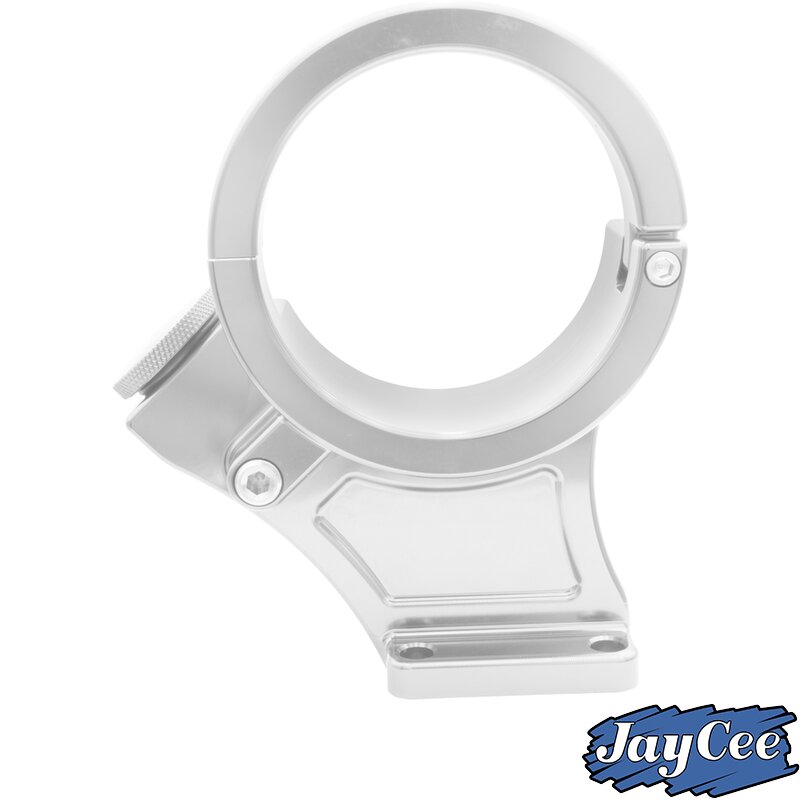

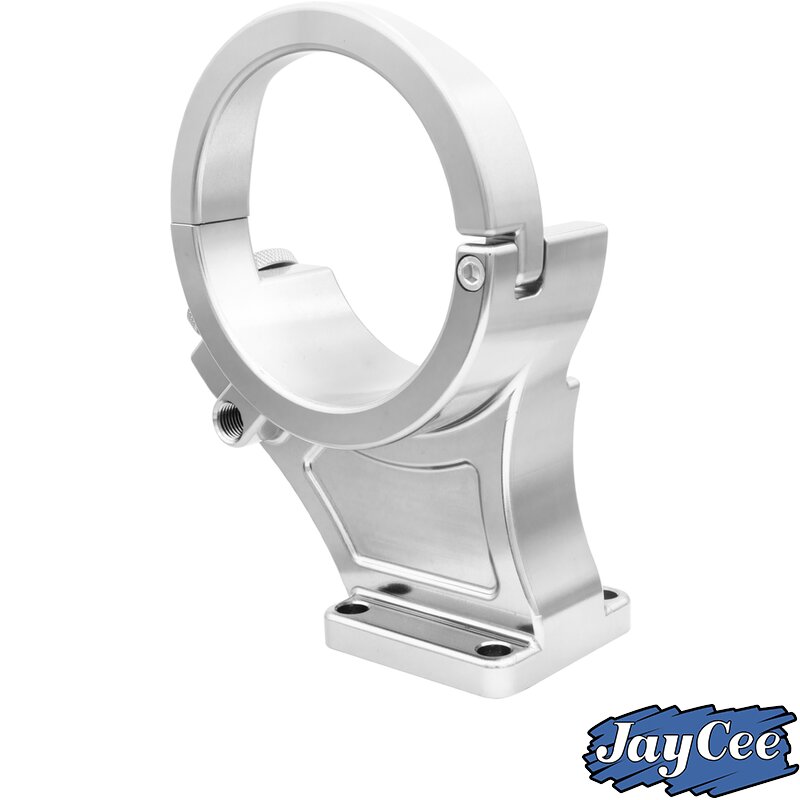

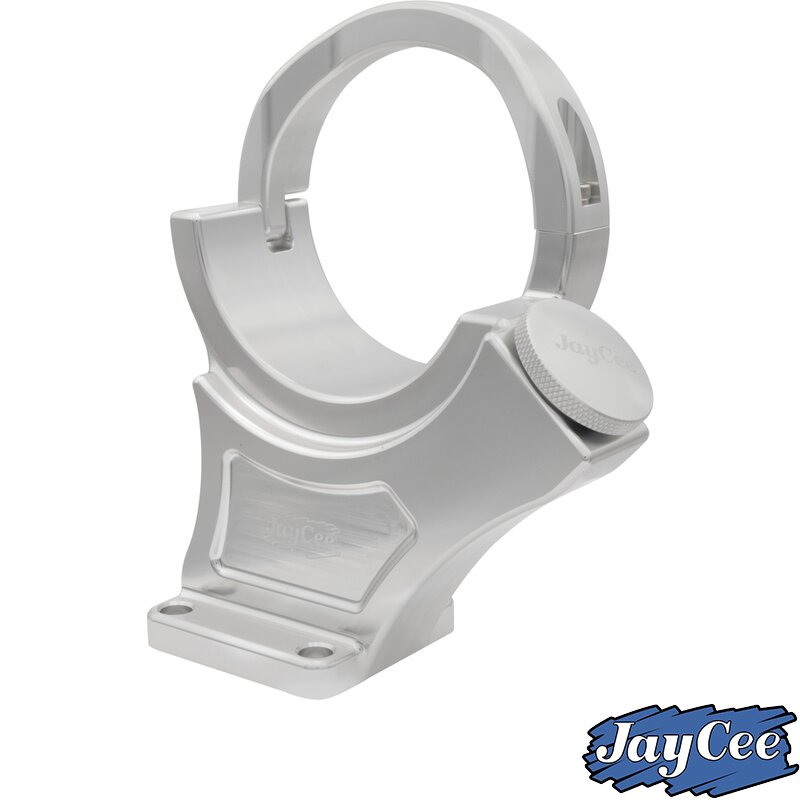

Type 1 Jaycee Alternator Stand - Silver Anodised
Premium CNC-machined billet aluminium alternator stand from JayCee Performance for Volkswagen Type 1 engines.
Upgrade your aircooled Volkswagen engine bay with this high-quality JayCee billet alternator stand. Precision CNC-machined from T6061 billet aluminium and finished in a durable silver anodised coating, this performance alternator stand combines exceptional strength, improved appearance and long-lasting corrosion resistance.
Designed to accommodate most common 12-volt alternators with a diameter of 103-105mm, this stand is a direct replacement for conventional cast alternator stands fitted to Type 1 engines. The integrated retaining strap provides a clean, streamlined appearance while securely holding the alternator in place.

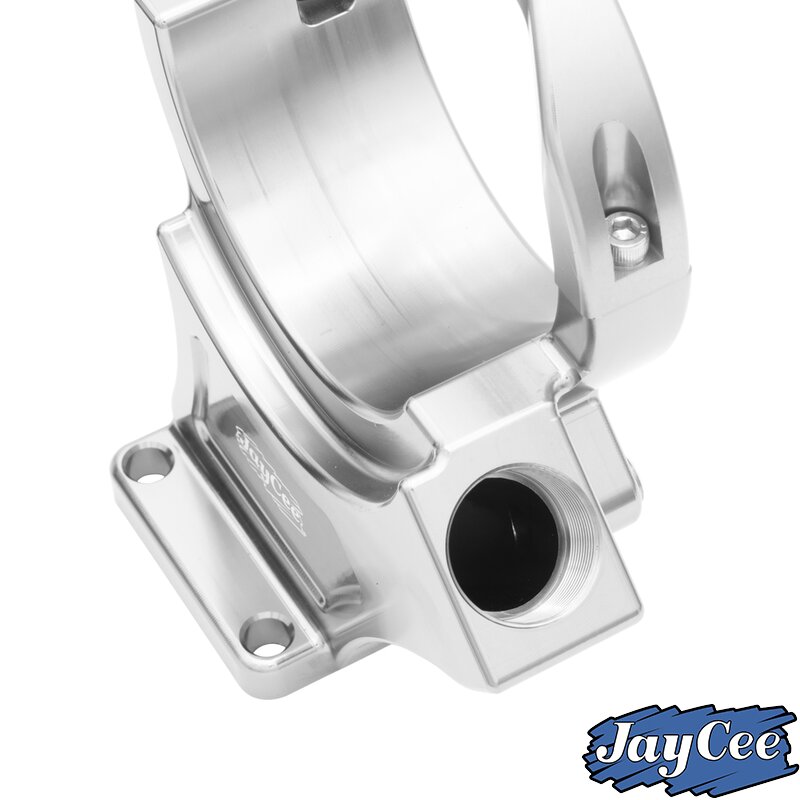

Unlike standard cast units, the billet construction offers superior rigidity and durability, making it ideal for performance engines, show cars and high-quality restorations. An integrated oil filler neck is incorporated into the design, while the optional 1/4″-18 NPT breather port provides a convenient solution for improved crankcase ventilation on modified engines.

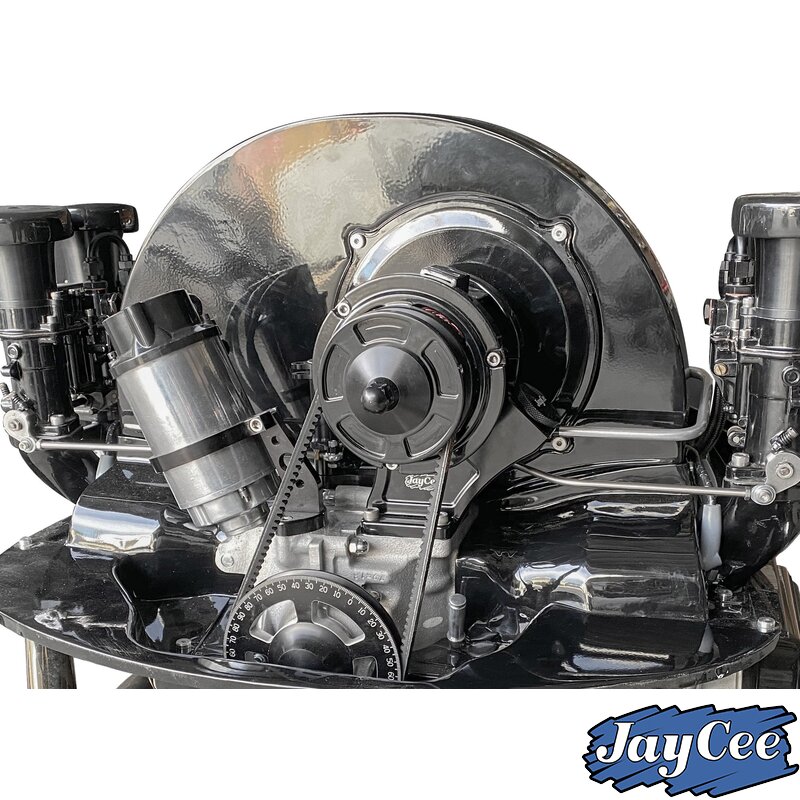

Supplied complete with stainless steel mounting hardware, this alternator stand delivers both functionality and style. Finished with the distinctive laser-etched JayCee logo, it is an eye-catching addition to any Beetle, Karmann Ghia, Bus, Buggy or Type 3 engine conversion using a Type 1 powerplant.
Quantity: 1 Kit
Colour: Silver Anodised
Material: T6061 Billet Aluminium
Features:
- Precision CNC-machined billet construction
- Durable silver anodised finish
- Integrated alternator retaining strap
- Built-in oil filler neck
- Optional 1/4″-18 NPT breather port
- Laser-etched JayCee logo
- Stainless steel mounting hardware included
- Replaces JayCee part number JC-4497-0
Alternator Compatibility:
- 12 Volt alternators
- 103-105mm diameter
Vehicle Fitment
Aircooled Volkswagen Type 1 Engines (1960-Onwards)
- 1200cc
- 1300cc
- 1500cc
- 1600cc
- Performance Type 1 engines
Common Applications
- VW Beetle 1960-2003
- VW Karmann Ghia 1960-1974
- VW Type 3 Type 1 engine conversions
- VW Baja Bug
- VW Buggy
- Kit Cars using Type 1 engines
- Aircooled performance and racing engines
Other Available Colours
- JC-4513-0 – Black Anodised
- JC-4515-0 – Red Anodised
- JC-4519-0 – Blue Anodised
This Part Fits: Beetle, Splitscreen, Baywindow, Karmann Ghia, Trekker, Buggy,
Availability: Special Order
Item Name: Alternator stand, Billet style aluminium, silver anodized, 12 Volt
Description: Mounting, alternator
Product Group: Electric
Group: Alternator
Colour: Silver
Unit of Measure: Each
Manufacturer: JAYCEE
Dimensions:
Width: 215mm
Height: 250mm
Depth: 130mm
Volume: 6987500mm3
Weight: 1.44kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Baja | Baja | 08/68 - 08/68 | 1,6 | Petrol | Closed Off-Road Vehicle | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/69 - 08/69 | 1,2 | Petrol | Saloon | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 39 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 07/71 - 07/71 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 04/75 - 04/75 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,3 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/54 - 01/54 | 1,2 | Petrol | Saloon | 30 | - | Construction Year from 196008 |
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | Construction Year from 196008 |
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 37 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 40 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Buggy | Buggy | 08/63 - 08/63 | 1,6 | Petrol | Open Off-Road Vehicle | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 08/57 - 08/57 | 1,2 | Petrol | Convertible | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 39 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Convertible | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/60 - 08/60 | 1,2 | Petrol | Coupe | 34 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/66 - 01/66 | 1,5 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/70 - 07/70 | 1,3 | Petrol | Coupe | 44 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/71 - 07/71 | 1,6 | Petrol | Coupe | 48 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/70 - 01/70 | 1,6 | Petrol | Coupe | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 08/61 - 08/61 | 1,5 | Petrol | Coupe | 54 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 09/69 - 09/69 | 1,5 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 08/70 - 08/70 | 1,6 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 03/73 - 03/73 | 1,6 | Petrol | Open Off-Road Vehicle | 48 | - | -
|
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,1 | Petrol | Bus | 24 | - | Construction Year from 196008 |
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Van | 34 | - | Construction Year from 196008 |
| VW Classic | Transporter | T1 | 01/50 - 01/50 | 1,2 | Petrol | Platform/Chassis | 34 | - | Construction Year from 196008 |
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,2 | Petrol | Van | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,2 | Petrol | Bus | 34 | - | -
|
| VW Classic | Transporter | T1 | 11/62 - 11/62 | 1,5 | Petrol | Bus | 42 | - | -
|
| VW Classic | Transporter | T1 | 02/62 - 02/62 | 1,5 | Petrol | Van | 44 | - | -
|
| VW Classic | Transporter | T1 | 06/66 - 06/66 | 1,5 | Petrol | Platform/Chassis | 44 | - | -
|
| VW Classic | Transporter | T1 | 07/66 - 07/66 | 1,5 | Petrol | Bus | 44 | - | -
|
| VW Classic | Transporter | T2 | 08/67 - 08/67 | 1,6 | Petrol | Bus | 47 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Van | 48 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Platform/Chassis | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Van | 50 | - | -
|
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Bus | 50 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 07/68 - 07/68 | 1,5 | Petrol | Hatchback | 45 | - | -
|
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 08/65 - 08/65 | 1,6 | Petrol | Hatchback | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 04/61 - 04/61 | 1,5 | Petrol | Saloon | 45 | - | Construction Year from 196308 |
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 07/64 - 07/64 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/63 - 08/63 | 1,5 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 04/61 - 04/61 | 1,5 | Petrol | Estate | 45 | - | Construction Year from 196308 |
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/63 - 08/63 | 1,5 | Petrol | Estate | 54 | - | -
|
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/65 - 08/65 | 1,6 | Petrol | Estate | 54 | - | -
|
| VW | TRANSPORTER T1 Bus (22, 24, 25, 28) | 06/66 - 06/66 | 1,6 | Petrol | Bus | 48 | - | -
| |
| VW | TRANSPORTER T1 Platform/Chassis (26) | 08/64 - 08/64 | 1,6 | Petrol | Platform/Chassis | 48 | - | -
| |
| VW | TRANSPORTER T1 Van (21, 23) | 08/64 - 08/64 | 1,6 | Petrol | Van | 48 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| EMPI | JC45110 |
| EMPI | JC-4511-0 |
