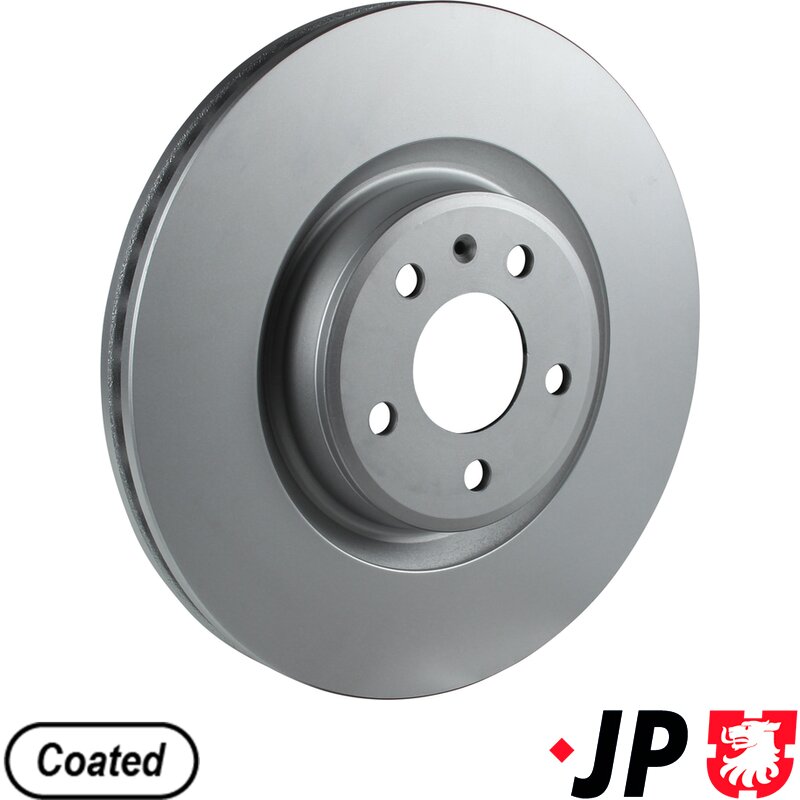

Porsche Macan Front Brake Disc (345mm Vented)

This front brake disc is a premium replacement designed for the Porsche Macan range fitted with PR codes 1LA or 1LE. With a 345mm outer diameter and internally vented construction, it is engineered to deliver strong, consistent braking performance for petrol and diesel Macan models running 17-inch wheels and non-ceramic brake systems.

What this brake disc does

Front brake discs are the primary braking components on the Porsche Macan, responsible for converting speed into controlled stopping power. When the brake pedal is applied, hydraulic pressure forces the caliper to clamp the brake pads onto the disc faces. The friction generated slows the vehicle while safely managing the high kinetic energy associated with a performance SUV.

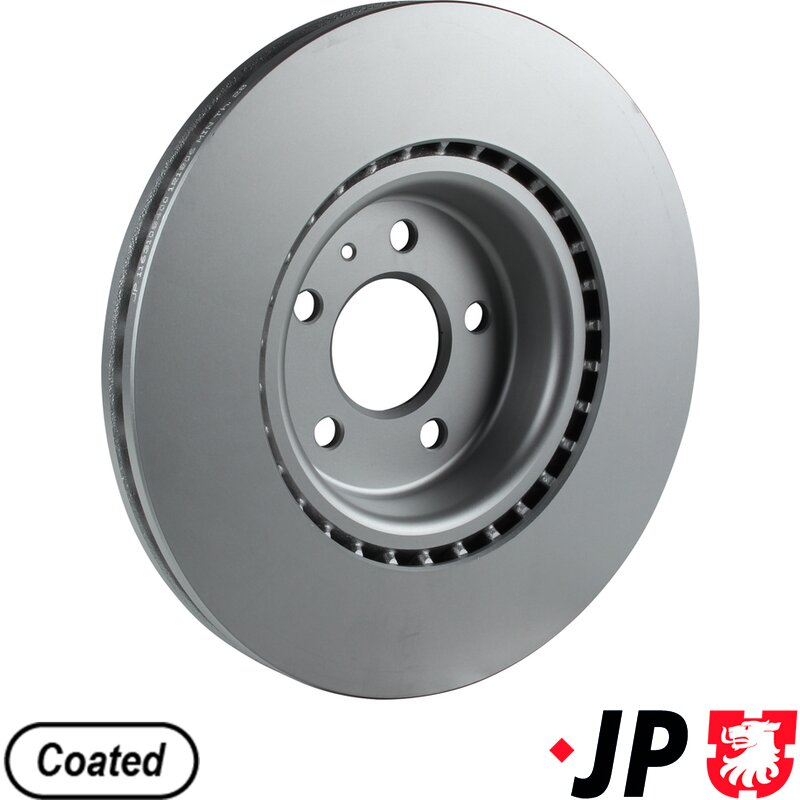

This disc features an internally vented design, incorporating internal cooling vanes between the disc faces. As the disc rotates, air is drawn through these vanes, significantly improving heat dissipation. This helps reduce brake fade, maintain consistent pedal feel, and protect both pads and discs during repeated heavy braking—ideal for the Macan’s weight and performance capabilities.

Construction & specifications

• Outer diameter: 345mm

• Disc thickness: 30mm

• Brake disc type: Internally vented

• Surface finish: Coated (anti-corrosion protection)

• Stud pattern: 5-hole

• Fitting position: Front axle

• PR codes: 1LA, 1LE

• Wheel size: For models with 17″ wheels

• Brake system: Not suitable for ceramic brake systems

The coated finish protects the non-friction areas of the disc from corrosion, keeping the hub area cleaner and extending service life—particularly beneficial in year-round and winter driving conditions.

Fitment & compatibility

Suitable for the following applications without ceramic brakes:

• Porsche Macan – 2.0 petrol, 3.0 petrol and 3.0 diesel models

  • Production dates: 02/2014 onwards

  • PR codes: 1LA or 1LE

  • Wheel size: 17-inch wheels

This disc is commonly fitted to a wide range of Macan petrol and diesel variants from 2014 onwards, excluding models equipped with Porsche Ceramic Composite Brakes (PCCB).

Always check the vehicle PR code, wheel size, and brake specification before ordering, as the Macan range uses multiple front brake disc sizes depending on engine output and brake option.

Recommended additional parts

For best braking performance and reliability, we strongly recommend fitting:

• Front brake pads matched to 345mm discs

• Brake disc retaining screws

• Brake pad fitting kit / anti-rattle hardware (where applicable)

Front brake discs should always be replaced in axle pairs to ensure even braking and consistent pedal feel.
