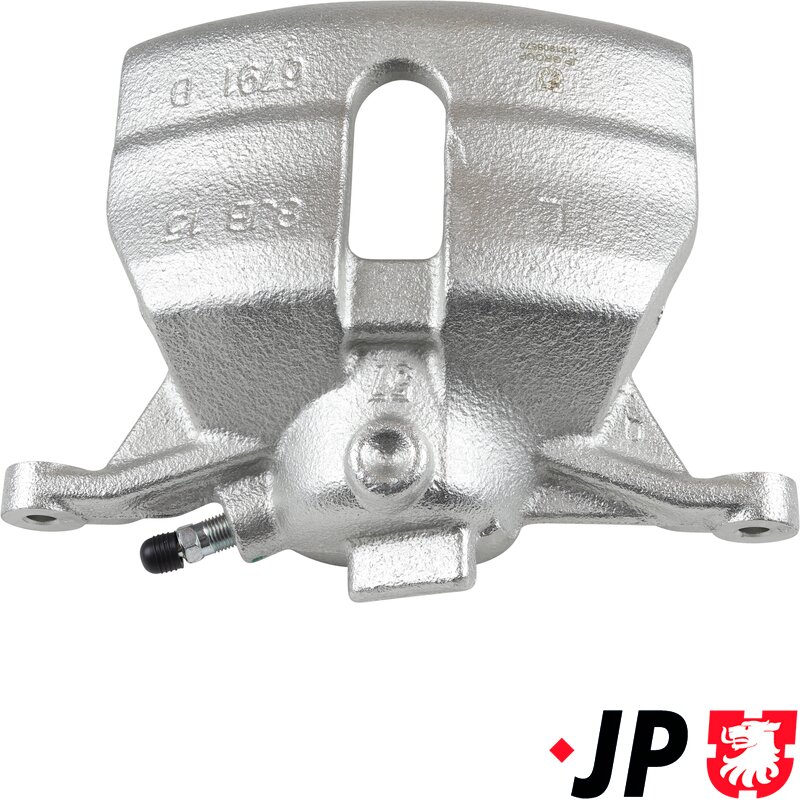

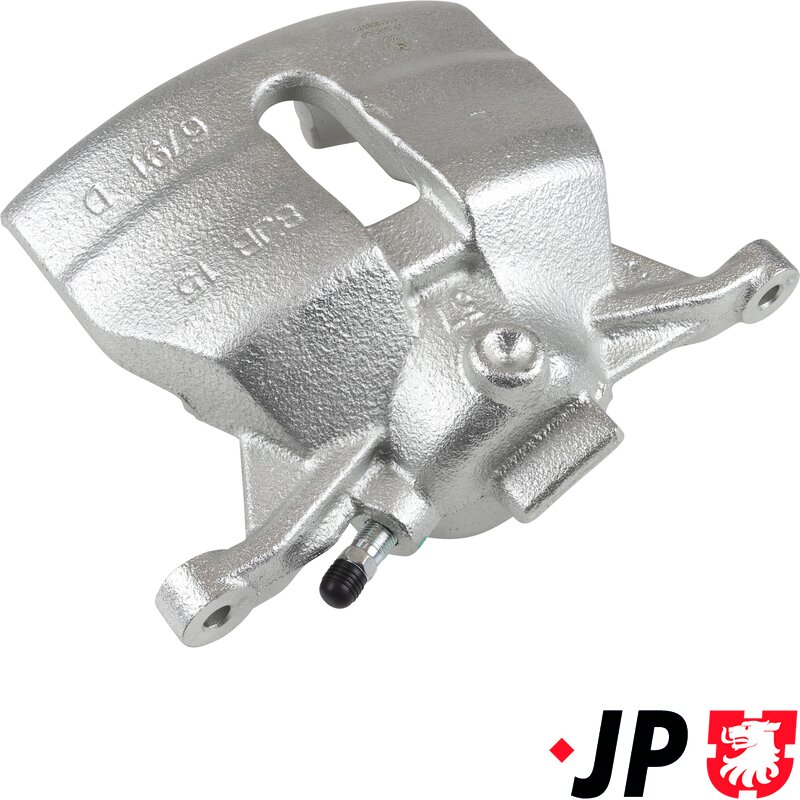

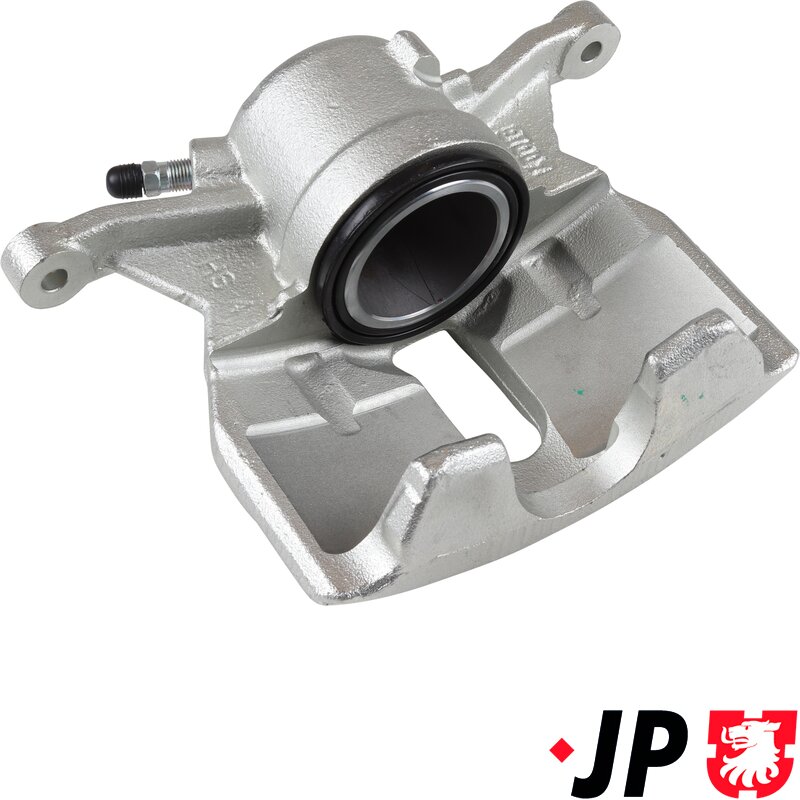

G7 Front Brake Caliper (288mm Brake Discs) - Left (TRW)

This front left brake caliper is a high-quality replacement unit designed for Volkswagen models fitted with 288mm vented front brake discs and manufactured to TRW specifications. On RHD vehicles, this caliper fits the passenger side (left-hand side) of the front axle.

The brake caliper plays a critical role in your vehicle’s braking system. When the brake pedal is pressed, hydraulic pressure forces the 57mm piston inside the caliper outward, clamping the brake pads against the brake disc. This friction slows the wheel and ultimately brings the vehicle to a stop. As a single-piston floating caliper, the design allows the caliper body to move laterally, ensuring even pressure is applied to both brake pads for consistent braking performance and reduced pad wear.

This caliper is designed for use with 25mm thick, 288mm diameter vented brake discs, which help dissipate heat more effectively during braking. Vented discs are especially important on modern vehicles, reducing brake fade during repeated or heavy braking situations.

Manufactured to match original TRW dimensions and tolerances, this caliper ensures correct alignment with the carrier and pads, smooth piston operation, and reliable sealing against moisture and road debris. It is ideal for replacing seized, leaking, or unevenly wearing calipers and restoring safe, predictable braking performance.

Fitting & Installation Notes

• Fitting position: Front axle left (passenger side on RHD vehicles)

• Manufacturer restriction: TRW

• Brake disc compatibility:

  • Diameter: 288mm

  • Thickness: 25mm

  • Type: Vented

• It is strongly recommended to replace brake calipers in pairs to maintain balanced braking across the axle.

• New brake pads should always be fitted when replacing a caliper.

• Brake fluid should be inspected and bled after installation.

Associated Parts That May Be Required

• Front brake pads (to suit 288mm discs)

• Brake caliper carrier (if worn or damaged)

• Caliper mounting bolts (single-use stretch bolts where specified)

• Brake hose (recommended if original shows signs of age or corrosion)

• Fresh brake fluid

Vehicle Applications

• VW Caddy IV – 1.6D, 2.0D, 1.4, 1.0, 1.6, 1.2 (05/2015–)

• VW Golf Mk7 – 1.6D, 1.4, 1.8, 2.0D, 1.0, 1.2, 1.5, 1.6 (08/2012–)

• VW T-Roc – 2.0D, 1.6D, 1.5, 1.0 (07/2017–)

  • PR Codes: 1ZE, 1ZJ, 1ZQ
