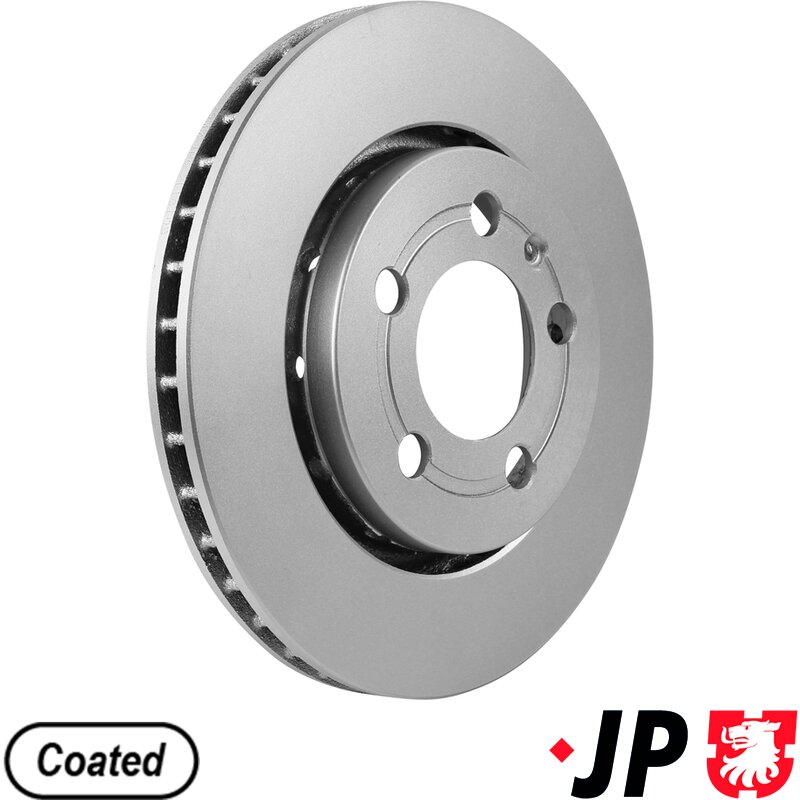

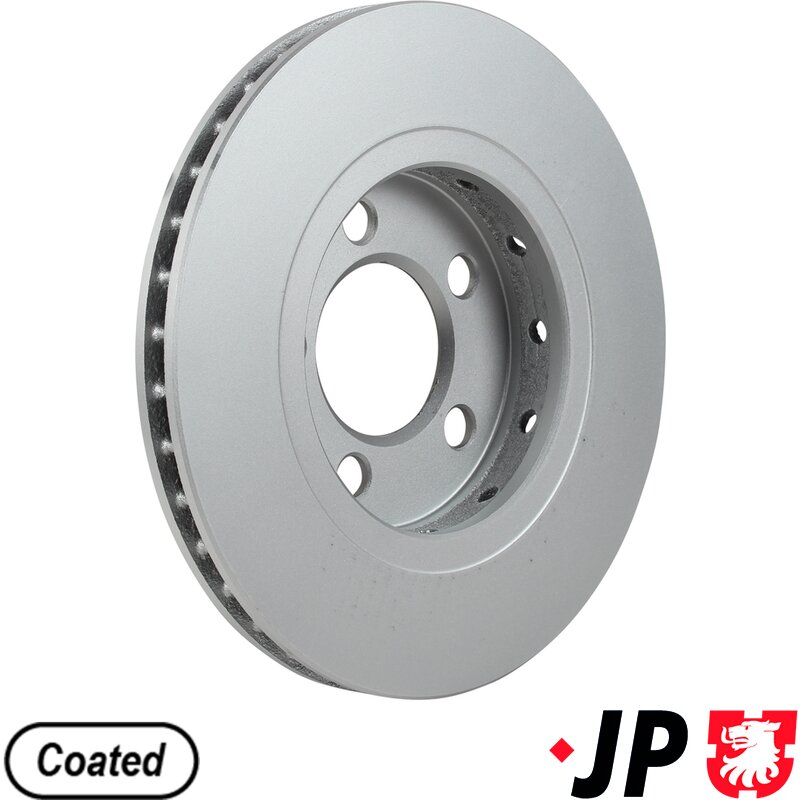

G4 Rear Brake Disc (256mm Vented)

This replacement rear brake disc is designed for a wide range of Mk4 platform Volkswagen models, fitted with 256mm externally vented rear brakes. It is suitable for vehicles with PR codes 1KU, 1KY, 2EE, 2EL or E54, offering dependable braking performance and effective heat management at the rear axle.

With a 256mm outer diameter and 22mm thickness, this disc features an externally vented design, which improves cooling compared to a solid rear disc. This helps maintain consistent braking performance, particularly on higher-powered models or vehicles that see frequent motorway use.

The disc is supplied with a protective anti-corrosion coating, helping to prevent rust on non-friction surfaces during storage and after installation, while still allowing the braking face to bed in correctly.

How it works

When braking, the rear caliper clamps the pads against the disc to provide controlled deceleration and vehicle stability. The externally vented construction allows heat generated during braking to dissipate more efficiently, supporting the front braking system and helping to maintain balanced braking under load.

Fitting notes & recommended additional parts

• Fitting position: Rear axle (fits left and right)

• Brake disc type: Externally vented

• Specification: 256mm diameter × 22mm thickness

• Fixing: 5-hole

• Recommendation: Always replace rear brake discs in pairs

• Strongly recommended when fitting:

  • Rear brake pads to suit 256mm discs

  • Pad fitting kit / anti-rattle springs

  • Brake cleaner for correct bedding-in

New brake pads should always be fitted when replacing discs to ensure safe and effective braking performance.

Vehicle compatibility

• VW Golf IV – PR codes 1KU, 1KY, 2EE, 2EL, E54

• VW Bora – PR codes 1KY, 2EE

• VW Jetta III

• VW New Beetle – PR code 1KY

Important: Always check your PR code and rear disc diameter before ordering, as multiple rear brake setups were used across Mk4-based models.
