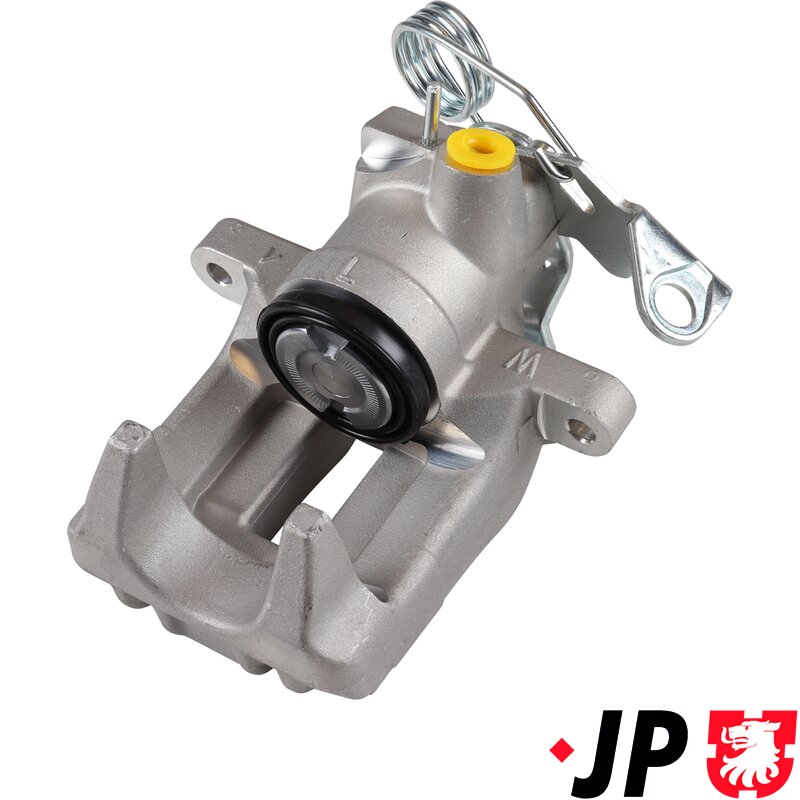

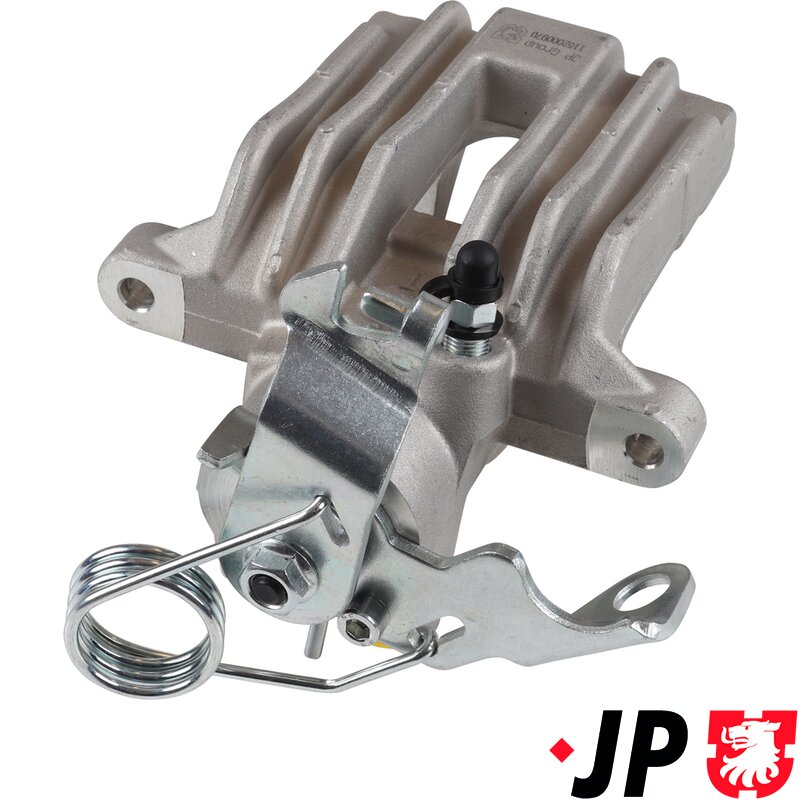

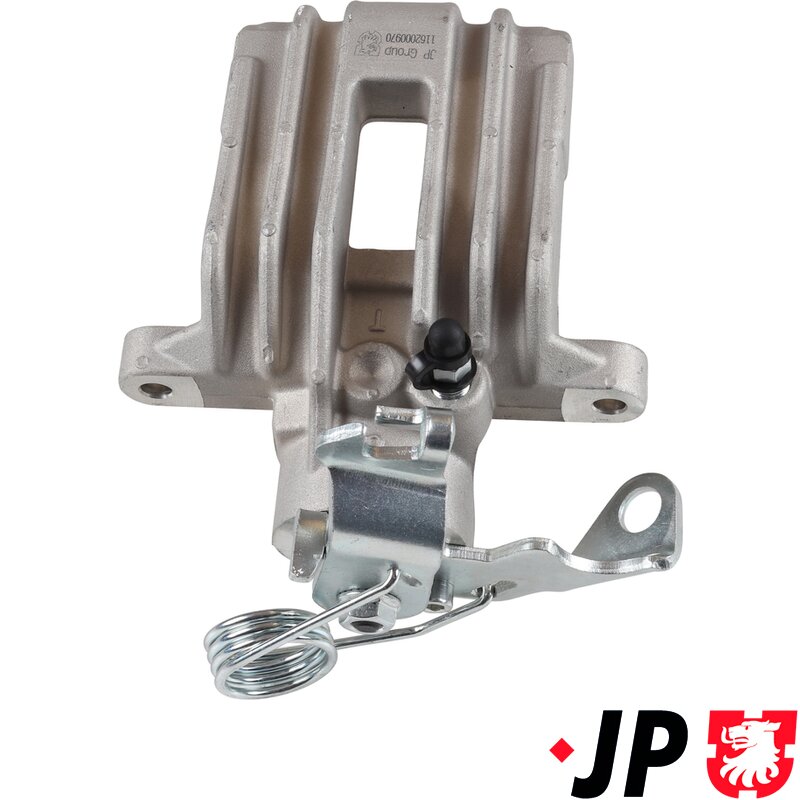

Passat B5 Rear Brake Caliper (245mm Brake Discs) - Left (Lucus)
Part Number: 8E0615423
This replacement rear brake caliper is designed for VW Passat B5 models built from October 1996 onwards, covering both early and later production vehicles where PR codes 1KD or 1KF are fitted. It is manufactured specifically for vehicles equipped with the LUCAS braking system and is supplied for the rear axle left, which on right-hand-drive (RHD) vehicles is the passenger side.
The caliper features a single 38mm piston and is designed for use with solid rear brake discs measuring 245mm diameter and 10mm thickness. This version includes an integrated mechanical handbrake mechanism, making it suitable for vehicles where the parking brake operates directly through the rear calipers.
How it works
During normal braking, hydraulic pressure pushes the 38mm piston outward, forcing the inner pad against the disc. The caliper body then reacts to clamp the outer pad, creating friction that slows the vehicle.
When the handbrake is applied, the integrated parking brake mechanism inside the caliper mechanically operates the piston, holding the pads against the disc without hydraulic pressure. This combined design keeps the rear braking system compact and ensures reliable parking brake operation.
Fitting notes & recommended additional parts
Fitting position: Rear axle left (passenger side – RHD)
Brake system: LUCAS only
Disc compatibility:
Solid rear brake discs
245mm diameter
10mm thickness
PR codes: 1KD, 1KF
Strongly recommended when fitting:
New rear brake pads
Rear pad fitting kit / anti-rattle springs
Parking brake cables (inspect and replace if stiff or corroded)
Brake fluid bleed after installation
Best practice: Rear brake calipers should ideally be replaced in pairs to ensure even braking performance and correct handbrake balance.
Vehicle compatibility
VW Passat B5
1.6 – 2.8 Petrol / 1.6 – 2.5 Diesel
Production years: 10/1996 onwards
Brake system: LUCAS
PR Codes: 1KD, 1KF
Always confirm PR code and brake manufacturer before ordering, as multiple rear brake systems were used on the Passat B5 range.
This Part Fits: Passat (B5)
Availability: Special Order
Item Name: Brake Caliper
Description: Brake Caliper
Product Group: Brakes
Group: Braking System
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 180mm
Height: 200mm
Depth: 120mm
Volume: 4320000mm3
Weight: 1.624kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A4 | A4 (B5) | 12/95 - 12/95 | 1,9 | Diesel | Saloon | 75 | - | -
|
| Audi | A4 | A4 (B5) | 01/95 - 01/95 | 1,9 | Diesel | Saloon | 90 | - | -
|
| Audi | A4 | A4 (B5) | 02/96 - 02/96 | 1,9 | Diesel | Estate | 90 | - | -
|
| Audi | A4 | A4 (B5) | 03/98 - 03/98 | 1,9 | Diesel/Electric | Estate | 90 | - | -
|
| Audi | A4 | A4 (B5) | 11/94 - 11/94 | 1,6 | Petrol | Estate | 100 | - | -
|
| Audi | A4 | A4 (B5) | 11/94 - 11/94 | 1,6 | Petrol | Saloon | 100 | - | -
|
| Audi | A4 | A4 (B5) | 07/00 - 07/00 | 1,6 | Petrol | Estate | 102 | - | -
|
| Audi | A4 | A4 (B5) | 07/00 - 07/00 | 1,6 | Petrol | Saloon | 102 | - | -
|
| Audi | A4 | A4 (B5) | 10/95 - 10/95 | 1,9 | Diesel | Saloon | 110 | - | -
|
| Audi | A4 | A4 (B5) | 02/96 - 02/96 | 1,9 | Diesel | Estate | 110 | - | Construction Year from 199703 |
| Audi | A4 | A4 (B5) | 03/00 - 03/00 | 1,9 | Diesel | Estate | 115 | - | -
|
| Audi | A4 | A4 (B5) | 04/95 - 04/95 | 1,8 | Petrol | Saloon | 115 | - | -
|
| Audi | A4 | A4 (B5) | 07/95 - 07/95 | 1,8 | Petrol | Estate | 115 | - | -
|
| Audi | A4 | A4 (B5) | 03/00 - 03/00 | 1,9 | Diesel | Saloon | 116 | - | -
|
| Audi | A4 | A4 (B5) | 11/94 - 11/94 | 1,8 | Petrol | Saloon | 125 | - | -
|
| Audi | A4 | A4 (B5) | 02/96 - 02/96 | 1,8 | Petrol | Estate | 125 | - | -
|
| Audi | A4 | A4 (B5) | 01/96 - 01/96 | 2,6 | Petrol | Saloon | 139 | - | Construction Year from 199703 |
| Audi | A4 | A4 (B5) | 01/95 - 01/95 | 2,6 | Petrol | Saloon | 150 | - | Construction Year to 199603 |
| Audi | A4 | A4 (B5) | 01/95 - 01/95 | 1,8 | Petrol | Saloon | 150 | - | -
|
| Audi | A4 | A4 (B5) | 02/96 - 02/96 | 2,6 | Petrol | Estate | 150 | - | Construction Year from 199703 |
| Audi | A4 | A4 (B5) | 03/96 - 03/96 | 1,8 | Petrol | Estate | 150 | - | -
|
| Audi | A4 | A4 (B5) | 09/97 - 09/97 | 2,5 | Diesel | Saloon | 150 | - | -
|
| Audi | A4 | A4 (B5) | 09/97 - 09/97 | 2,5 | Diesel | Estate | 150 | - | Construction Year from 199901 |
| Audi | A4 | A4 (B5) | 08/97 - 08/97 | 2,4 | Petrol | Estate | 163 | - | -
|
| Audi | A4 | A4 (B5) | 08/97 - 08/97 | 2,4 | Petrol | Saloon | 163 | - | -
|
| Audi | A4 | A4 (B5) | 03/97 - 03/97 | 2,4 | Petrol | Estate | 165 | - | -
|
| Audi | A4 | A4 (B5) | 03/97 - 03/97 | 2,4 | Petrol | Saloon | 165 | - | -
|
| Audi | A4 | A4 (B5) | 09/95 - 09/95 | 2,8 | Petrol | Saloon | 174 | - | -
|
| Audi | A4 | A4 (B5) | 12/97 - 12/97 | 1,8 | Petrol | Saloon | 180 | - | -
|
| Audi | A4 | A4 (B5) | 12/97 - 12/97 | 1,8 | Petrol | Estate | 180 | - | -
|
| Audi | A4 | A4 (B5) | 03/99 - 03/99 | 2,8 | Petrol | Estate | 190 | - | -
|
| Audi | A4 | A4 (B5) | 09/99 - 09/99 | 2,8 | Petrol | Saloon | 190 | - | -
|
| Audi | A4 | A4 (B5) | 10/96 - 10/96 | 2,8 | Petrol | Saloon | 193 | - | -
|
| Audi | A4 | A4 (B5) | 10/96 - 10/96 | 2,8 | Petrol | Estate | 193 | - | -
|
| Audi | A6 | A6 (C5) | 04/97 - 04/97 | 1,9 | Diesel | Saloon | 110 | - | -
|
| Audi | A6 | A6 (C5) | 02/98 - 02/98 | 1,9 | Diesel | Estate | 110 | - | -
|
| Audi | A6 | A6 (C5) | 07/00 - 07/00 | 1,9 | Diesel | Estate | 115 | - | -
|
| Audi | A6 | A6 (C5) | 07/00 - 07/00 | 1,9 | Diesel | Saloon | 115 | - | -
|
| Audi | A6 | A6 (C5) | 05/97 - 05/97 | 1,8 | Petrol | Saloon | 116 | - | -
|
| Audi | A6 | A6 (C5) | 02/98 - 02/98 | 1,8 | Petrol | Estate | 116 | - | -
|
| Audi | A6 | A6 (C5) | 07/97 - 07/97 | 1,8 | Petrol | Saloon | 125 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 1,8 | Petrol | Estate | 125 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 1,9 | Diesel | Estate | 130 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 2,0 | Petrol | Estate | 130 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 1,9 | Diesel | Saloon | 130 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 2,0 | Petrol | Saloon | 130 | - | -
|
| Audi | A6 | A6 (C5) | 07/98 - 07/98 | 2,4 | Petrol | Estate | 136 | - | -
|
| Audi | A6 | A6 (C5) | 07/98 - 07/98 | 2,4 | Petrol | Saloon | 136 | - | -
|
| Audi | A6 | A6 (C5) | 01/97 - 01/97 | 1,8 | Petrol | Saloon | 150 | - | -
|
| Audi | A6 | A6 (C5) | 07/97 - 07/97 | 2,5 | Diesel | Saloon | 150 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 2,5 | Diesel | Estate | 150 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 1,8 | Petrol | Estate | 150 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 2,5 | Diesel | Estate | 155 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 2,5 | Diesel | Saloon | 155 | - | -
|
| Audi | A6 | A6 (C5) | 02/97 - 02/97 | 2,4 | Petrol | Saloon | 156 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 2,4 | Petrol | Estate | 156 | - | -
|
| Audi | A6 | A6 (C5) | 07/02 - 07/02 | 2,5 | Diesel | Saloon | 163 | - | -
|
| Audi | A6 | A6 (C5) | 07/02 - 07/02 | 2,5 | Diesel | Estate | 163 | - | -
|
| Audi | A6 | A6 (C5) | 02/97 - 02/97 | 2,4 | Petrol | Saloon | 163 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 2,4 | Petrol | Estate | 163 | - | -
|
| Audi | A6 | A6 (C5) | 02/97 - 02/97 | 2,4 | Petrol | Saloon | 165 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 2,4 | Petrol | Estate | 165 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 2,4 | Petrol | Estate | 170 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 2,4 | Petrol | Saloon | 170 | - | -
|
| Audi | A6 | A6 (C5) | 02/00 - 02/00 | 2,5 | Diesel | Saloon | 180 | - | -
|
| Audi | A6 | A6 (C5) | 02/00 - 02/00 | 2,5 | Diesel | Estate | 180 | - | -
|
| Audi | A6 | A6 (C5) | 10/97 - 10/97 | 2,8 | Petrol | Saloon | 180 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 2,8 | Petrol | Estate | 180 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 1,8 | Petrol | Saloon | 180 | - | -
|
| Audi | A6 | A6 (C5) | 04/99 - 04/99 | 1,8 | Petrol | Estate | 180 | - | -
|
| Audi | A6 | A6 (C5) | 07/99 - 07/99 | 2,8 | Petrol | Estate | 190 | - | -
|
| Audi | A6 | A6 (C5) | 07/99 - 07/99 | 2,8 | Petrol | Saloon | 190 | - | -
|
| Audi | A6 | A6 (C5) | 02/97 - 02/97 | 2,8 | Petrol | Saloon | 193 | - | -
|
| Audi | A6 | A6 (C5) | 12/97 - 12/97 | 2,8 | Petrol | Estate | 193 | - | -
|
| Audi | A6 | A6 (C5) | 06/01 - 06/01 | 3,0 | Petrol | Saloon | 218 | - | -
|
| Audi | A6 | A6 (C5) | 06/01 - 06/01 | 3,0 | Petrol | Estate | 218 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 3,0 | Petrol | Estate | 220 | - | -
|
| Audi | A6 | A6 (C5) | 08/01 - 08/01 | 3,0 | Petrol | Saloon | 220 | - | -
|
| Audi | A6 | A6 (C5) | 02/99 - 02/99 | 2,7 | Petrol | Saloon | 230 | - | -
|
| Audi | A6 | A6 (C5) | 02/99 - 02/99 | 2,7 | Petrol | Estate | 230 | - | -
|
| Skoda | Superb | Superb (3U) | 08/02 - 08/02 | 1,9 | Diesel | Saloon | 101 | - | -
|
| Skoda | Superb | Superb (3U) | 10/05 - 10/05 | 1,9 | Diesel | Saloon | 105 | - | -
|
| Skoda | Superb | Superb (3U) | 12/01 - 12/01 | 2,0 | Petrol | Saloon | 115 | - | -
|
| Skoda | Superb | Superb (3U) | 01/07 - 01/07 | 1,9 | Diesel | Saloon | 115 | - | -
|
| Skoda | Superb | Superb (3U) | 02/06 - 02/06 | 2,0 | Diesel | Saloon | 124 | - | -
|
| Skoda | Superb | Superb (3U) | 12/01 - 12/01 | 1,9 | Diesel | Saloon | 130 | - | -
|
| Skoda | Superb | Superb (3U) | 10/05 - 10/05 | 2,0 | Diesel | Saloon | 140 | - | -
|
| Skoda | Superb | Superb (3U) | 12/01 - 12/01 | 1,8 | Petrol | Saloon | 150 | - | -
|
| Skoda | Superb | Superb (3U) | 12/01 - 12/01 | 2,5 | Diesel | Saloon | 155 | - | -
|
| Skoda | Superb | Superb (3U) | 06/03 - 06/03 | 2,5 | Diesel | Saloon | 163 | - | -
|
| Skoda | Superb | Superb (3U) | 06/02 - 06/02 | 2,8 | Petrol | Saloon | 190 | - | -
|
| Skoda | Superb | Superb (3U) | 12/01 - 12/01 | 2,8 | Petrol | Saloon | 193 | - | -
|
| VW | Passat | Passat (3B) | 10/96 - 10/96 | 1,9 | Diesel | Saloon | 90 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 1,9 | Diesel | Estate | 90 | - | -
|
| VW | Passat | Passat (3B) | 02/00 - 02/00 | 1,9 | Diesel | Estate | 101 | - | -
|
| VW | Passat | Passat (3B) | 02/00 - 02/00 | 1,9 | Diesel | Saloon | 101 | - | -
|
| VW | Passat | Passat (3B) | 10/96 - 10/96 | 1,6 | Petrol | Saloon | 101 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 1,6 | Petrol | Estate | 101 | - | -
|
| VW | Passat | Passat (3B) | 10/96 - 10/96 | 1,9 | Diesel | Saloon | 110 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 1,9 | Diesel | Estate | 110 | - | -
|
| VW | Passat | Passat (3B) | 01/97 - 01/97 | 1,8 | Petrol | Saloon | 115 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 1,8 | Petrol | Estate | 115 | - | -
|
| VW | Passat | Passat (3B) | 08/98 - 08/98 | 1,9 | Diesel | Estate | 115 | - | -
|
| VW | Passat | Passat (3B) | 08/98 - 08/98 | 1,9 | Diesel | Saloon | 115 | - | -
|
| VW | Passat | Passat (3B) | 04/00 - 04/00 | 2,0 | Petrol | Saloon | 120 | - | -
|
| VW | Passat | Passat (3B) | 04/00 - 04/00 | 2,0 | Petrol | Estate | 120 | - | -
|
| VW | Passat | Passat (3B) | 10/96 - 10/96 | 1,8 | Petrol | Saloon | 125 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 1,8 | Petrol | Estate | 125 | - | -
|
| VW | Passat | Passat (3B) | 10/96 - 10/96 | 1,8 | Petrol | Saloon | 150 | - | -
|
| VW | Passat | Passat (3B) | 10/96 - 10/96 | 2,3 | Petrol | Saloon | 150 | - | -
|
| VW | Passat | Passat (3B) | 05/97 - 05/97 | 1,8 | Petrol | Estate | 150 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 2,3 | Petrol | Estate | 150 | - | -
|
| VW | Passat | Passat (3B) | 07/98 - 07/98 | 2,5 | Diesel | Saloon | 150 | - | -
|
| VW | Passat | Passat (3B) | 07/98 - 07/98 | 2,5 | Diesel | Estate | 150 | - | -
|
| VW | Passat | Passat (3B) | 05/97 - 05/97 | 2,8 | Petrol | Saloon | 180 | - | -
|
| VW | Passat | Passat (3B) | 09/97 - 09/97 | 2,8 | Petrol | Estate | 180 | - | -
|
| VW | Passat | Passat (3B) | 09/99 - 09/99 | 2,8 | Petrol | Estate | 190 | - | -
|
| VW | Passat | Passat (3B) | 09/99 - 09/99 | 2,8 | Petrol | Saloon | 190 | - | -
|
| VW | Passat | Passat (3B) | 08/96 - 08/96 | 2,8 | Petrol | Saloon | 193 | - | -
|
| VW | Passat | Passat (3B) | 06/97 - 06/97 | 2,8 | Petrol | Estate | 193 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,9 | Diesel | Estate | 101 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,9 | Diesel | Saloon | 101 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,6 | Petrol | Estate | 102 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,6 | Petrol | Saloon | 102 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 2,0 | Petrol | Estate | 115 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 2,0 | Petrol | Saloon | 115 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,9 | Diesel | Saloon | 130 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,9 | Diesel | Estate | 130 | - | -
|
| VW | Passat | Passat (3BG) | 11/01 - 11/01 | 2,0 | Petrol | Saloon | 130 | - | -
|
| VW | Passat | Passat (3BG) | 11/01 - 11/01 | 2,0 | Petrol | Estate | 130 | - | -
|
| VW | Passat | Passat (3BG) | 12/03 - 12/03 | 2,0 | Diesel | Estate | 136 | - | -
|
| VW | Passat | Passat (3BG) | 12/03 - 12/03 | 2,0 | Diesel | Saloon | 136 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,8 | Petrol | Saloon | 150 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 1,8 | Petrol | Estate | 150 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 2,5 | Diesel | Estate | 150 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 2,5 | Diesel | Saloon | 150 | - | -
|
| VW | Passat | Passat (3BG) | 05/03 - 05/03 | 2,5 | Diesel | Saloon | 163 | - | -
|
| VW | Passat | Passat (3BG) | 05/03 - 05/03 | 2,5 | Diesel | Estate | 163 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 2,3 | Petrol | Estate | 170 | - | -
|
| VW | Passat | Passat (3BG) | 11/00 - 11/00 | 2,3 | Petrol | Saloon | 170 | - | -
|
| VW | Passat | Passat (3BG) | 02/01 - 02/01 | 1,8 | Petrol | Saloon | 170 | - | -
|
| VW | Passat | Passat (3BG) | 05/02 - 05/02 | 1,8 | Petrol | Estate | 170 | - | -
|
| VW | Passat | Passat (3BG) | 10/00 - 10/00 | 2,8 | Petrol | Saloon | 190 | - | -
|
| VW | Passat | Passat (3BG) | 10/00 - 10/00 | 2,8 | Petrol | Estate | 190 | - | -
|
| VW | Passat | Passat (3BG) | 10/00 - 10/00 | 2,8 | Petrol | Estate | 193 | - | -
|
| VW | Passat | Passat (3BG) | 05/02 - 05/02 | 2,8 | Petrol | Saloon | 193 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| HELLA | 8AC355383331 |
| ATE | 24.3384-1731.5 |
| ATE | 24338417315 |
| ATE | 24338417317 |
| AUDI | 8E0615423 |
| QUINTON HAZELL | QBS4373 |
| BREMBO | F85166 |
| ZIMMERMANN | 100.3.10002 |
| ZIMMERMANN | 100310002 |
| SKODA | 8E0615423 |
| TRISCAN | 8170342870 |
| BUDWEG | 342870 |
| VW | 8E0615423 |
| NK | 2147151 |
| MAPCO | 4888 |
| TRW | BHN182 |
| A.B.S. | 521241 |
| ELSTOCK | 860193 |
| VAG | 8E0615423 |
| TOPRAN | 110284 |
| JPGROUP | 615660003 |
