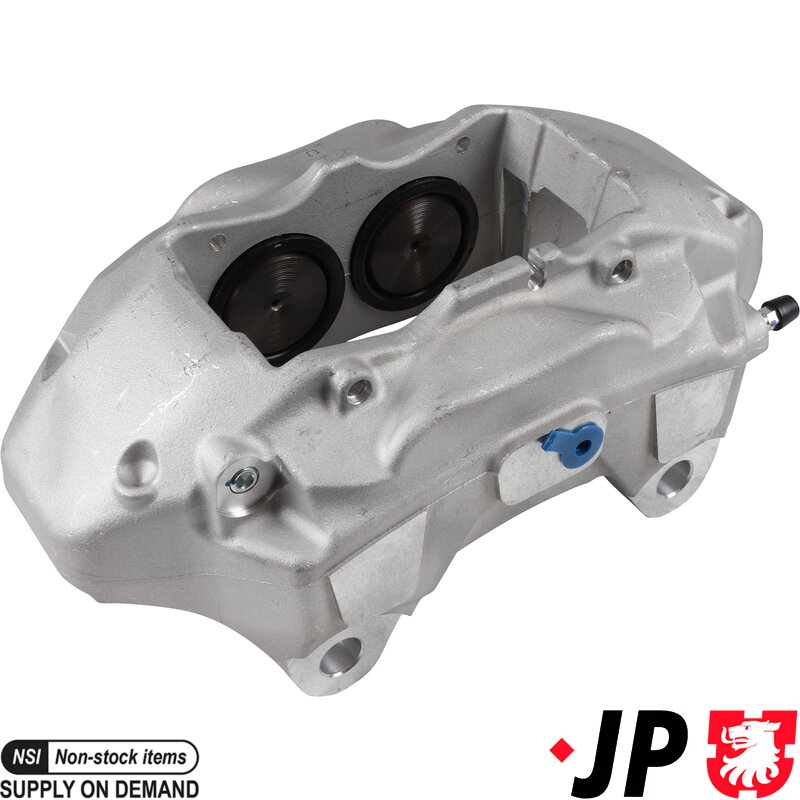

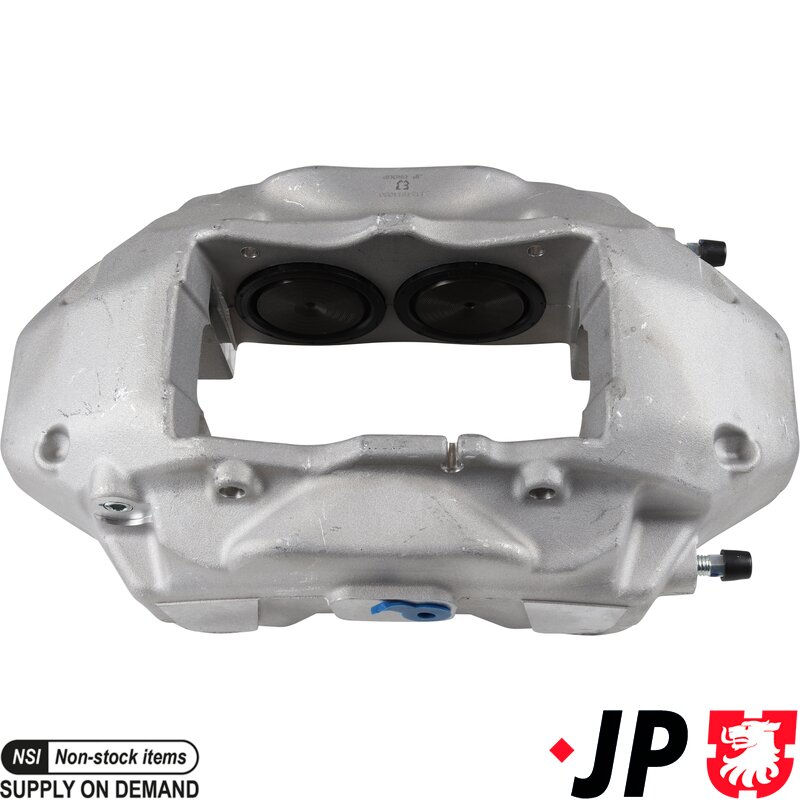

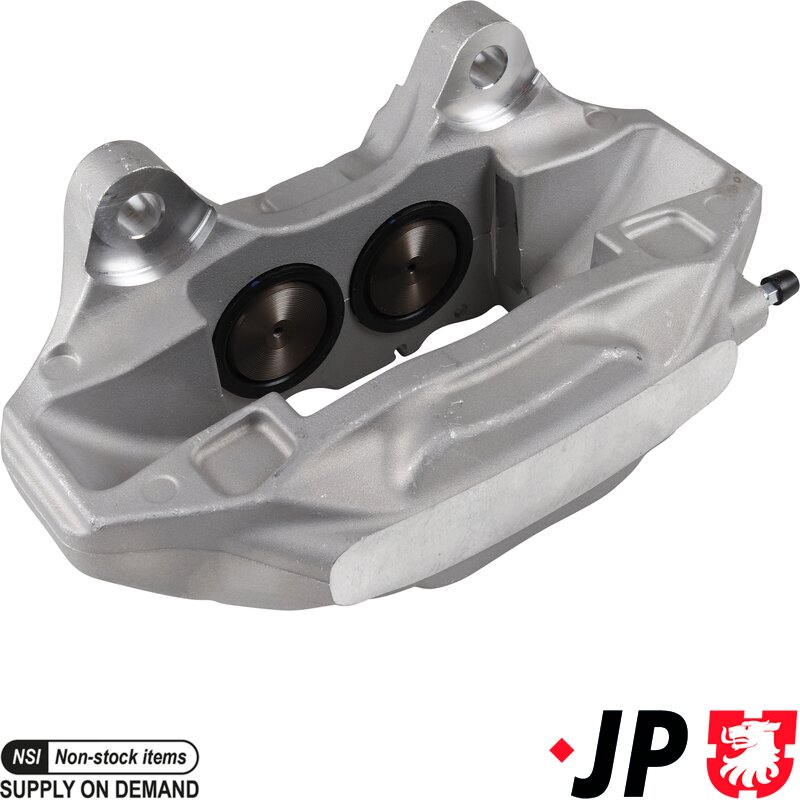

Touareg Front Brake Caliper (330mm Brake Discs) - Right (Brembo)

This front brake caliper is a direct replacement for selected Volkswagen Touareg (7L and 7P) models fitted with the Brembo high-performance front braking system, covering vehicles produced from October 2002 to March 2018.

Designed for the right-hand side (drivers side on RHD vehicles), this caliper is intended for use with vented front brake discs measuring 330mm in diameter. It features a fixed 4-piston design, providing powerful and evenly distributed clamping force across the brake pads for excellent stopping performance.

Each piston measures 42mm in diameter, allowing the caliper to deliver strong, consistent braking while maintaining excellent pedal feel. The fixed Brembo design eliminates caliper flex and ensures even pad wear, making it ideal for heavier and higher-performance Touareg models.

Although sold individually, it is strongly recommended to replace front brake calipers in pairs to maintain balanced braking performance and consistent pedal feel.

How it works

When the brake pedal is pressed, hydraulic pressure acts on all four pistons simultaneously, forcing the brake pads evenly against the disc. The fixed caliper design provides superior rigidity compared to floating calipers, improving braking response, control, and overall stopping power.

Fitting & related parts

For best results, we recommend fitting this caliper together with:

• New front brake pads (Brembo-compatible)

• Matching left-hand front brake caliper

• Correct Brembo-specified brake fluid, fully bled after installation

Always confirm PR Code and brake disc diameter before ordering.

Key Specifications

• Fitting Position: Front Axle Right (Drivers Side – RHD)

• Brake Disc Type: Vented

• For Brake Disc Diameter: 330mm

• Brake Caliper Type: Fixed caliper, 4 piston

• Piston Diameter: 42mm

• Manufacturer Restriction: Brembo

• PR Codes: 1LA, 1LE, 1LC

• Quantity: Sold individually

Vehicle Applications

• VW Touareg (7L) 3.2 / 3.0D / 3.6 / 4.2
  10/2002 – 05/2010

• VW Touareg (7P) 3.0 / 3.0D / 3.6 / 4.2 / 4.2D
  01/2010 – 03/2018
