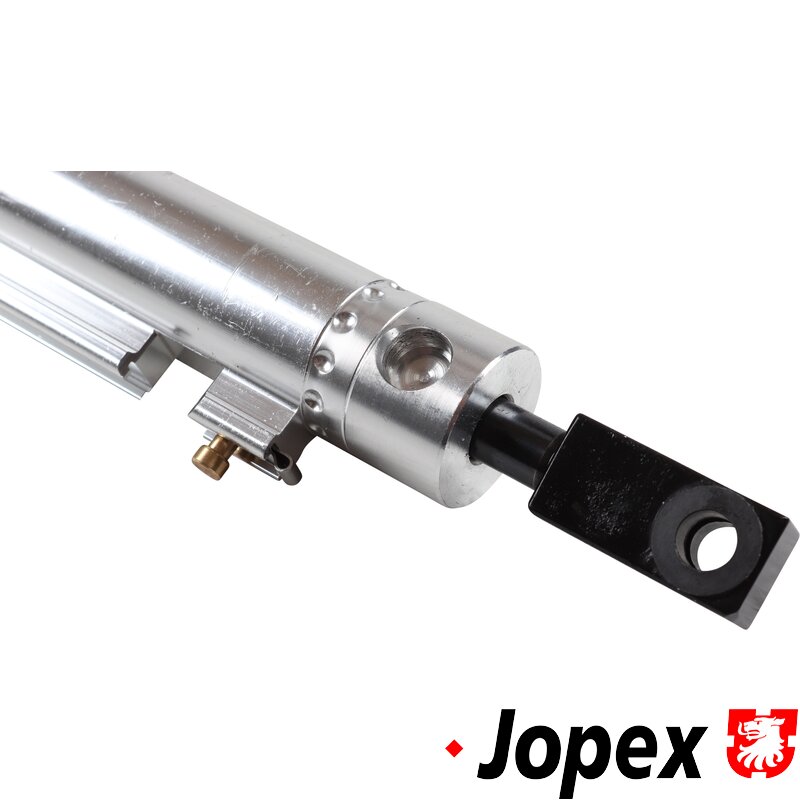

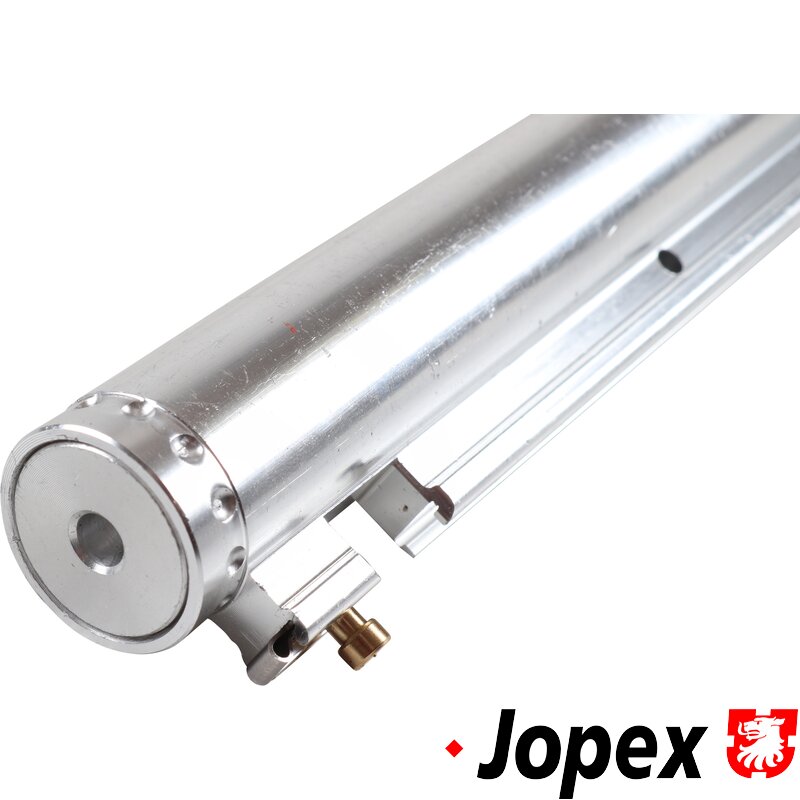

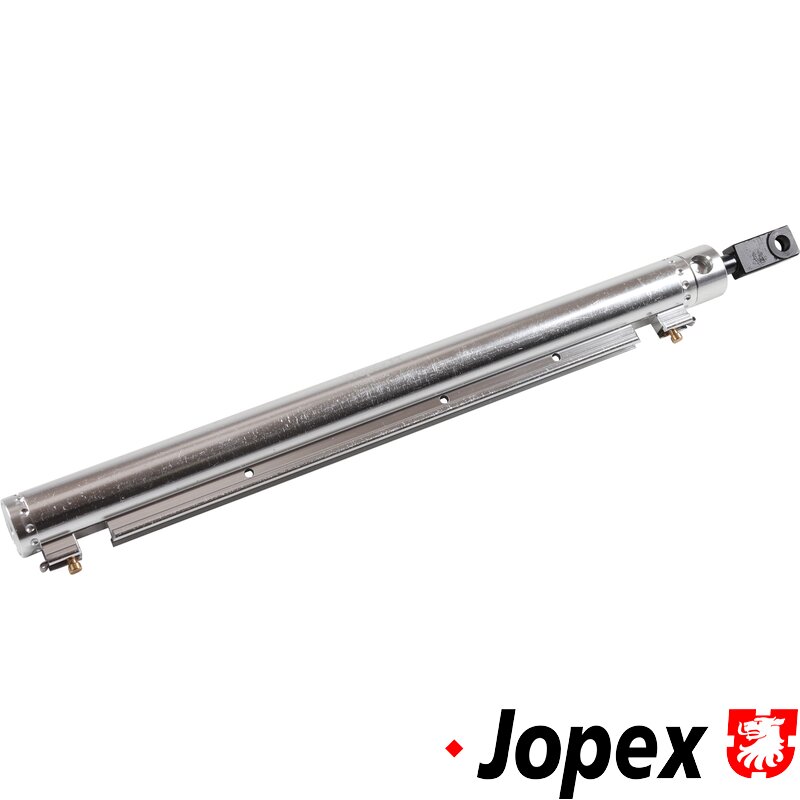

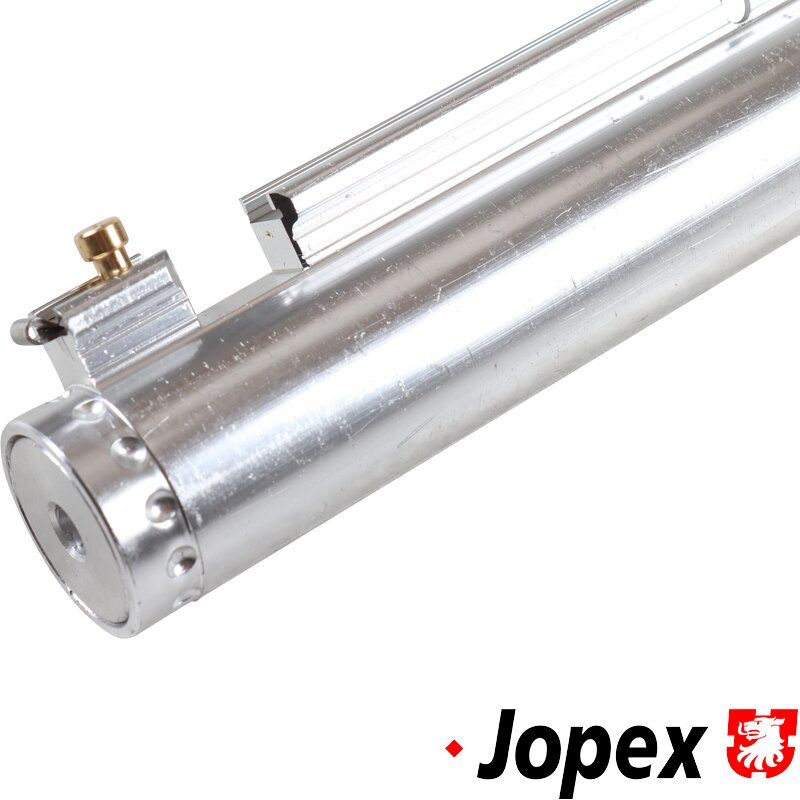

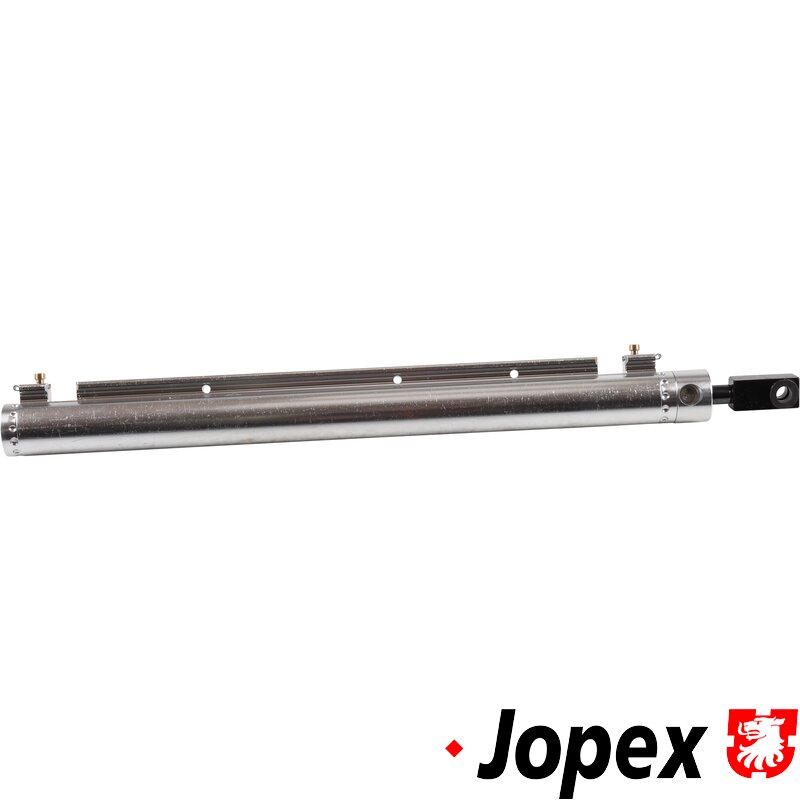

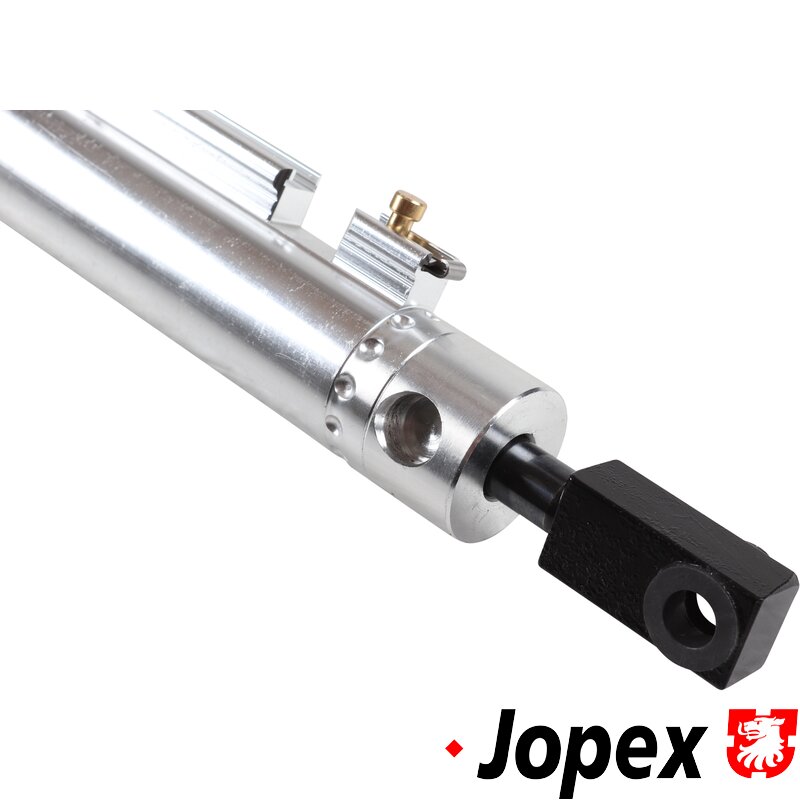

T5,T6 California Pop Top Gas Strut
Part Number: 7H7875795
Replacement hydraulic cylinder ram for factory fitted electric pop-top roof systems on Volkswagen California camper models. These hydraulic rams are a common failure point on T5 and T6 California campers and can cause uneven roof lifting, roof twisting, slow operation or complete roof malfunction.
The hydraulic cylinders work together as part of the electro-hydraulic lifting system fitted to the California roof mechanism. Two rams are fitted to the vehicle and both must operate evenly to raise and lower the roof correctly. When one cylinder begins to fail internally, the roof can lift unevenly or tilt during operation, placing strain on the hinges and roof frame. Continued use with a faulty ram can lead to expensive damage to the pop-top mechanism or roof shell.
This replacement hydraulic ram is supplied complete with pre-installed nylon bushes, hydraulic line o-rings and retaining clips for straightforward installation. Ideal for repairing leaking, weak or sticking roof lift systems and restoring smooth roof operation.
For best results, inspect both rams together and check the hydraulic fluid level after installation. Hydraulic fluid is not supplied. Use VW hydraulic fluid G060146A2 where required.
Features:
• Replacement hydraulic ram for VW California pop-top roofs
• Helps cure uneven roof lifting and roof tilt problems
• Supplied with o-rings, clips and nylon bushes
• Restores smooth and balanced roof operation
• OE style fit and operation
• Supplied individually
• Hydraulic oil not included
Important Notes:
• Two hydraulic cylinders are fitted per vehicle
• Roof system should be checked and bled after installation
• Use correct VW hydraulic fluid G060146A2
• Failure of one ram can damage the roof mechanism if ignored
Replaces VW Part Number:
• 7H7875795
Applications:
VW California Camper T5
• 2007-2015 – 1.9 TDI
• 2007-2015 – 2.0 Petrol
• 2007-2015 – 2.0 TDI
• 2007-2009 – 2.5 TDI
VW California Camper T6
• 2015-Onwards – 2.0 TDI
• 2015-2019 – 2.0 Petrol
Suitable for factory fitted hydraulic/electric pop-top roof systems only.
This Part Fits: T5 Transporter, T6 Transporter,
Availability: Special Order
Item Name: Hydraulic cylinder for California roof
Description: Hydraulic Cylinder, tail lift
Product Group: Exterior
Group: Body Parts, universal
Unit of Measure: Each
Manufacturer: JOPEX
Dimensions:
Width: 40mm
Height: 400mm
Depth: 40mm
Volume: 640000mm3
Weight: 0.522kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW | California | California T5 | 09/09 - 09/09 | 2,0 | Diesel | Bus | 84 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 1,9 | Diesel | Bus | 85 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 1,9 | Diesel | Bus | 102 | - | -
|
| VW | California | California T5 | 09/09 - 09/09 | 2,0 | Diesel | Bus | 102 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 1,9 | Diesel | Bus | 105 | - | -
|
| VW | California | California T5 | 05/11 - 05/11 | 2,0 | Diesel | Bus | 114 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 2,5 | Diesel | Bus | 130 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 2,5 | Diesel | Bus | 130 | - | -
|
| VW | California | California T5 | 05/10 - 05/10 | 2,0 | Diesel | Bus | 136 | - | -
|
| VW | California | California T5 | 05/10 - 05/10 | 2,0 | Diesel | Bus | 136 | - | -
|
| VW | California | California T5 | 09/09 - 09/09 | 2,0 | Diesel | Bus | 140 | - | -
|
| VW | California | California T5 | 10/09 - 10/09 | 2,0 | Diesel | Bus | 140 | - | -
|
| VW | California | California T5 | 07/12 - 07/12 | 2,0 | Petrol | Bus | 150 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 2,5 | Diesel | Bus | 163 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 2,5 | Diesel | Bus | 174 | - | -
|
| VW | California | California T5 | 05/07 - 05/07 | 2,5 | Diesel | Bus | 174 | - | -
|
| VW | California | California T5 | 09/09 - 09/09 | 2,0 | Diesel | Bus | 180 | - | -
|
| VW | California | California T5 | 01/10 - 01/10 | 2,0 | Diesel | Bus | 180 | - | -
|
| VW | California | California T5 | 05/11 - 05/11 | 2,0 | Petrol | Bus | 204 | - | -
|
| VW | California | California T5 | 07/11 - 07/11 | 2,0 | Petrol | Bus | 204 | - | -
|
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Diesel | Bus | 84 | - | Construction Year to 201805 |
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Diesel | Bus | 102 | - | Construction Year to 201805 |
| VW | California | California T6 | 05/16 - 05/16 | 2,0 | Diesel | Bus | 114 | - | Construction Year to 201805 |
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Diesel | Bus | 140 | - | Construction Year to 201805 |
| VW | California | California T6 | 06/15 - 06/15 | 2,0 | Diesel | Bus | 140 | - | Construction Year to 201805 |
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Petrol | Bus | 150 | - | Construction Year to 201805 |
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Diesel | Bus | 150 | - | Construction Year to 201805 |
| VW | California | California T6 | 08/15 - 08/15 | 2,0 | Diesel | Bus | 150 | - | Construction Year to 201805 |
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Diesel | Bus | 180 | - | Construction Year to 201805 |
| VW | California | California T6 | 06/15 - 06/15 | 2,0 | Diesel | Bus | 180 | - | Construction Year to 201805 |
| VW | California | California T6 | 04/15 - 04/15 | 2,0 | Petrol | Bus | 204 | - | Construction Year to 201805 |
| VW | California | California T6 | 06/15 - 06/15 | 2,0 | Petrol | Bus | 204 | - | Construction Year to 201805 |
| VW | California | California T6 | 06/15 - 06/15 | 2,0 | Diesel | Bus | 204 | - | Construction Year to 201805 |
| VW | California | California T6 | 06/15 - 06/15 | 2,0 | Diesel | Bus | 204 | - | Construction Year to 201805 |
| VW | CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) | 05/07 - 05/07 | 1,9 | Diesel | Bus | 84 | - | -
| |
| VW | CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) | 05/07 - 05/07 | 1,9 | 85 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| VW | 7H7875795 |
