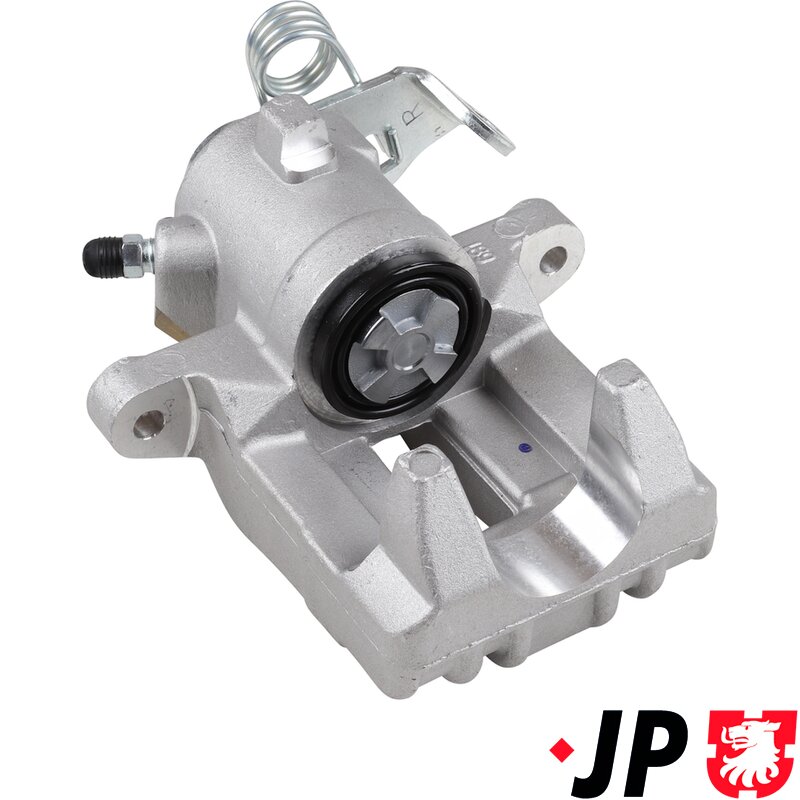

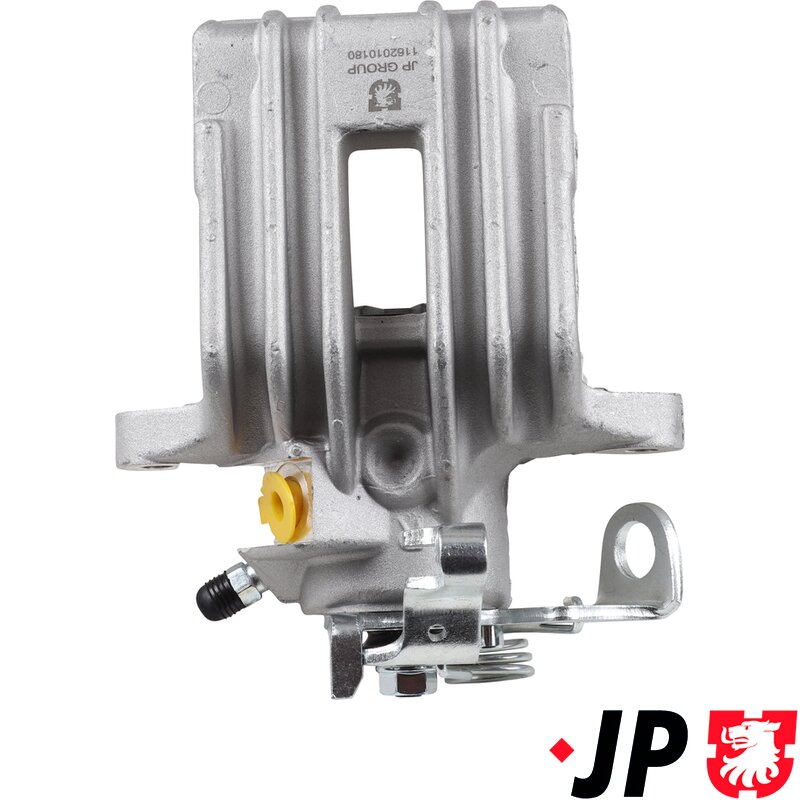

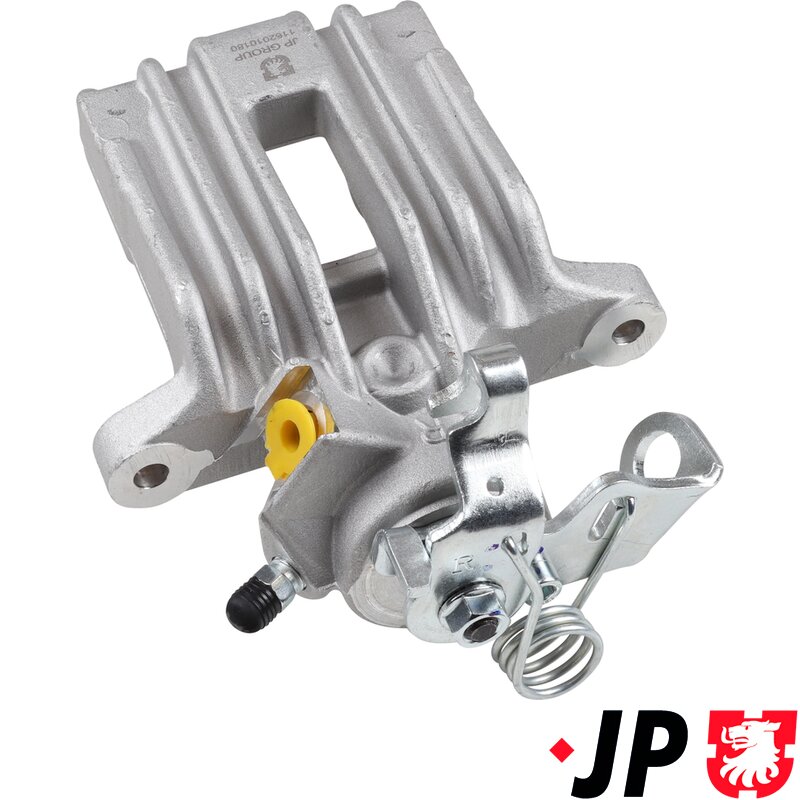

9N Polo Rear Brake Caliper (232mm Brake Discs) - Right (Lucus)
Part Number: 6Q0615424A
This rear right brake caliper is a direct replacement for Volkswagen Polo Mk4 (9N) models fitted with PR codes 1KD, 1KS or 2EJ rear brake systems. On RHD vehicles, this caliper fits the driver side (right-hand side) of the rear axle and is designed to work with 232 mm solid rear brake discs with a 9 mm thickness.
Manufactured to suit LUCAS braking systems, this caliper features a single 34 mm piston and an integrated mechanical parking brake mechanism, combining service braking and handbrake operation into one compact, reliable unit.
What this rear brake caliper does
The rear brake caliper converts hydraulic brake pressure into mechanical clamping force, pressing the brake pads against the rear disc to slow the vehicle. In addition, the integrated parking brake mechanism allows the handbrake to mechanically apply braking force to the rear wheels when parked.
How it works
During normal braking, hydraulic pressure pushes the 34 mm piston outward, forcing the inner brake pad onto the disc. The caliper body then slides to apply the outer pad, creating even braking force on both sides of the disc.
When the handbrake is applied, a mechanical screw mechanism inside the caliper advances the piston independently of hydraulic pressure. This design removes the need for separate drum handbrake components and ensures reliable parking brake operation.
This caliper is specifically matched to:
Solid rear brake discs – 232 mm x 9 mm
LUCAS rear brake systems
PR codes 1KD, 1KS and 2EJ
Fitting notes & additional parts required
Fitting position: Rear axle right (driver side on RHD models)
Brake pads: Always replace rear brake pads when fitting a new caliper
Brake carrier: Not included – inspect for corrosion or wear
Handbrake cable: Check for free movement; replace if seized or stretched
Brake fluid: System must be bled after installation
Tools: Rear caliper wind-back tool required for piston reset
For balanced braking performance and even wear, replacing rear brake calipers in axle pairs is strongly recommended.
Vehicle compatibility
Volkswagen Polo Mk4 (9N)
Engines: 1.2 / 1.4 / 1.6 / 1.8 / 1.9D / 1.4D
Model years: 10/2001 onwards
Rear brake disc type: Solid
Disc size: 232 mm x 9 mm
Brake system: LUCAS
PR Codes: 1KD, 1KS, 2EJ
This Part Fits:
Availability: Stock Item
Item Name: Brake Caliper
Description: Brake Caliper
Product Group: Brakes
Group: Braking System
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 160mm
Height: 191mm
Depth: 125mm
Volume: 3820000mm3
Weight: 1.565kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | A2 | A2 (8Z) | 02/00 - 02/00 | 1,4 | Diesel | Hatchback | 75 | - | -
|
| Audi | A2 | A2 (8Z) | 11/03 - 11/03 | 1,4 | Diesel | Hatchback | 90 | - | Construction Year to 200507 |
| Audi | A2 | A2 (8Z) | 05/02 - 05/02 | 1,6 | Petrol | Hatchback | 110 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 09/02 - 09/02 | 1,9 | Diesel | Saloon | 64 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 10/02 - 10/02 | 1,2 | Petrol | Saloon | 64 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 05/05 - 05/05 | 1,4 | Diesel | Saloon | 70 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 05/06 - 05/06 | 1,2 | Petrol | Saloon | 70 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 09/02 - 09/02 | 1,4 | Petrol | Saloon | 75 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 10/02 - 10/02 | 1,4 | Diesel | Saloon | 75 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 06/05 - 06/05 | 1,4 | Diesel | Saloon | 80 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 05/06 - 05/06 | 1,4 | Petrol | Saloon | 86 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 09/02 - 09/02 | 1,9 | Diesel | Saloon | 100 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 10/02 - 10/02 | 1,4 | Petrol | Saloon | 100 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 04/03 - 04/03 | 1,6 | Petrol | Saloon | 101 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 11/06 - 11/06 | 1,6 | Petrol | Saloon | 105 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 09/02 - 09/02 | 2,0 | Petrol | Saloon | 115 | - | -
|
| Seat | Cordoba | Cordoba (6L) | 10/02 - 10/02 | 1,9 | Diesel | Saloon | 131 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 06/07 - 06/07 | 1,2 | Petrol | Hatchback | 60 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/02 - 02/02 | 1,9 | Diesel | Hatchback | 64 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/02 - 02/02 | 1,2 | Petrol | Hatchback | 64 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 05/05 - 05/05 | 1,4 | Diesel | Hatchback | 70 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 05/06 - 05/06 | 1,2 | Petrol | Hatchback | 70 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/02 - 02/02 | 1,4 | Petrol | Hatchback | 75 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 05/02 - 05/02 | 1,4 | Diesel | Hatchback | 75 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 06/05 - 06/05 | 1,4 | Diesel | Hatchback | 80 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 05/06 - 05/06 | 1,4 | Petrol | Hatchback | 86 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/02 - 02/02 | 1,4 | Petrol | Hatchback | 100 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/02 - 02/02 | 1,9 | Diesel | Hatchback | 100 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/03 - 02/03 | 1,6 | Petrol | Hatchback | 101 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 11/06 - 11/06 | 1,6 | Petrol | Hatchback | 105 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 04/02 - 04/02 | 2,0 | Petrol | Hatchback | 116 | - | -
|
| Seat | Ibiza | Ibiza (6L) | 02/02 - 02/02 | 1,9 | Diesel | Hatchback | 131 | - | -
|
| VW | Polo | Polo (9N) | 01/02 - 01/02 | 1,2 | Petrol | Hatchback | 54 | - | -
|
| VW | Polo | Polo (9N) | 05/07 - 05/07 | 1,2 | Petrol | Hatchback | 60 | - | -
|
| VW | Polo | Polo (9N) | 10/01 - 10/01 | 1,2 | Petrol | Hatchback | 64 | - | -
|
| VW | Polo | Polo (9N) | 10/01 - 10/01 | 1,9 | Diesel | Hatchback | 64 | - | -
|
| VW | Polo | Polo (9N) | 09/02 - 09/02 | 1,9 | Diesel | Saloon | 64 | - | -
|
| VW | Polo | Polo (9N) | 05/07 - 05/07 | 1,2 | Petrol | Hatchback | 69 | - | -
|
| VW | Polo | Polo (9N) | 04/05 - 04/05 | 1,4 | Diesel | Hatchback | 70 | - | -
|
| VW | Polo | Polo (9N) | 10/01 - 10/01 | 1,4 | Diesel | Hatchback | 75 | - | -
|
| VW | Polo | Polo (9N) | 10/01 - 10/01 | 1,4 | Petrol | Hatchback | 75 | - | -
|
| VW | Polo | Polo (9N) | 11/02 - 11/02 | 1,4 | Petrol | Saloon | 75 | - | -
|
| VW | Polo | Polo (9N) | 07/03 - 07/03 | 1,4 | Diesel | Saloon | 75 | - | -
|
| VW | Polo | Polo (9N) | 04/05 - 04/05 | 1,4 | Diesel | Hatchback | 80 | - | -
|
| VW | Polo | Polo (9N) | 05/06 - 05/06 | 1,4 | Petrol | Hatchback | 80 | - | -
|
| VW | Polo | Polo (9N) | 05/06 - 05/06 | 1,4 | Petrol/Liquified Petroleum Gas (LPG) | Hatchback | 82 | - | -
|
| VW | Polo | Polo (9N) | 08/02 - 08/02 | 1,4 | Petrol | Hatchback | 83 | - | -
|
| VW | Polo | Polo (9N) | 02/02 - 02/02 | 1,4 | Petrol | Hatchback | 86 | - | -
|
| VW | Polo | Polo (9N) | 10/01 - 10/01 | 1,4 | Petrol | Hatchback | 101 | - | -
|
| VW | Polo | Polo (9N) | 10/01 - 10/01 | 1,9 | Diesel | Hatchback | 101 | - | -
|
| VW | Polo | Polo (9N) | 09/02 - | 1,6 | Petrol | Saloon | 101 | - | -
|
| VW | Polo | Polo (9N) | 07/03 - 07/03 | 1,9 | Diesel | Saloon | 101 | - | -
|
| VW | Polo | Polo (9N) | 11/03 - 11/03 | 1,4 | Petrol | Saloon | 101 | - | -
|
| VW | Polo | Polo (9N) | 05/06 - 05/06 | 1,6 | Petrol | Hatchback | 105 | - | -
|
| VW | Polo | Polo (9N) | 11/03 - 11/03 | 1,9 | Diesel | Hatchback | 130 | - | -
|
| VW | Polo | Polo (9N) | 09/05 - 09/05 | 1,8 | Petrol | Hatchback | 150 | - | -
|
| VW | Polo | Polo (9N) | 05/06 - 05/06 | 1,8 | Petrol | Hatchback | 180 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| HELLA | 8AC 355 381-041 |
| HELLA | 8AC355381041 |
| ATE | 24.3344-1710.5 |
| ATE | 24334417105 |
| AUDI | 6Q0615424A |
| AUDI | 6Q0615424B |
| BOSCH | 0 986 474 180 |
| BOSCH | 0986474180 |
| TEXTAR | 38002000 |
| FTE | 9290268 |
| BREMBO | F 85 217 |
| BREMBO | F85217 |
| METZGER | 6250060 |
| SEAT | 6Q0615424A |
| SEAT | 6Q0615424B |
| SKODA | 6Q0615424A |
| SKODA | 6Q0615424B |
| TRISCAN | 8170 343435 |
| TRISCAN | 8170343435 |
| BUDWEG | 343435 |
| VW | 6Q0615424A |
| VW | 6Q0615424B |
| NK | 2147296 |
| OPTIMAL | BC-1016R |
| MAPCO | 4843 |
| KAMOKA | JBC0222 |
| A.B.S. | 520462 |
| REMY | DC73435 |
| ELSTOCK | 870854 |
| ELSTOCK | 87-0854 |
| VAG | 6Q0615424A |
| VAG | 6Q0615424B |
| RIDEX | 78B0118 |
