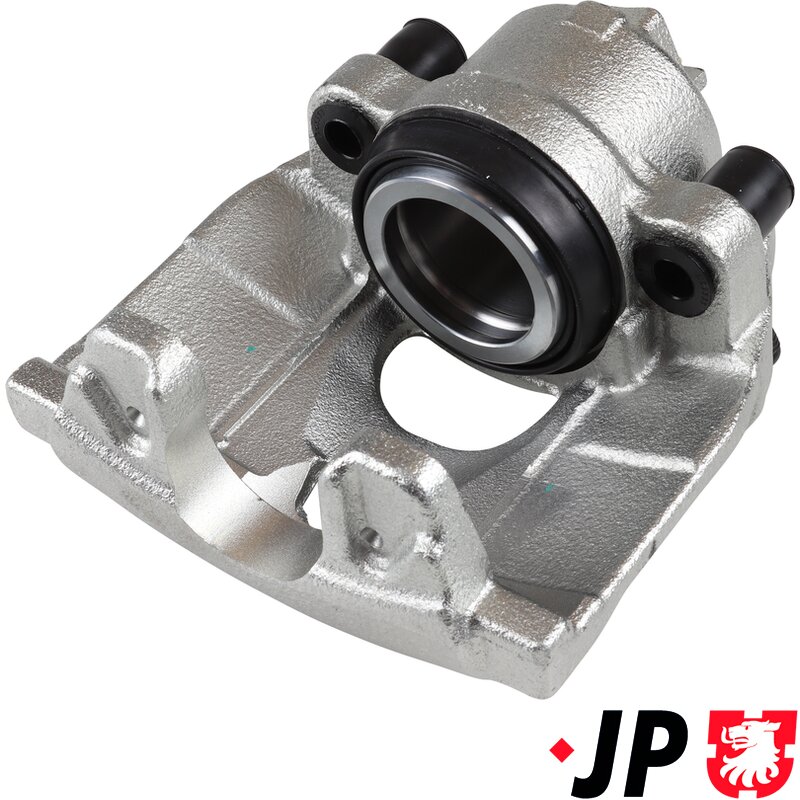

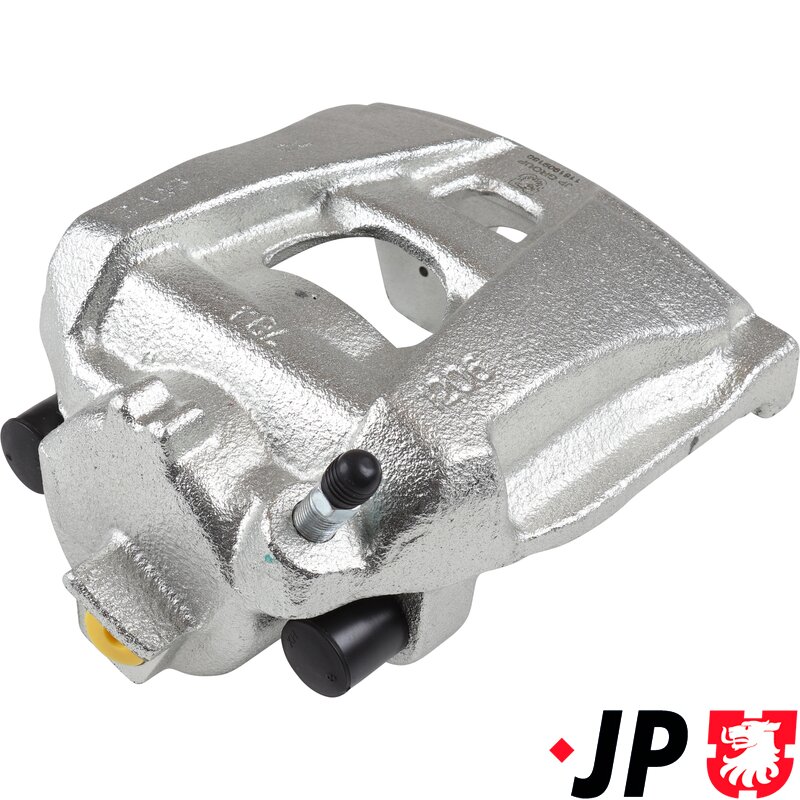

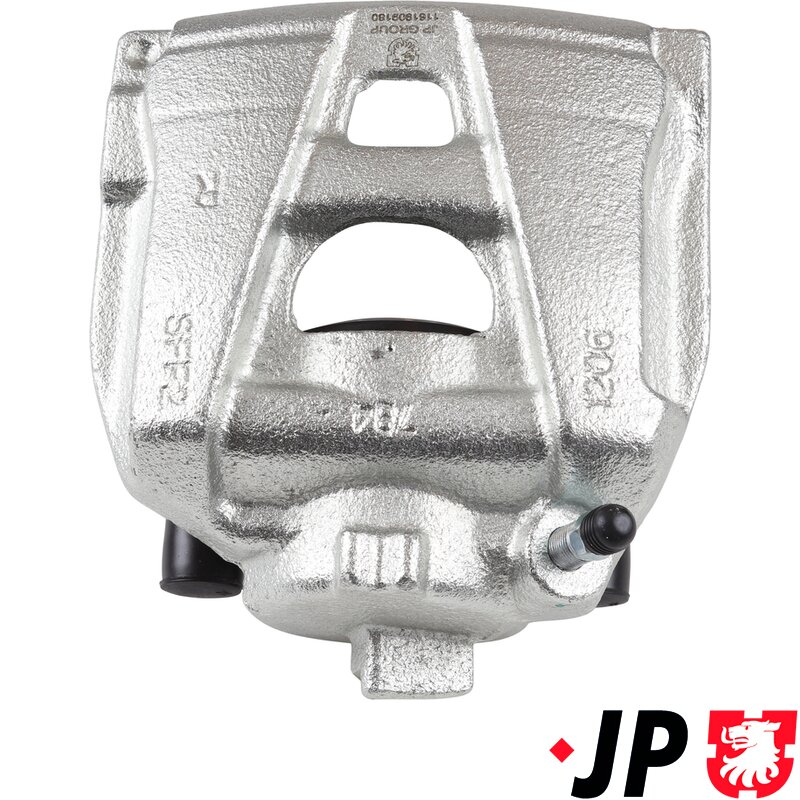

Passat B7 Front Brake Caliper (312mm Brake Discs) - Right (ATE)
Part Number: 5N0615124
This front brake caliper – right-hand side is a direct replacement for selected Volkswagen models fitted with 312mm vented front brake discs and ATE braking systems. Designed to OE specifications, this caliper restores strong, consistent braking performance and even pad wear across the front axle.
RHD clarification: On right-hand-drive vehicles, Right = Drivers Side.
What this brake caliper does
The front brake caliper is responsible for generating the majority of the vehicle’s stopping power. When the brake pedal is pressed, hydraulic pressure forces the 57mm single piston to clamp the brake pads onto the disc faces. The friction produced converts vehicle speed into heat, slowing the car safely and in a controlled manner.
This caliper is designed for vented brake discs, allowing efficient heat dissipation under repeated or heavy braking. Correct caliper operation is essential for stable braking, consistent pedal feel, and reliable ABS and traction control performance.
Construction & specifications
Fitting position: Front axle right (drivers side on RHD vehicles)
Brake disc type: Vented
Compatible disc size: 312mm diameter × 25mm thickness
Manufacturer restriction: ATE
Caliper design: Floating caliper
Piston diameter: 57mm
Piston count: Single piston
Manufactured to OE-style tolerances to ensure smooth piston travel, accurate pad alignment, and long service life.
Fitment & compatibility
Suitable for the following vehicles fitted with 312mm vented front discs and ATE brake systems:
Volkswagen Passat – 2.5 petrol
08/2010 – 06/2013
Volkswagen Sharan – 1.4, 2.0 petrol and 2.0 diesel
05/2010 – 11/2022
Volkswagen Tiguan – 1.4, 2.0 petrol and 2.0 diesel
09/2007 – 07/2018
Always confirm disc size (312mm), ATE brake system, and front axle fitment before ordering, as some models were also equipped with different front brake specifications.
Recommended additional parts
For a complete and reliable front brake service, we recommend fitting:
Front brake pads compatible with ATE calipers
Brake pad fitting kit / slider hardware
Front brake discs (312mm vented)
For best braking balance and pedal feel, front brake calipers should ideally be replaced in axle pairs.
This Part Fits: Passat (B7)
Availability: Stock Item
Item Name: Brake Caliper
Description: Brake Caliper
Product Group: Brakes
Group: Braking System
Unit of Measure: Each
Manufacturer: JP
Dimensions:
Width: 160mm
Height: 191mm
Depth: 125mm
Volume: 3820000mm3
Weight: 3.96kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| Audi | Q3 | Q3 (8U) | 03/15 - 03/15 | 2,0 | Diesel | SUV | 120 | - | -
|
| Audi | Q3 | Q3 (8U) | 07/16 - 07/16 | 1,4 | Petrol | SUV | 125 | - | -
|
| Audi | Q3 | Q3 (8U) | 09/11 - 09/11 | 2,0 | Diesel | SUV | 136 | - | -
|
| Audi | Q3 | Q3 (8U) | 09/11 - 09/11 | 2,0 | Diesel | SUV | 140 | - | -
|
| Audi | Q3 | Q3 (8U) | 01/12 - 01/12 | 2,0 | Diesel | SUV | 140 | - | -
|
| Audi | Q3 | Q3 (8U) | 10/13 - 10/13 | 1,4 | Petrol | SUV | 150 | - | -
|
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Diesel | SUV | 150 | - | -
|
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Diesel | SUV | 150 | - | -
|
| Audi | Q3 | Q3 (8U) | 06/11 - 06/11 | 2,0 | Diesel | SUV | 163 | - | -
|
| Audi | Q3 | Q3 (8U) | 06/11 - 06/11 | 2,0 | Petrol | SUV | 170 | - | -
|
| Audi | Q3 | Q3 (8U) | 06/11 - 06/11 | 2,0 | Diesel | SUV | 177 | - | -
|
| Audi | Q3 | Q3 (8U) | 06/11 - 06/11 | 2,0 | Diesel | SUV | 177 | - | -
|
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Petrol | SUV | 180 | - | -
|
| Audi | Q3 | Q3 (8U) | 05/15 - 05/15 | 2,0 | Petrol | SUV | 180 | - | -
|
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Diesel | SUV | 184 | - | -
|
| Audi | Q3 | Q3 (8U) | 05/15 - 05/15 | 2,0 | Diesel | SUV | 184 | - | -
|
| Audi | Q3 | Q3 (8U) | 09/14 - 09/14 | 2,0 | Petrol | SUV | 200 | - | -
|
| Audi | Q3 | Q3 (8U) | 06/11 - 06/11 | 2,0 | Petrol | SUV | 211 | - | -
|
| Audi | Q3 | Q3 (8U) | 11/14 - 11/14 | 2,0 | Petrol | SUV | 220 | - | -
|
| Seat | Alhambra | Alhambra (71) | 05/11 - 05/11 | 2,0 | Diesel | MPV | 115 | - | -
|
| Seat | Alhambra | Alhambra (71) | 06/10 - 06/10 | 2,0 | Diesel | MPV | 136 | - | -
|
| Seat | Alhambra | Alhambra (71) | 06/10 - 06/10 | 2,0 | Diesel | MPV | 140 | - | -
|
| Seat | Alhambra | Alhambra (71) | 05/11 - 05/11 | 2,0 | Diesel | MPV | 140 | - | -
|
| Seat | Alhambra | Alhambra (71) | 06/10 - 06/10 | 1,4 | Petrol | MPV | 150 | - | -
|
| Seat | Alhambra | Alhambra (71) | 11/12 - 11/12 | 1,8 | Petrol | MPV | 160 | - | -
|
| Seat | Alhambra | Alhambra (71) | 06/10 - 06/10 | 2,0 | Diesel | MPV | 170 | - | -
|
| Seat | Alhambra | Alhambra (71) | 11/12 - 11/12 | 2,0 | Diesel | MPV | 177 | - | -
|
| Seat | Alhambra | Alhambra (71) | 11/10 - 11/10 | 2,0 | Petrol | MPV | 200 | - | -
|
| VW | Passat | Passat (B7) | 01/11 - 01/11 | 2,5 | Petrol | Saloon | 170 | - | Construction Year to 201306 |
| VW | Sharan | Sharan II | 05/11 - 05/11 | 2,0 | Diesel | MPV | 115 | - | -
|
| VW | Sharan | Sharan II | 05/11 - 05/11 | 2,0 | Diesel | Box Body/MPV | 116 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 2,0 | Diesel | Box Body/MPV | 136 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 2,0 | Diesel | MPV | 136 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 2,0 | Diesel | MPV | 140 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 2,0 | Diesel | Box Body/MPV | 140 | - | -
|
| VW | Sharan | Sharan II | 05/11 - 05/11 | 2,0 | Diesel | MPV | 140 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 1,4 | Petrol | Box Body/MPV | 150 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 1,4 | Petrol | MPV | 150 | - | -
|
| VW | Sharan | Sharan II | 05/10 - 05/10 | 2,0 | Diesel | MPV | 170 | - | -
|
| VW | Sharan | Sharan II | 08/10 - 08/10 | 2,0 | Diesel | Box Body/MPV | 170 | - | -
|
| VW | Sharan | Sharan II | 01/13 - 01/13 | 2,0 | Diesel | MPV | 177 | - | -
|
| VW | Sharan | Sharan II | 12/10 - 12/10 | 2,0 | Petrol | MPV | 200 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/10 - 05/10 | 2,0 | Diesel | SUV | 110 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/10 - 05/10 | 2,0 | Diesel | SUV Van | 110 | - | -
|
| VW | Tiguan | Tiguan (5N) | 08/10 - 08/10 | 1,4 | Petrol | SUV Van | 122 | - | -
|
| VW | Tiguan | Tiguan (5N) | 08/10 - 08/10 | 1,4 | Petrol | SUV | 122 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/15 - 05/15 | 1,4 | Petrol | SUV | 125 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/07 - 11/07 | 2,0 | Diesel | SUV | 136 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/07 - 09/07 | 2,0 | Diesel | SUV | 140 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/07 - 11/07 | 2,0 | Diesel | SUV Van | 140 | - | -
|
| VW | Tiguan | Tiguan (5N) | 03/08 - 03/08 | 2,0 | Diesel | SUV | 140 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/09 - 11/09 | 2,0 | Diesel | SUV Van | 140 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/07 - 09/07 | 1,4 | Petrol | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/08 - 05/08 | 1,4 | Petrol | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/08 - 05/08 | 1,4 | Petrol | SUV Van | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/15 - 05/15 | 2,0 | Diesel | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/15 - 05/15 | 2,0 | Diesel | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/15 - 05/15 | 1,4 | Petrol | SUV | 150 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 1,4 | Petrol | SUV | 160 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 1,4 | Petrol | SUV | 160 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/12 - 09/12 | 1,4 | Petrol | SUV Van | 160 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/12 - 09/12 | 1,4 | Petrol | SUV Van | 160 | - | -
|
| VW | Tiguan | Tiguan (5N) | 02/08 - 02/08 | 2,0 | Diesel | SUV | 163 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/07 - 09/07 | 2,0 | Diesel | SUV | 170 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/07 - 09/07 | 2,0 | Petrol | SUV | 170 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/09 - 11/09 | 2,0 | Petrol | SUV Van | 170 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/10 - 05/10 | 2,0 | Diesel | SUV Van | 170 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/12 - 11/12 | 2,0 | Diesel | SUV Van | 177 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/12 - 11/12 | 2,0 | Diesel | SUV | 177 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 2,0 | Petrol | SUV | 180 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/15 - 05/15 | 2,0 | Diesel | SUV | 184 | - | -
|
| VW | Tiguan | Tiguan (5N) | 09/07 - 09/07 | 2,0 | Petrol | SUV | 200 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/07 - 11/07 | 2,0 | Petrol | SUV | 200 | - | -
|
| VW | Tiguan | Tiguan (5N) | 11/09 - 11/09 | 2,0 | Petrol | SUV Van | 200 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 2,0 | Petrol | SUV | 211 | - | -
|
| VW | Tiguan | Tiguan (5N) | 05/11 - 05/11 | 2,0 | Petrol | SUV Van | 211 | - | -
|
| SEAT | ALHAMBRA VAN (711) | 10/14 - 10/14 | 2,0 | Diesel | Box Body/MPV | 116 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| HELLA | 8AC 355 398-681 |
| HELLA | 8AC355398681 |
| TRISCAN | 8170 344301 |
| TRISCAN | 8170344301 |
| BUDWEG | 344301 |
| VW | 5N0615106R |
| VW | 5N0615124 |
| VW | 7N0615124 |
| KAMOKA | JBC0748 |
| A.B.S. | 430732 |
| REMY | DC84301 |
| ELSTOCK | 831995 |
| ELSTOCK | 83-1995 |
