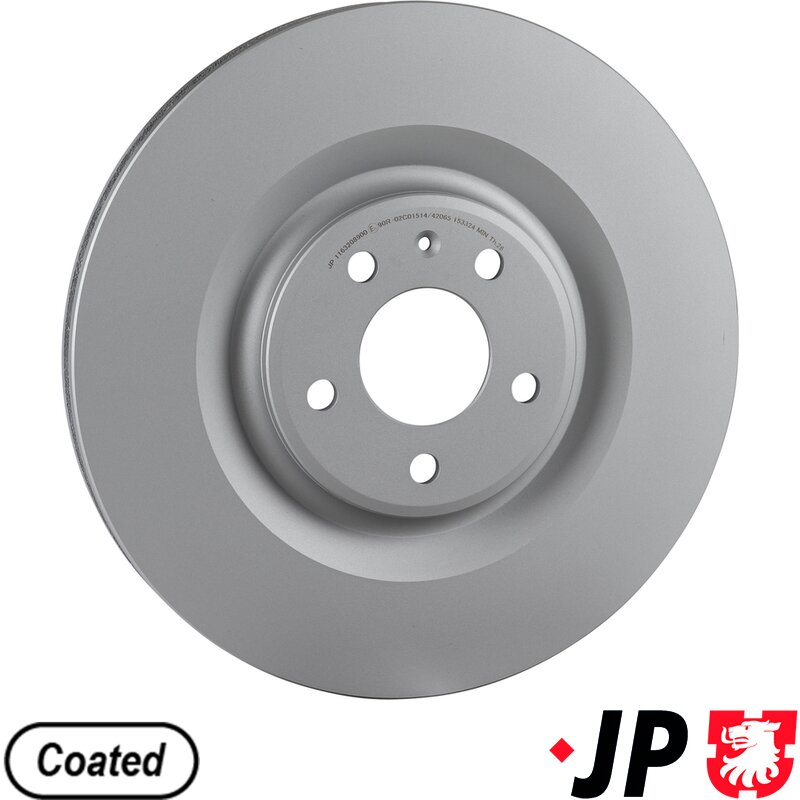

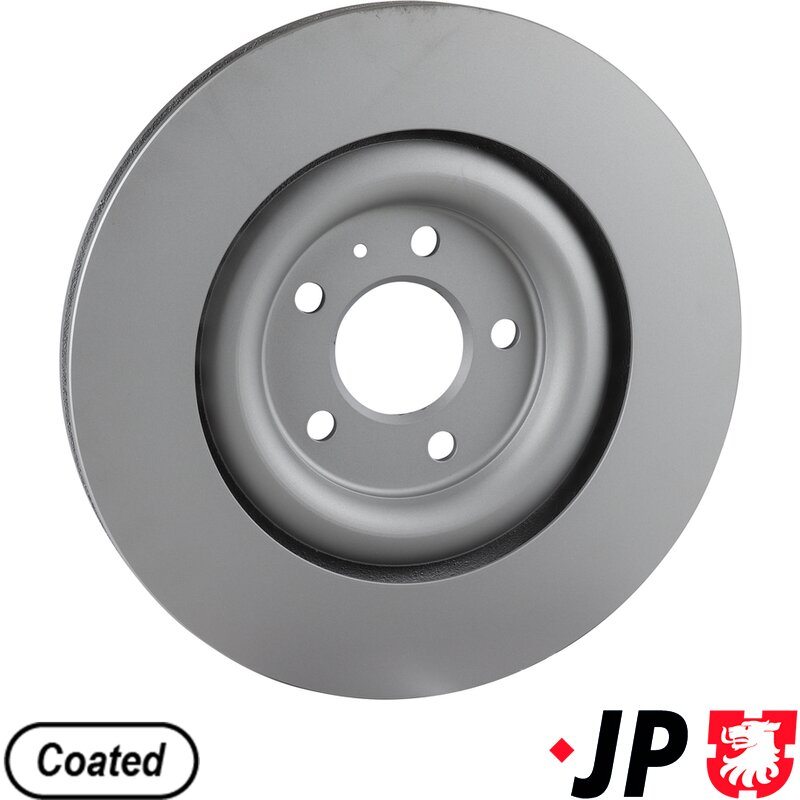

Touareg Rear Brake Disc (350mm Vented)

This rear brake disc is a heavy-duty replacement designed for the Volkswagen Touareg range fitted with PR codes 1KQ or 1KU. With a large 350mm outer diameter and internally vented construction, it is engineered to cope with the high weight and performance demands of the Touareg while maintaining smooth, stable braking on the rear axle.

What this brake disc does

Rear brake discs play a crucial role in overall braking balance and vehicle stability. While the front brakes handle the majority of stopping force, the rear discs support controlled deceleration, assist ABS and stability control systems, and help keep the vehicle level under braking.

When the brake pedal is applied, the rear calipers clamp the brake pads onto the disc surface. The friction generated slows the rear wheels in a controlled manner. The internally vented design uses internal cooling vanes to draw air through the disc as it rotates, helping to dissipate heat effectively. This is especially important on a large SUV like the Touareg, where rear brakes are subjected to higher thermal loads than on smaller vehicles.

Construction & specifications

• Outer diameter: 350mm

• Disc thickness: 28mm

• Brake disc type: Internally vented

• Surface finish: Coated (anti-corrosion protection)

• Stud pattern: 5-hole

• Fitting position: Rear axle

• PR codes: 1KQ, 1KU

The coated surface protects the non-friction areas of the disc from corrosion, helping to prevent hub seizure and extending service life—particularly beneficial for year-round and winter driving conditions.

Fitment & compatibility

Suitable for the following applications:

• VW Touareg (CR7) – 2.0, 3.0 petrol and 3.0D, 4.0D diesel models

  • Production dates: 11/2017 onwards

  • PR codes: 1KQ or 1KU

Always check the vehicle PR code, rear disc diameter (350mm), and brake specification on the vehicle data sticker before ordering, as alternative rear brake setups were also used across the Touareg range.

Recommended additional parts

For best braking performance and long-term reliability, we recommend fitting:

• Rear brake pads matched to 350mm vented discs

• Brake disc retaining screws

• Brake pad fitting kit / anti-rattle hardware (where applicable)

Rear brake discs should always be replaced in axle pairs to ensure even braking performance and correct operation of stability systems.
