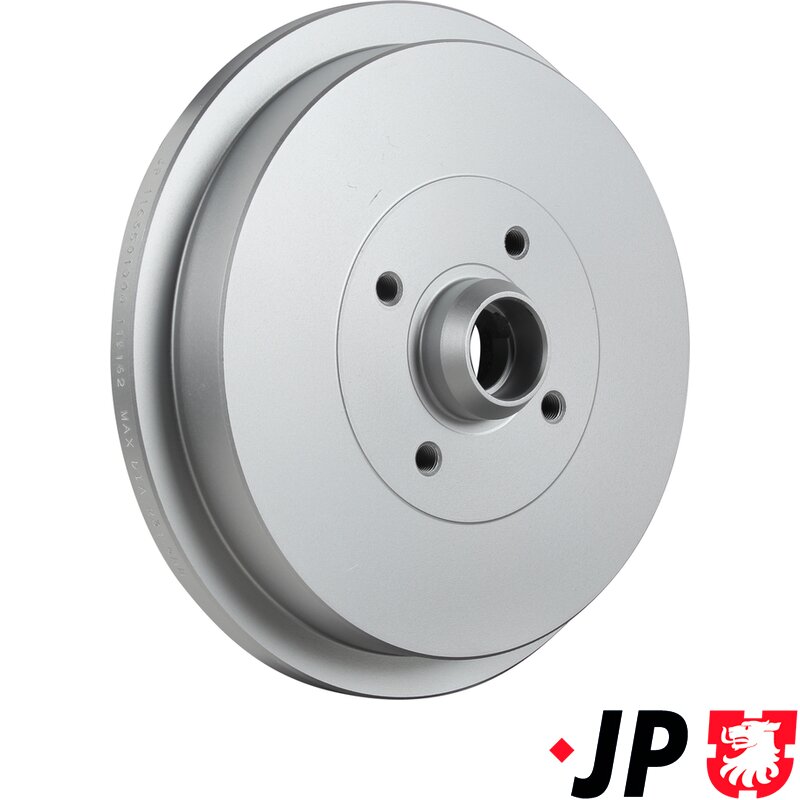

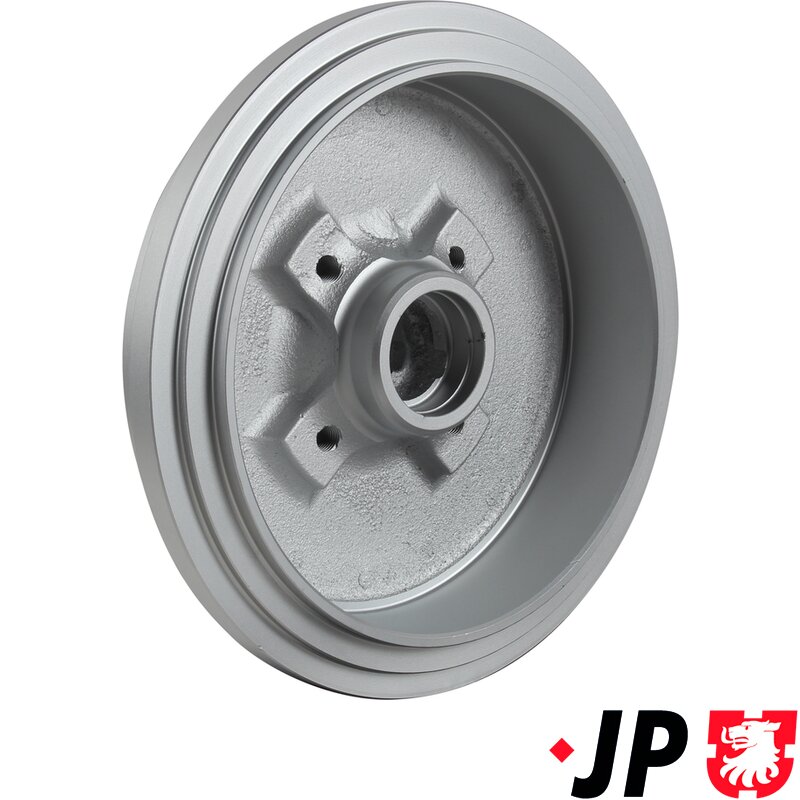

Passat B3,B4 Rear Brake Drum

This rear brake drum is a direct replacement designed for Volkswagen Passat B3 and B4 models built within the specified chassis range. With a 230mm diameter and 53mm internal height, it restores safe, consistent braking performance on vehicles equipped with rear drum brakes.

What this brake drum does

Rear brake drums work with the wheel cylinders and brake shoes to slow the vehicle and maintain braking balance. When the brake pedal is applied, hydraulic pressure pushes the wheel cylinder pistons outward, forcing the shoes against the inside of the drum. The friction generated slows the rear wheels in a controlled manner, supporting overall braking stability and correct handbrake operation.

Drum brakes are well suited to rear axle use, offering reliable performance, long service life, and strong handbrake holding—particularly important for everyday road cars like the Passat.

Construction & specifications

• Fitting position: Rear axle

• Brake type: Drum brake

• Drum diameter: 230mm

• Inner brake drum height: 53mm

• Hole arrangement / number: 4 / 4 (4-stud)

Manufactured to original specifications, this drum provides correct shoe contact and smooth braking action when paired with quality brake shoes.

Fitment & compatibility

Suitable for the following applications within chassis numbers 31L085001 to 3AS300000:

• VW Passat – 1.6 & 1.8 petrol models (04/1988 – 09/1996)

• VW Passat (48–59 kW) – 1.6 & 1.9 Diesel / Turbo Diesel (08/1988 – 09/1996)

• VW Passat (66 kW) – 1.9 TDI (10/1993 – 07/1995)

Always confirm chassis number and rear brake type before ordering, as Passat B3/B4 models were also available with rear disc brakes.

Recommended additional parts

For a complete and reliable repair, we recommend fitting:

• Rear brake shoes (matched to 230mm drums)

• Wheel cylinders

• Brake shoe fitting kit (springs & adjusters)

• Handbrake cables (if stretched or seized)

Rear brake drums should always be replaced in axle pairs to ensure even braking and correct handbrake balance.
