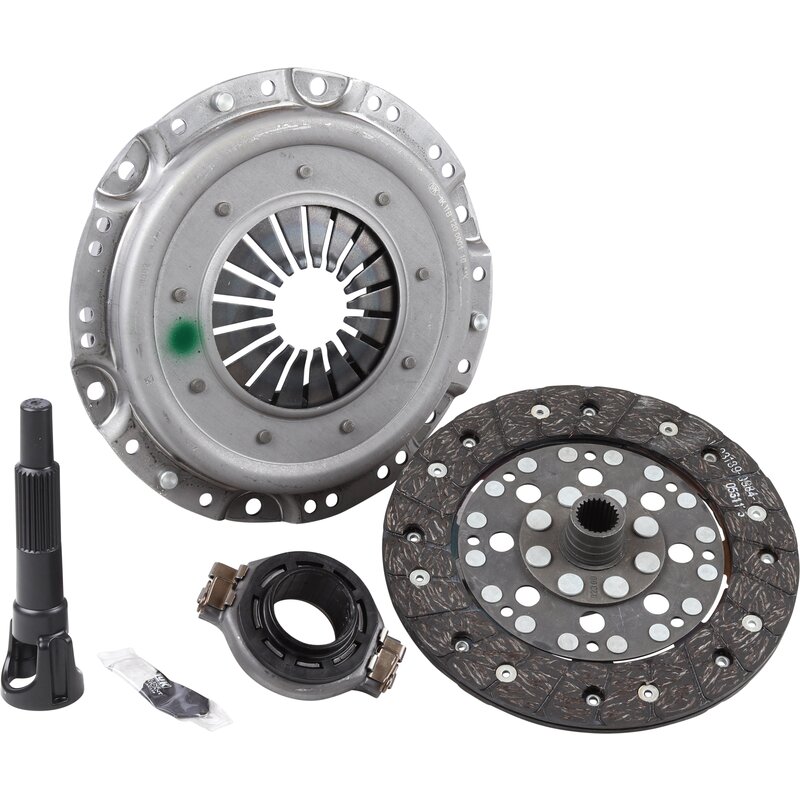

Late 200mm Clutch Kit - Post 1970 Models - LUK
Part Number: 311198141ATQL
Premium quality LuK 200mm clutch kit for late-model aircooled Volkswagen applications fitted with the guide tube style release bearing system.
This complete LuK clutch kit is a direct replacement for the original clutch assembly fitted to many 1500cc and 1600cc Volkswagen models from 1971 onwards. As one of the world`s leading original equipment clutch manufacturers, LuK is renowned for producing high-quality clutch components that deliver smooth engagement, excellent durability and reliable performance.
The clutch assembly is responsible for transmitting engine power from the flywheel to the gearbox while allowing smooth gear changes and controlled take-up from a standstill. Over time, the friction disc wears, pressure plate clamping force reduces and release bearings become noisy or rough, leading to clutch slip, judder, poor pedal feel and difficulty selecting gears. Replacing the complete clutch assembly ensures all key wear components are renewed together.
This is the late-style 200mm clutch kit designed for transmissions equipped with the guide tube release bearing system. The pressure plate is supplied without the centre thrust ring (centre pad) and is intended for use with the late-style release bearing retained to the clutch cross shaft by fixed clips.
Manufactured to OEM standards, this LuK clutch kit is an excellent choice for standard restorations, rebuilt engines and daily-driven aircooled Volkswagens.
Quantity: Complete Kit
Kit Contents
- 200mm Pressure Plate
- 200mm Clutch Friction Disc
- Clutch Release Bearing
Specifications
- Manufacturer: LuK
- Clutch Diameter: 200mm
- Spline Count: 24 Teeth
- Late Guide Tube Style Release Bearing System
- Pressure Plate Without Centre Pad
Vehicle Fitment
Aircooled Volkswagen Beetle (Type 1)
- 1600cc (1970-1980)
- 1200cc (1980-1986)
Volkswagen Transporter T2 Baywindow
- 1600cc (1970-1976)
Volkswagen Type 3
- 1500cc (1970-1973)
- 1600cc (1970-1973)
Volkswagen Karmann Ghia
- 1600cc (1970-1974)
Volkswagen Type 181 Thing / Trekker
- 1600cc (1970-1979)
Fitting Notes
- Suitable for vehicles fitted with the late guide tube release bearing arrangement.
- Not suitable for early transmissions using the centre-ring pressure plate and early release bearing system.
- We recommend inspecting the clutch cable, Bowden tube, clutch operating shaft bushes and flywheel oil seal during installation.
- Consider replacing the flywheel gland nut bearing and gearbox input shaft seal when carrying out a clutch replacement.
OEM Part Numbers
- VW: 311198141A
- VW: 311198141
- VW: 311198141AV
- VW: 311198141X
This Part Fits: Baywindow, Type 3, Splitscreen, Beetle, Trekker, Buggy, Karmann Ghia,
Availability: Special Order
Item Name: Clutch kit, 200 mm
Description: Clutch Kit
Product Group: Transmissi
Group: Clutch
Unit of Measure: Set
Manufacturer: LUK
Dimensions:
Width: 90mm
Height: 320mm
Depth: 310mm
Volume: 8928000mm3
Weight: 4.623kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Beetle Type 1 | 1302 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 46 | - | -
|
| VW Classic | Beetle Type 1 | 1302 | 01/70 - 01/70 | 1,6 | Petrol | Saloon | 50 | - | Construction Year from 197008 |
| VW Classic | Beetle Type 1 | 1303 | 08/70 - 08/70 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 48 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | -
|
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | Construction Year from 198007 |
| VW Classic | Beetle Type 1 | Type 1 std | 05/73 - 05/73 | 1,6 | Petrol | Saloon | 46 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 10/92 - 10/92 | 1,6 | Petrol | Saloon | 46 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 07/71 - 07/71 | 1,6 | Petrol | Coupe | 48 | - | -
|
| VW Classic | Karmann Ghia (T14/34) | Coupe | 01/70 - 01/70 | 1,6 | Petrol | Coupe | 50 | - | Construction Year from 197008 |
| VW Classic | The Thing 181 | The Thing 181 | 08/70 - 08/70 | 1,6 | Petrol | Open Off-Road Vehicle | 44 | - | -
|
| VW Classic | The Thing 181 | The Thing 181 | 03/73 - 03/73 | 1,6 | Petrol | Open Off-Road Vehicle | 48 | - | -
|
| VW Classic | Transporter | T2 | 08/68 - 08/68 | 1,6 | Petrol | Platform/Chassis | 50 | - | Construction Year to 197602 |
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Van | 50 | - | Construction Year to 197602 |
| VW Classic | Transporter | T2 | 08/70 - 08/70 | 1,6 | Petrol | Bus | 50 | - | Construction Year to 197602 |
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 07/68 - 07/68 | 1,5 | Petrol | Hatchback | 45 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Hatchback (31) | 08/65 - 08/65 | 1,6 | Petrol | Hatchback | 54 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 04/61 - 04/61 | 1,5 | Petrol | Saloon | 45 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 07/64 - 07/64 | 1,6 | Petrol | Saloon | 50 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Saloon (31) | 08/65 - 08/65 | 1,6 | Petrol | Saloon | 54 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Variant (36) | 04/61 - 04/61 | 1,5 | Petrol | Estate | 45 | - | Construction Year from 197008 |
| VW Classic | Type 3 (1500/1600) | Variant (36) | 08/65 - 08/65 | 1,6 | Petrol | Estate | 54 | - | Construction Year from 197008 |
| Manufacturer | Ref. No. |
|---|---|
| VW | 311198141 |
| VW | 311198141A |
| VW | 311198141AV |
| VW | 311198141X |
| VAG | 311198141A |
| JPGROUP | 198225003 |
| KM GERMANY | 069 1120 |
| KM GERMANY | 0691120 |
| EMPI | 321257B |
| EMPI | 32-1257-B |
