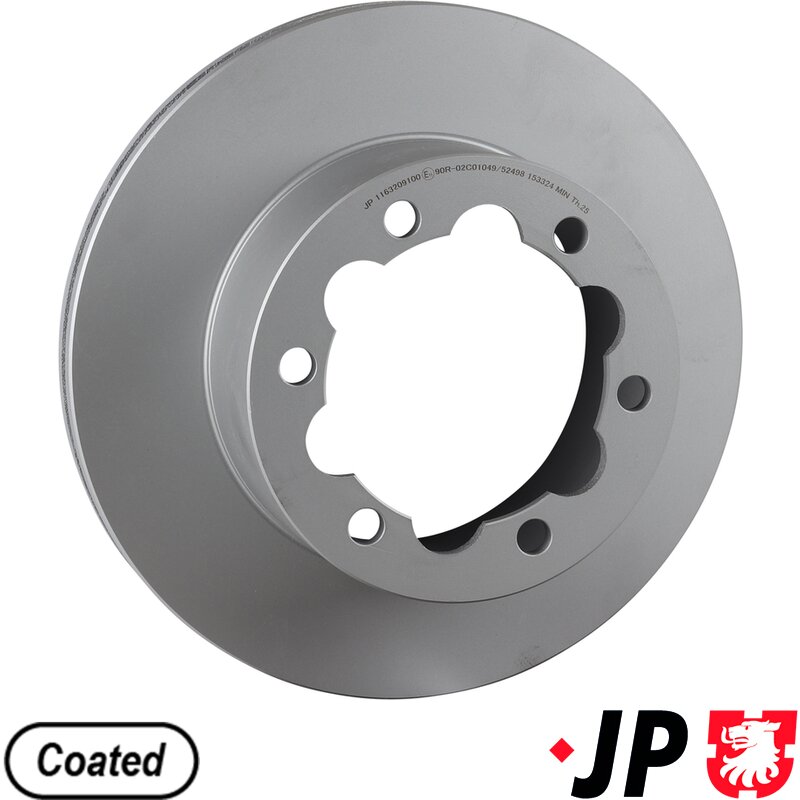

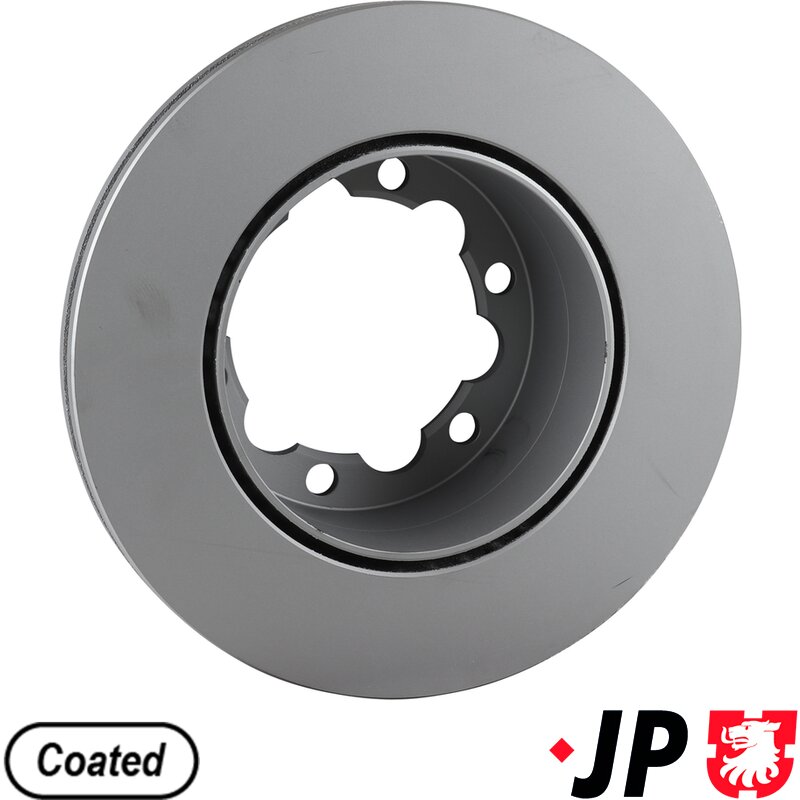

T7 Rear Brake Disc (303mm Vented)

This replacement rear brake disc is designed for selected Volkswagen T7-platform vehicles fitted with PR code 1LB. Featuring an internally vented construction, 6-hole fixing, and a protective anti-corrosion coating, this disc is engineered to handle the higher braking loads of modern VW vans and campers while maintaining smooth, consistent braking performance.

What the part does & how it works

The rear brake disc provides the friction surface for the rear disc braking system. When the brake pedal is applied, hydraulic pressure forces the rear brake caliper to clamp the brake pads against both faces of the disc. The resulting friction slows the rear wheels and helps stabilise the vehicle under braking.

The internally vented design allows heat generated during braking to dissipate efficiently through internal cooling vanes. This reduces brake fade during repeated stops, downhill driving, or when the vehicle is heavily loaded—particularly important on California and Crafter models used for touring, work, or towing.

Specifications

• Brake disc type: Internally vented

• Outer diameter: 303mm

• Thickness: 28mm

• Number of holes: 6

• Surface finish: Coated (anti-corrosion protection)

• Fitting position: Rear axle

• Quantity: Sold individually

Fitment & compatibility

This rear brake disc fits the following vehicles when equipped with PR code 1LB:

• Volkswagen California T7 – 2.0 Diesel
  April 2019 onwards
  PR code: 1LB

• Volkswagen Crafter II – 2.0 Diesel
  September 2016 onwards
  PR code: 1LB

• Volkswagen Crafter III – 2.0 Diesel
  September 2016 onwards
  PR code: 1LB

Important fitment note:
This rear brake disc is PR-code specific. It will only fit vehicles with PR code 1LB and is not suitable for other rear brake specifications. Always check the vehicle data sticker or service book before ordering.

Fitting notes

• Supplied individually, however we strongly recommend replacing rear brake discs in pairs to maintain balanced braking and even pad wear.

• Before installation, thoroughly clean both braking surfaces with a good quality brake cleaner, as the disc is coated at manufacture with an anti-oxidising oil for corrosion protection.

• Inspect brake pads, calipers, and brake hoses during fitting and replace any worn or damaged components.

• Correct bedding-in of new discs and pads is recommended for optimum braking performance and longevity.

Key features

• Correct rear brake disc for VW T7-platform vehicles with PR code 1LB

• Internally vented for improved heat dissipation

• 303mm diameter × 28mm thickness

• 6-hole fixing

• Anti-corrosion coated surface for long service life
