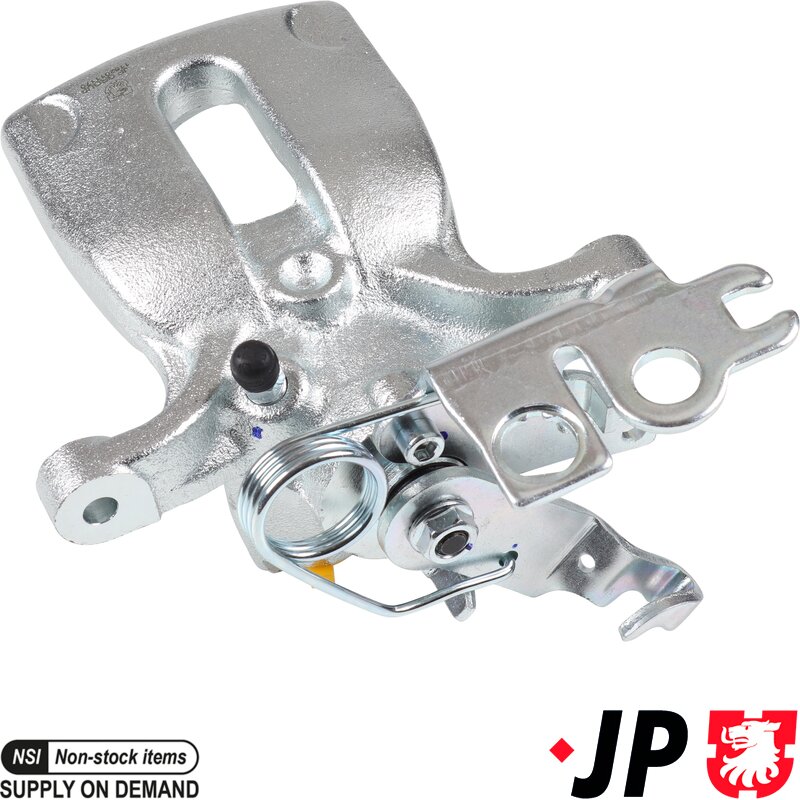

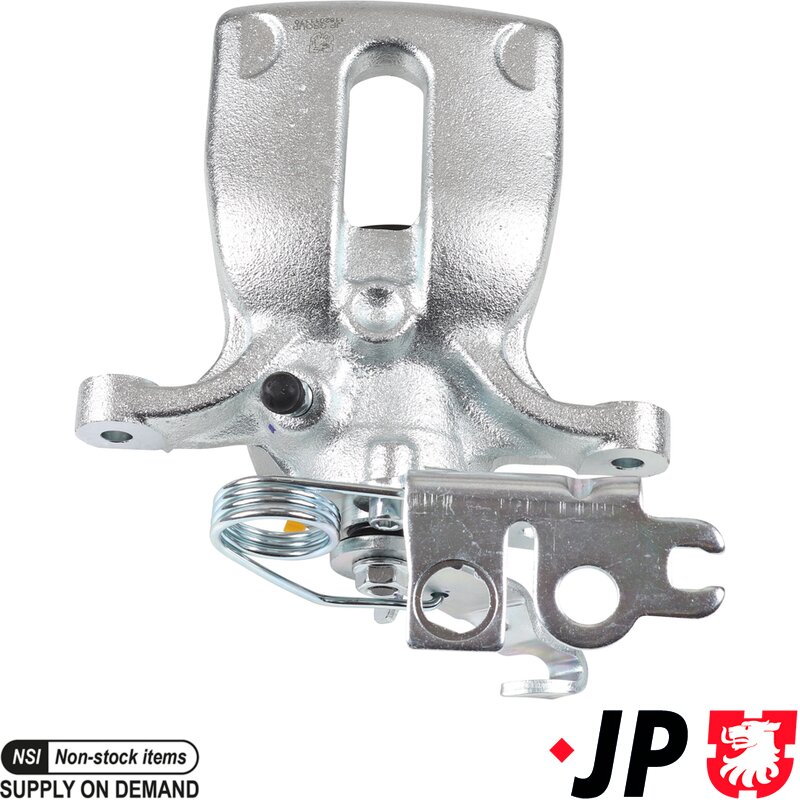

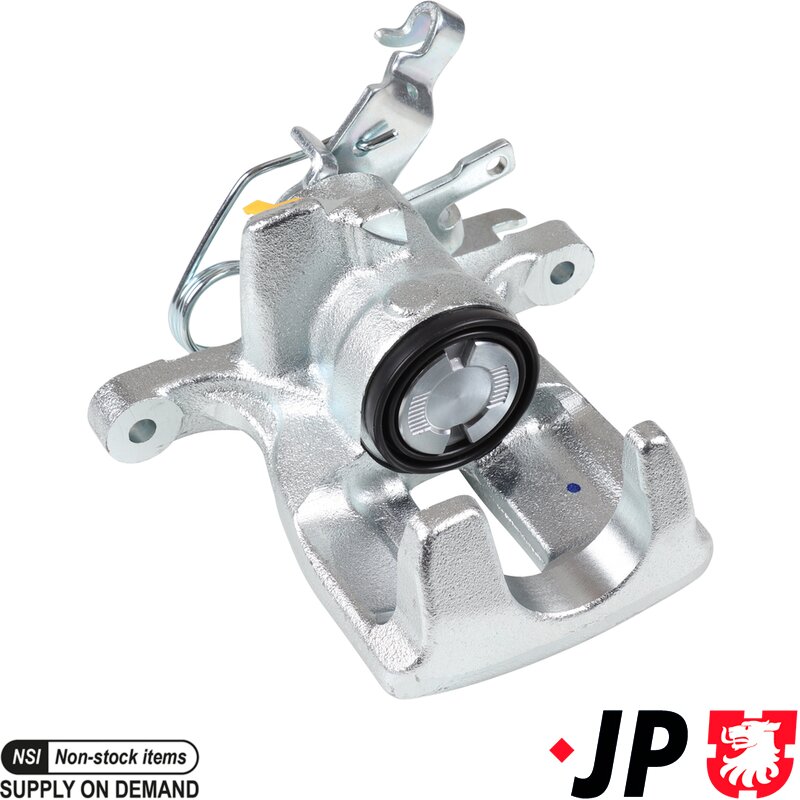

Mk4 Caddy Rear Brake Caliper (272mm Brake Discs) - Left (TRW)

This replacement rear brake caliper is designed for VW Caddy Mk4 (Caddy IV) models from May 2015 onwards equipped with TRW braking systems. It is the correct left-hand rear caliper for vehicles using 272mm solid rear brake discs and incorporates an integrated mechanical parking brake mechanism.

On RHD vehicles, this caliper fits the left-hand side (passenger side).

What the part does & how it works

The rear brake caliper performs two essential functions:

1. Service braking – Hydraulic pressure forces the single piston outward, clamping the brake pads against the disc to slow the vehicle.

2. Parking brake operation – The integrated handbrake mechanism mechanically applies the brake when the handbrake lever is engaged, holding the vehicle securely when parked.

The single-piston floating design allows the caliper to self-centre over the disc as pads wear, ensuring even pad contact, smooth braking, and consistent handbrake performance. Replacing a worn or seized caliper restores correct braking balance, prevents dragging brakes, and improves handbrake efficiency.

Specifications

• Fitting position: Rear axle – Left-hand side (Passenger side on RHD vehicles)

• Brake disc type: Solid

• Brake disc diameter: 272mm

• Brake disc thickness: 10mm

• Caliper type: Floating brake caliper

• Parking brake: Integrated handbrake mechanism

• Piston count: 1

• Piston diameter: 38mm

• Manufacturer restriction: TRW

Fitment & compatibility

• VW Caddy IV (Mk4):
  1.0, 1.2, 1.4, 1.6 Petrol · 1.6D, 2.0D

• Model years: May 2015 onwards

Important fitment note:
This caliper is TRW-specific and is intended for vehicles fitted with 272×10mm solid rear brake discs. It will not fit vehicles equipped with alternative brake manufacturers or different rear disc sizes. Always confirm the original caliper manufacturer and disc size before ordering.

Fitting notes

• Sold individually; for best results, replace rear brake calipers in axle pairs.

• Inspect brake pads, discs, handbrake cables, and flexible hoses during installation.

• Bleed the braking system after fitting and adjust the handbrake as required.

Key features

• Correct TRW specification for Caddy Mk4

• Left-hand rear caliper (RHD passenger side)

• Integrated parking brake mechanism

• Single-piston floating design

• 38mm piston

• Designed for 272×10mm solid rear discs
