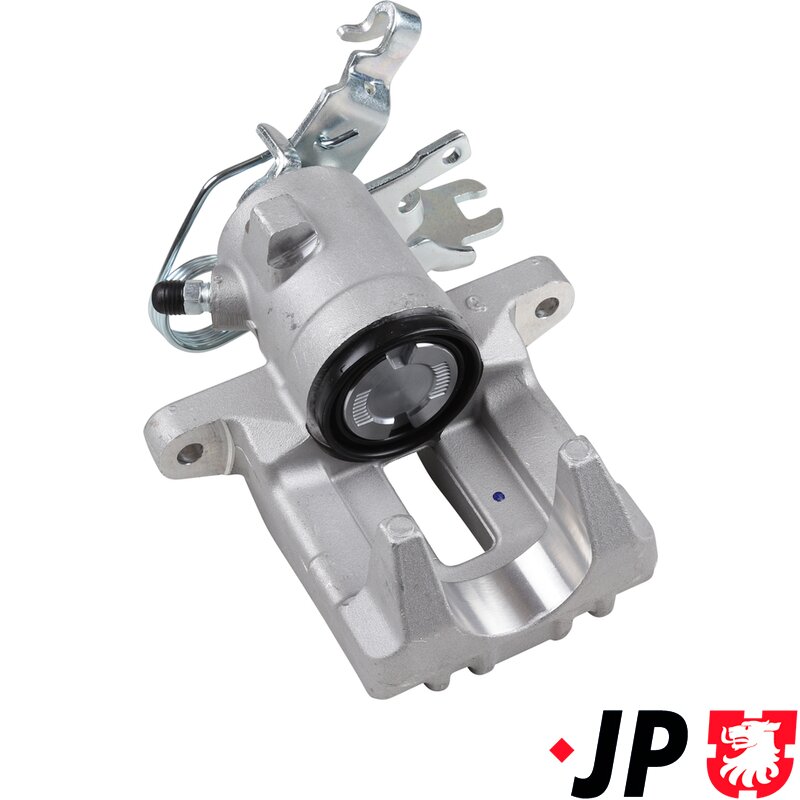

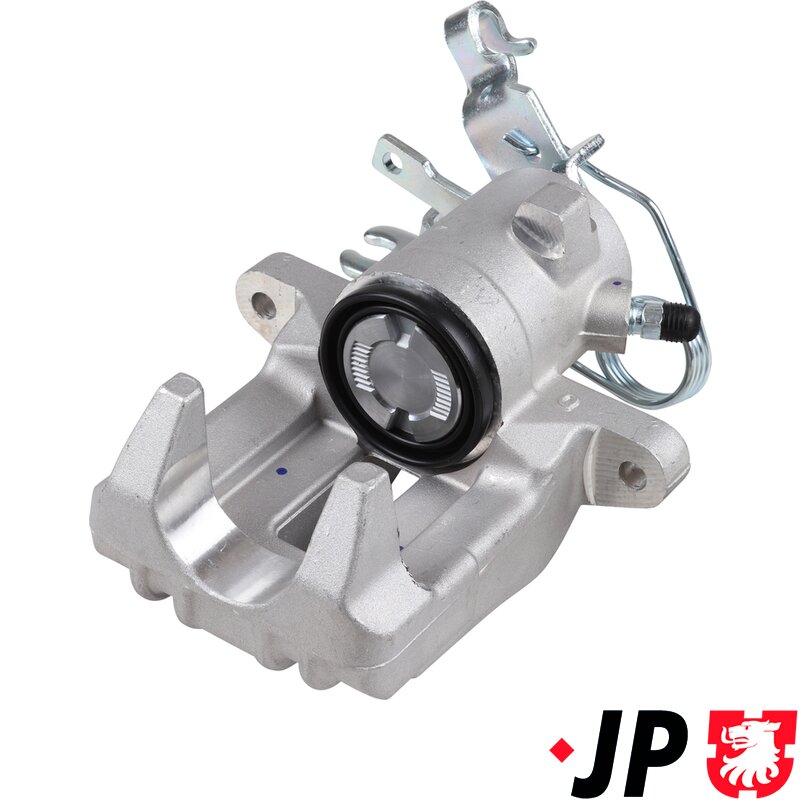

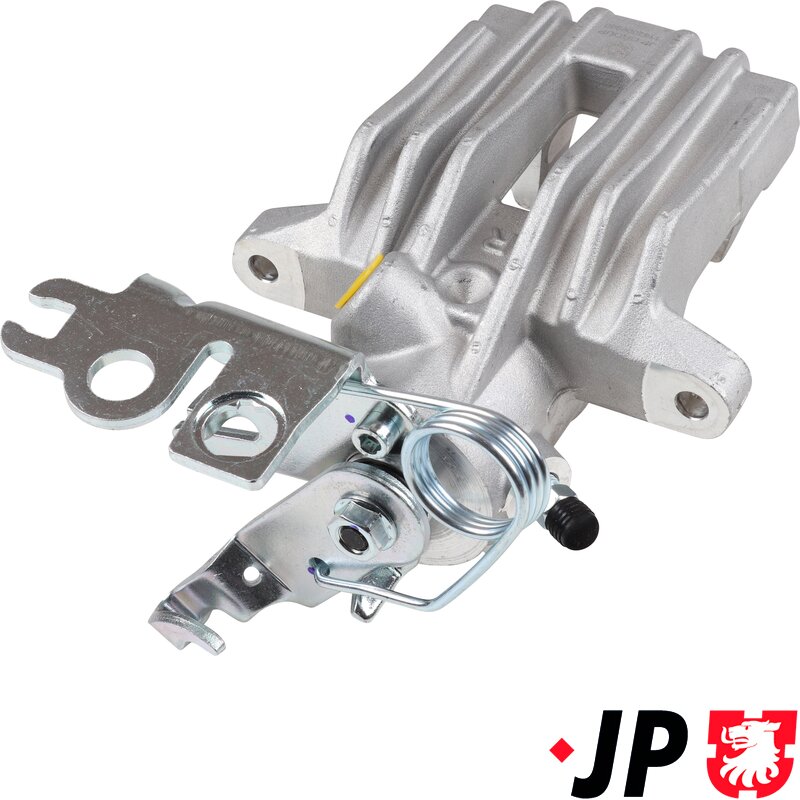

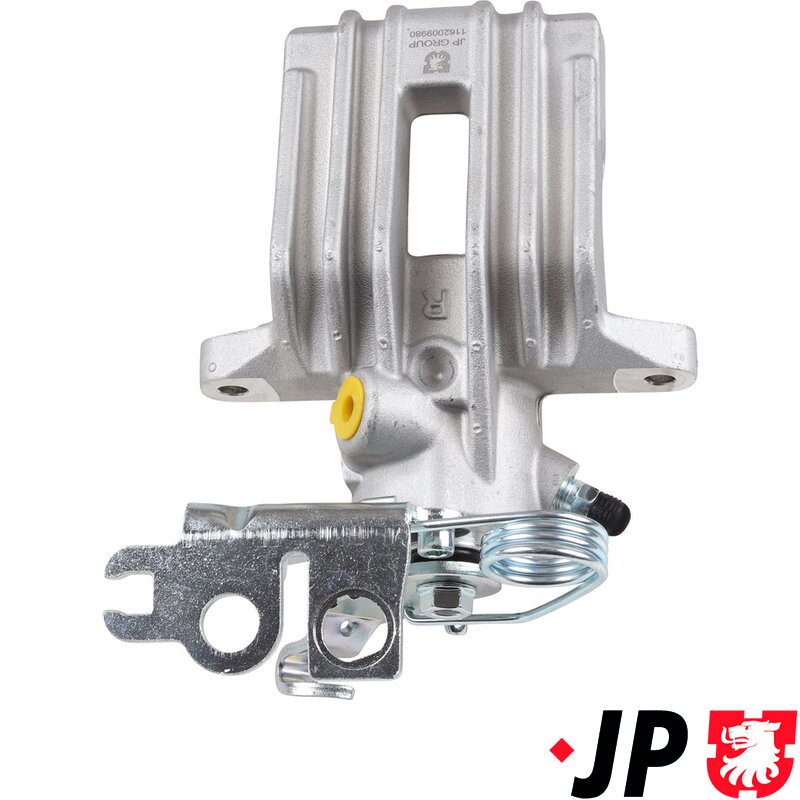

Mk3 Caddy Rear Brake Caliper (253mm Brake Discs) - Right (TRW)

This replacement rear brake caliper is designed for VW Caddy Mk3 (Caddy III) models from March 2004 to May 2015 equipped with TRW braking systems. It is the correct left-hand rear caliper for vehicles using 253mm solid rear brake discs and features an integrated mechanical parking brake.

On RHD vehicles, this caliper fits the right-hand side (drivers side).

What the part does & how it works

This caliper performs two essential functions:

1. Service braking – Hydraulic pressure pushes the internal piston outward, clamping the brake pads against the rear brake disc to slow the vehicle.

2. Parking brake operation – The integrated handbrake mechanism mechanically applies the brake when the handbrake lever is engaged, securely holding the vehicle when parked.

The single-piston floating design allows the caliper to self-centre over the disc as pads wear, ensuring even pad contact, smooth braking, and consistent performance. A seized or worn caliper can cause dragging brakes, poor handbrake efficiency, uneven pad wear, or MOT failure—replacement restores correct braking and handbrake function.

Specifications

• Fitting position: Rear axle – Right-hand side (Drivers side on RHD vehicles)

• Brake disc type: Solid

• Brake disc diameter: 253mm

• Brake disc thickness: 10mm

• PR codes: 1ZF, 1ZM, 2E2

• Caliper type: Floating brake caliper

• Parking brake: Integrated handbrake mechanism

• Piston count: 1

• Piston diameter: 38mm

• Manufacturer restriction: TRW

Fitment & compatibility

• Volkswagen Caddy III (Mk3):
  1.2, 1.4, 1.6 Petrol · 1.6D, 1.9D, 2.0D

• Model years: March 2004 – May 2015

Important fitment note:
This caliper is TRW-specific and fits only vehicles with PR codes 1ZF, 1ZM or 2E2 using 253×10mm solid rear brake discs. It will not fit Caddys with larger 256mm rear discs or non-TRW systems. Always confirm PR codes before ordering.

Fitting notes

• Sold individually; for best results, replace rear calipers in axle pairs.

• Inspect brake pads, discs, handbrake cables, and flexible hoses during installation.

• Bleed the braking system after fitting and adjust the handbrake as required.

Key features

• Correct TRW specification

• Right-hand rear caliper (RHD drivers side)

• Integrated parking brake mechanism

• Single-piston floating design

• 38mm piston

• Designed for 253×10mm solid rear discs
