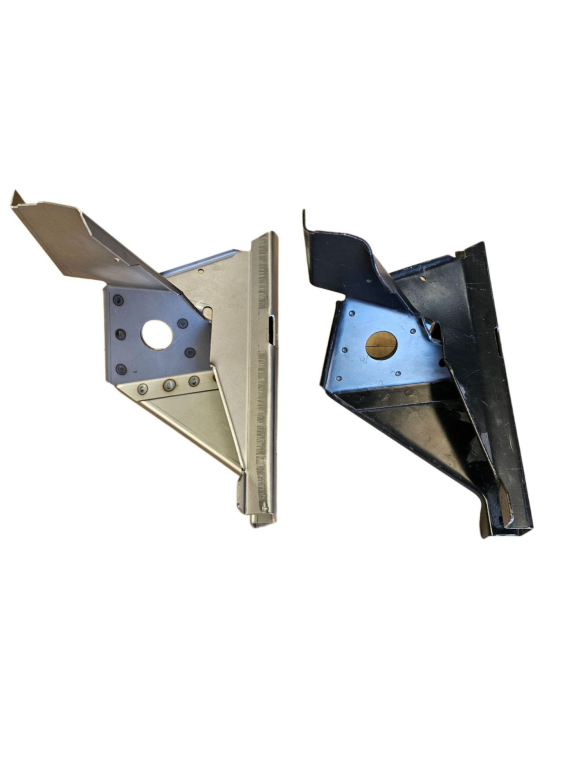

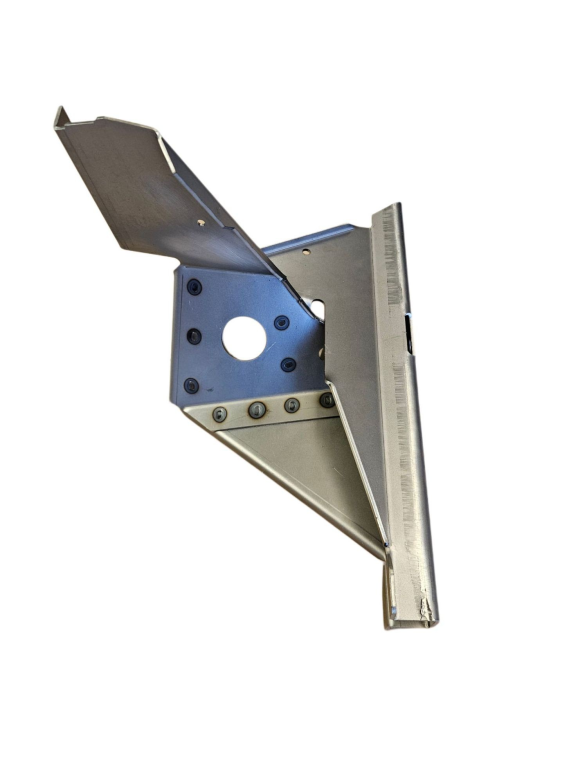

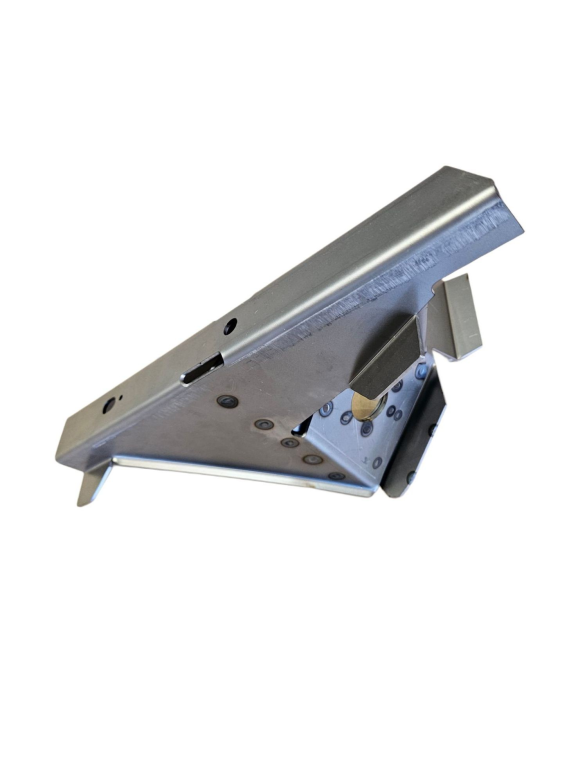

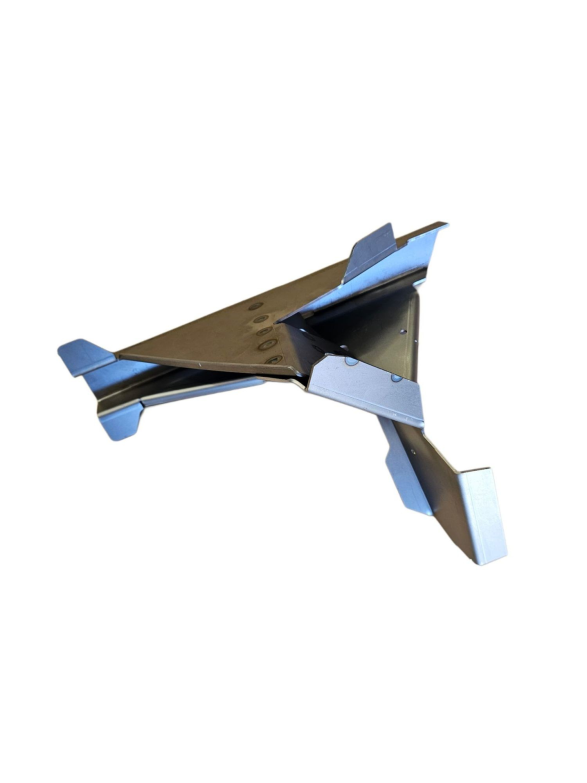

T25 Front Radius Rod Mounting Bracket - Left

Replacement left side front radius rod mounting bracket for Volkswagen Type 25 / T3 Transporter models. This bracket is welded into the front chassis leg and provides the mounting point for the front radius rod, an important suspension component responsible for maintaining correct front suspension geometry and stability.

Manufactured in the UK as an exact reproduction of the original Volkswagen part, this bracket is made from heavy duty 2.5mm steel to match the factory specification for strength and durability. Ideal for chassis repairs, accident damage restoration, or corrosion repair on ageing T3 and Type 25 vehicles.

The front radius rod helps control front suspension movement during braking, acceleration, and cornering. Corrosion or failure around the mounting bracket area can lead to excessive suspension movement, poor steering stability, knocking noises, incorrect wheel alignment, and MOT failure. Replacing damaged or rusted brackets restores structural integrity and proper suspension operation.

Designed to be welded directly into the chassis leg in the original factory location, making it suitable for both professional restoration work and long-term vehicle preservation projects.

When carrying out repairs in this area it is recommended to inspect the radius rod bushes, mounting hardware, chassis leg condition, anti-roll bar mounts, and front suspension components.

Specifications:
• Position: Left Front
• Fits Front Radius Rod Mounting Point
• Weld-In Chassis Repair Panel
• Material: 2.5mm Steel
• Manufactured in the UK
• Exact Reproduction of Original Part
• Sold individually

OEM Part Number:
• 251803261A

Applications:

Aircooled & Watercooled VW Transporter T3 / Type 25:
• VW T3 / Type 25 Bus 1980-1991
• VW T3 / Type 25 Van 1980-1991
• VW T3 / Type 25 Pickup & Platform/Chassis 1980-1991
• VW T3 / Type 25 Camper models 1980-1991

Additional Notes:
• Left side bracket only
• Welds into front chassis leg
• Suitable for suspension and chassis restoration repairs
• Designed to original factory dimensions and thickness
