Type 25 Rear Inner Trailing Arm Mount Bracket - Right

Replacement right side rear inner trailing arm mounting bracket and support plate for Volkswagen Type 25 / T3 Transporter models from 1980-1991. This structural chassis repair section forms the mounting point for the rear trailing arm assembly and is essential for maintaining correct rear suspension geometry, handling stability, and chassis strength.

Manufactured in the UK, this high quality repair section is produced as an accurate reproduction of the original Volkswagen mounting area, making it ideal for corrosion repairs, accident restoration, or full chassis rebuilds on ageing T3 and Type 25 vehicles.

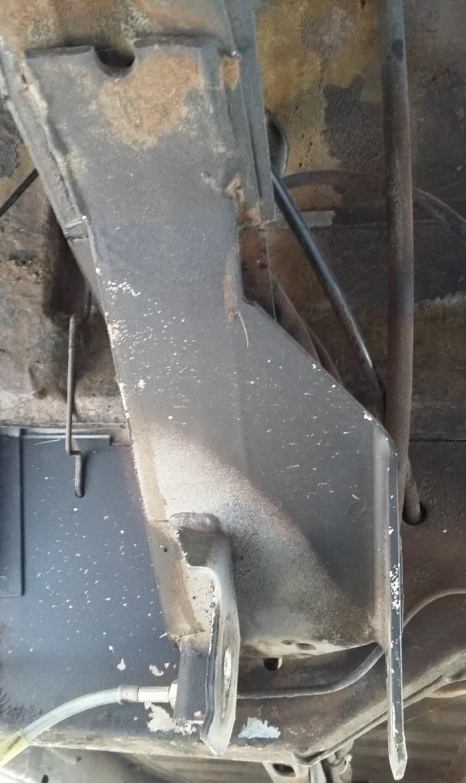

The rear trailing arm mounting area is a well-known rust point on T3 models due to moisture and road dirt collecting within the chassis structure. Corrosion or weakness around this mounting can lead to suspension movement, poor wheel alignment, knocking noises, uneven tyre wear, unstable handling, and MOT failure. Replacing the damaged mounting section restores structural integrity and proper suspension alignment.

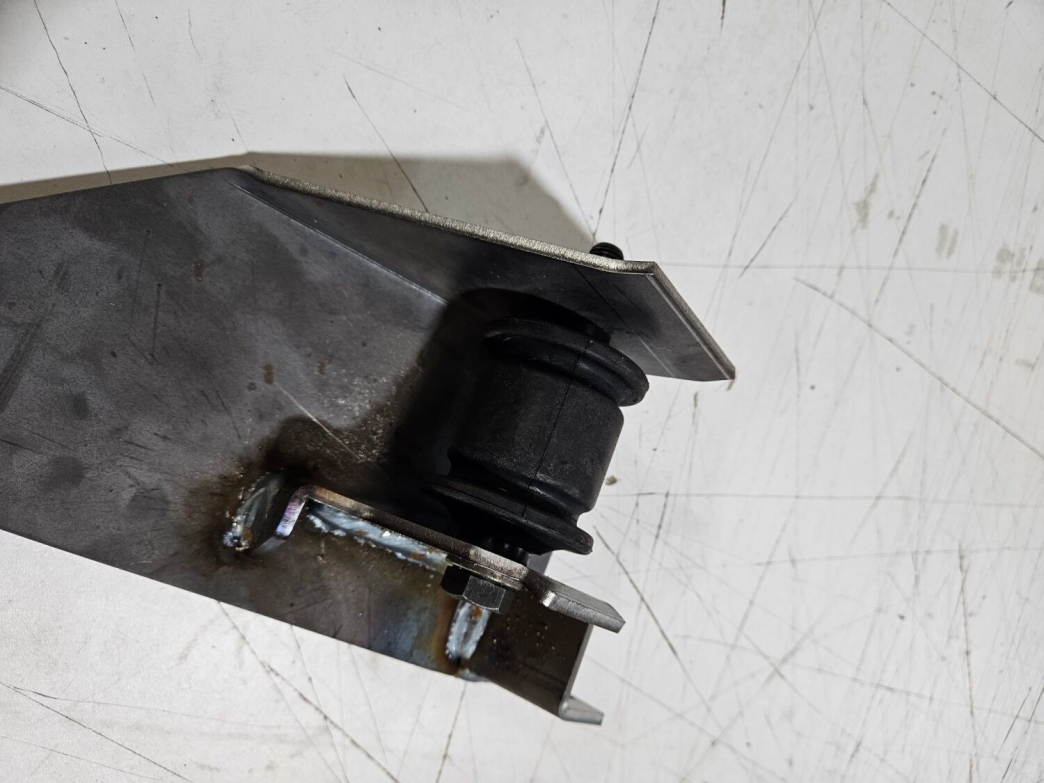

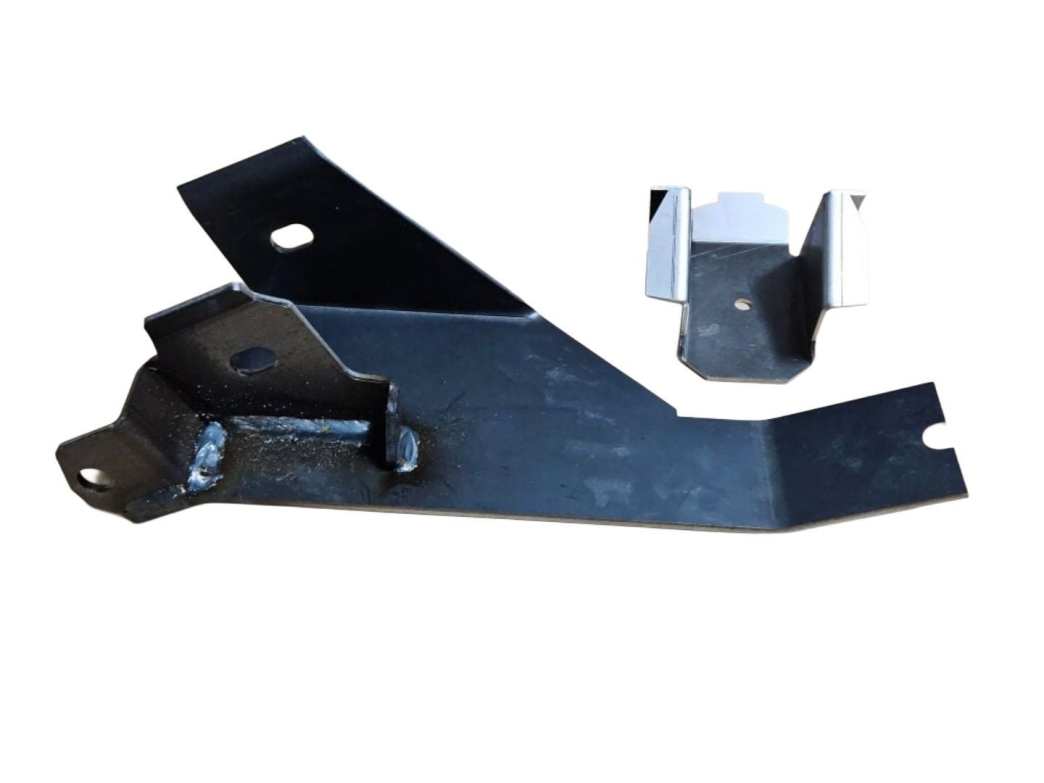

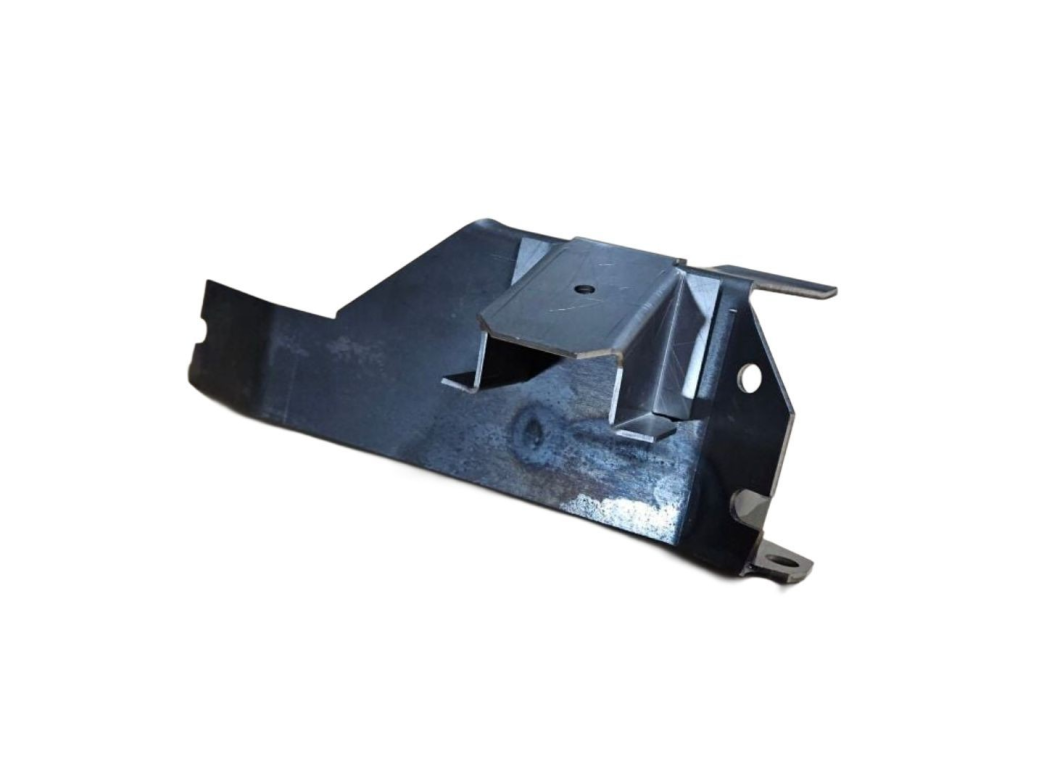

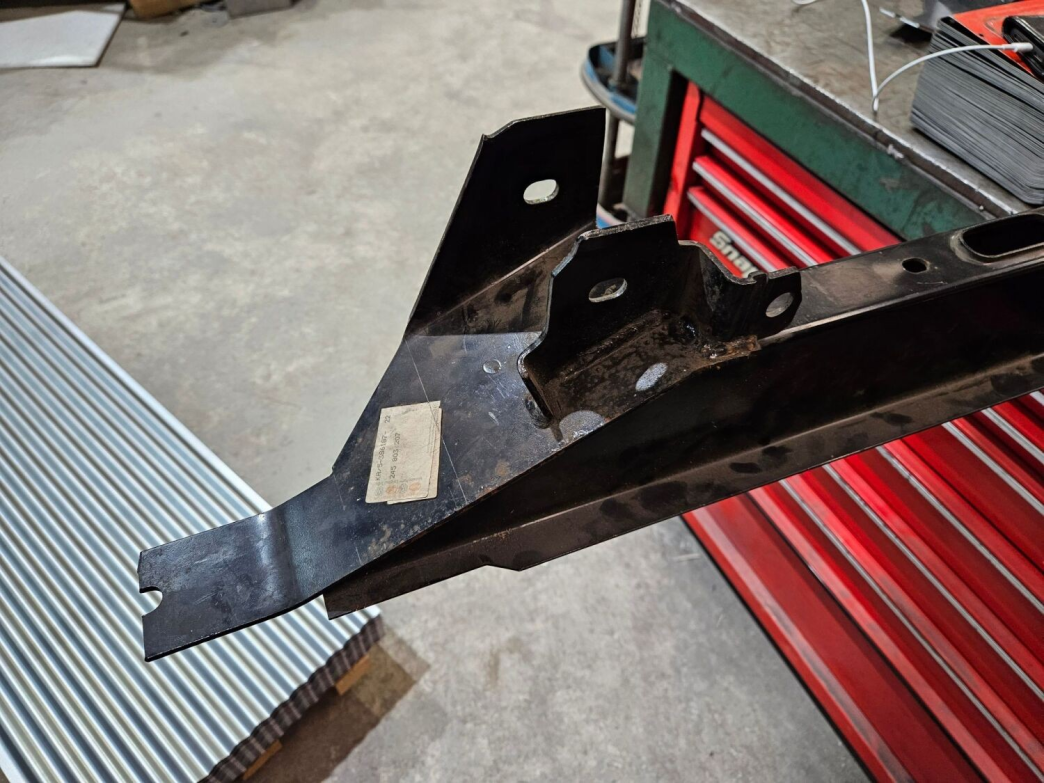

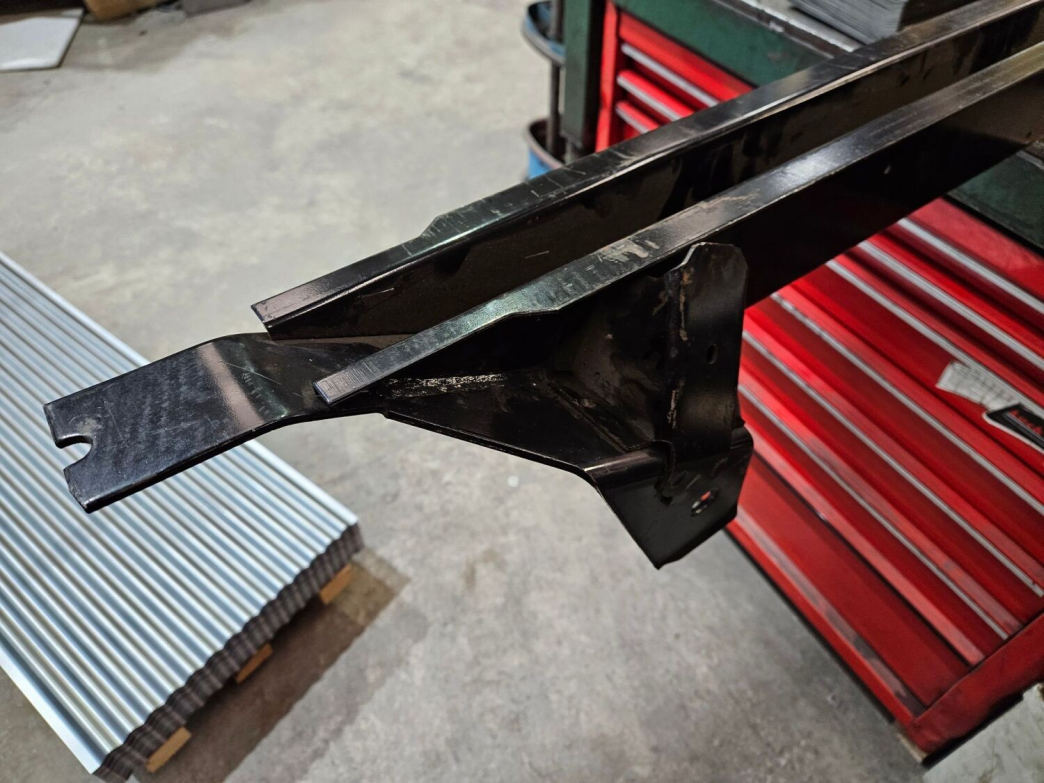

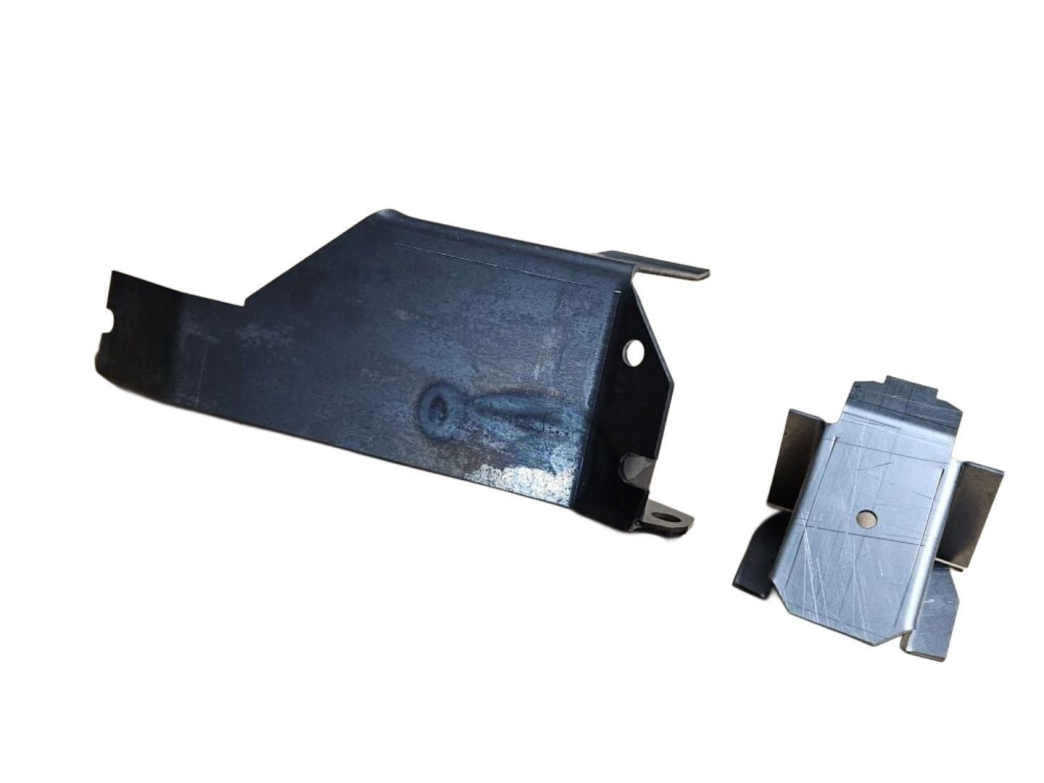

This assembly includes the rear inner trailing arm mounting bracket, reinforcement sections, and separate support plate supplied un-welded to allow accurate positioning during installation.

When repairing this section it is recommended to inspect the trailing arm bushes, mounting bolts, rear chassis rails, shock absorber mounts, spring seats, and surrounding chassis sections.

Specifications:
• Position: Right Rear
• Rear Inner Trailing Arm Mount Repair Section
• Includes Support Plate & Reinforcement Panels
• Support Plate Supplied Un-Welded
• Manufactured in the UK
• Weld-In Chassis Repair Panel
• Sold as complete assembly

Includes Part Numbers:
• 251803192
• 251803194
• 251803178A

Applications:

Aircooled & Watercooled VW Transporter T3 / Type 25:
• VW T3 / Type 25 Bus 1980-1991
• VW T3 / Type 25 Van 1980-1991
• VW T3 / Type 25 Pickup & Platform/Chassis 1980-1991
• VW T3 / Type 25 Camper models 1980-1991

Additional Notes:
• Right side mounting bracket assembly

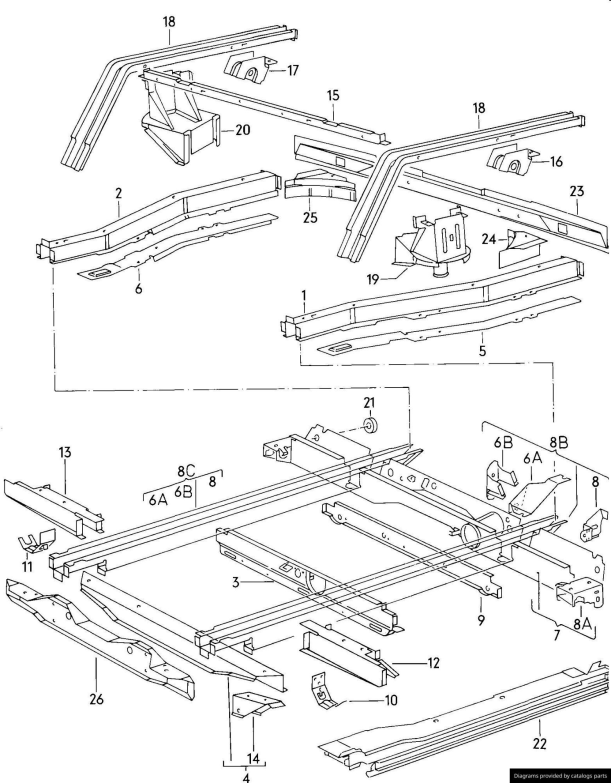

• Includes components shown as 6A, 6B and 8 in factory diagrams
• Support plate supplied separately for easier alignment during fitting
• Ideal for major chassis and suspension restoration repairs
