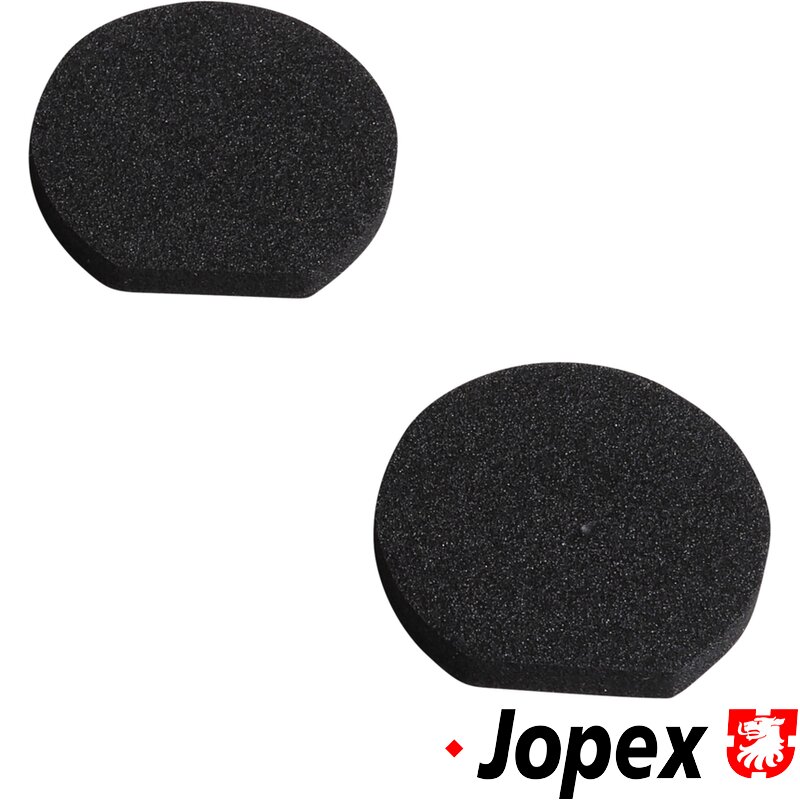

Beetle Under Bonnet Air Box Foam Gaskets
Part Number: 113819515
Replacement self-adhesive foam gaskets for the fresh air box shut-off valves fitted to standard Volkswagen Beetles from 1968 onwards.
These foam gaskets are fitted to the fresh air box flaps located beneath the front bonnet and play an important role in the operation of the Beetle`s ventilation system. Mounted to the shut-off valves inside the fresh air box, they create a seal when the ventilation controls are closed, allowing the airflow to be properly directed and controlled.
Over time, the original foam seals deteriorate, crumble or completely disappear, resulting in poor airflow control, unwanted drafts and reduced effectiveness of the fresh air ventilation system. Replacing these foam gaskets restores the correct sealing function of the air box flaps, helping the ventilation controls operate as intended and improving overall cabin comfort.
Manufactured from self-adhesive foam for easy installation, these gaskets are ideal when rebuilding or refurbishing the fresh air box assembly during a Beetle restoration.
Quantity: Sold as a pair
Features
- Self-adhesive backing
- Direct replacement for original foam seals
- Restores fresh air flap sealing
- Improves ventilation control
- Easy installation
- Ideal for fresh air box restoration
Vehicle Fitment
Aircooled Volkswagen Beetle (Standard Models – Not 1302/1303)
- 1200cc (1968-1986)
- 1300cc (1968-1975)
- 1500cc (1968-1970)
- 1600cc (1968-1986)
Not suitable for 1302 or 1303 Super Beetle models.
Fitting Notes
- Fits the shut-off valves within the fresh air box assembly.
- Located under the front bonnet.
- Clean all old foam residue from the flap surfaces before installation for best adhesion.
OEM Part Number
- VW: 113819515
This Part Fits: Beetle
Availability: Special Order Item
Item Name: Foam seal set for fresh air flap, 2 pieces
Description: Control Flap, air supply
Product Group: Cooling
Group: Air Supply
Unit of Measure: Pair
Manufacturer: BBT
Dimensions:
Width: 45mm
Height: 45mm
Depth: 13mm
Volume: 26325mm3
Weight: 0.003kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Beetle Type 1 | Type 1 std | 01/60 - 01/60 | 1,2 | Petrol | Saloon | 34 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 37 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 01/68 - 01/68 | 1,3 | Petrol | Saloon | 38 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/64 - 07/64 | 1,3 | Petrol | Convertible | 40 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 08/65 - 08/65 | 1,3 | Petrol | Saloon | 40 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 09/66 - 09/66 | 1,5 | Petrol | Saloon | 40 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 01/66 - 01/66 | 1,5 | Petrol | Convertible | 44 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 08/66 - 08/66 | 1,5 | Petrol | Saloon | 44 | - | Construction Year from 196708 |
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/69 - 07/69 | 1,6 | Petrol | Convertible | 48 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | -
|
| VW Classic | Beetle Type 1 | Type 1 std | 08/75 - 08/75 | 1,6 | Petrol | Saloon | 50 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| VW | 113819515 |
