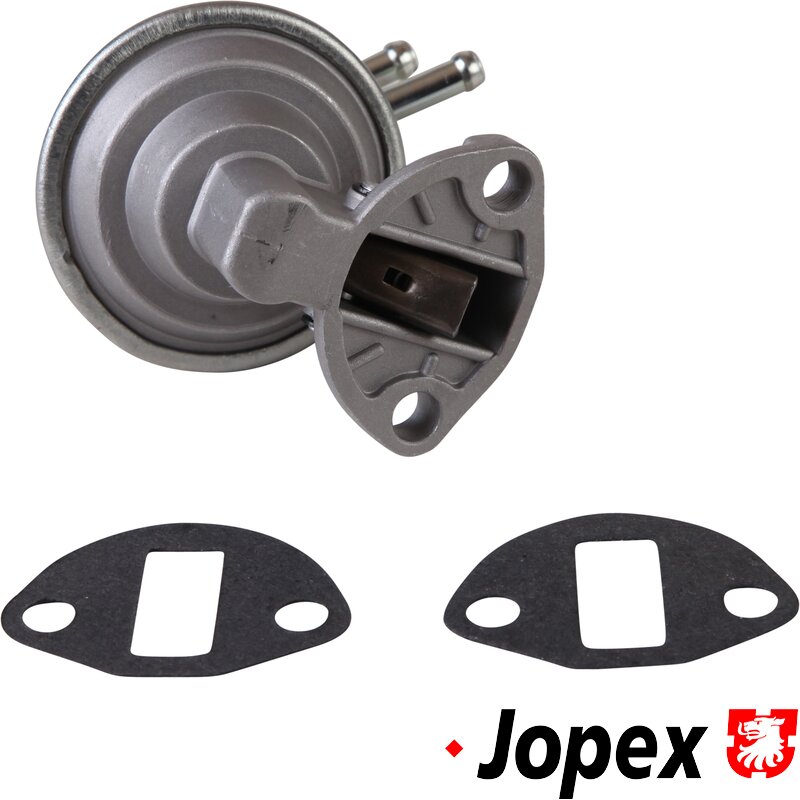

Type 1 Fuel Pump (Alternator Models)

This standard “tilted” style mechanical fuel pump is designed for all Volkswagen aircooled engines from 1200cc to 1600cc fitted with alternators. The tilted body design provides the necessary clearance beneath the alternator housing while maintaining correct alignment with the fuel pump pushrod and carburettor feed line.

Suitable for all post-1966 style engines, this pump delivers reliable fuel flow from the tank to the carburettor using engine-driven mechanical action. It features a traditional lever-actuated diaphragm system and is compatible with standard single or twin carburettor setups.

This pump requires a 100mm long pushrod for correct operation and will not function properly with the longer 108mm type used on dynamo engines. However, it can be used on engines equipped with a dynamo if the 100mm pushrod is fitted.

Ideal for restorations or maintenance of classic aircooled Volkswagens, this pump offers consistent fuel delivery, factory-style performance, and dependable build quality.

Features:

• “Tilted” mechanical fuel pump designed for alternator-equipped engines

• Suitable for 1200cc, 1300cc, 1500cc, and 1600cc aircooled VW engines

• Can be used with dynamo engines when fitted with 100mm pushrod

• Reliable diaphragm-type design for consistent fuel delivery

• Supplied without gaskets (available separately)

• Direct replacement for original VW mechanical fuel pump

Fitment Information:

• Engine Types: 1200cc – 1600cc aircooled VW engines

• Not Suitable For: 25hp or 30hp engines (early pre-1960 models)

• Fitting Position: Engine block (mechanical fuel pump stand)

• Compatible With: Alternator-equipped engines (tilted type)

• Pushrod Requirement: 100mm only

• Supplied Without: Gaskets

Applications:

• VW Beetle: 1966 – 1979 (1200–1600cc)

• VW Karmann Ghia: 1966 – 1974

• VW Type 2 Baywindow: 1968 – 1979

• VW Type 3: 1966 – 1973

• VW Buggy & Baja: All 1200–1600cc engines

Quality:
Good quality reproduction mechanical pump built to OEM specification for reliable performance and durability.
