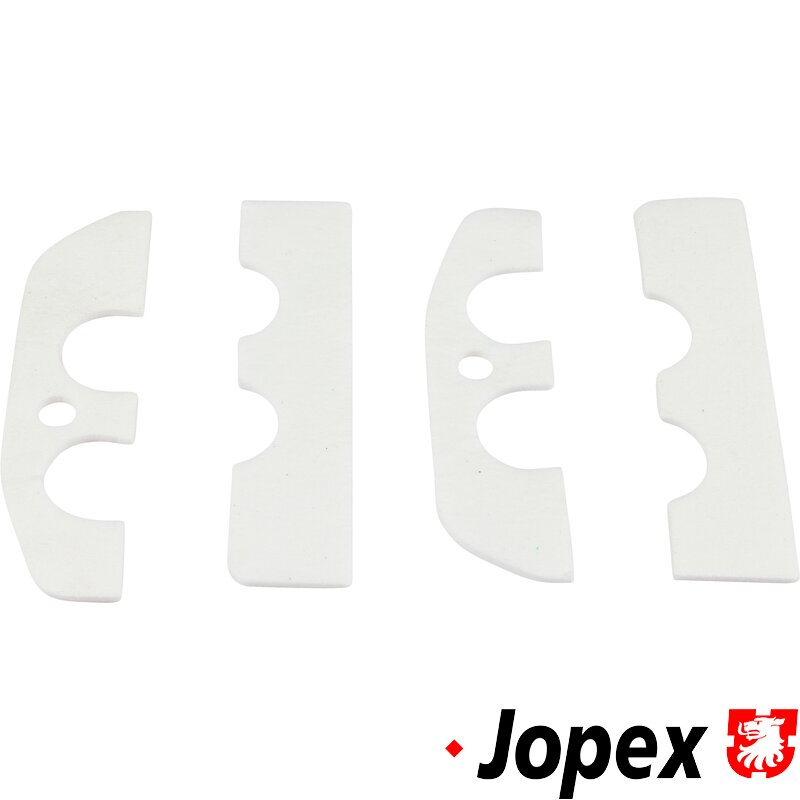

Manifold Pre Heat Pipe Installation Kit - Type 1 Engines (Twin Hotspot)
Part Number: 113119597E
Replacement heat riser insulation kit for aircooled Volkswagen Type 1 engines fitted with the dual pre-heater inlet manifold system.
This insulation kit is designed specifically for Volkswagen engines equipped with the later dual pre-heater inlet manifold, as fitted to 1300cc AR and 1600cc AS engine code vehicles. These engines use two exhaust pre-heater tubes to provide improved manifold heating, reducing the risk of carburettor icing and helping maintain smooth running during cold or damp weather.
The dual pre-heater arrangement provides more even heating of the inlet manifold than the earlier single heat riser design, improving fuel atomisation and reducing the likelihood of engine stalling caused by a frozen intake manifold.
The insulation fits between the two halves of the dual heat riser clamp plates, sealing the openings between the pre-heater tubes, cylinder cooling tins and rear engine tin. Missing or damaged insulation can allow unwanted hot air leakage, reducing the efficiency of the cooling and manifold heating systems.
Ideal for engine rebuilds and concours restorations, this kit restores the original factory sealing arrangement and ensures the dual pre-heater clamp plates perform correctly.
Quantity: 1 Insulation Kit
Specifications
- For Dual Pre-Heater Inlet Manifolds
- Fits Between Clamp Plate Halves
- Restores Factory Sealing
- Improves Cooling Tin Sealing
- Correct for AR & AS Engine Applications
Vehicle Fitment
Aircooled Volkswagen Beetle (Type 1)
1300cc AR Engine
- Standard Beetle Saloon (1970-1973)
- 1303 Super Beetle Saloon (1972-1975)
- 1303 Cabriolet (1970-1981)
1600cc AS Engine
- Standard Beetle Saloon (1970-1973 & 1975-1977)
- 1303 Super Beetle Saloon (1972-1979)
- 1303 Cabriolet (1970-1979)
Engine Compatibility
- 1300cc AR Engine Code
- 1600cc AS Engine Code
Fitting Notes
- For engines fitted with dual pre-heater inlet manifolds only.
- Fits between the two halves of the dual heat riser clamp plates.
- Used to seal the openings between the intake manifold heat risers, cylinder cooling tins and rear engine tin.
- Not suitable for earlier single heat riser inlet manifold systems.
OEM Part Numbers
- VW: 113119597E
- VW: 113119599E
This Part Fits: Beetle
Availability: Special Order
Item Name: Heat riser insulation kit. For models with double preheating
Description: Engine Cover
Product Group: Engine
Group: Body
Unit of Measure: 4
Manufacturer: JOPEX
Dimensions:
Width: 60mm
Height: 110mm
Depth: 10mm
Volume: 66000mm3
Weight: 0.055kg
| Manufacturer | Model Series | Model Version | Year | Engine Size | Fuel Type | Body Type | BHP | Engine Code | Application Info |
|---|---|---|---|---|---|---|---|---|---|
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,3 | Petrol | Convertible | 44 | - | Engine Code AR |
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,3 | Petrol | Saloon | 44 | - | Engine Code AR |
| VW Classic | Beetle Type 1 | 1303 | 07/70 - 07/70 | 1,6 | Petrol | Convertible | 50 | - | Engine Code AS |
| VW Classic | Beetle Type 1 | 1303 | 08/72 - 08/72 | 1,6 | Petrol | Saloon | 50 | - | Engine Code AS |
| VW Classic | Beetle Type 1 | Type 1 std | 01/70 - 01/70 | 1,3 | Petrol | Saloon | 44 | - | Engine Code AR |
| VW Classic | Beetle Type 1 | Type 1 std | 07/70 - 07/70 | 1,6 | Petrol | Saloon | 50 | - | Engine Code AS |
| VW Classic | Beetle Type 1 | Type 1 std | 08/75 - 08/75 | 1,6 | Petrol | Saloon | 50 | - | -
|
| Manufacturer | Ref. No. |
|---|---|
| VW | 113119597E |
| VW | 113119599E |
| JPGROUP | AC119589 |
| VAG | 113119597E |
| VAG | 113119599E |
