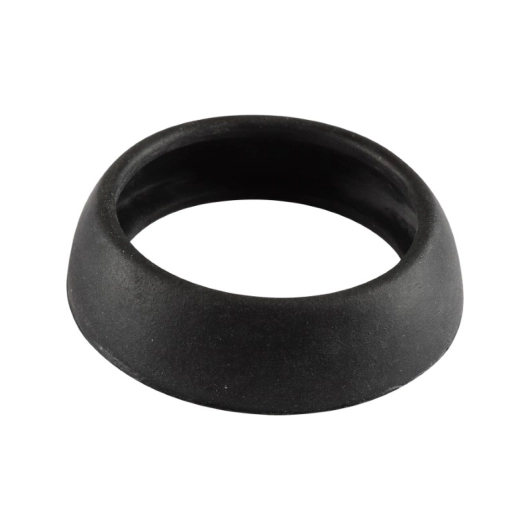

50mm Air Hose Seal - Thick Style

Genuine Volkswagen thick style rubber seal for the fresh air hose where it passes through the rear engine tinware above the exhaust. This seal is used on 1200cc to 1600cc based aircooled Type 1 engines and helps close the gap around the heater air hose where it exits the fan shroud and passes through the tinware.

A missing, split or perished seal can allow hot air from around the exhaust to be drawn back into the engine bay, reducing cooling efficiency and increasing engine temperatures. Replacing these seals helps maintain correct airflow through the cooling system and keeps the engine bay properly sealed.

This is the thicker style seal and is a genuine Volkswagen part. It can be used as an alternative to the thin style seal, part number 113119585B, depending on the tinware and hose setup fitted.

Specifications

• Style: Thick rubber seal
• Position: Around air hose at rear engine tinware
• Engine Fitment: 1200cc-1600cc aircooled Type 1 based engines
• Quality: Genuine Volkswagen
• Quantity: Sold each
• Required Per Engine: 2

Vehicle Fitment

Aircooled VW

• VW Beetle 1960-1979, 1200cc-1600cc Type 1 engines
• VW Karmann Ghia 1960-1974, 1200cc-1600cc Type 1 engines
• VW Splitscreen Bus 1960-1967, 1200cc-1600cc Type 1 engines
• VW Baywindow Bus 1968-1979, 1200cc-1600cc Type 1 engines
• VW Type 181 Trekker 1968-1983, 1200cc-1600cc Type 1 engines
• VW Buggy and Baja models using 1200cc-1600cc Type 1 engines

Common Fault Symptoms

• Missing or perished air hose seal
• Hot air entering the engine bay
• Poor engine cooling efficiency
• Loose heater air hose at tinware
• Gaps around rear engine tinware
• Increased engine running temperature

Additional Parts Recommended

• Fan shroud fresh air hoses
• Rear engine tinware
• Thin style air hose seals, 113119585B
• Heater box hose clips
• Engine bay seal
• Cooling tinware screws
